AIM
ONE

SRP* 3999 DKK

ArtNo. 140120

lightpurple´n´chrome

Comparison

ENJOY
THE RIDE

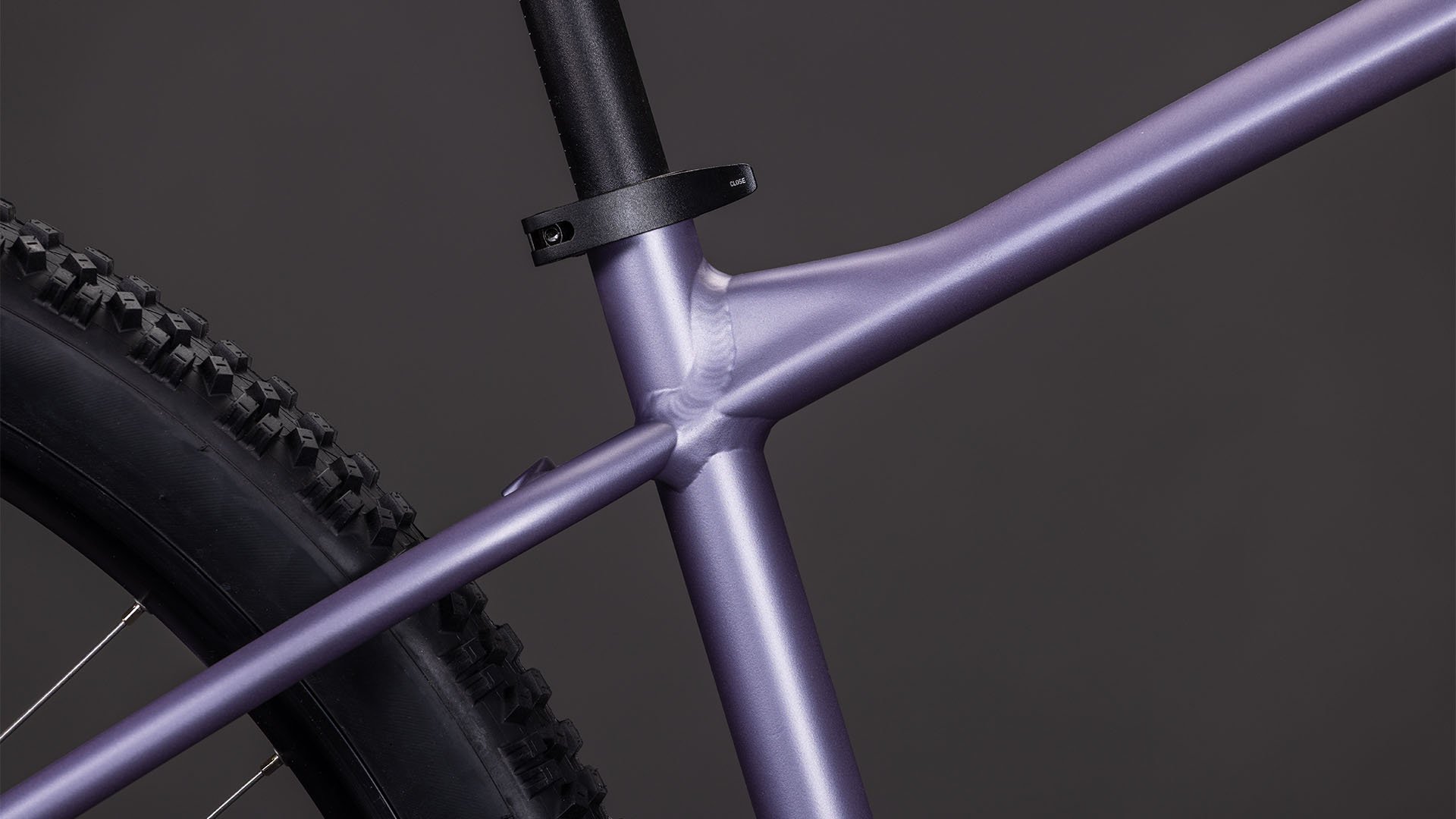

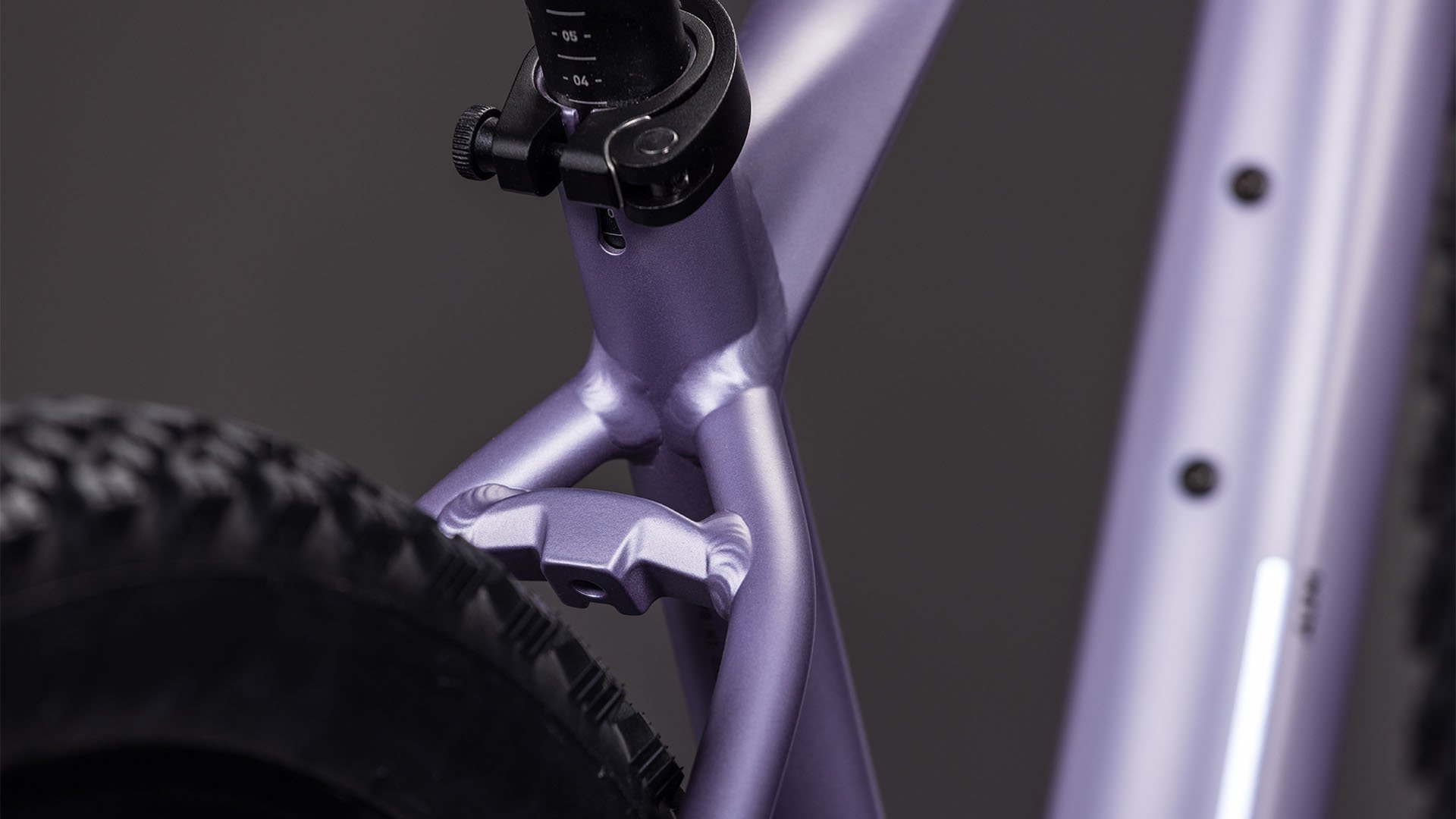

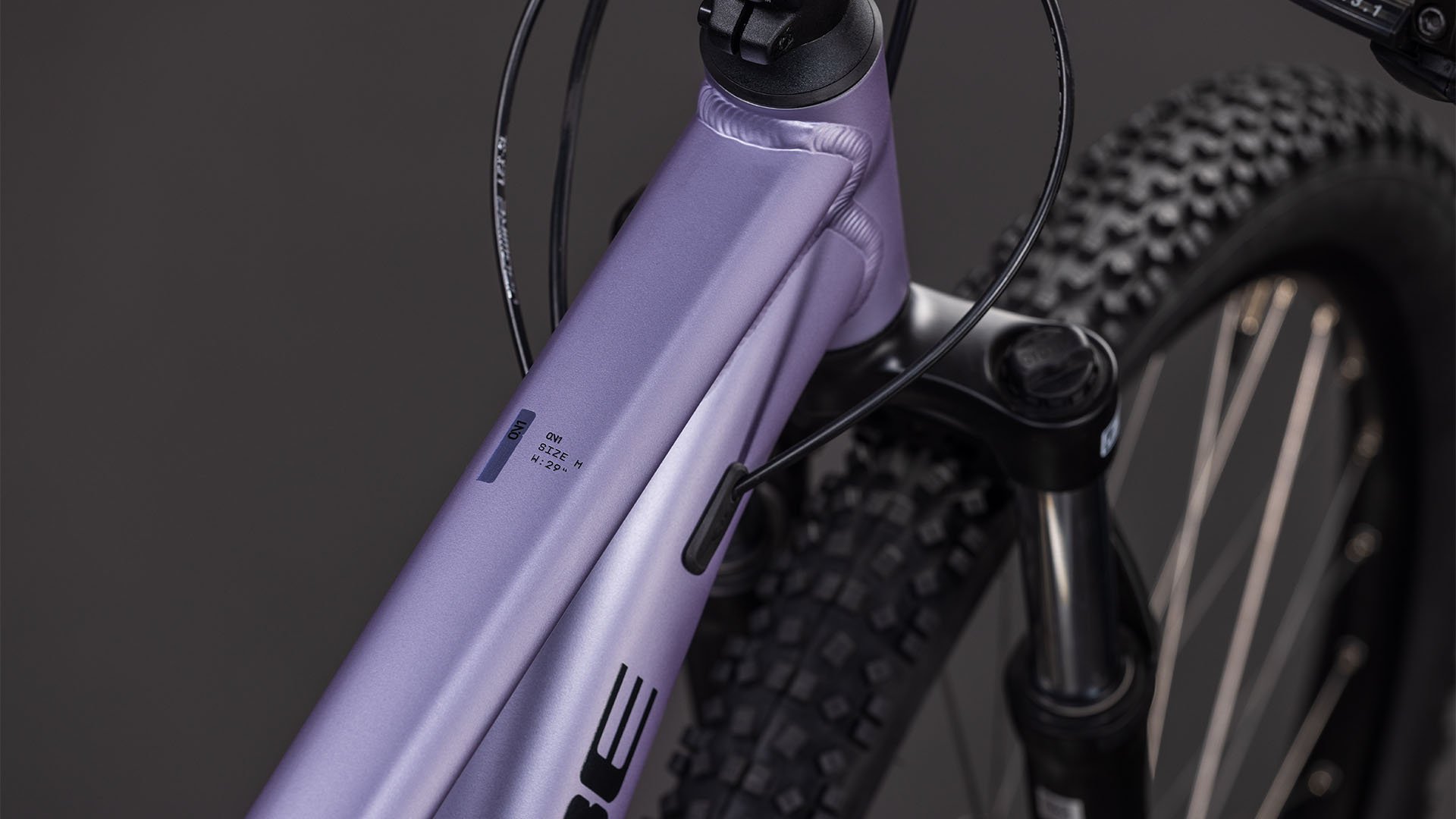

Beauty is more than skin deep: the Aim's sleek looks are thanks to its Smooth Welded head tube and seat tube junctions, flattered by Internal Cable Routing to reduce clutter. It incorporates a threaded bottom bracket and a flat disc mount that integrates seamlessly with our kickstand mount, plus integrated mounting points for ACID mudguards and carrier. Carefully thought-out geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our Size Split system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly.

Frame Material

Aluminium Lite

Sizes

Size Split

A great bicycle opens your horizons, because if you can ride anywhere the world is your oyster. The Aim ONE's suspension fork, grippy tyres and dependable disc brakes give you the comfort and control to explore wherever you like. For work, for play, for anyone.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

100
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	XS	S	M	L	XL
Seat tube	340	370	420	470	515
Top Tube Horizontal	555	575	595	615	635
Seat angle	74°	73.5°	73.5°	73.5°	73.5°
Head tube angle	68.5°	68.5°	68.5°	68.5°	68.5°
Chainstays	427	427	450	450	450
Head tube	108	111	111	122	142
Wheelbase	1068	1082	1125	1146	1168
BB-Height to Hub	52	52	65	65	65
Protrusion height - 80mm	707	720	759	792	824
Reach	384	398	409	426	441
Stack	595	598	627	637	656

Ergonomics

	XS	S	M	L	XL
Stem length	50	50	60	60	70
Angle stem	6°	6°	6°	6°	6°
Handlebar width	680	680	680	680	680
Crank length	170	170	170	170	170
Length seat post	350	350	400	400	400
Diameter seatpost	27.2	27.2	27.2	27.2	27.2
Diameter tire maximum	708	708	747	747	747
Width tire maximum	60	60	60	60	60

All values are given in millimetres or degrees.

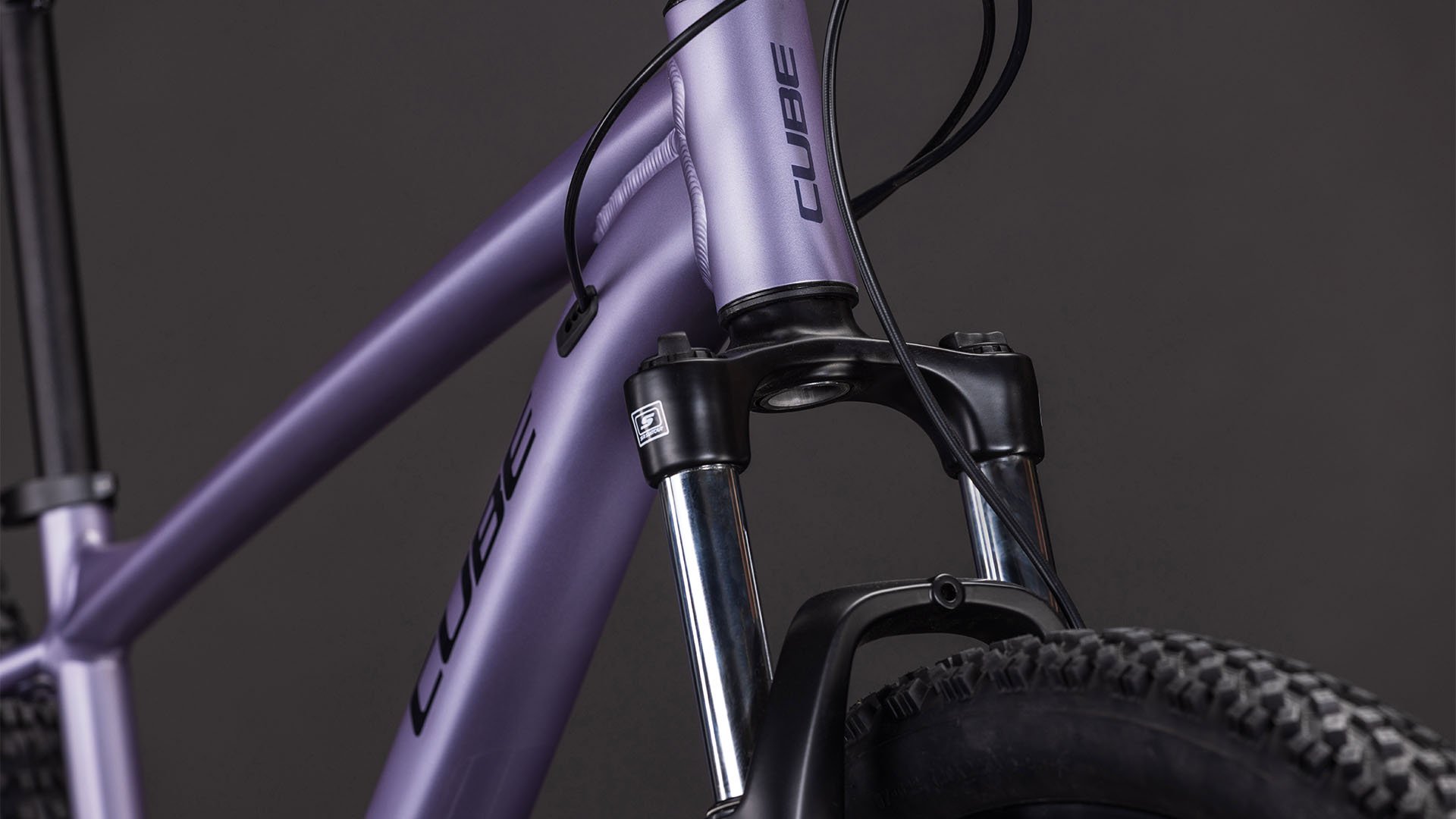

Your bike should be an extension of you, so that you can just enjoy the ride. That's why, with the Aim ONE, we fitted a 100mm suspension fork and grippy 2.25in tyres. Together, they help keep you comfortable and in control, no matter what surface you're riding on. Shimano's 2x8-speed gears give you the range you need at the push of a button, and powerful Shimano hydraulic disc brakes bring you safely to a stop no matter what the weather's doing. And Size Split, with its huge range of sizes, means every rider can find their perfect Aim.
