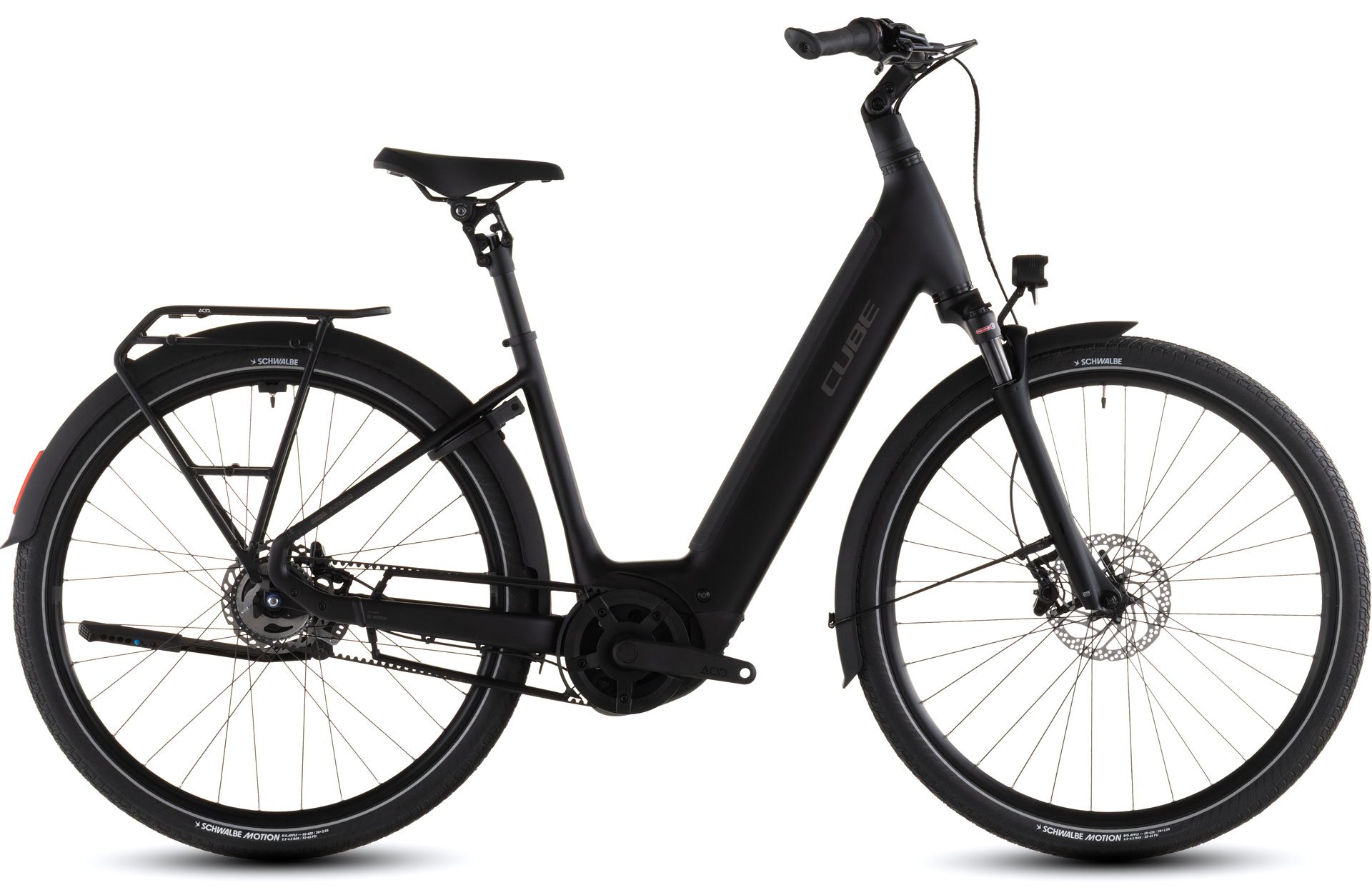

SUPREME RT HYBRID DELUXE
EX 600

ArtNo. 114450

black´n´chrome

Comparison

FOR WORK.
FOR SHOPPING.
FOR FUN.

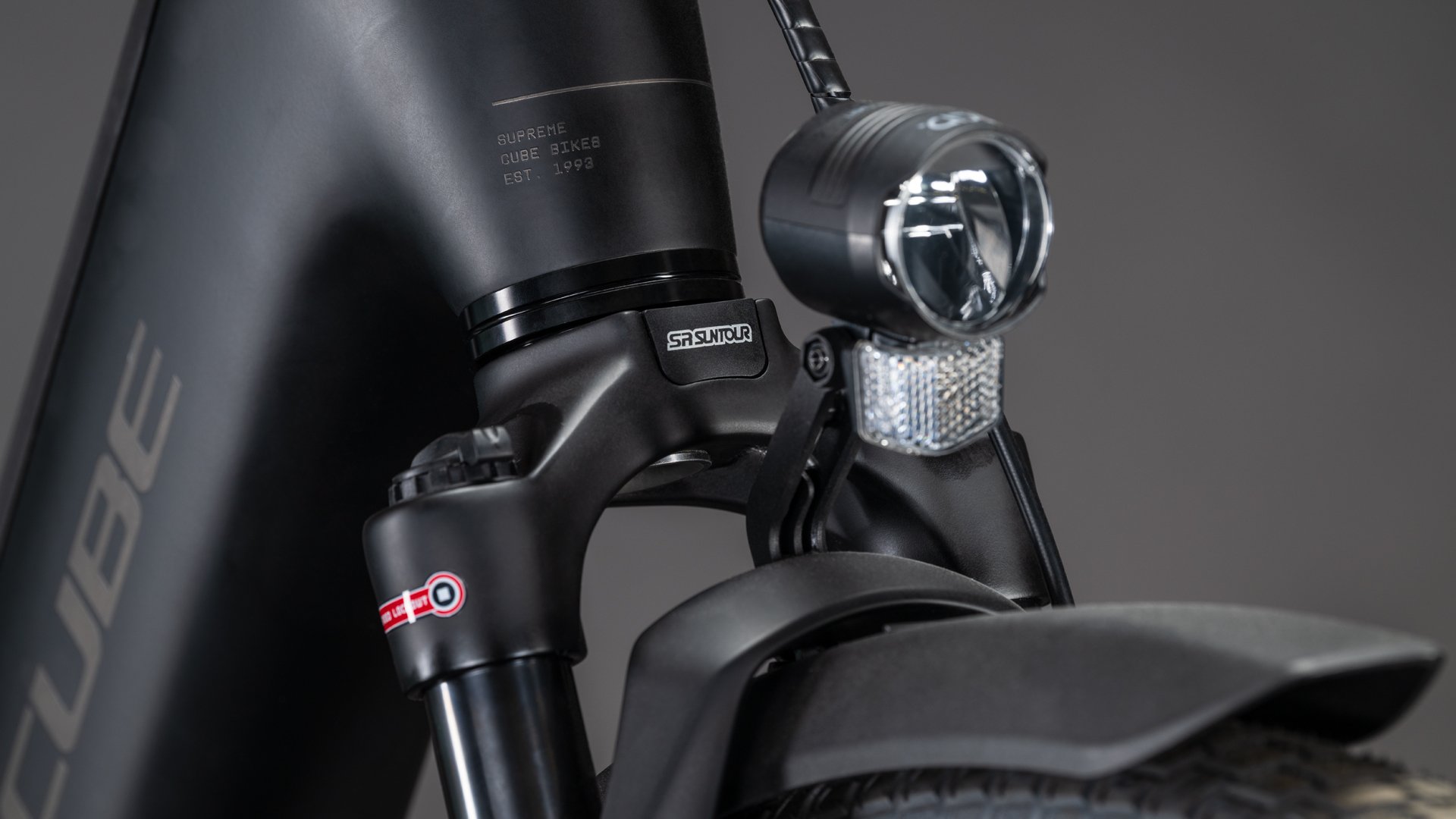

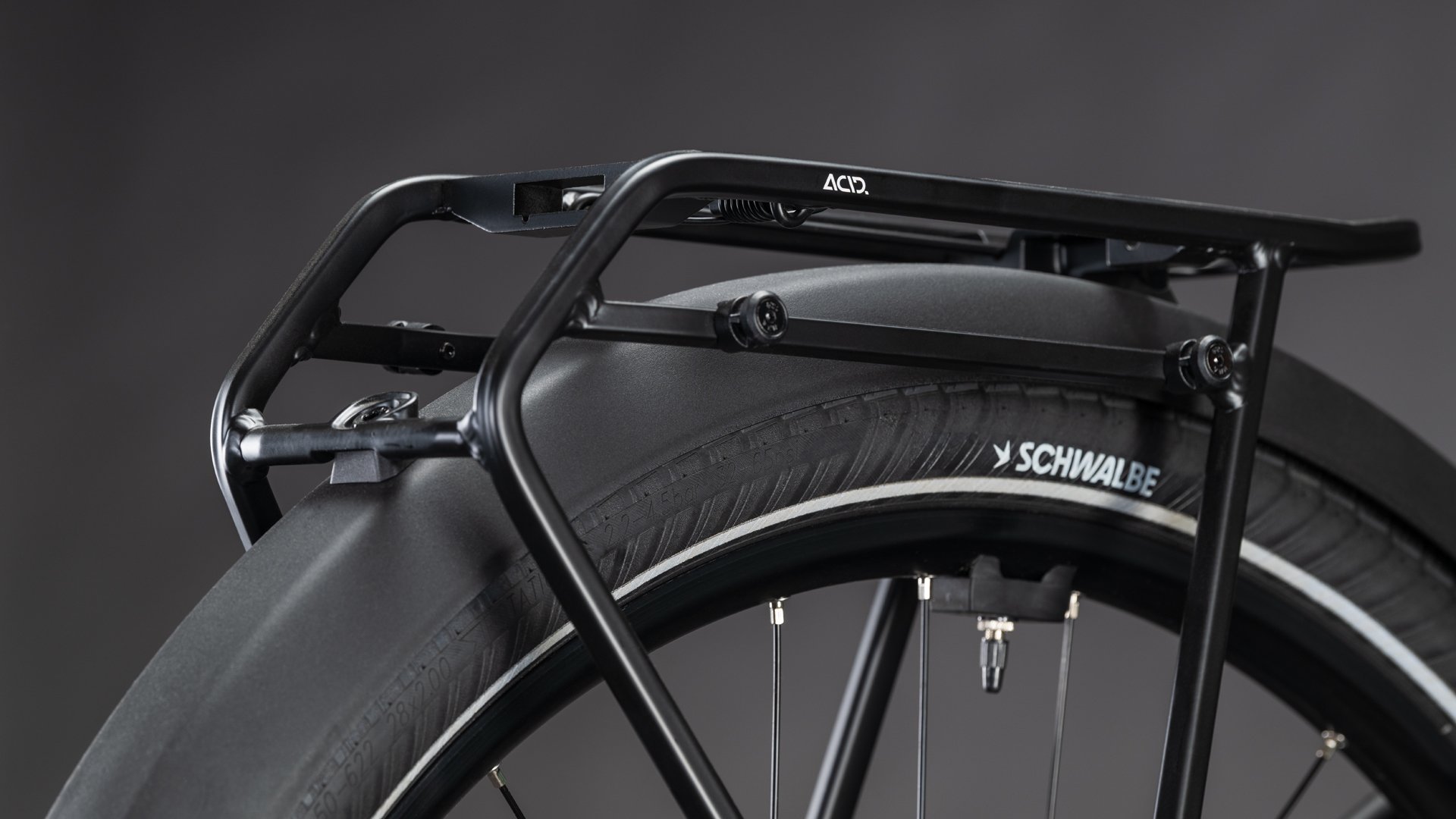

It's the detail you can't see that makes the Supreme Hybrid frame so good at its job. For example, the 600Wh Bosch PowerTube battery is stowed neatly inside the down tube, while Smooth Welding complements the frame's clean, almost organic lines. The Performance Line motor delivers smooth pedal assistance up to 75 Nm, making light work of any journey. Integrated Cable Routing and X-Connect keep wires and cables out of sight and out of harm's way. There's a wide range of sizes from 42cm to 58cm, so everyone should be able to find their ideal fit. The Semi-Integrated Carrier 2.0 is equal parts neat and sturdy, giving you a solid platform on which to carry... well, whatever you need. And we added mudguards, a full lighting system and a kickstand, so you really are all set.

Frame Material

Aluminium Superlite

Battery

600Wh

Sizes

Size Split

There are times when more really is more. The Supreme RT Hybrid Deluxe EX's addition of a coaster brake adds convenience and safety to our comfortable and versatile urban hybrid bicycle. With practical accessories, Bosch power and easy handling, it's all you need for city riding.

More Information

Bike category of use: 1

You can find more information about Bike Classification at the following link.

More Information

110
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	42 cm	46 cm	50 cm	54 cm	58 cm
Seat tube	380	420	460	510	560
Top Tube Horizontal	600	593	605	617	629
Seat angle	73°	72.3°	72.3°	72.3°	72.3°
Head tube angle	68°	69°	69°	69°	69°
Chainstays	465	499	499	499	499
Head tube	197	164	179	194	214
Wheelbase	1151	1148	1161	1174	1188
BB-Height to Hub	44	75	75	75	75
Reach	408	383	391	399	405
Stack	621	655	669	683	702

Ergonomics

	42 cm	46 cm	50 cm	54 cm	58 cm
Stem length	65	65	80	80	80
Handlebar width	660	660	660	660	660
Crank length	160	165	165	165	165
Length seat post	350	350	350	350	350
Diameter seatpost	31.6	31.6	31.6	31.6	31.6
Max. insertion depth seat post	180	180	210	235	285
Diameter tire maximum	669	736	736	736	736
Width tire maximum	50	50	50	50	50

All values are given in millimetres or degrees.

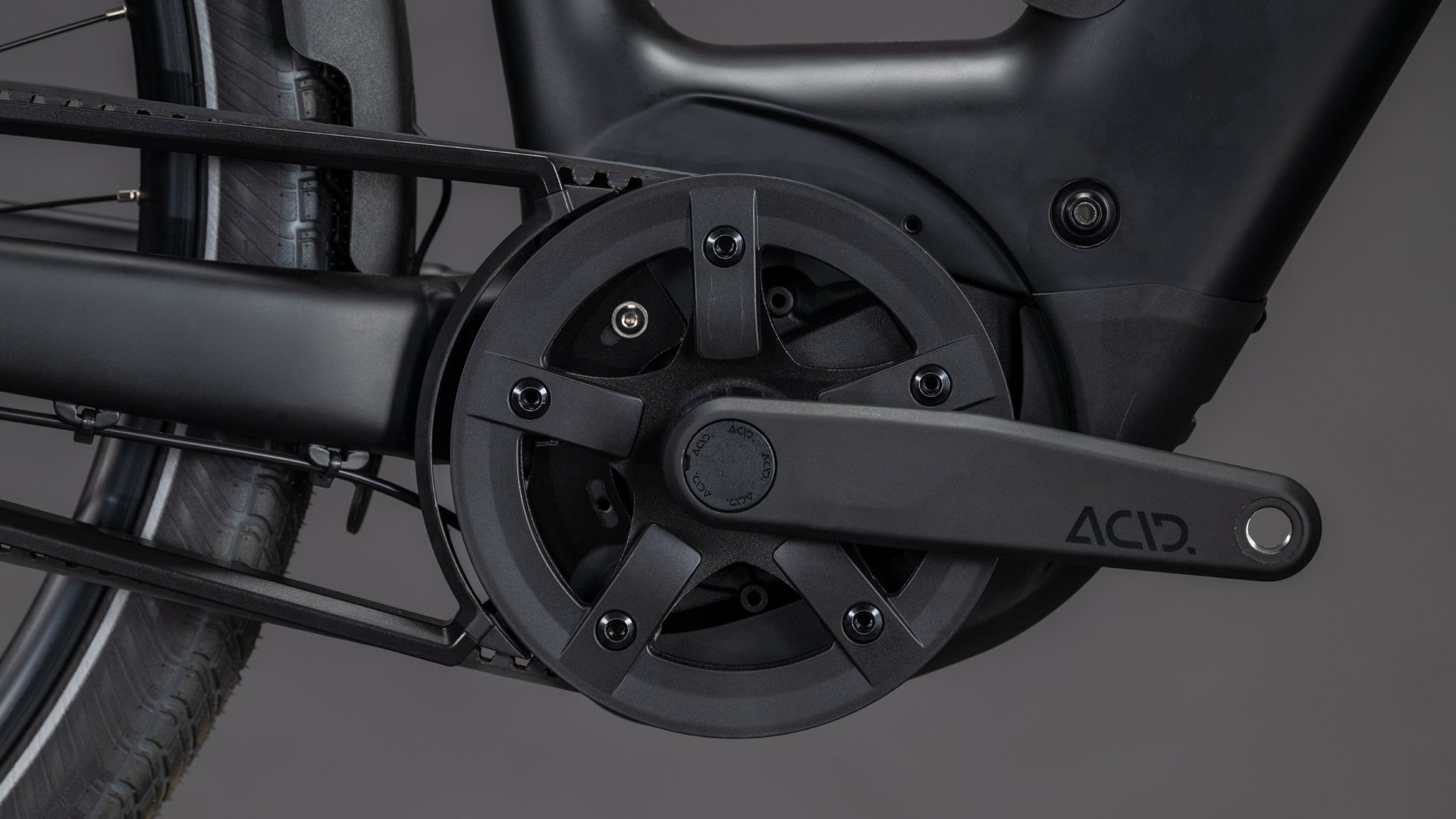

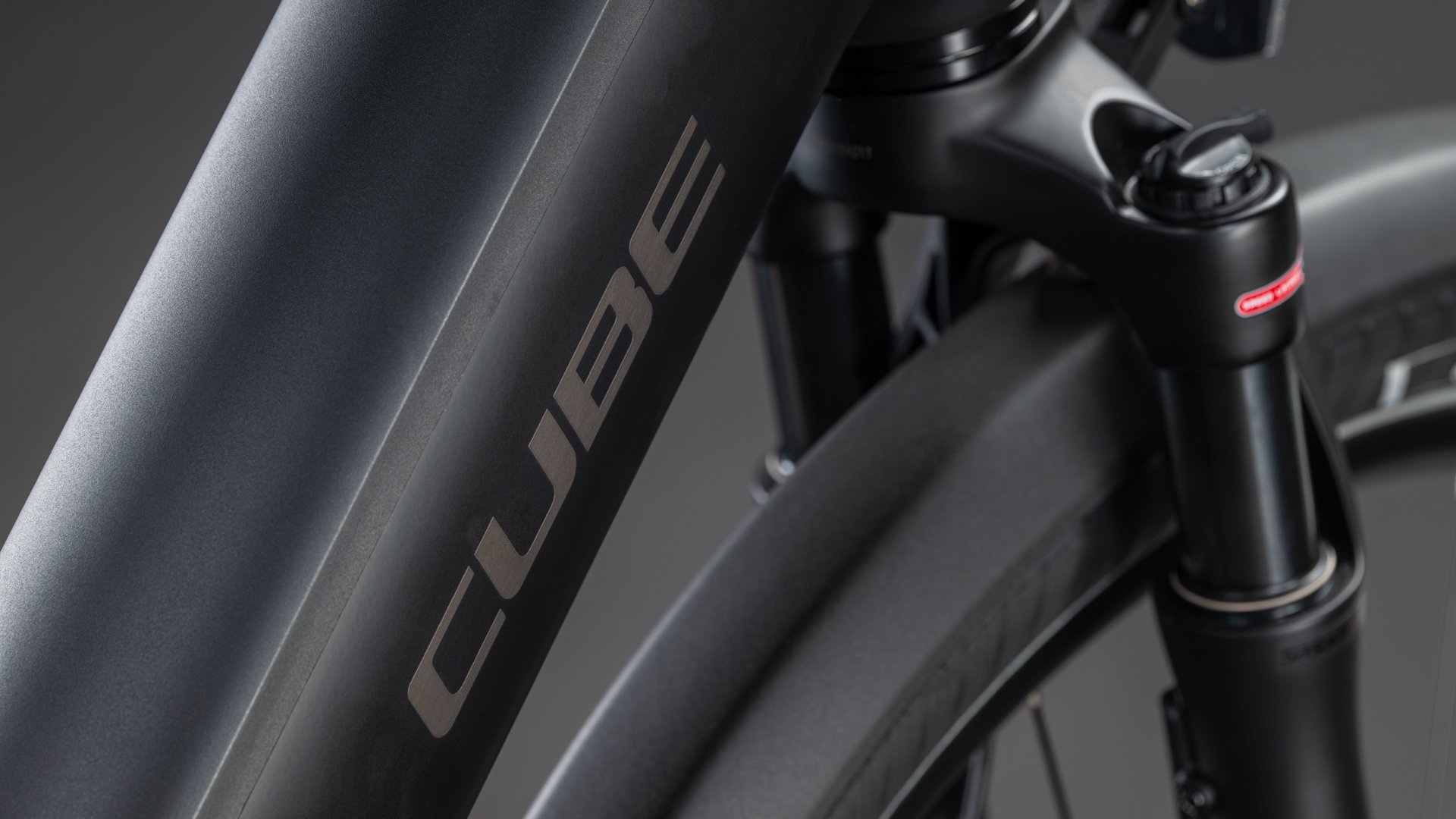

CUBE design is all about innovation, form and function – so you won't ever see anything unnecessary on our bikes. The Supreme RT Hybrid Deluxe EX's coaster brake is in addition to its powerful hydraulic disc brakes, because we think the convenience and immediacy of a pedal-activated brake can contribute to safety. The clean, quiet and low-maintenance Gates belt drive is another easy-to-live-with feature, as are the mudguards, lighting set, kickstand and Semi Integrated Carrier 2.0. Fast-rolling and grippy Schwalbe 50mm tyres are also part of the package. There's an air-sprung suspension fork, parallelogram suspension seatpost and adjustable stem for added comfort, and the 5-speed Shimano hub gears work seamlessly with the Bosch Performance drive and 600Wh battery to get you there and back, every time.
