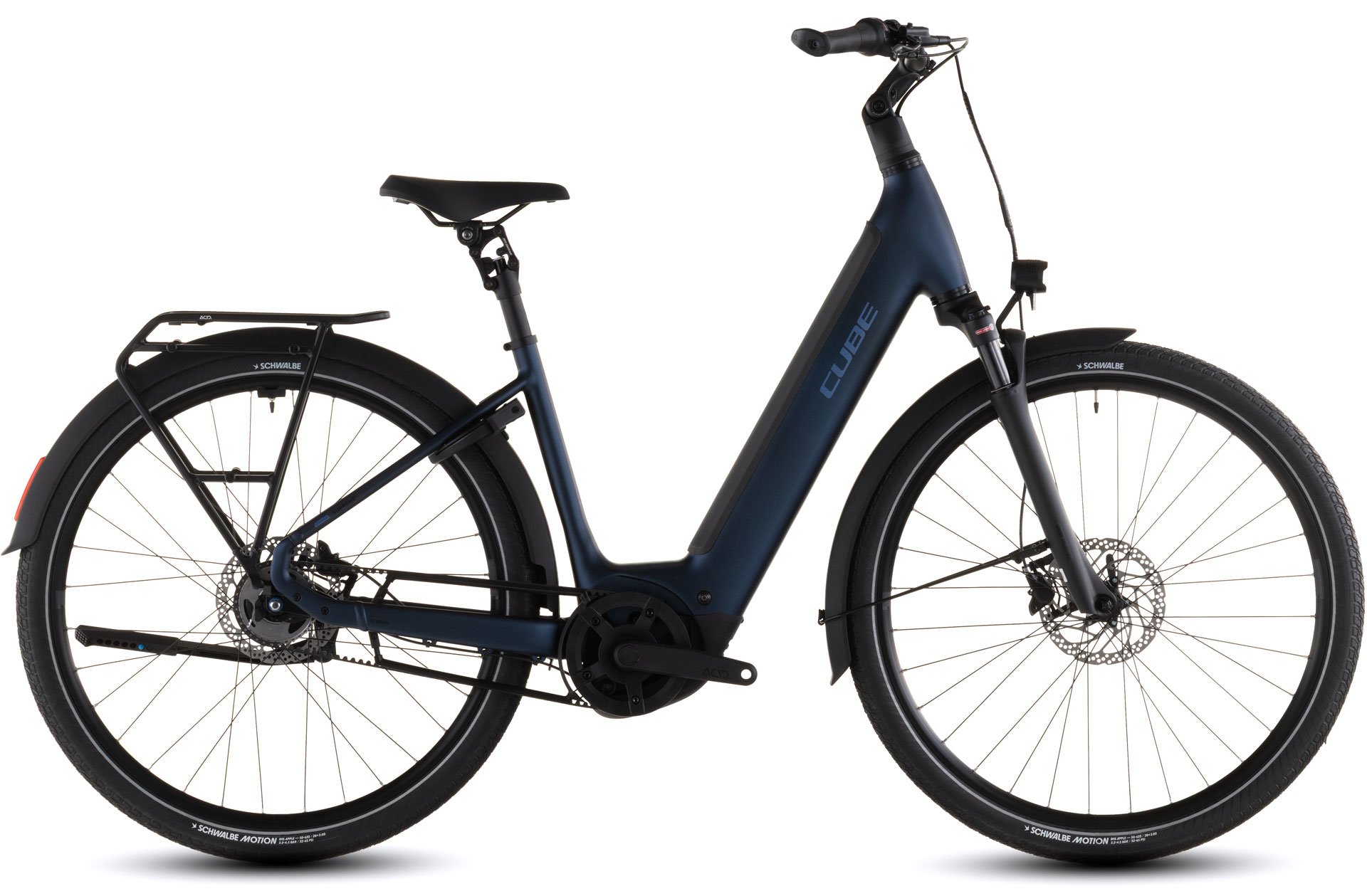

SUPREME HYBRID DELUXE
ONE 600

ArtNo. 114400

indigoblue´n´switch

Comparison

FOR WORK.
FOR SHOPPING.
FOR FUN.

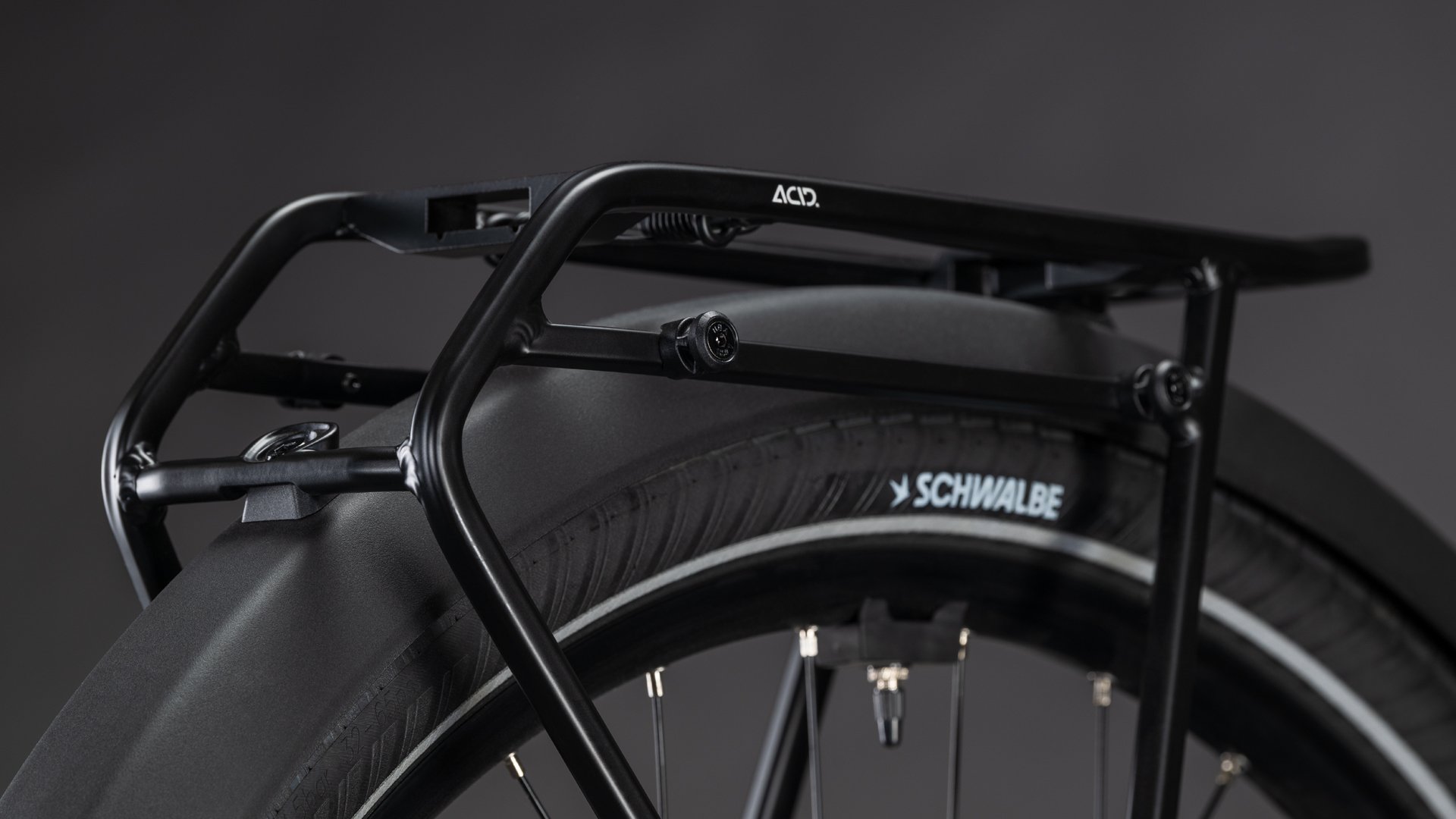

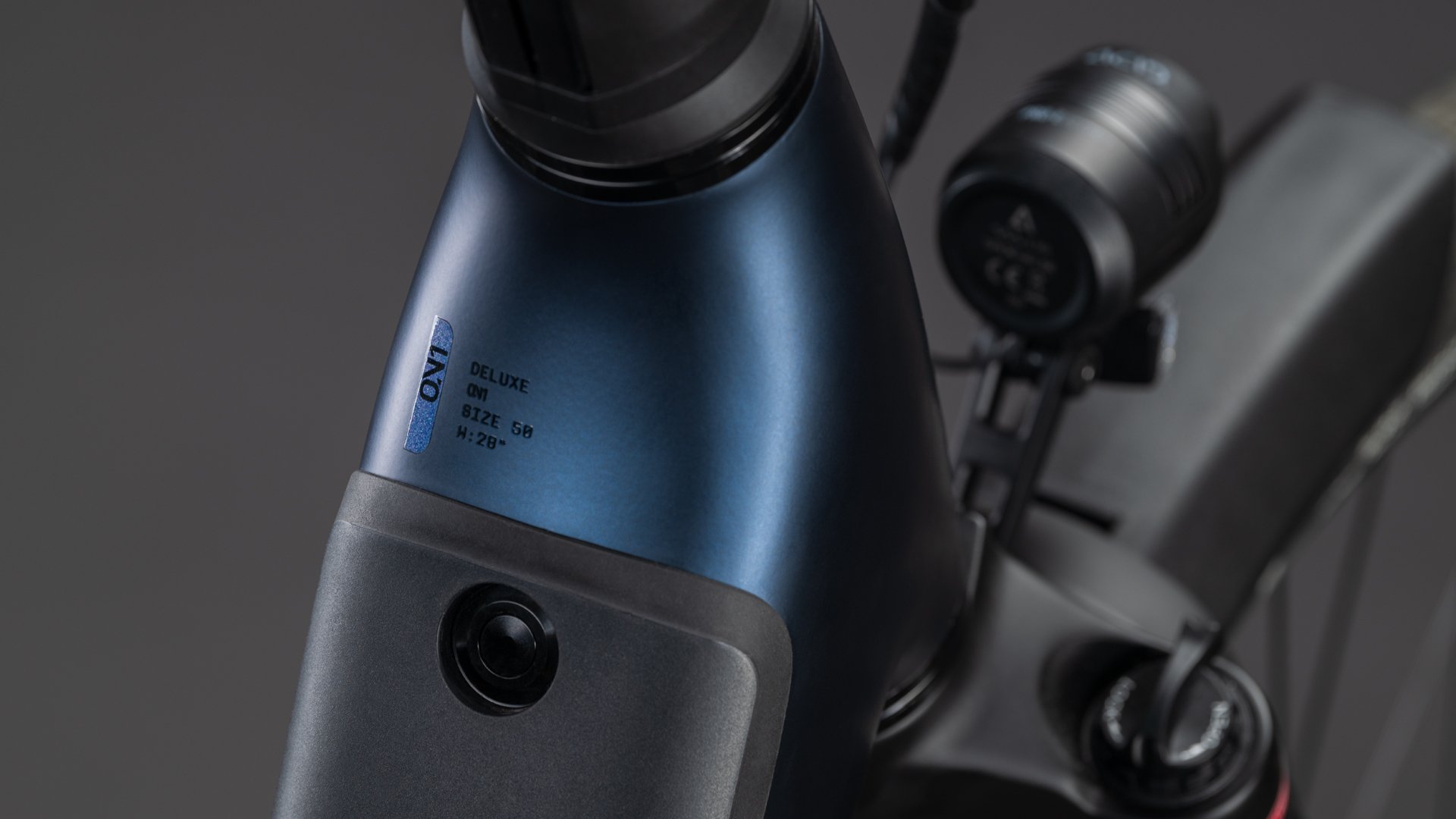

It's the detail you can't see that makes the Supreme Hybrid frame so good at its job. For example, the 600Wh Bosch PowerTube battery is stowed neatly inside the down tube, while Smooth Welding complements the frame's clean, almost organic lines. The Performance Line motor delivers smooth pedal assistance up to 75 Nm, making light work of any journey. Integrated Cable Routing and X-Connect keep wires and cables out of sight and out of harm's way. There's a wide range of sizes from 42cm to 58cm, so everyone should be able to find their ideal fit. The Semi-Integrated Carrier 2.0 is equal parts neat and sturdy, giving you a solid platform on which to carry... well, whatever you need. And we added mudguards, a full lighting system and a kickstand, so you really are all set.

Frame Material

Aluminium Superlite

Battery

600Wh

Sizes

Size Split

Getting around town should be a pleasure, not a chore. That's why we fitted the Supreme Hybrid Deluxe ONE with a smooth Bosch motor and a 600Wh battery, to give your pedalling a little help. With comfortable handling and practical accessories, it's all you need for two-wheeled city life.

More Information

Bike category of use: 1

You can find more information about Bike Classification at the following link.

More Information

110
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	42 cm	46 cm	50 cm	54 cm	58 cm
Seat tube	380	420	460	510	560
Top Tube Horizontal	600	593	605	617	629
Seat angle	73°	72.3°	72.3°	72.3°	72.3°
Head tube angle	68°	69°	69°	69°	69°
Chainstays	465	499	499	499	499
Head tube	197	164	179	194	214
Wheelbase	1151	1148	1161	1174	1188
BB-Height to Hub	44	75	75	75	75
Reach	408	383	391	399	405
Stack	621	655	669	683	702

Ergonomics

	42 cm	46 cm	50 cm	54 cm	58 cm
Stem length	65	65	80	80	80
Handlebar width	660	660	660	660	660
Crank length	160	165	165	165	165
Length seat post	350	350	350	350	350
Diameter seatpost	31.6	31.6	31.6	31.6	31.6
Max. insertion depth seat post	180	180	210	235	285
Diameter tire maximum	669	736	736	736	736
Width tire maximum	50	50	50	50	50

All values are given in millimetres or degrees.

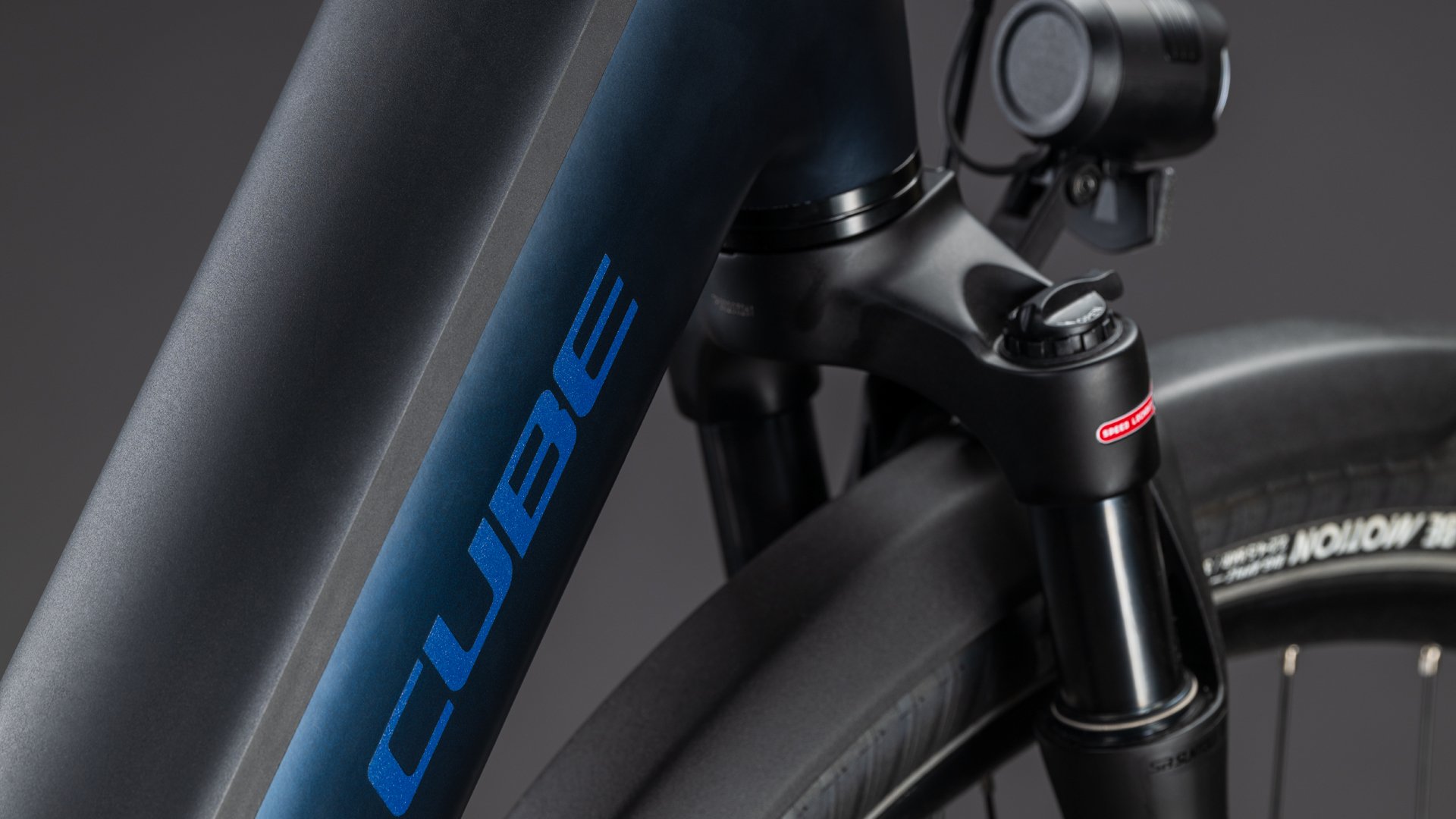

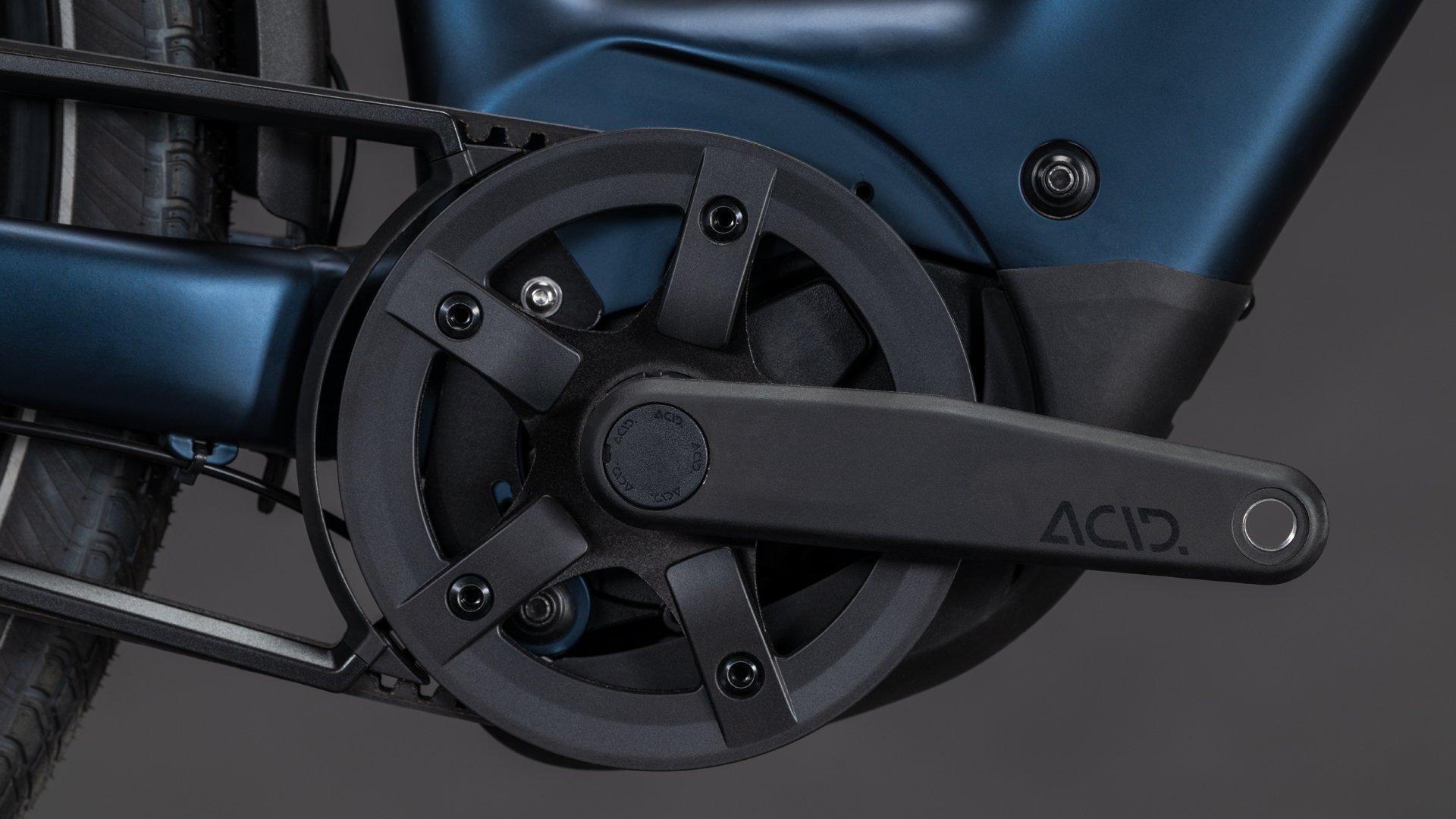

With its Easy Entry frame – available in a wide range of sizes – and clean, low-maintenance Gates belt drive, the Supreme Hybrid Deluxe ONE is the epitome of hassle-free cycling for everyone. The Semi Integrated Carrier 2.0, mudguards, kickstand and lighting system give you everything you need for any trip, town or country. There's an adjustable stem, air-sprung suspension fork and parallelogram suspension seatpost to make every journey as comfortable as possible. Shimano's simple 5-speed hub gears work with the Bosch Performance drive and 600Wh battery to get you where you need to be – and back. And we fitted grippy and smooth-rolling Schwalbe 50mm tyres and powerful Shimano hydraulic disc brakes, so you're always in full control.
