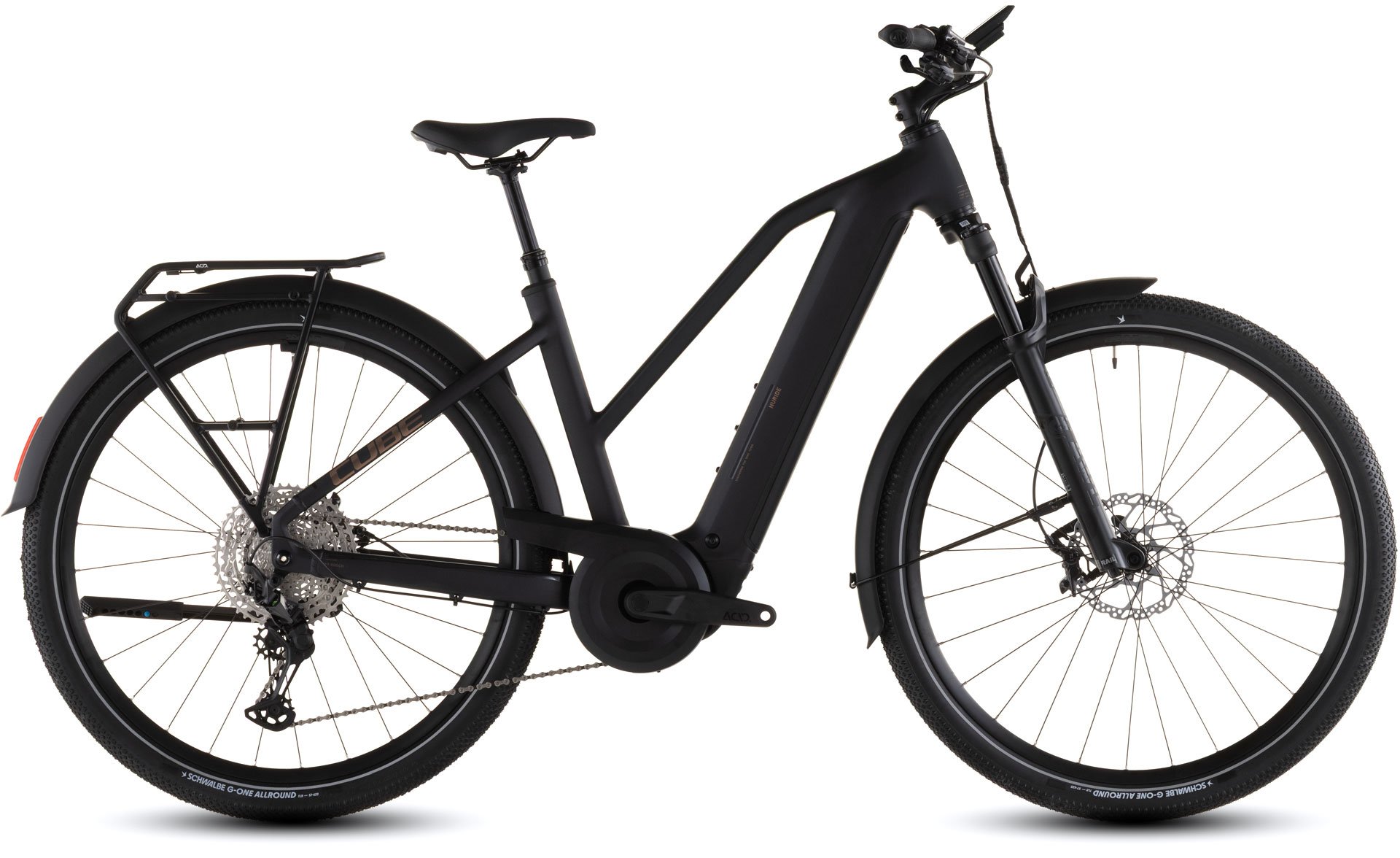

NURIDE HYBRID
SLX 800

ArtNo. 110501

black´n´gold

Comparison

EXPAND
YOUR HORIZONS

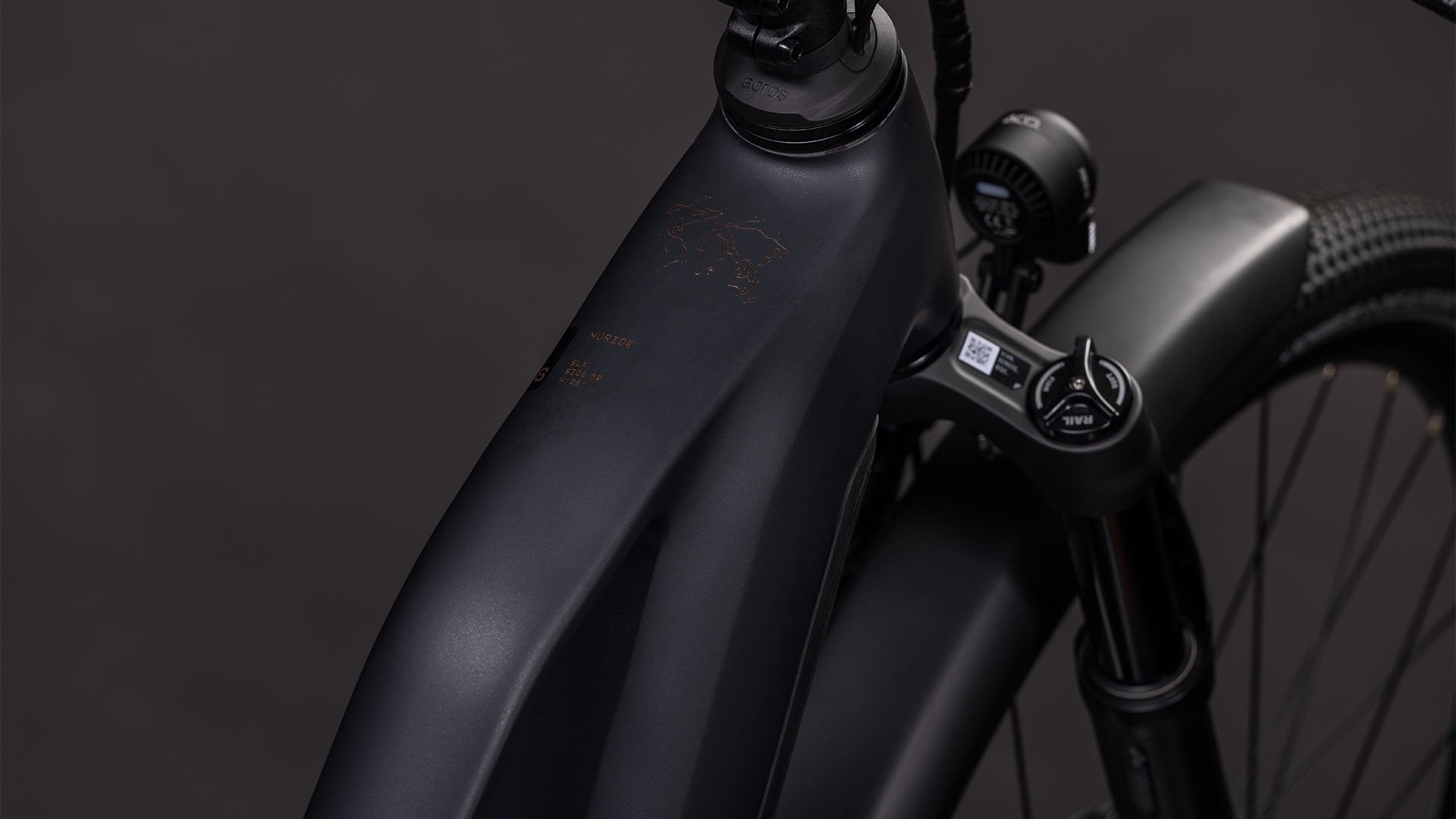

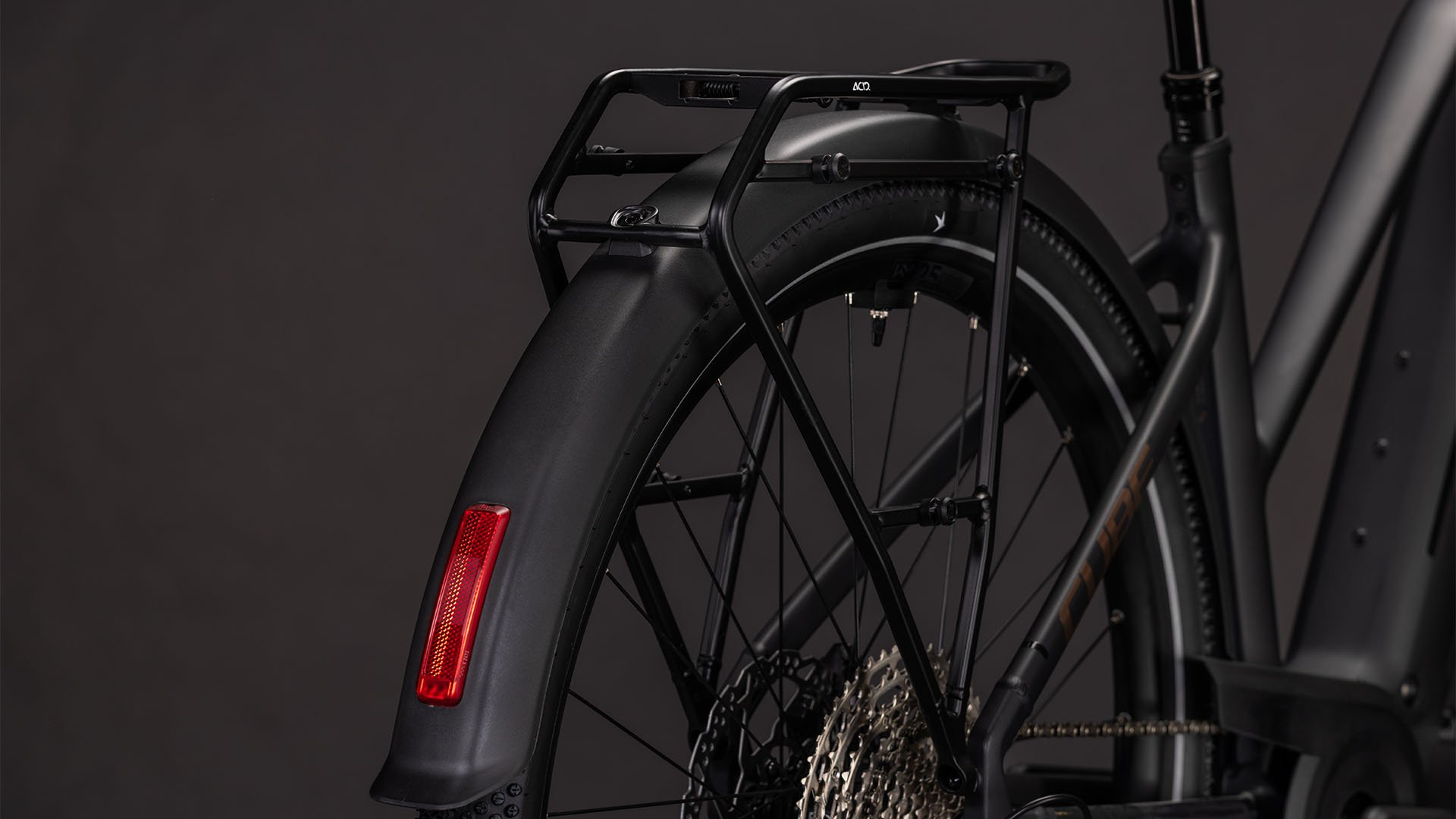

The Nuride Hybrid's Trapeze frame's traditional looks are familiar, but it's hiding a wealth of innovation under its elegant exterior. Designed to accommodate a 100mm suspension fork for extra comfort and control, it also features generous tyre clearances – even with the supplied mudguards. Integrated cables complement the frame's clean looks and the 800Wh PowerTube battery and Bosch CX drive are neatly incorporated into the frame structure. There's an integrated chain guard and, with the included mudguards, lights and kickstand plus the sturdy Semi Integrated Carrier 2.0, you've everything you need for two-wheeled adventures.

Frame Material

Aluminium Superlite

Battery

800Wh

Because you never know quite where a bike ride will take you, it's good to be prepared. The Nuride Hybrid SLX 800's practical design, wide range of frame styles and sizes and powerful Bosch drive has it all sorted. Town or country, it's yours for the taking.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

125
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	46 cm	50 cm	54 cm	58 cm
Seat tube	420	460	510	560
Top Tube Horizontal	590	590	610	630
Seat angle	73.5°	73.5°	73°	73°
Head tube angle	68°	68°	68°	68°
Chainstays	499	499	499	499
Head tube	110	110	125	140
Wheelbase	1173	1173	1182	1204
BB-Height to Hub	68	68	68	68
Protrusion height - 80mm	769	778	817	850
Reach	401	401	410	426
Stack	638	638	654	668

Ergonomics

	46 cm	50 cm	54 cm	58 cm
Stem length	75	75	75	75
Angle stem	17°	17°	17°	17°
Handlebar width	720	720	720	720
Crank length	175	175	175	175
Length seat post	361	361	361	403
Diameter seatpost	31.6	31.6	31.6	31.6
Max. insertion depth seat post	270	300	300	300
Stroke seatpost	100	100	100	100
Diameter tire maximum	750	750	750	750
Width tire maximum	57	57	57	57

All values are given in millimetres or degrees.

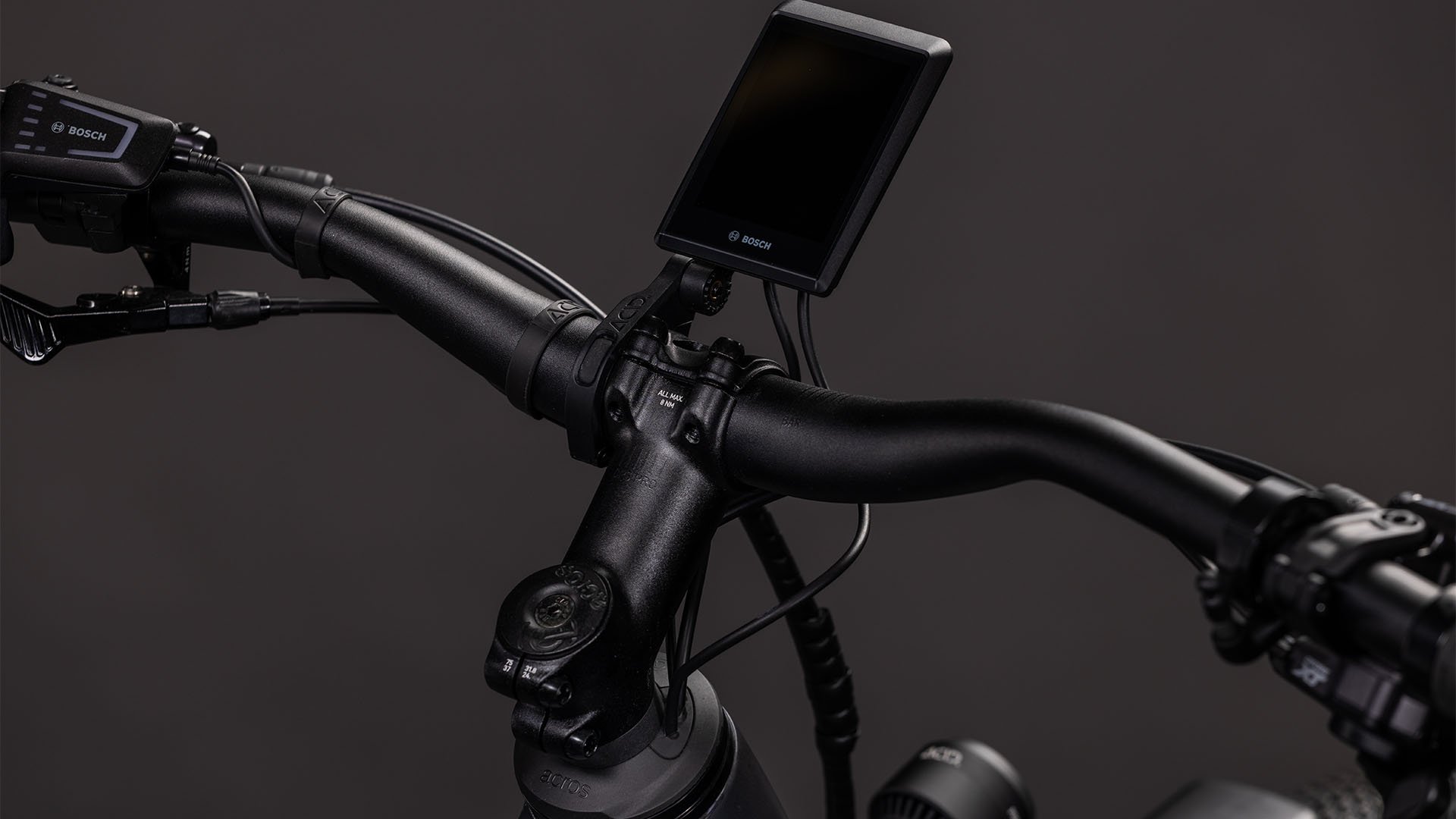

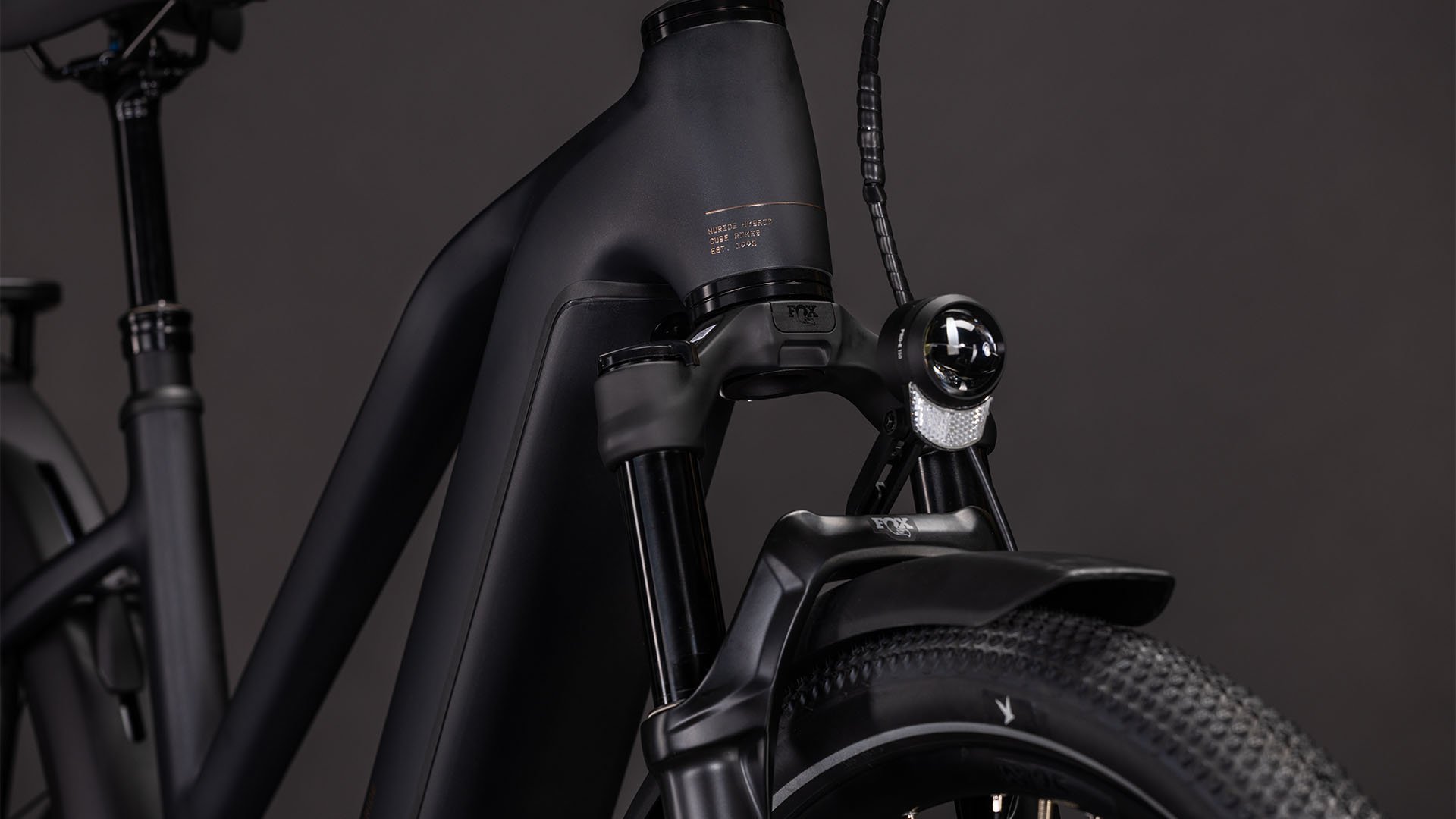

A great bike opens up new possibilities. The Nuride Hybrid SLX 800's no-compromise approach means you can rely on it to get you there – and back – in comfort and style. The Bosch CX drive and 800Wh battery take the hard work out of pedalling, so you can just enjoy the ride. The Fox 34 Float AWL suspension fork delivers 100mm of smooth, easily adjustable bump-absorbing comfort. Wide-ranging Shimano XT 1x12 gears help make light work of any route, no matter how hilly. A Newmen Performance 25 wheelset with fast-rolling Schwalbe 57mm G-One Allround tyres tackles any road or trail surface, and powerful Shimano XT hydraulic disc brakes add safe, predictable stopping in all weathers. With the included accessories – mudguards, lights, Semi Integrated Carrier 2.0 and kickstand – you're set up for almost any adventure.
