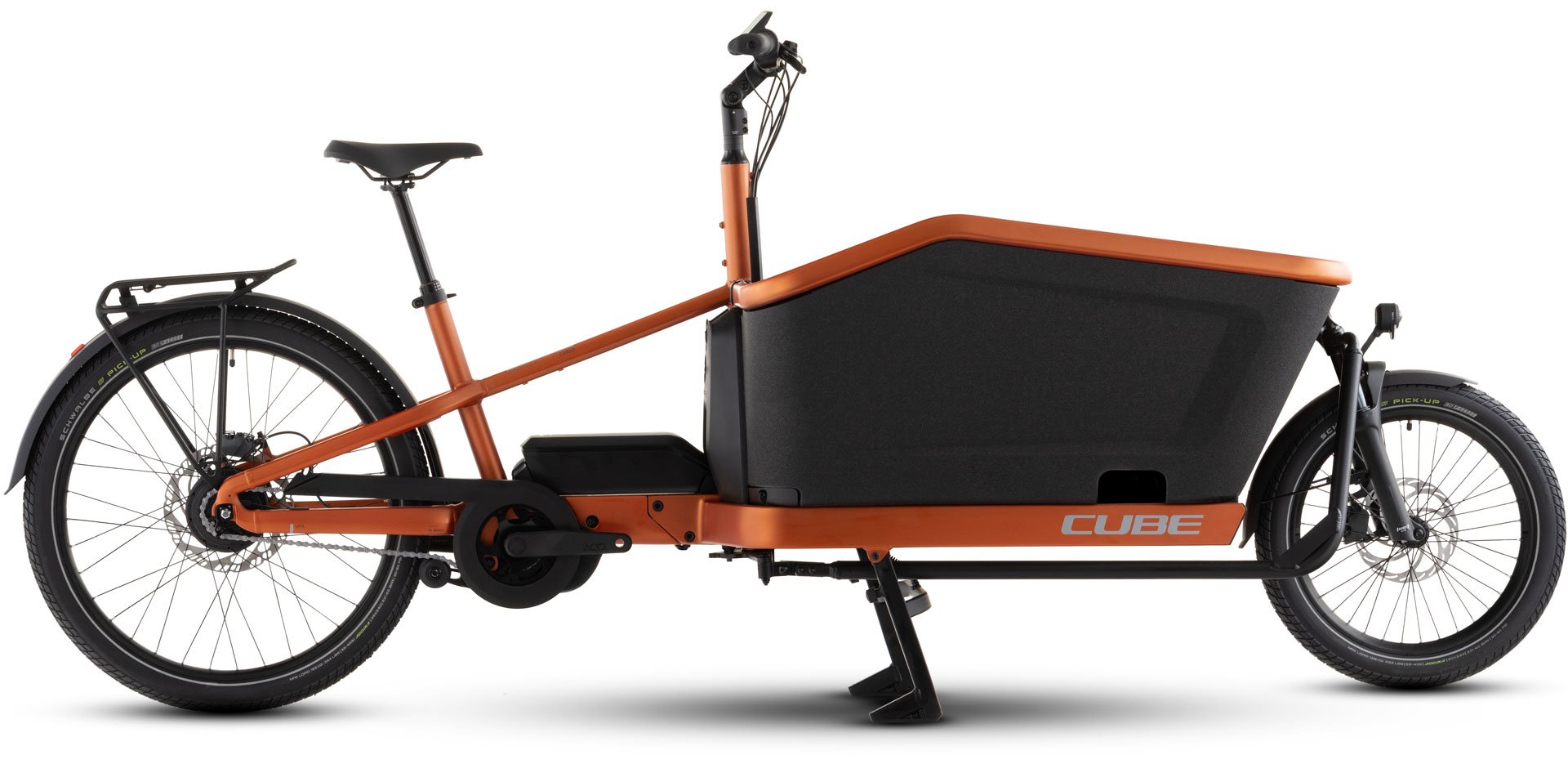

CARGO HYBRID
COMFORT SLX 800

ArtNo. 124301

rustorange´n´reflex

Comparison

RECLAIM
THE CITY
STREETS

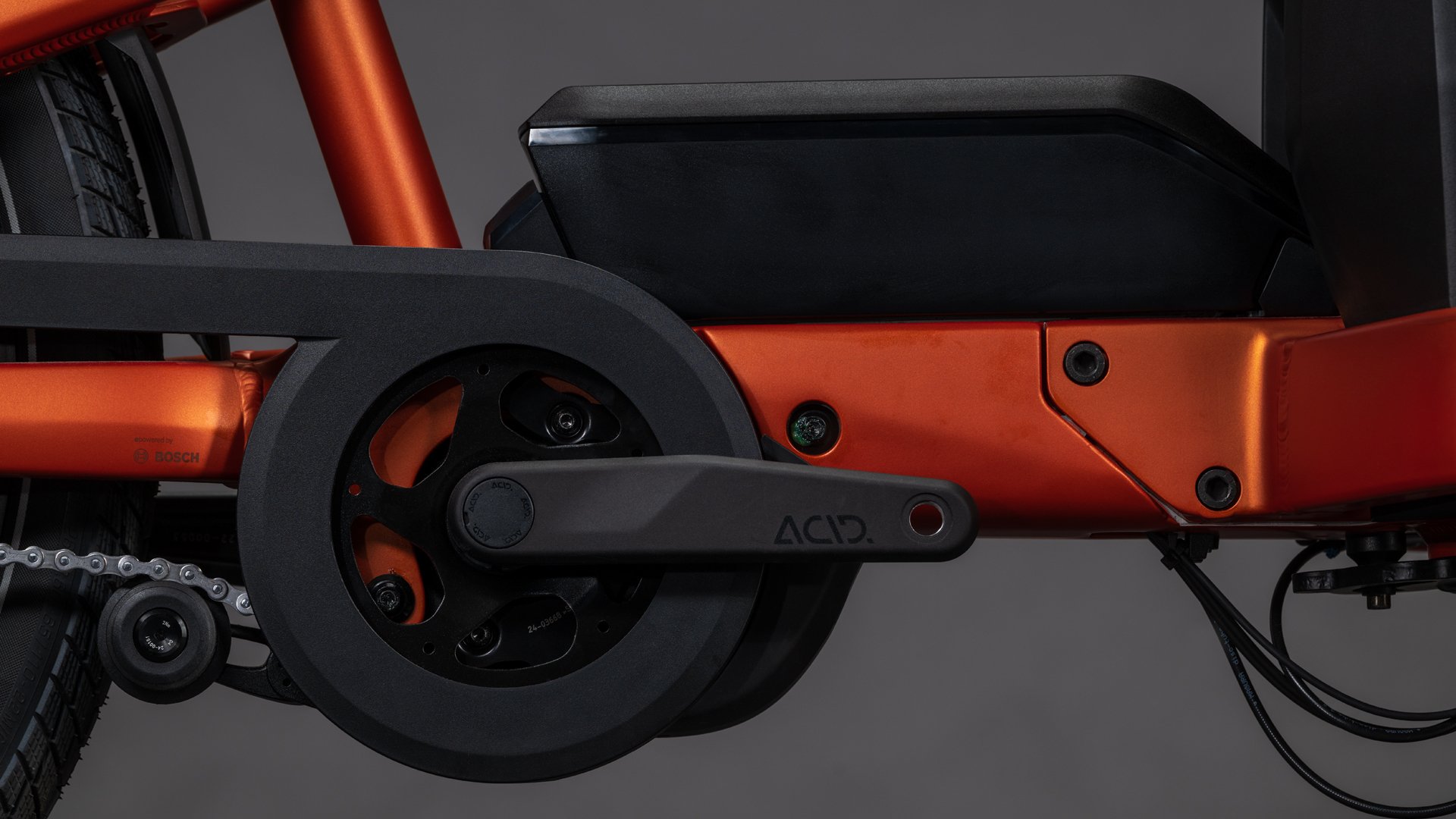

The Cargo Hybrid is a thoroughbred workhorse, with the ability to handle a total system weight of 200kg. The durable aluminium frame features an integrated motor mount to house the Bosch Cargo Line drive which, in tandem with the included 800Wh battery, offers up to 100Nm of torque – and there's the option to add a 250 Wh PowerMore range extender, for even more miles between charges. We've thought about the fine details, too. The rugged EPP foam cargo box is fitted with a rubber mat for reduced noise and easier cleaning, there's an additional small storage compartment for all your day-to-day essentials, and an integrated locking system – which works with an optional chain lock – allows you to lock both the bike and this compartment. A kickstand with elongated feet makes it easy to park, whilst the integrated chain guard helps keep your clothes clean. And, with an improved steering system featuring a reduced turning radius, it's easy and intuitive to ride.

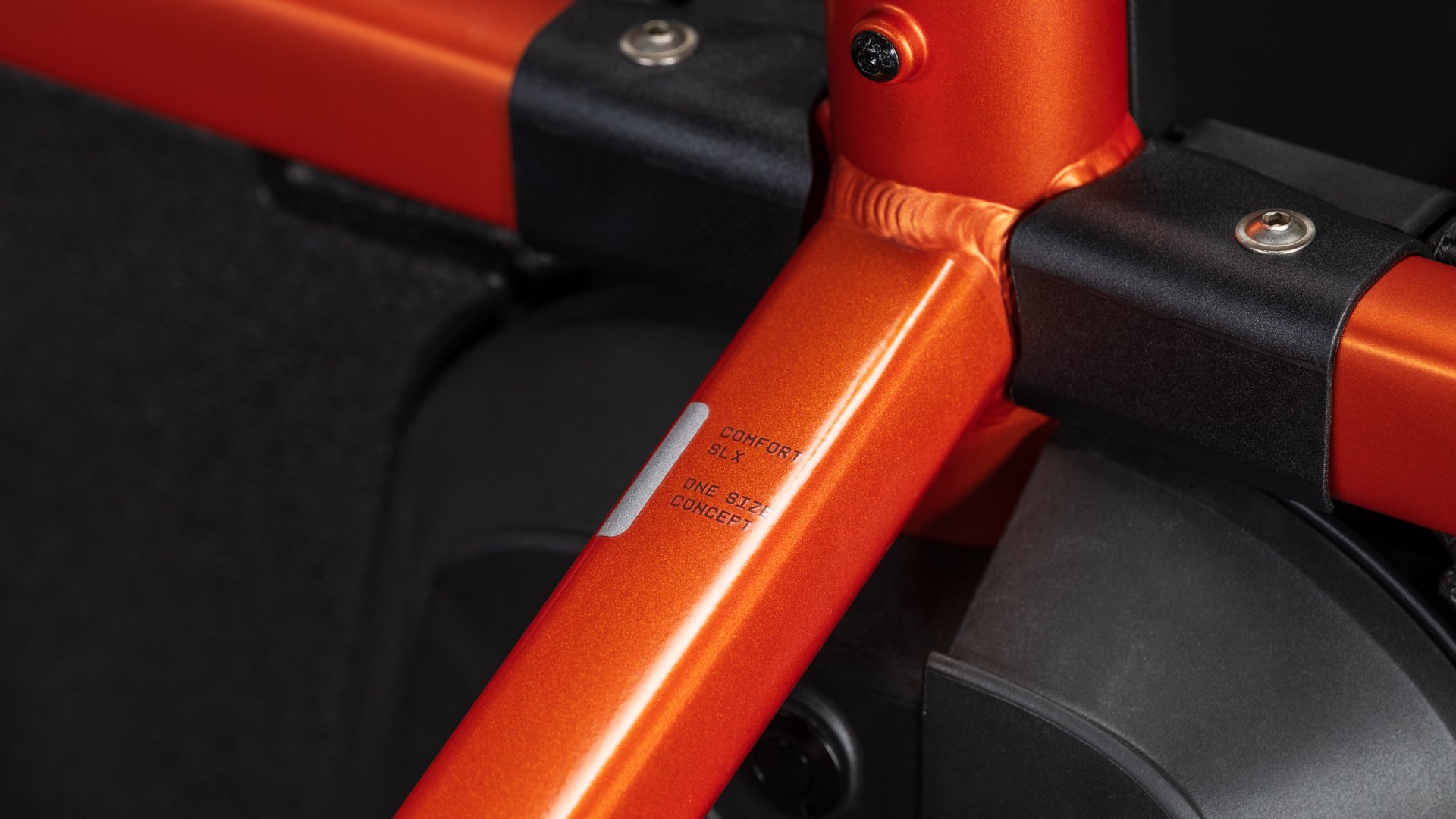

Frame Material

Aluminium Superlite

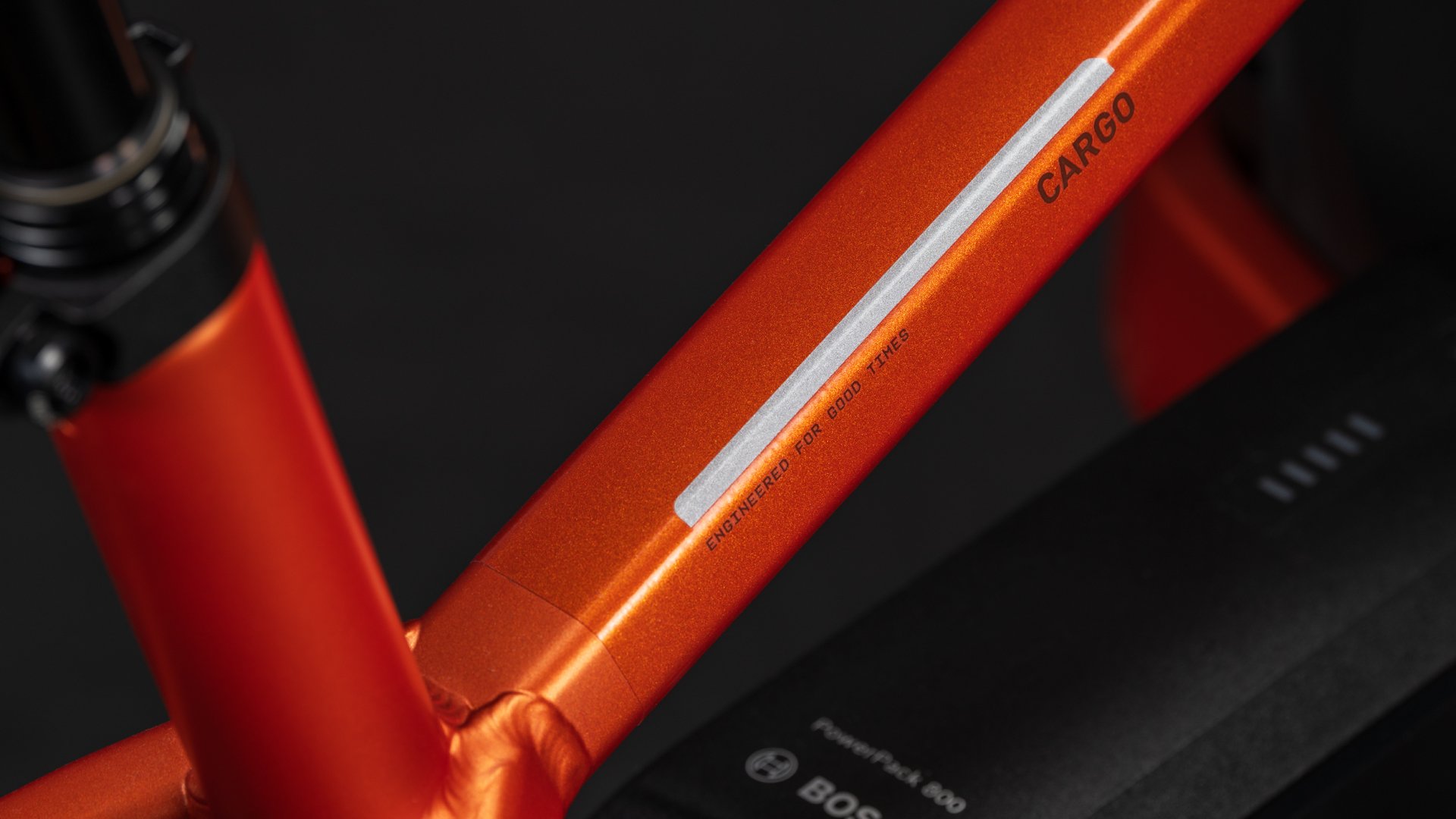

Battery

800Wh

Wheels

20" / 26"

The Cargo Hybrid Comfort SLX 800 gives you more of everything. More range, thanks to an 800Wh battery and optional PowerMore range extender. More flexibility, with up to 100Nm of Bosch power. And more load-carrying options, with its cleverly designed cargo box. It's urban transport, reimagined.

More Information

Bike category of use: 1T

You can find more information about Bike Classification at the following link.

More Information

200
kg

Maximum system weight

The system weight describes the maximum permissible total mass. This must not be exceeded under any circumstances.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

The flexible ONE SIZE CONCEPT makes one bike so versatile that it can be used by any number of people – irrespective of their height. Everyone can enjoy a comfortable ride courtesy of the upright riding position and step-through frame. The saddle and stem easily adjust up or down to suit any rider from around 5ft 2in to 6ft 2in (1.60m to 1.90m). The ONE SIZE CONCEPT is a universal platform that's ideal to share between the whole family, partners, friends, neighbours and colleagues alike. Or keep it for yourself as the perfect companion for wherever life takes you. One bike, flexible for all!

Geometry

	26" / 20": ONE SIZE
Seat tube	440
Top Tube Horizontal	582
Seat angle	72°
Head tube angle	71°
Chainstays	485
Head tube	93
Wheelbase	1991
BB-Height to Hub	66
Protrusion height - 80mm	602
Reach	380
Stack	623

Ergonomics

	26" / 20": ONE SIZE
Stem length	80
Handlebar width	680
Crank length	170
Length seat post	456
Diameter seatpost	34.9
Stroke seatpost	150
Width tire maximum	67

Additional measurements

	26" / 20": ONE SIZE
Max. bike length	2606
Max. box width, external	735
Box capacity	200

All values are given in millimetres or degrees.

CARGO BOX DIMENSIONS

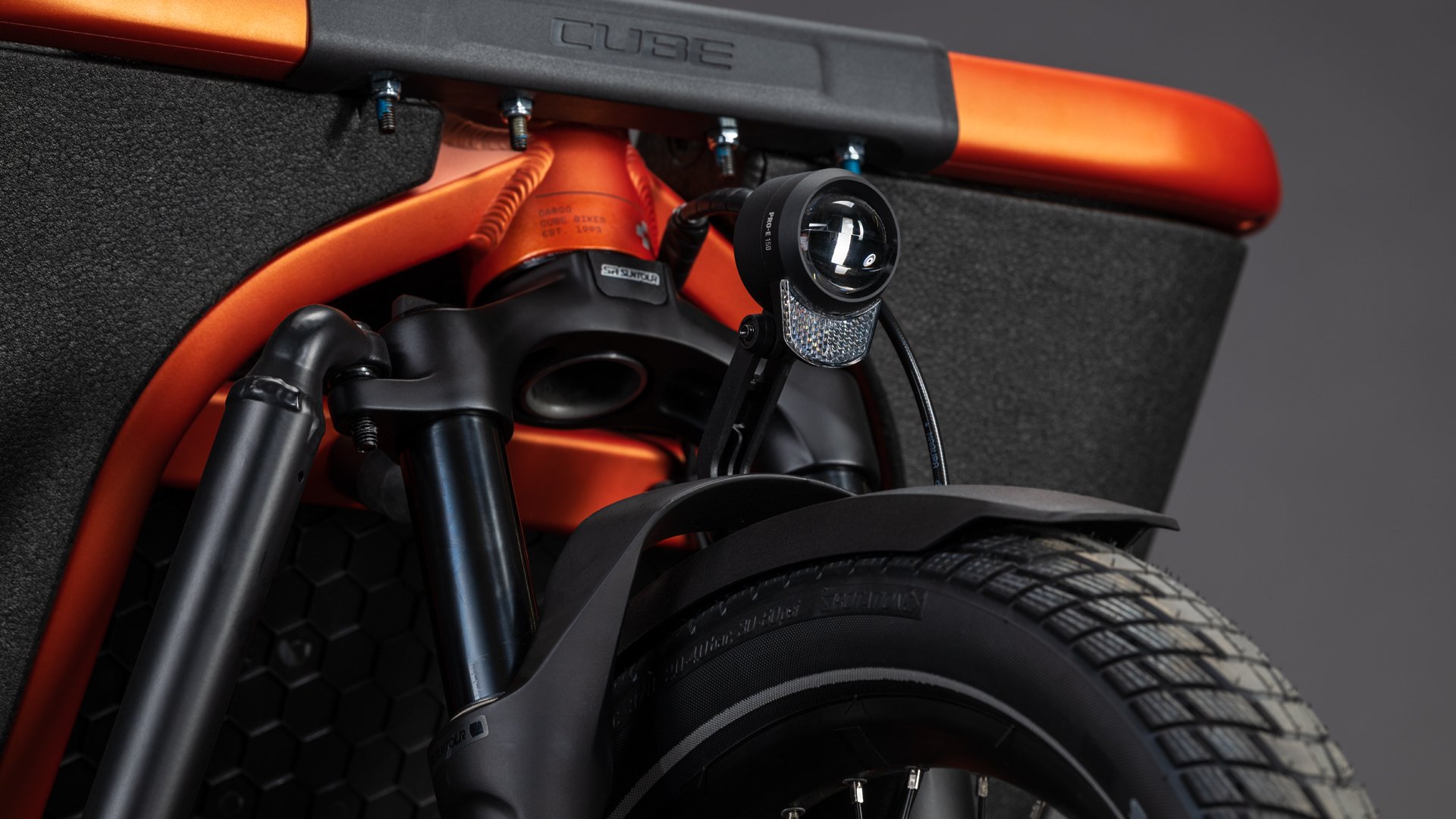

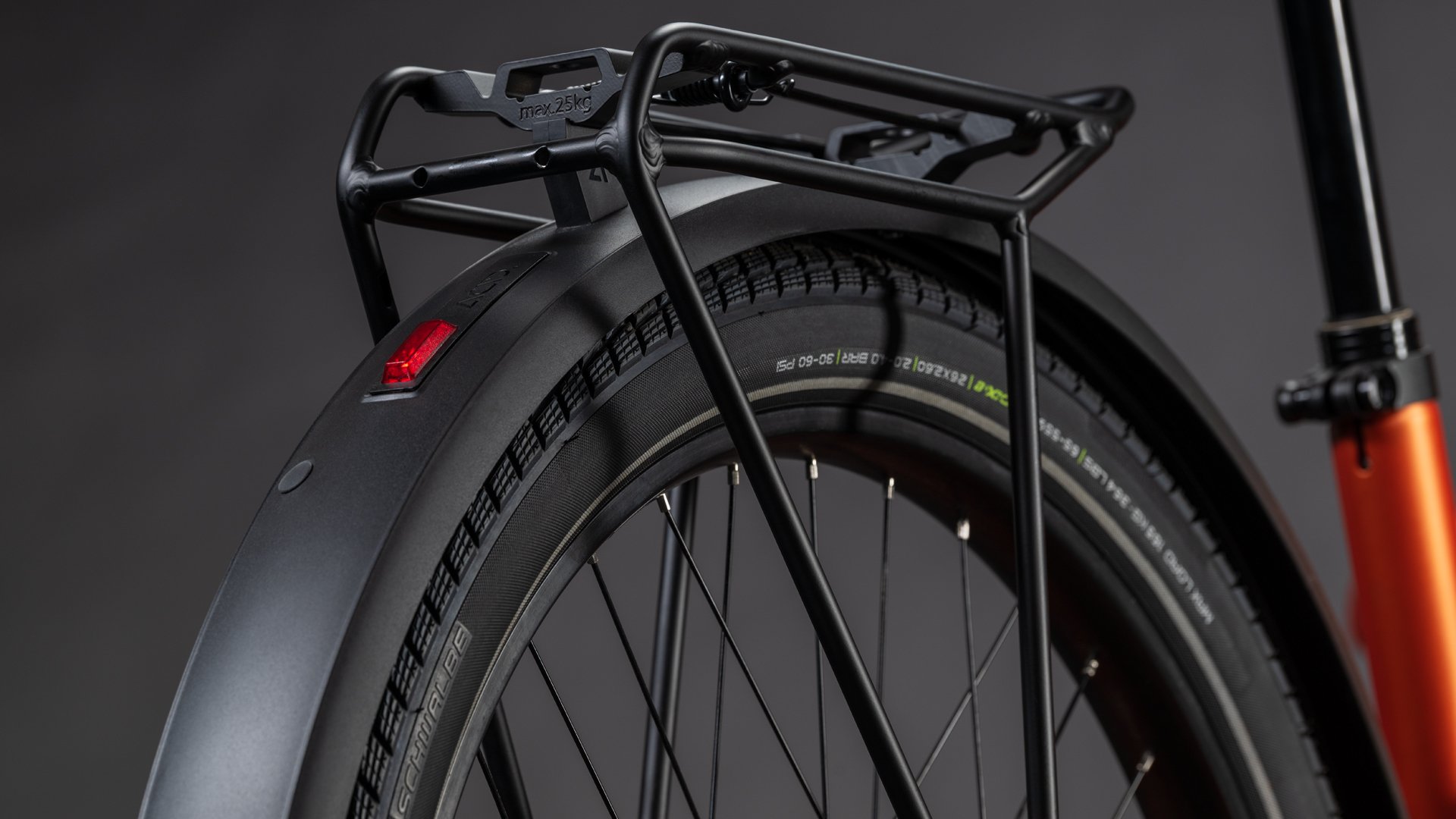

Beat the traffic and get your cargo to its destination on time with less hassle and a lower carbon footprint. With Bosch's smooth, powerful Cargo Line motor offering up to 100Nm of pedal assistance, a heavy-duty stepless gear hub and an 800Wh battery with the option of adding a 250 Wh PowerMore range extender, the Cargo Hybrid Comfort SLX 800 is your gridlock-busting helper. Its large EPP foam cargo box swallows bulky loads with ease – up to a total system weight of 200kg – and there's an optional cover and built-in stowage box for your daily essentials. Bright front and rear LED lights, grippy Schwalbe tyres and powerful Magura hydraulic disc brakes mean it's safe and dependable in all weathers. With a Suntour suspension fork for extra comfort and control and a full set of accessories – including mudguards and stable kickstand – it's got everything you need to get you where you need to be on time and in great shape.
