CARGO HYBRID
COMFORT PRO 800

ArtNo. 124100

oatgrey´n´reflex

Comparison

RECLAIM
THE CITY
STREETS

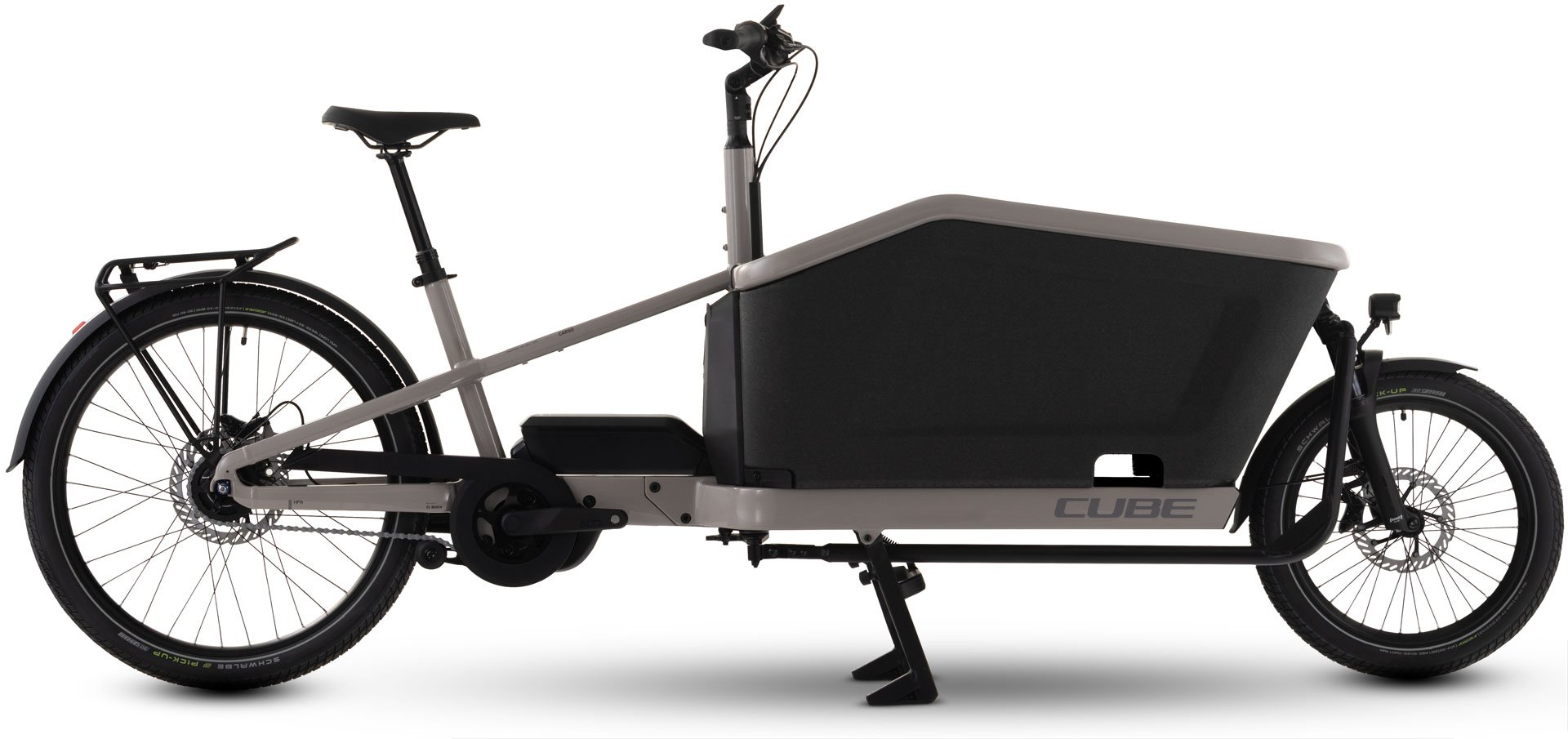

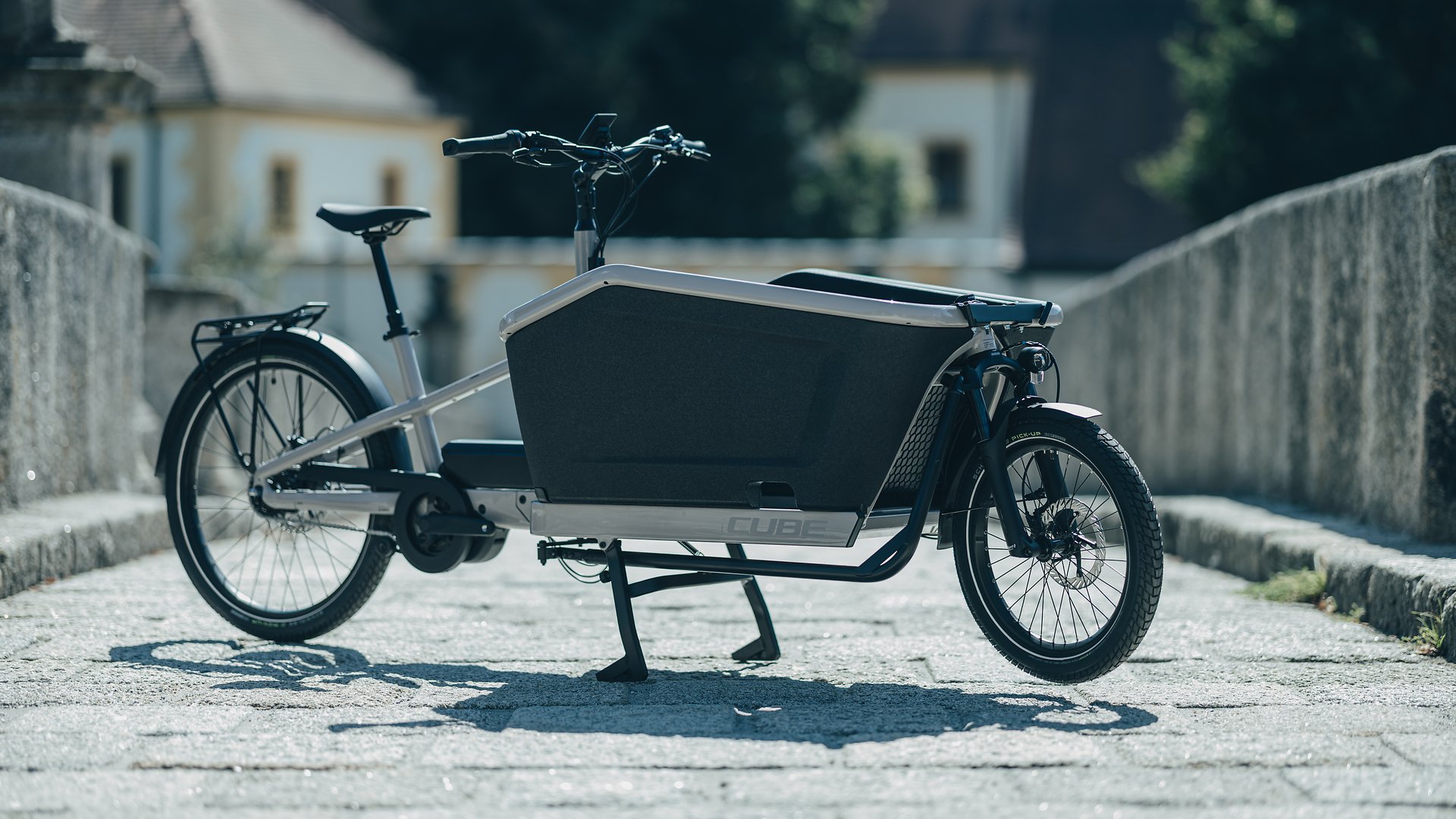

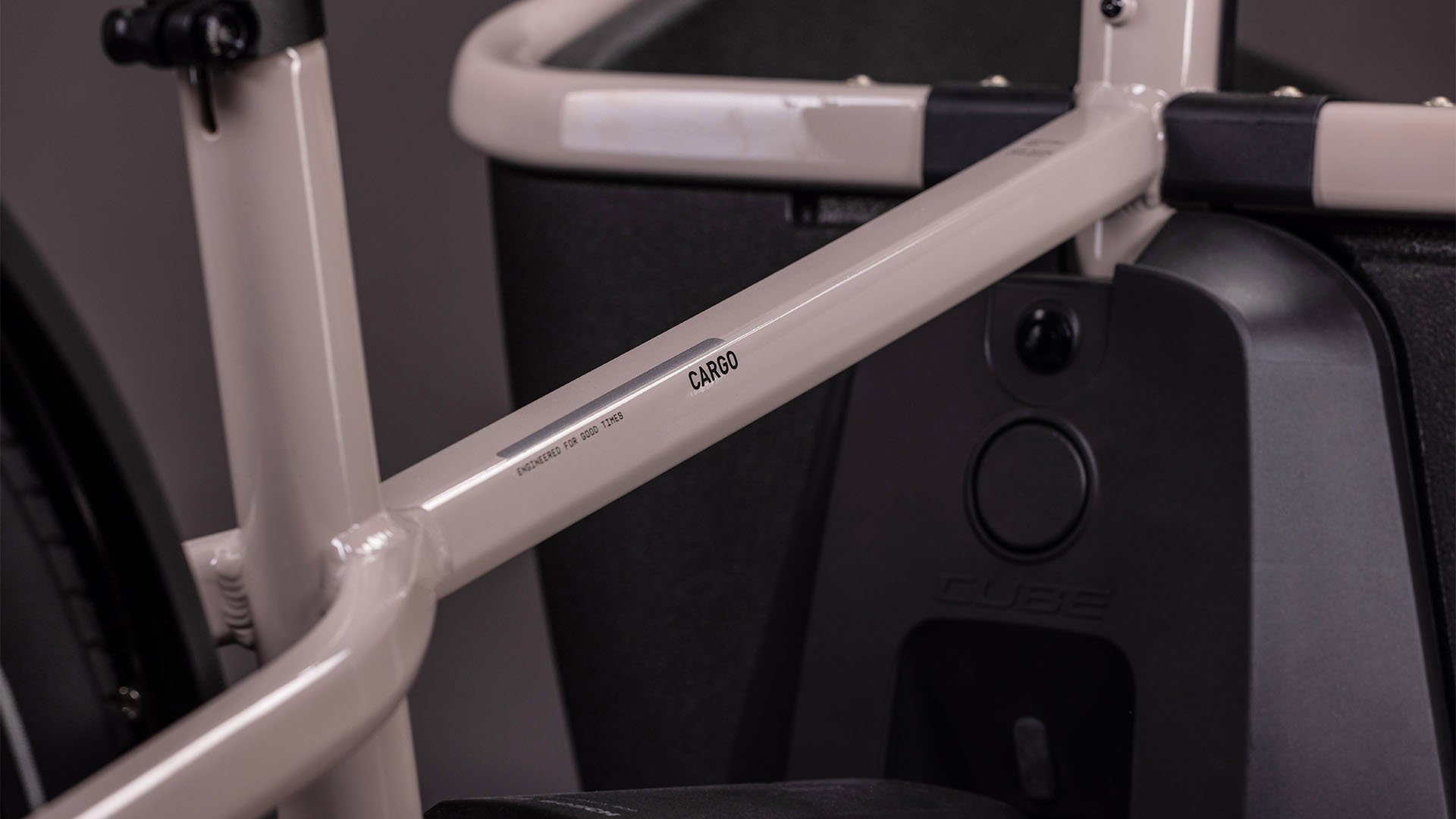

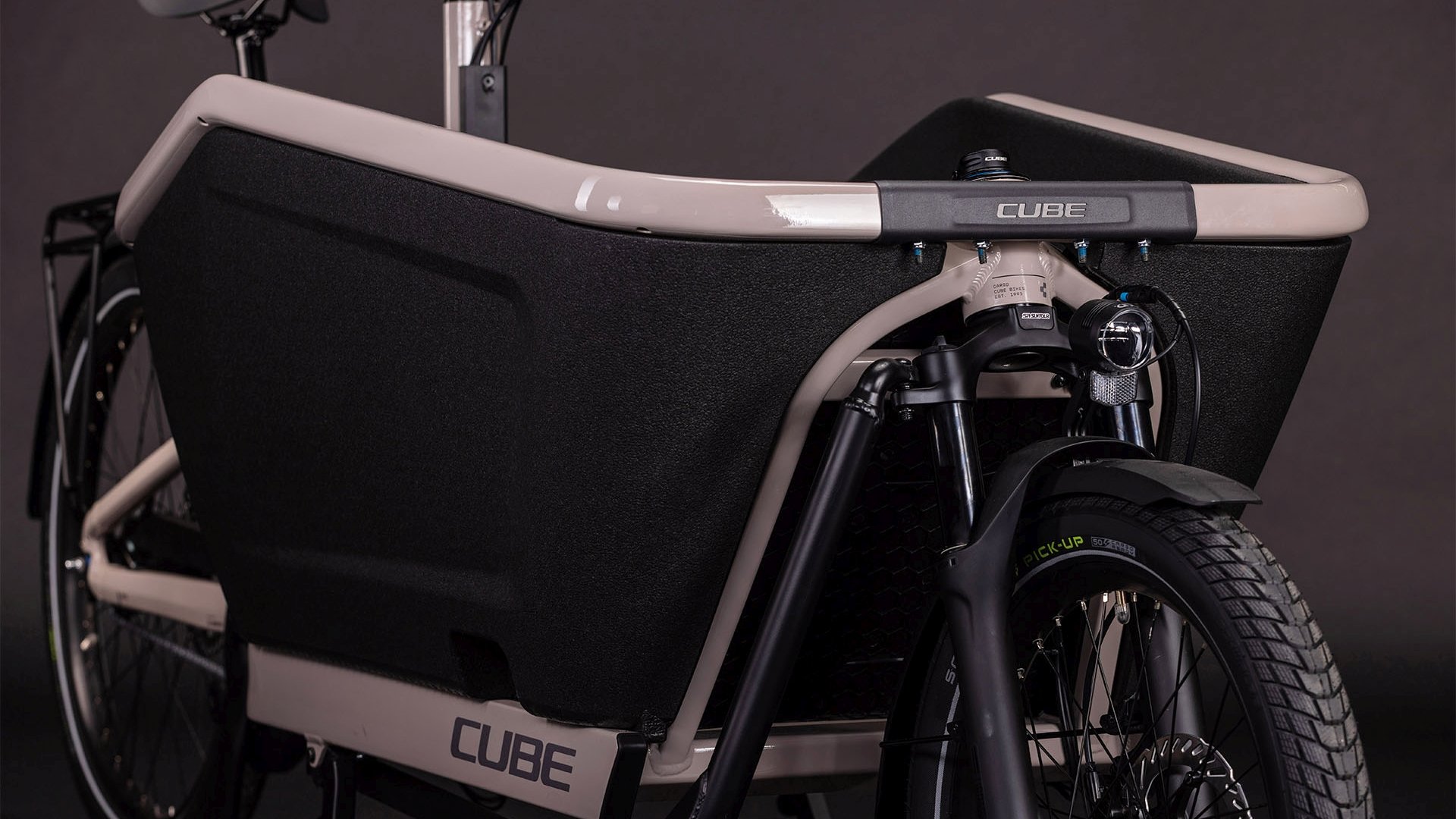

The Cargo Hybrid is a thoroughbred workhorse, with the ability to handle a total system weight of 200kg. The durable aluminium frame features an integrated motor mount to house the Bosch Cargo Line drive which, in tandem with the included 800Wh battery, offers up to 100Nm of torque – and there's the option to add a 250 Wh PowerMore range extender, for even more miles between charges. We've thought about the fine details, too. The rugged EPP foam cargo box is fitted with a rubber mat for reduced noise and easier cleaning, there's an additional small storage compartment for all your day-to-day essentials, and an integrated locking system – which works with an optional chain lock – allows you to lock both the bike and this compartment. A kickstand with elongated feet makes it easy to park, whilst the integrated chain guard helps keep your clothes clean. And, with an improved steering system featuring a reduced turning radius, it's easy and intuitive to ride.

Frame Material

Aluminium Superlite

Battery

800Wh

Wheels

20" / 26"

Ride cleaner, go greener. With its versatile cargo box capable of carrying just about anything, easy handling, practical design touches and smooth Bosch power, the Cargo Hybrid Comfort Pro 800 extends the versatility of two wheels beyond personal transport into something else entirely.

More Information

Bike category of use: 1T

You can find more information about Bike Classification at the following link.

More Information

200
kg

Maximum system weight

The system weight describes the maximum permissible total mass. This must not be exceeded under any circumstances.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

The flexible ONE SIZE CONCEPT makes one bike so versatile that it can be used by any number of people – irrespective of their height. Everyone can enjoy a comfortable ride courtesy of the upright riding position and step-through frame. The saddle and stem easily adjust up or down to suit any rider from around 5ft 2in to 6ft 2in (1.60m to 1.90m). The ONE SIZE CONCEPT is a universal platform that's ideal to share between the whole family, partners, friends, neighbours and colleagues alike. Or keep it for yourself as the perfect companion for wherever life takes you. One bike, flexible for all!

Geometry

	26" / 20": ONE SIZE
Seat tube	440
Top Tube Horizontal	582
Seat angle	72°
Head tube angle	71°
Chainstays	485
Head tube	93
Wheelbase	1991
BB-Height to Hub	66
Protrusion height - 80mm	602
Reach	380
Stack	623

Ergonomics

	26" / 20": ONE SIZE
Stem length	80
Handlebar width	680
Crank length	170
Length seat post	456
Diameter seatpost	34.9
Stroke seatpost	150
Width tire maximum	67

Additional measurements

	26" / 20": ONE SIZE
Max. bike length	2606
Max. box width, external	735
Box capacity	200

All values are given in millimetres or degrees.

CARGO BOX DIMENSIONS

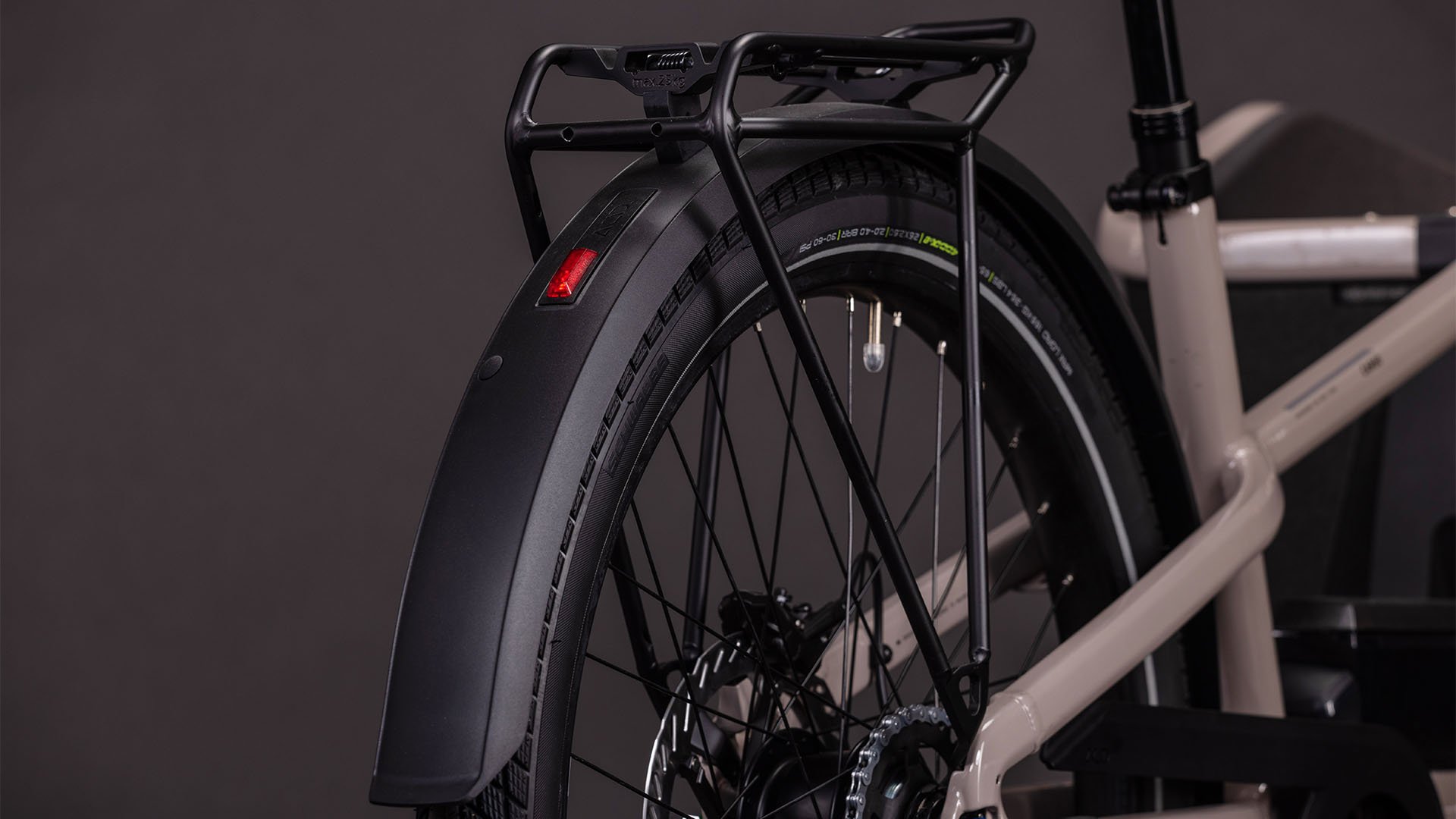

The Cargo Hybrid Comfort Pro 800 is designed to be a viable alternative to four wheels for urban transport. Bosch's powerful Cargo Line motor and an 800Wh battery deliver up to 100Nm of smooth pedal assistance to make light work of any journey, and Shimano's 5-speed hub gears are low maintenance and easy to use. Big-volume Schwalbe tyres provide reassuring grip, there's a cargo-specific Suntour suspension fork up front for extra comfort, and powerful Shimano hydraulic disc brakes serve up safe stopping in any weather. The EPP foam cargo box provides a safe, stable and adaptable home for whatever you're carrying – and, given that this is a bike capable of handling a total system weight of up to 200kg, it can carry a lot. The adjustable stem means it's quick and easy to adapt the ride position for any rider. And included accessories like mudguards, a stable and easy-to-use kickstand and front and rear LED lights mean you're all set for the city streets.
