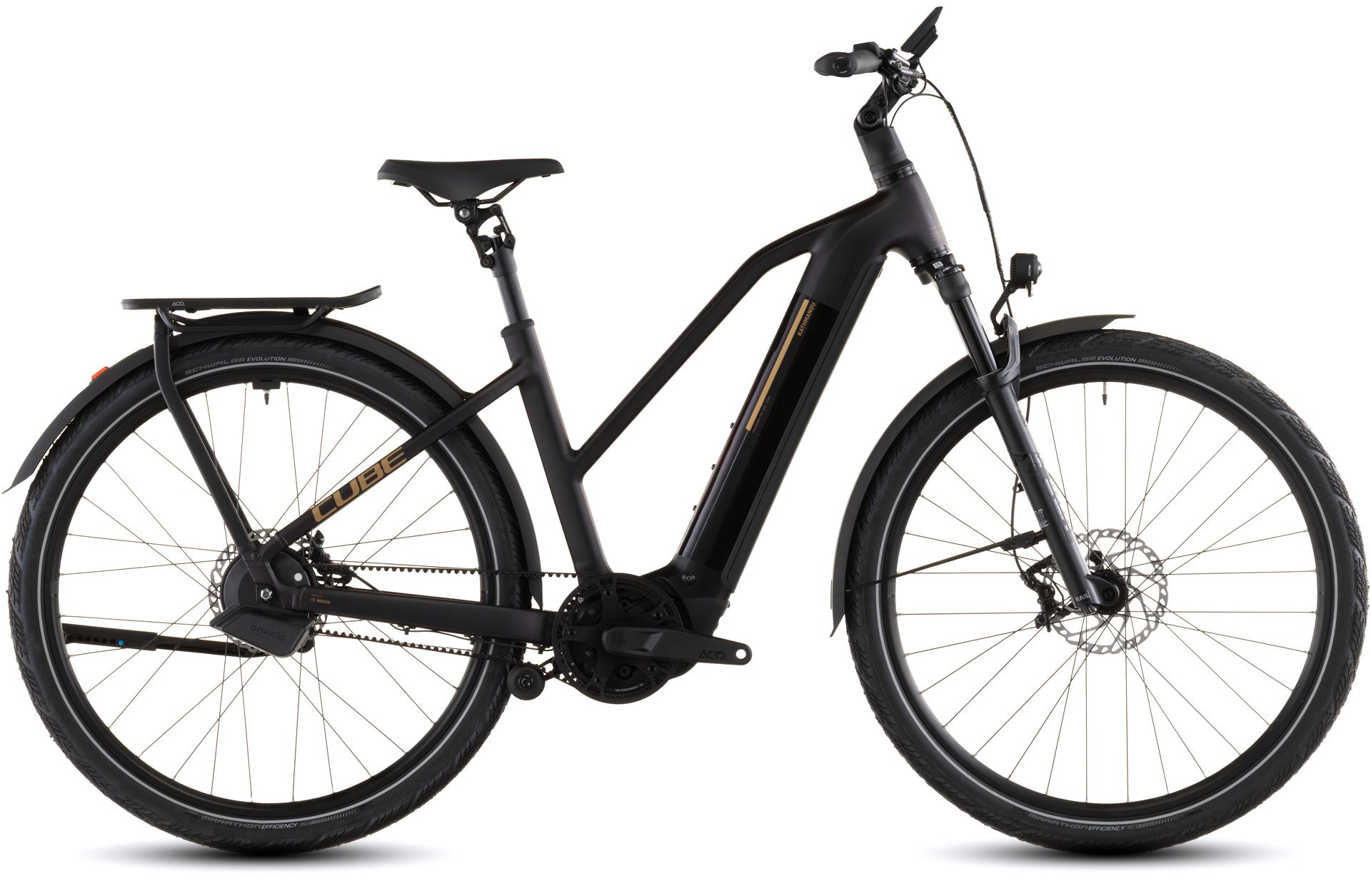

KATHMANDU HYBRID COMFORT
SLX 800

SRP* 4999 EUR

ArtNo. 112701

solareclipse´n´gold

Comparison

CREATING
MEMORIES

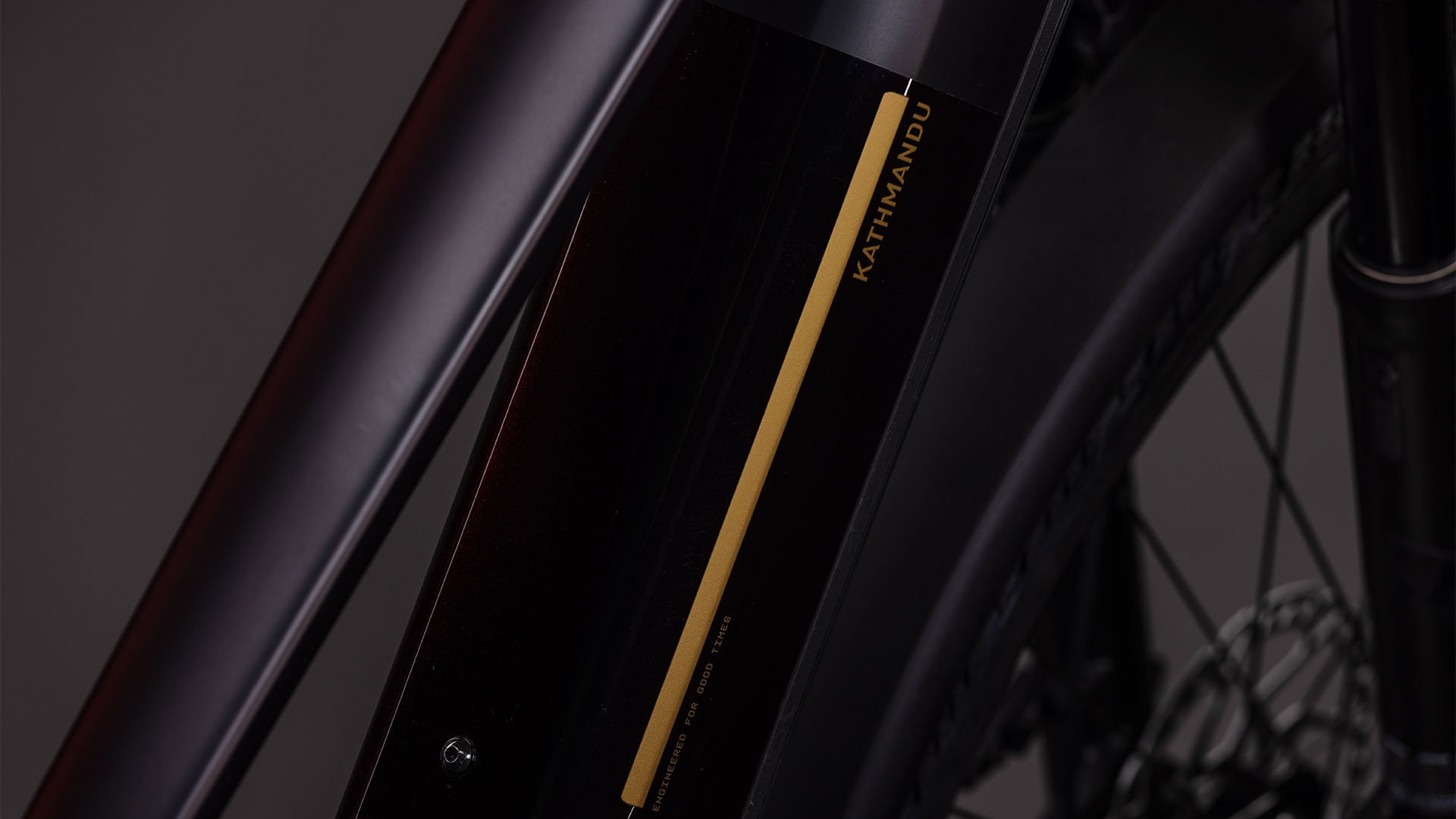

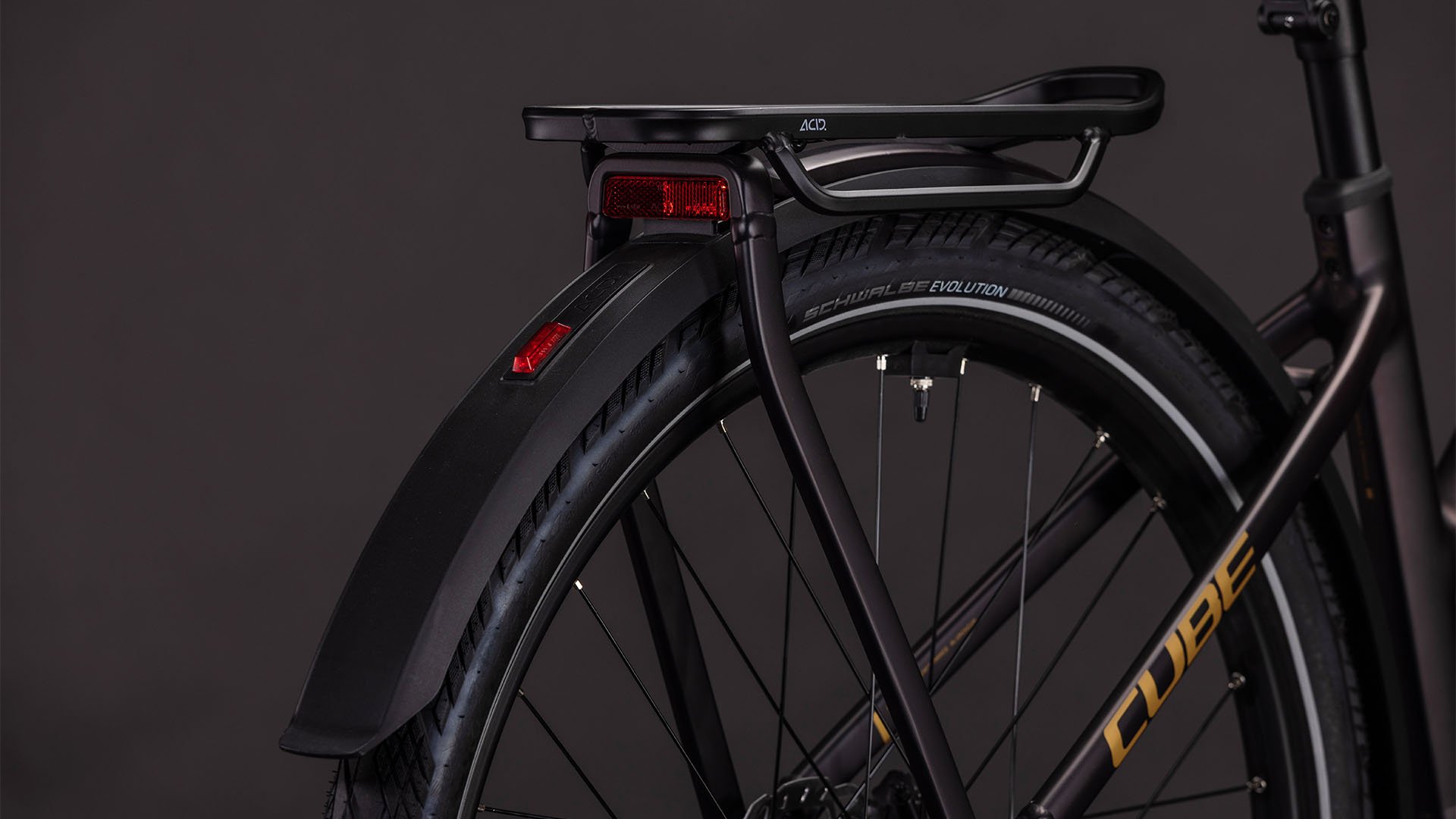

You'll instantly recognise CUBE's Kathmandu Hybrid as a piece of timelessly elegant bicycle design, but it's stuffed full of innovation and clever touches. The neatly housed Bosch CX drive and 800Wh PowerTube battery are just the start. Efficient Comfort Geometry is designed around a 100mm travel suspension fork, for better control even when the going gets rough. Integrated cables complement the frame's clean lines, while a UDH dropout is tough, versatile and future-proof. And, of course, our robust, durable, and exceptionally sleek Integrated Carrier 3.0 allows you to carry everything you need for your adventures.

Frame Material

Aluminium Superlite

Battery

800Wh

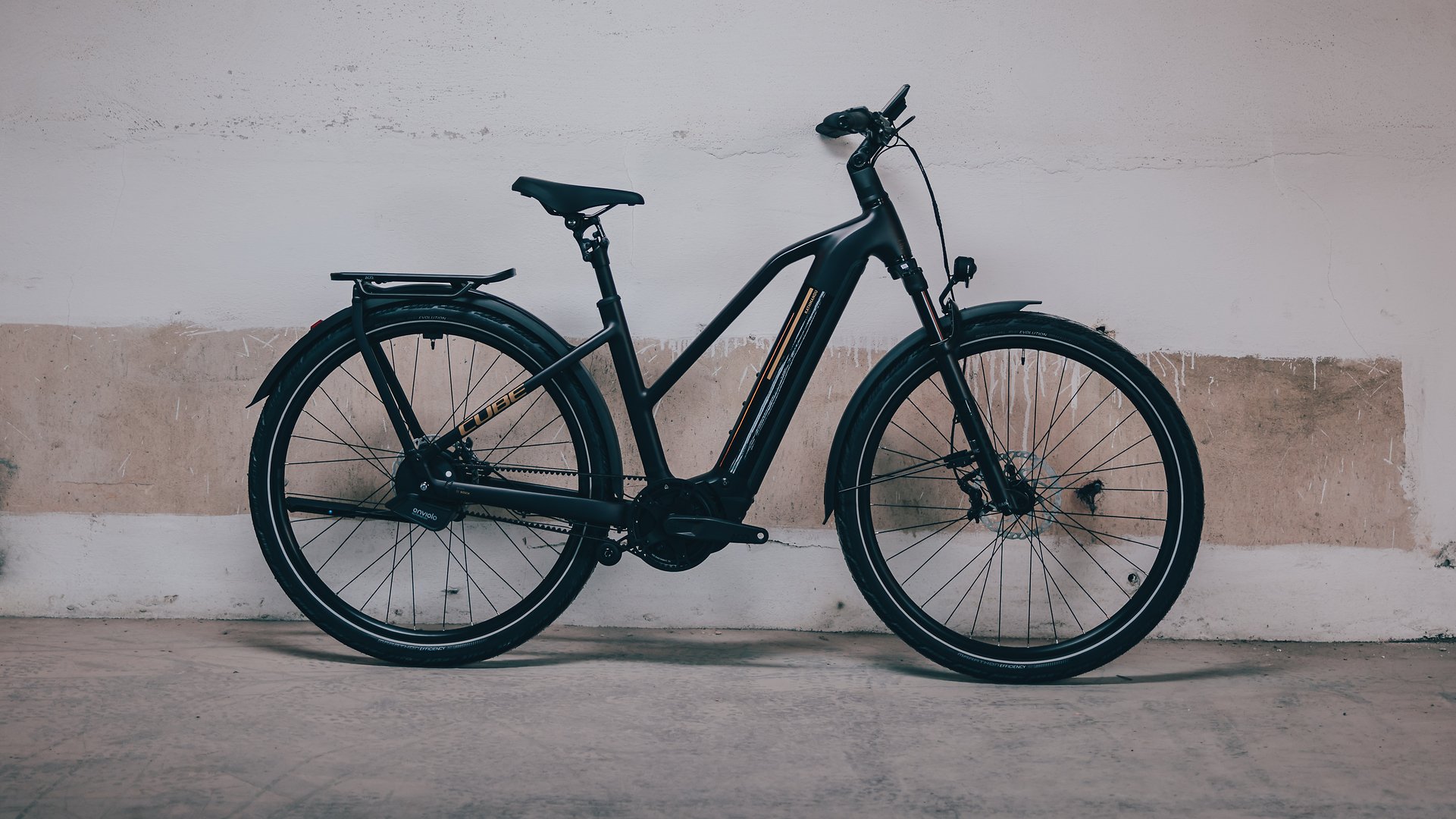

Your bike should be simple, adaptable, always ready. Have you met the CUBE Kathmandu Hybrid Comfort SLX? With its clean belt drive, powerful Bosch motor, 800Wh battery and beautifully practical CUBE design, it'll fit easily around your life – town or country.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

125
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	46 cm	50 cm	54 cm	58 cm
Seat tube	420	460	510	560
Top Tube Horizontal	590	590	610	630
Seat angle	73.5°	73°	73°	73°
Head tube angle	68°	68°	68.5°	68.5°
Chainstays	499	499	499	499
Head tube	110	110	125	140
Wheelbase	1173	1173	1182	1204
BB-Height to Hub	-68	-68	-68	-68
Protrusion height - 80mm	769	777	817	850
Reach	401	401	410	426
Stack	638	654	668	692

Ergonomics

	46 cm	50 cm	54 cm	58 cm
Stem length	65	65	80	80
Handlebar width	700	700	700	700
Crank length	175	175	175	175
Length seat post	350	350	350	350
Diameter seatpost	31.6	31.6	31.6	31.6
max. zasunutí sedlovky	270	300	300	300
Diameter tire maximum	750	750	750	750
Width tire maximum	56	56	56	56

All values are given in millimetres or degrees.

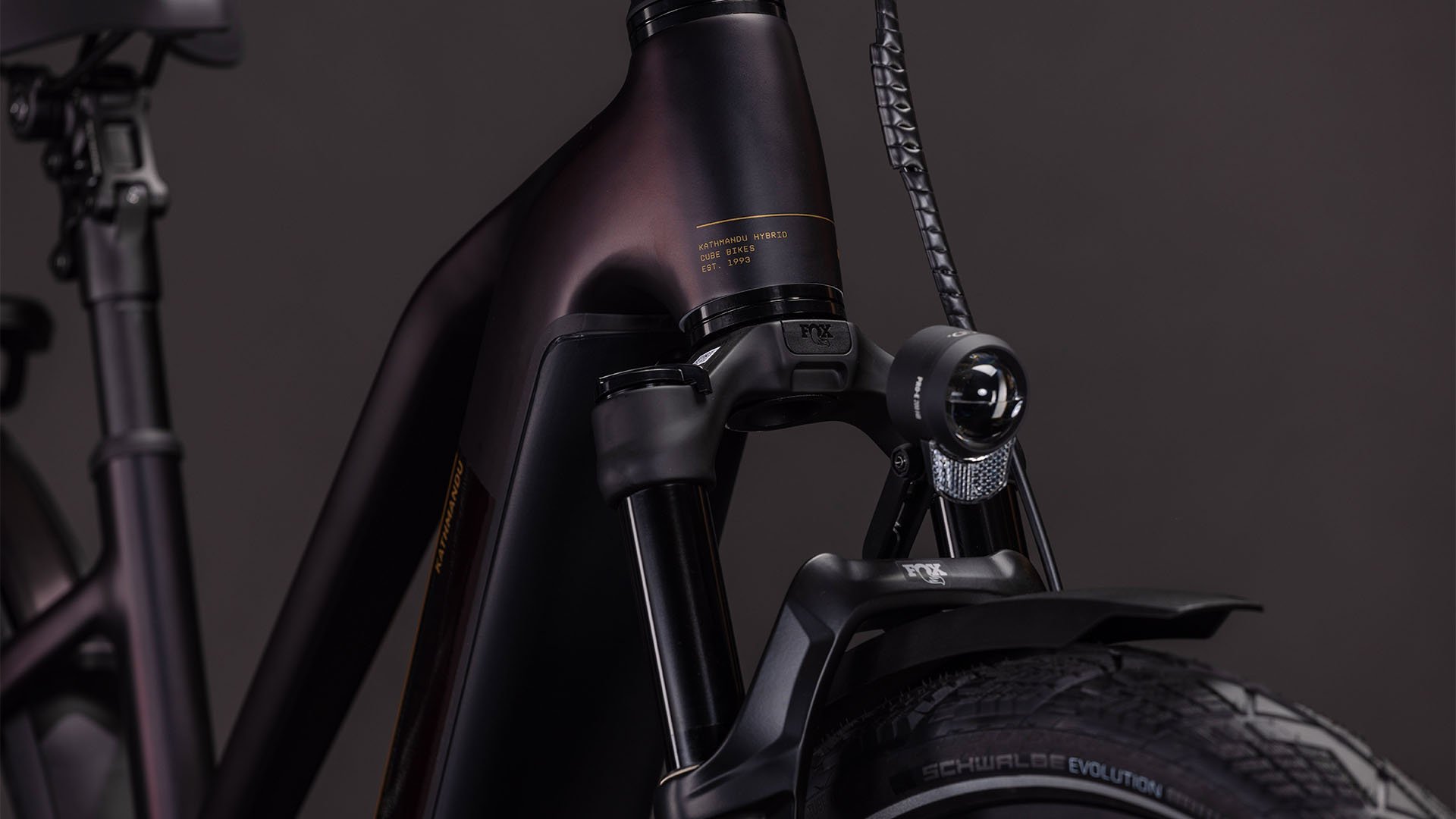

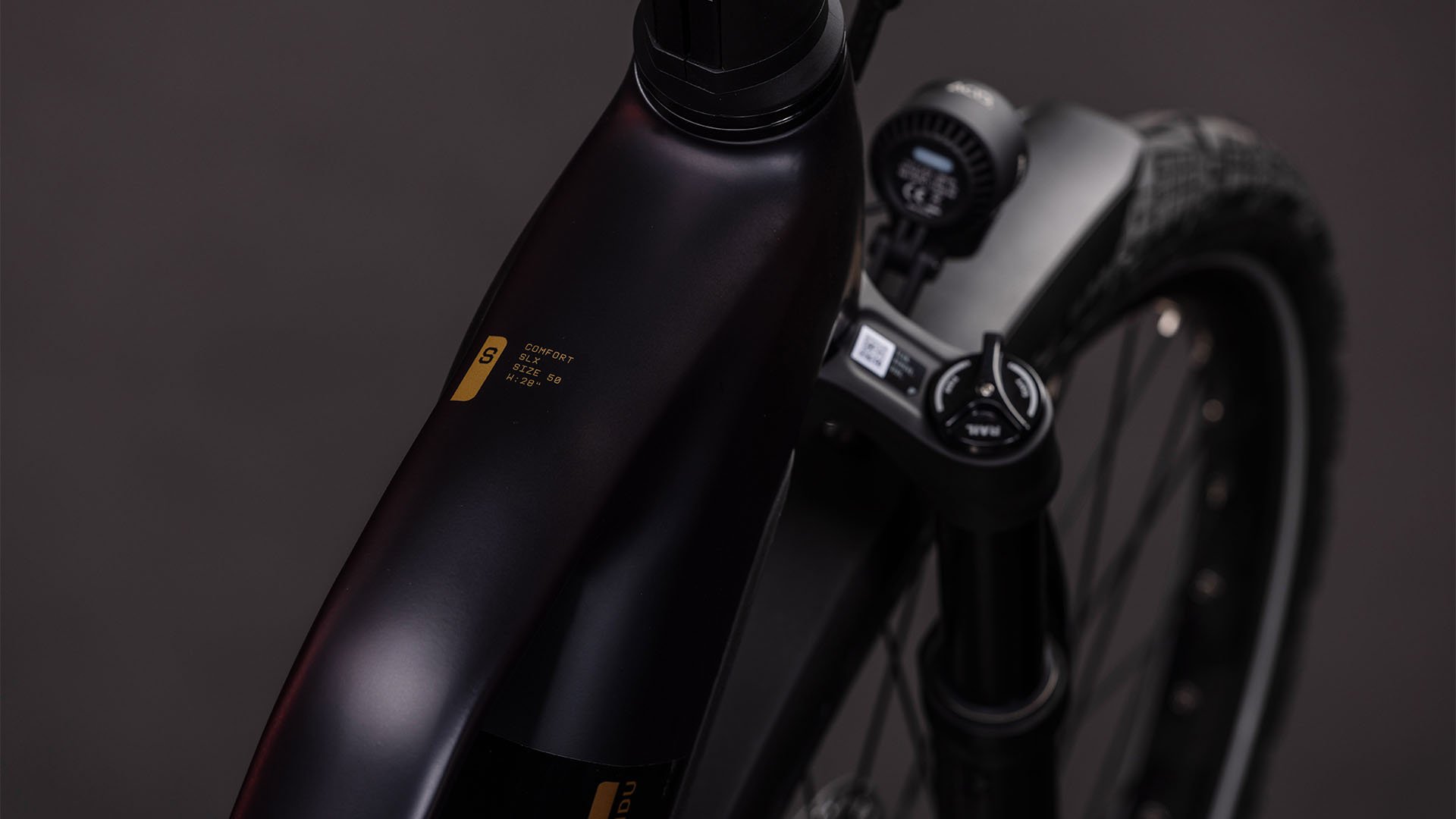

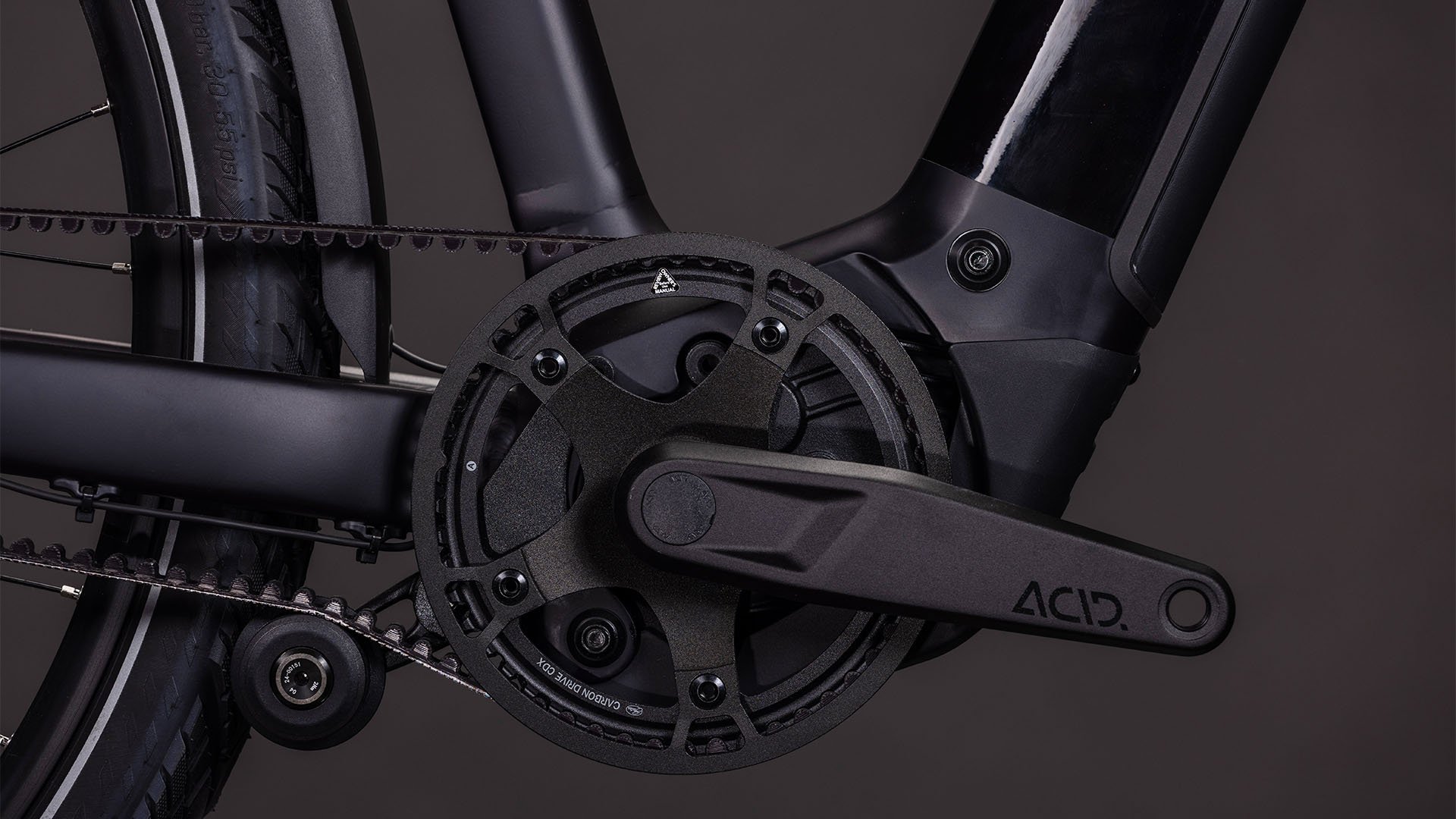

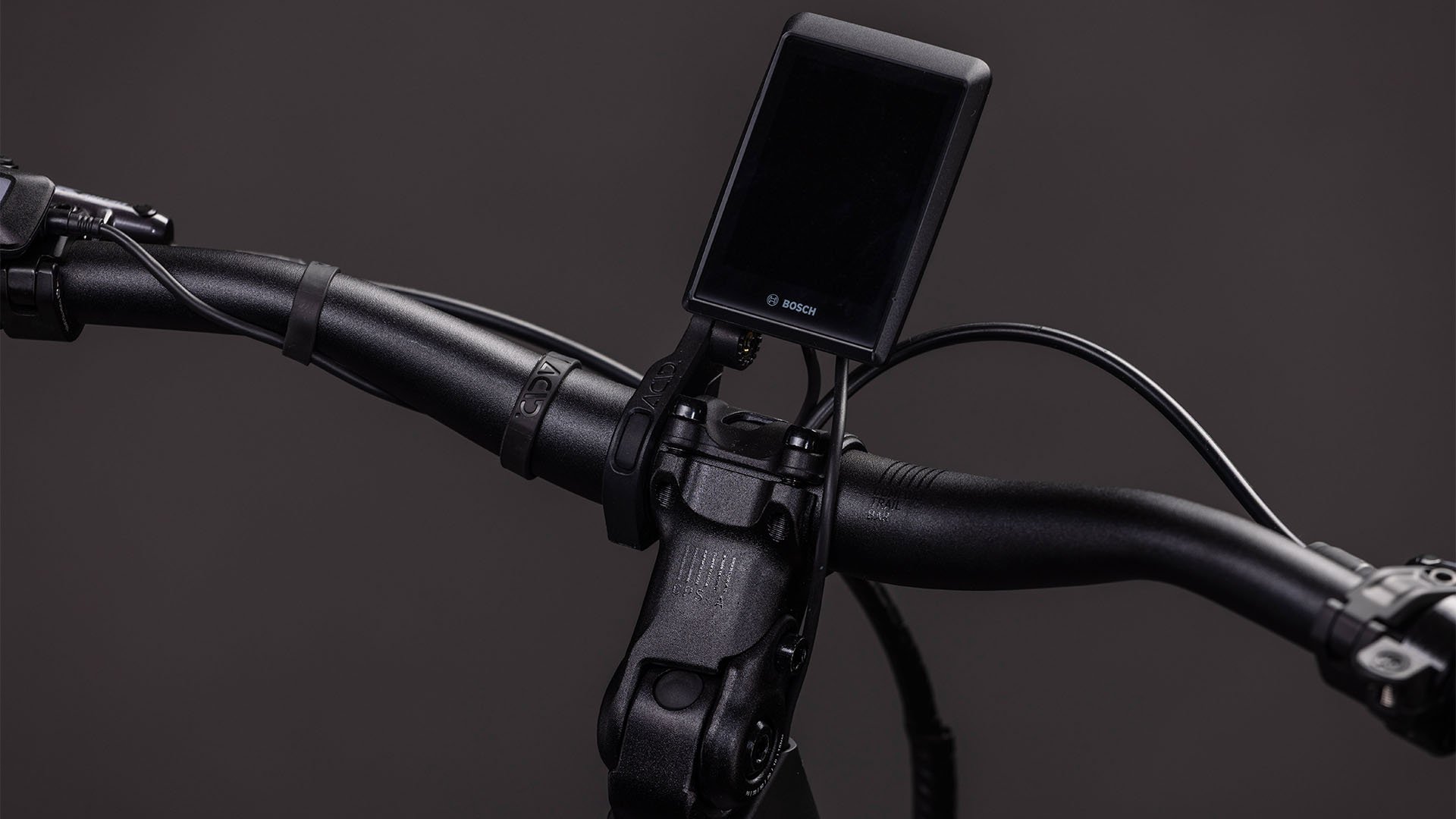

What if you could just jump on your bike and go... anywhere? With the Kathmandu Hybrid Comfort SLX from CUBE, you can. Its fully automatic, belt-driven Enviolo hub gears work seamlessly with the Bosch CX motor and 800Wh battery to get you to your destination. There's up to 90Nm of pedal assistance on tap, and the gears and motor adjust according to riding conditions. We even fitted a Bosch Connect module, so you can make use of GPS for navigation and tracking. A Fox 34 AWL Float fork, adjustable stem and parallelogram suspension seatpost help make every journey a comfortable experience, and powerful 4-piston Shimano XT hydraulic disc brakes ensure you can always slow and stop, whatever the weather. With a full complement of accessories and the versatility of the Integrated Carrier 3.0, all that's left is to decide where to ride.
