EDITOR HYBRID
SLT 400X FE

ár* 3399 EUR

ArtNo. 123310

smaragdgrey´n´prism

Comparison

simpli
CITY

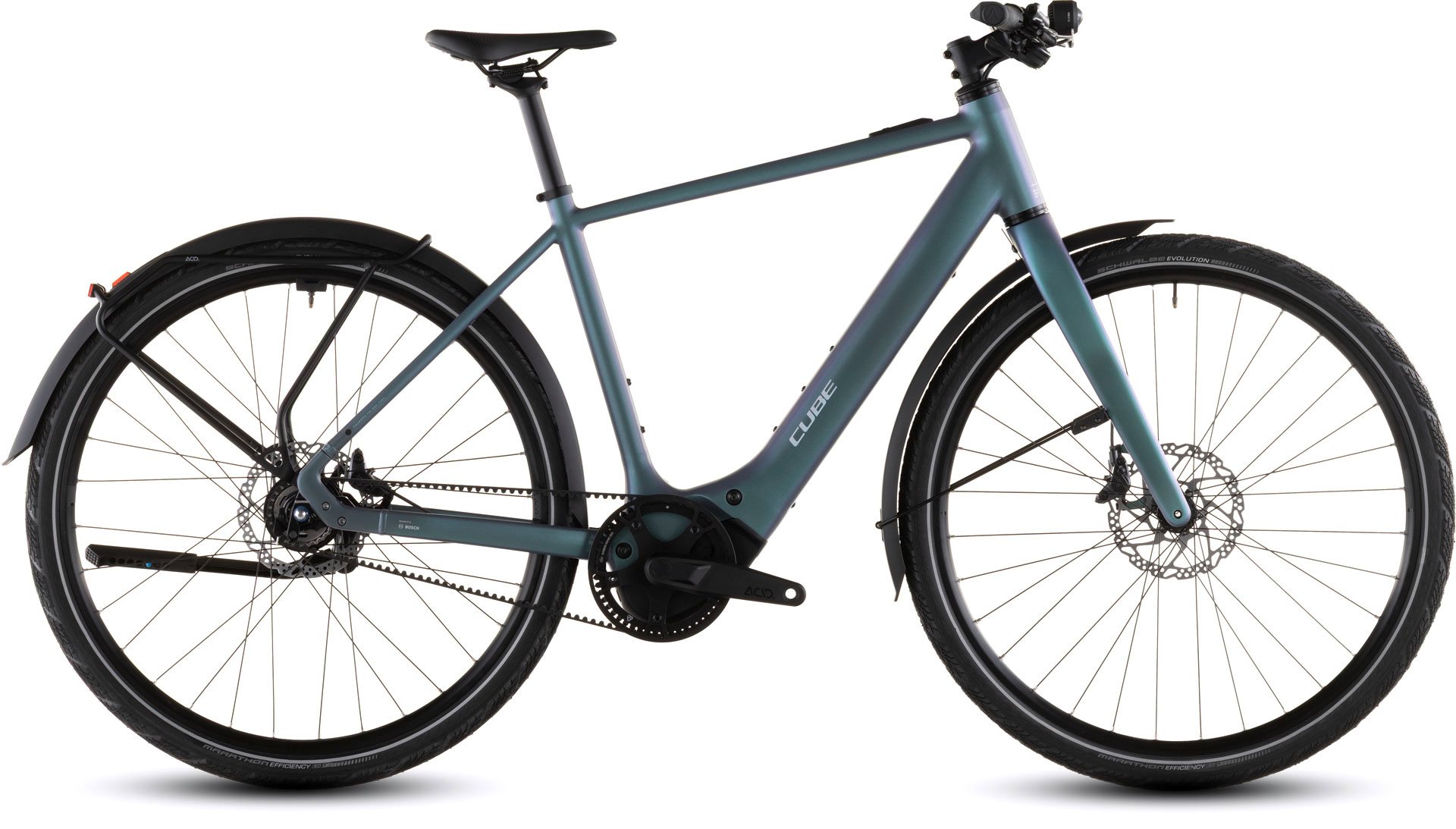

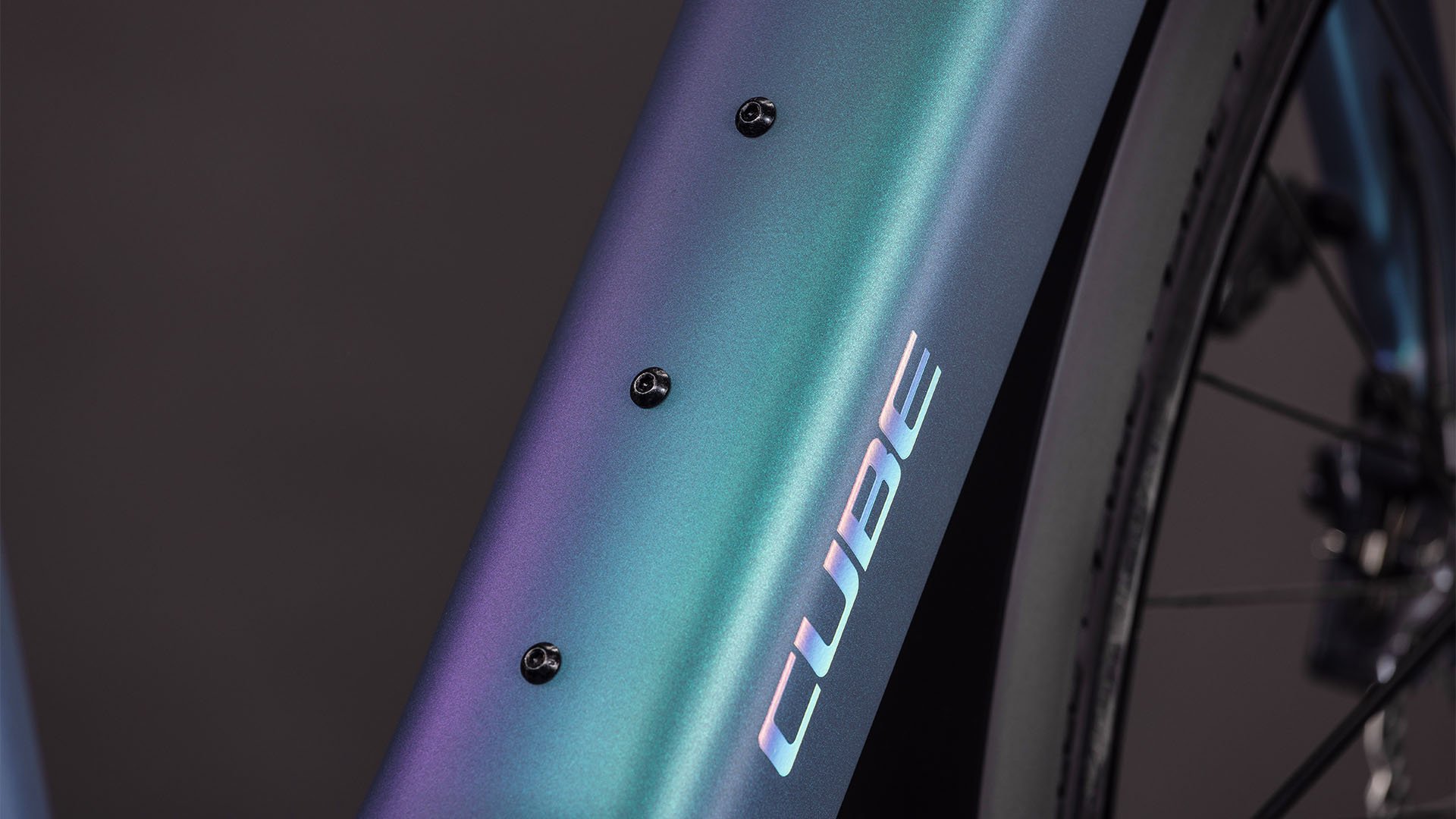

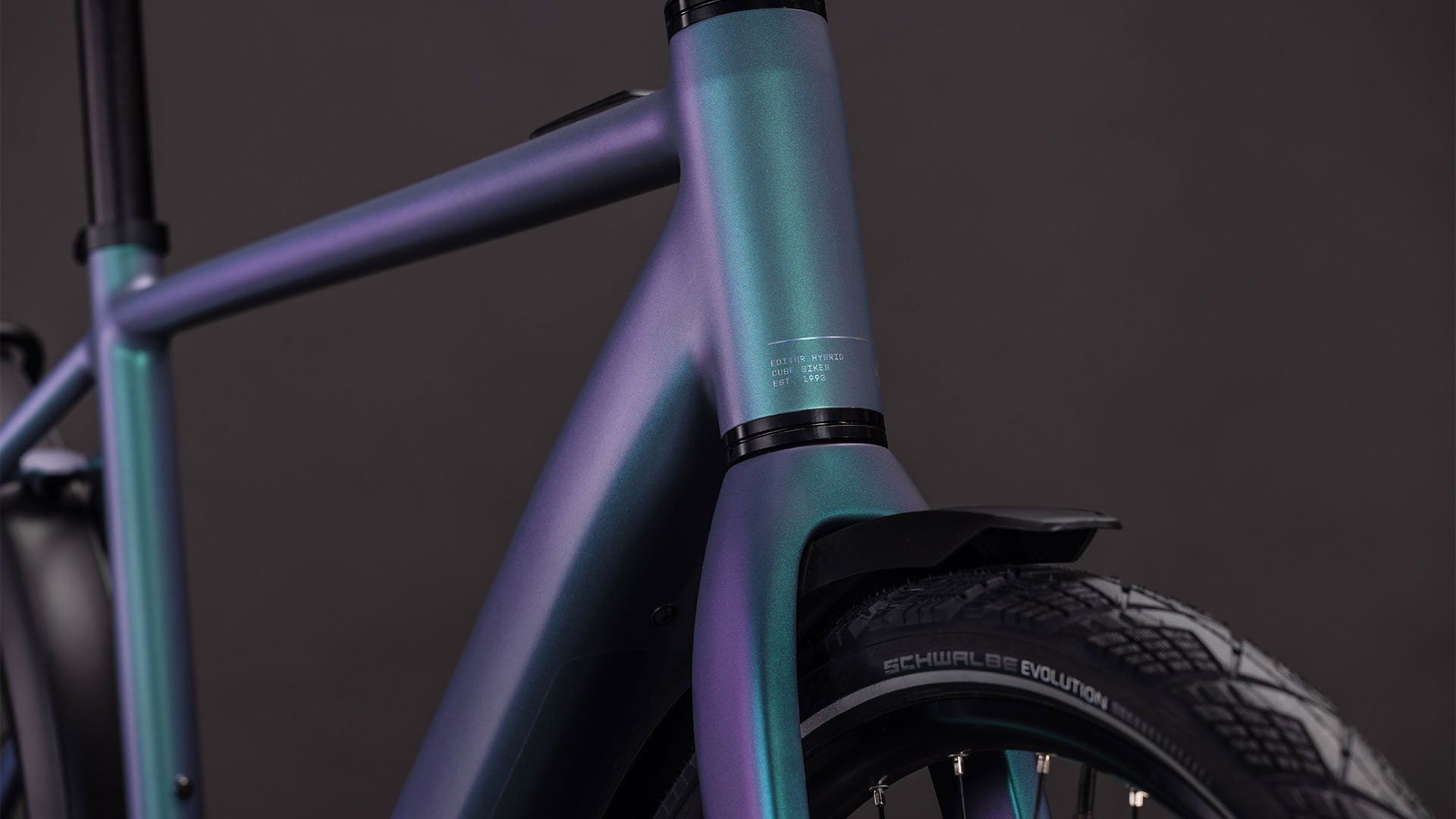

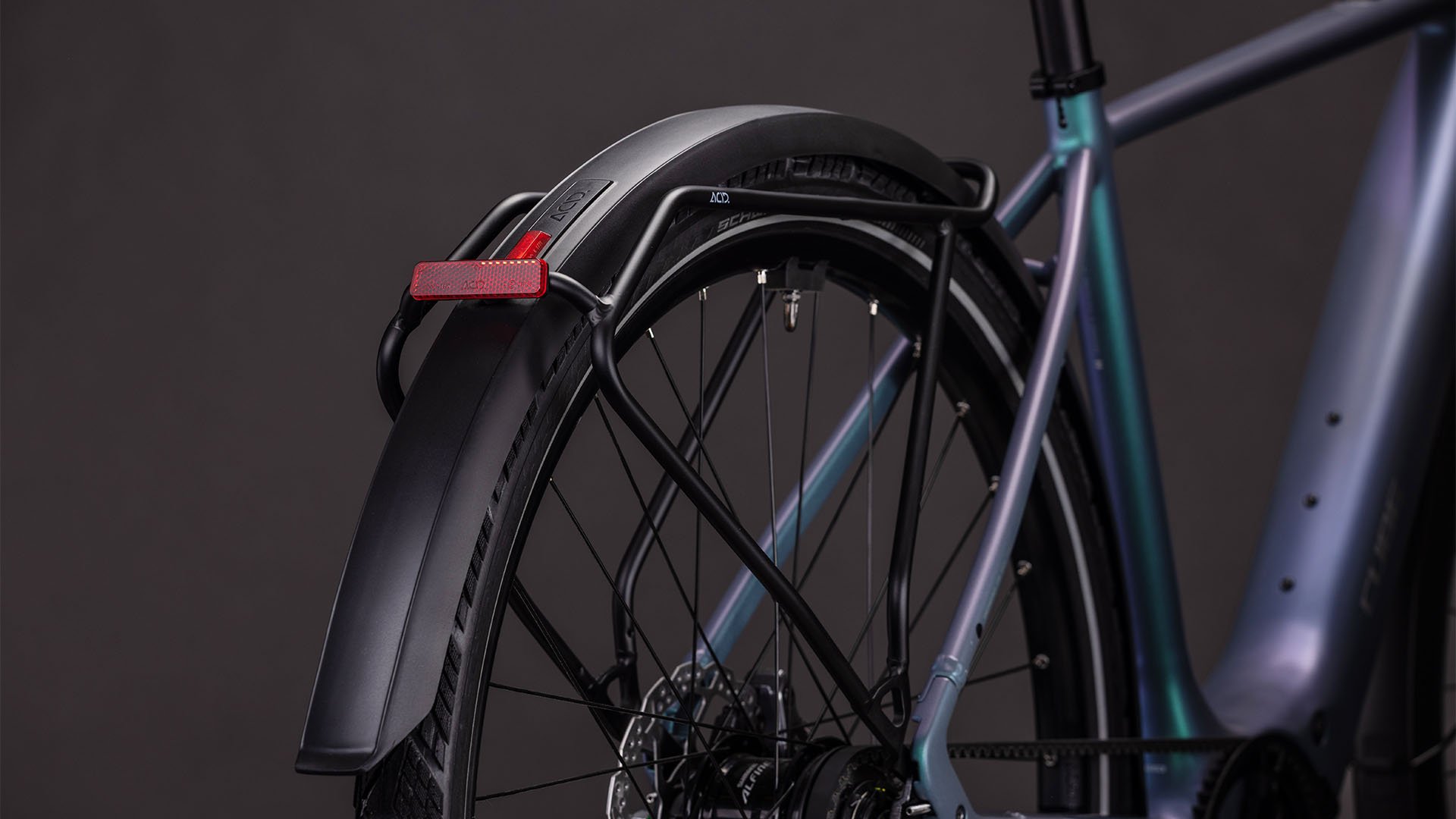

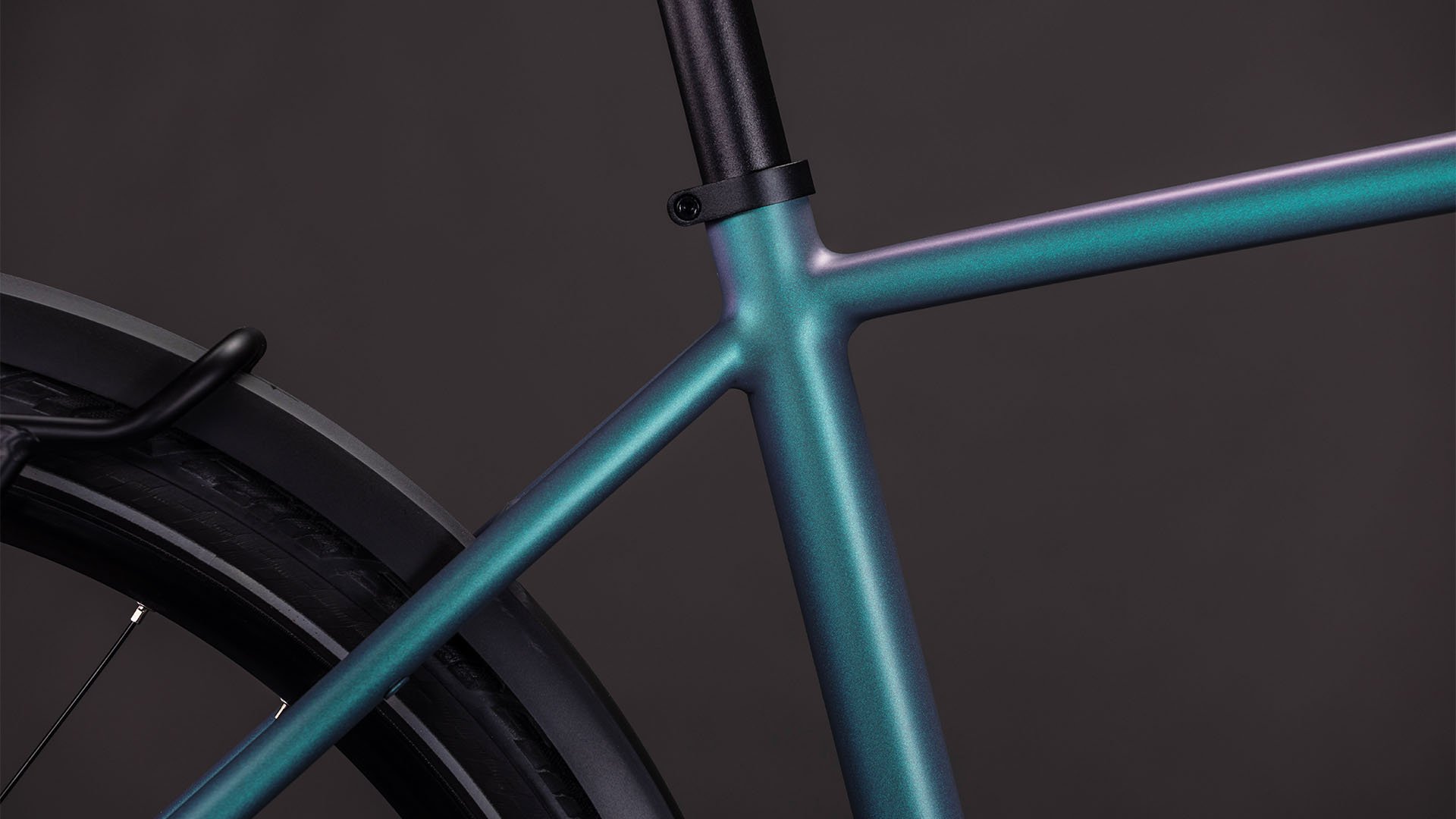

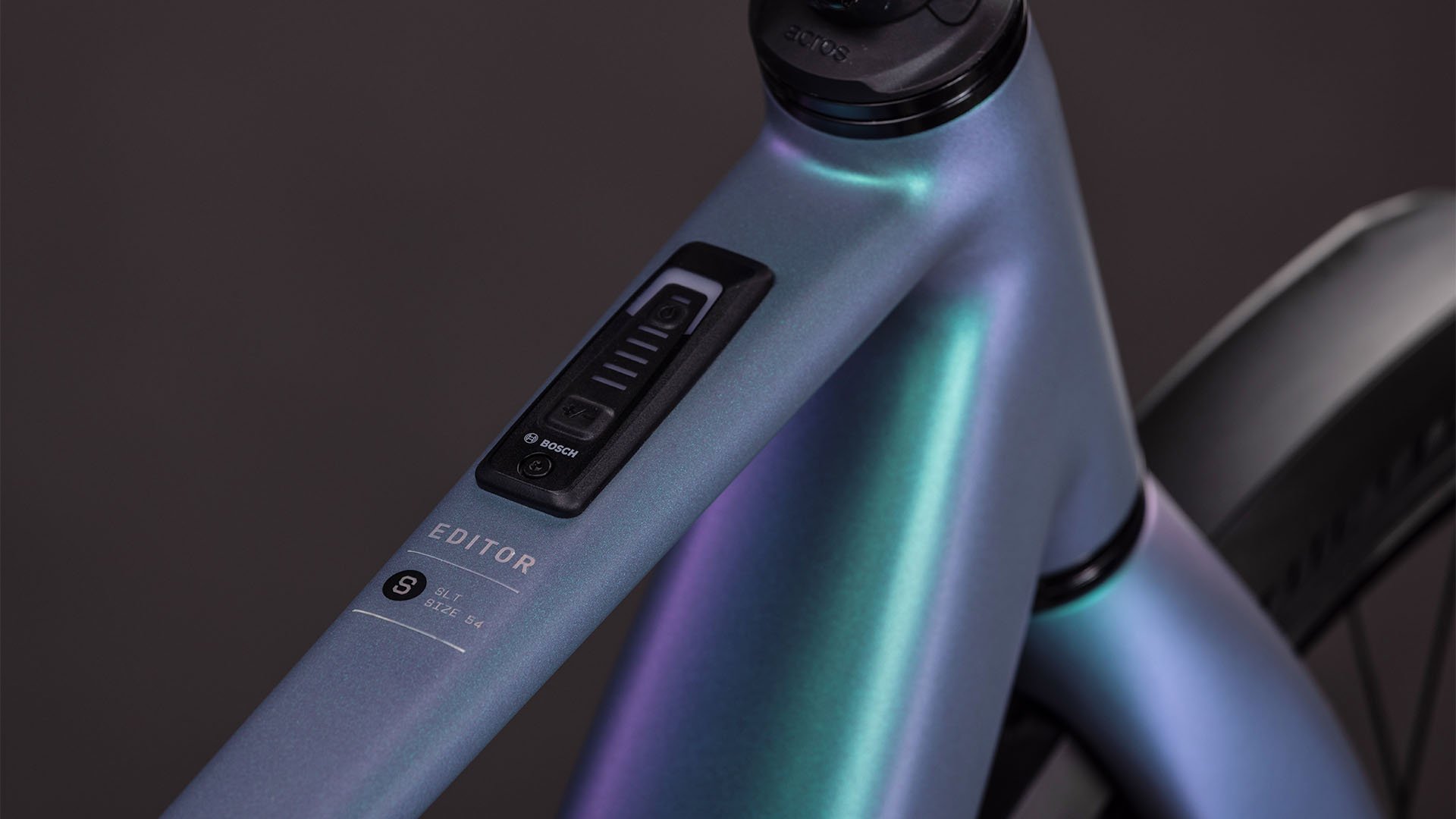

So sleek and understated is the Editor Hybrid FE's frame, at first glance it barely looks like an e-bike. Lightweight, durable aluminium construction with Smooth Welding at the main tube joints creates an elegant frame, while the full carbon fork is both light and strong. We integrated the cables to complement the frame's clean lines, and the 400Wh battery is built into the down tube to save space and weight. There's a versatile, rugged rear carrier and an optional front carrier for carrying your belongings. And we included full mudguards, a bright lighting set and a practical kickstand, so you've got everything you need.

Frame Material

Aluminium Superlite

Battery

400Wh

Configuration

FE

You need to be where you need to be, with the minimum of hassle. And you need to be able to do that night or day, rain or shine, whilst carrying your belongings. Enter the Editor Hybrid SLT 400X FE. With its lightweight Bosch SX power and full complement of accessories, it's your two-wheeled assistant.

More Information

Bike category of use: 1

You can find more information about Bike Classification at the following link.

More Information

100
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometria

	50 cm	54 cm	58 cm	62 cm
Seat tube	460	510	560	600
Top Tube Horizontal	570	586	596	607
Seat angle	74.2°	74°	73.8°	73.5°
Head tube angle	69°	70°	70°	70°
Chainstays	477	477	477	477
Head tube	152	157	177	197
Wheelbase	1125	1131	1143	1155
BB-Height to Hub	-70	-70	-70	-70
Protrusion height - 80mm	674	811	849	882
Reach	400	413	418	424
Stack	604	613	632	650

Ergonomics

	50 cm	54 cm	58 cm	62 cm
Stem length	60	80	80	90
Angle stem	6°	6°	6°	6°
Handlebar width	680	680	680	680
Crank length	170	170	170	170
Length seat post	350	400	400	400
Diameter seatpost	30.9	30.9	30.9	30.9
max. nyeregcső behúzási mélység	290	250	300	300
Diameter tire maximum	733	733	733	733
Width tire maximum	52	52	52	52

All values are given in millimetres or degrees.

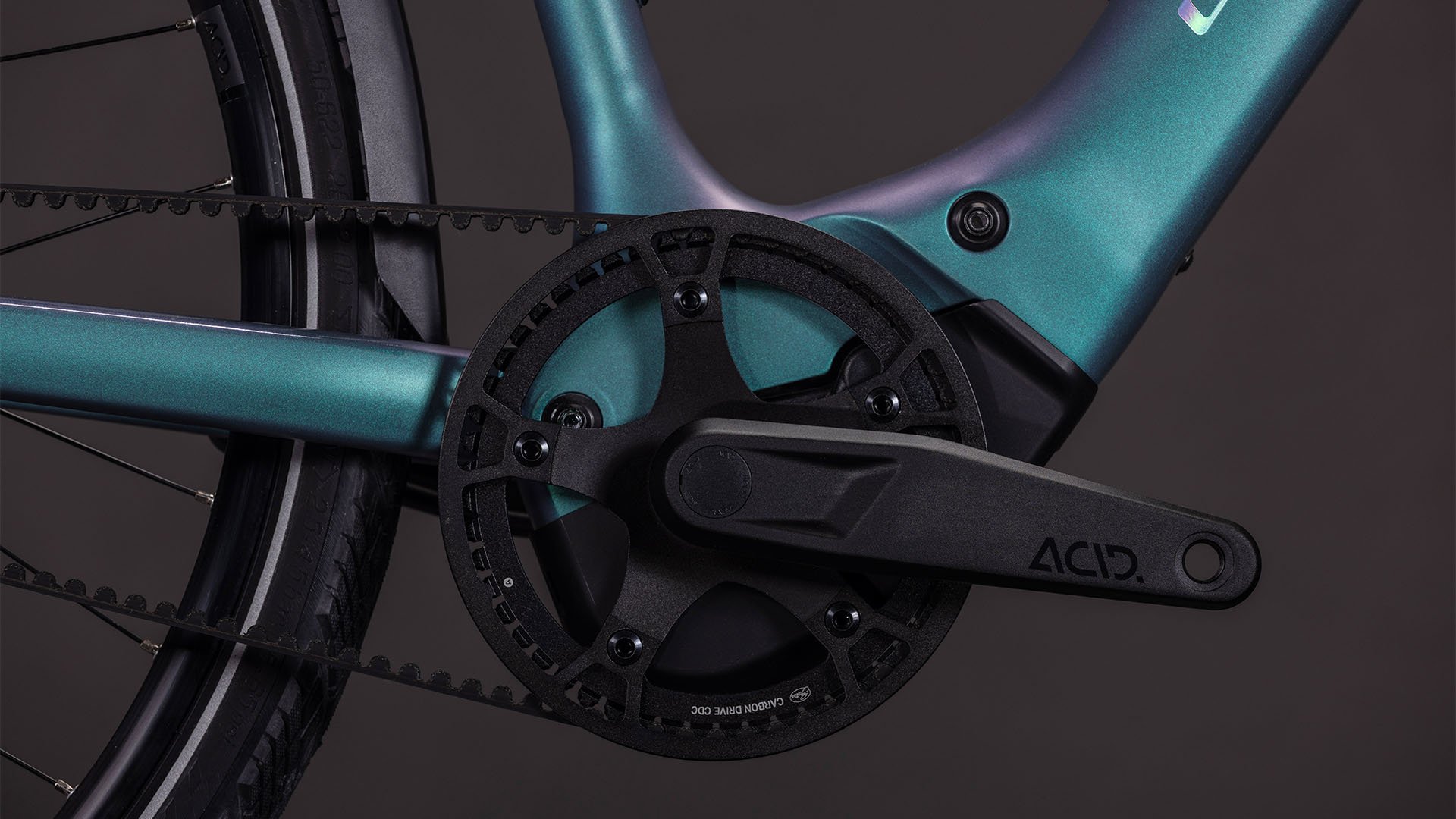

Combining the minimalist appeal of an elegant frame design and full carbon fork with the practicality of a full set of accessories including lights, mudguards, a rear carrier and a kickstand, the Editor Hybrid SLT 400X FE is your discreet urban concierge. There's a low-maintenance, clean Gates belt drive and a Shimano 11-speed Alfine hub gear. Bosch's lightweight, smooth and powerful SX drive and 400Wh battery work together to help you on your way. Wide, comfortable and fast-rolling Schwalbe Marathon Efficiency Evo 50mm tyres tackle city streets with ease, and powerful Shimano Deore hydraulic disc brakes help keep you safe. It really is the complete package.
