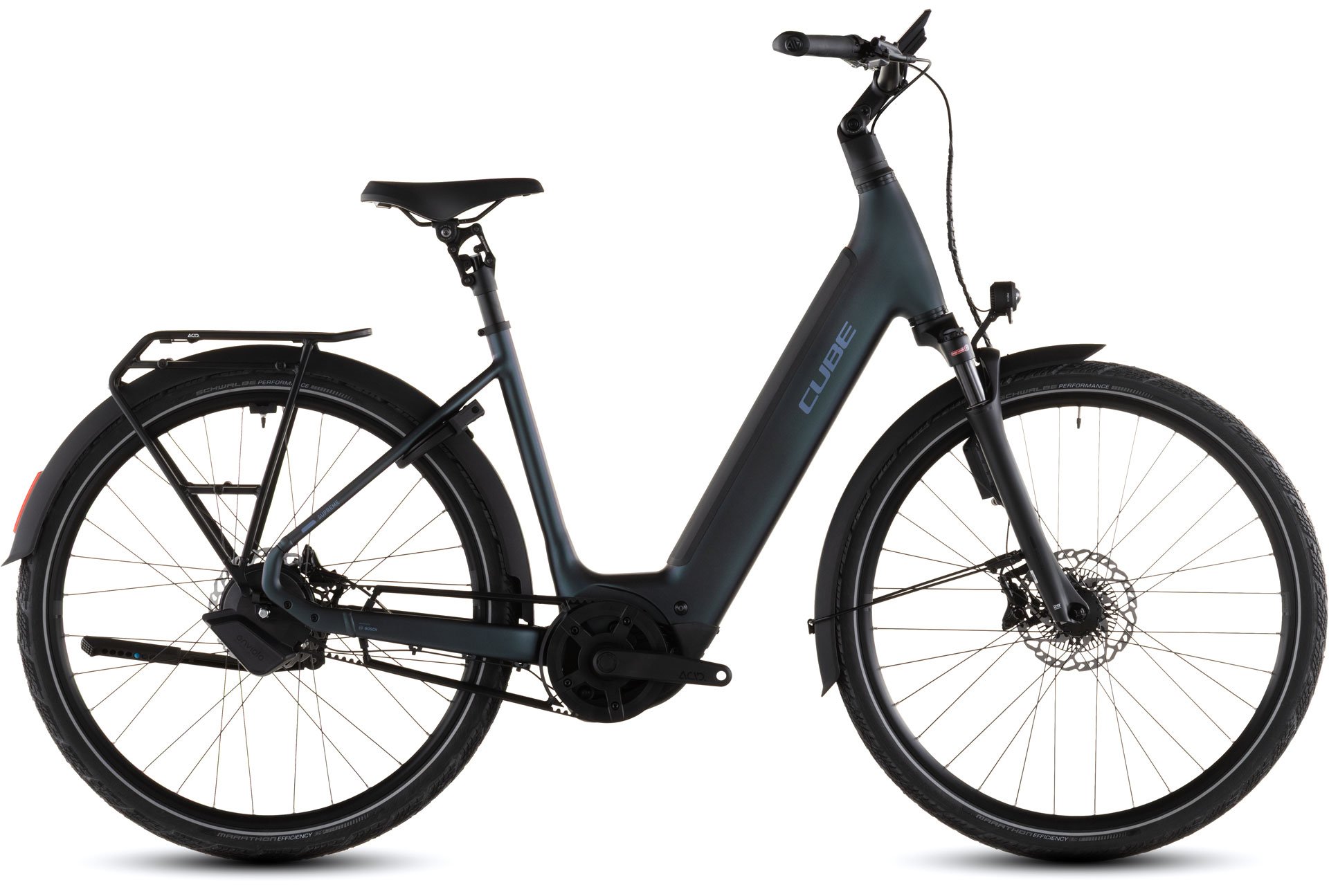

SUPREME HYBRID DELUXE
SLT 600

ArtNo. 114560

metalblue´n´reflex

Comparison

FOR WORK.
FOR SHOPPING.
FOR FUN.

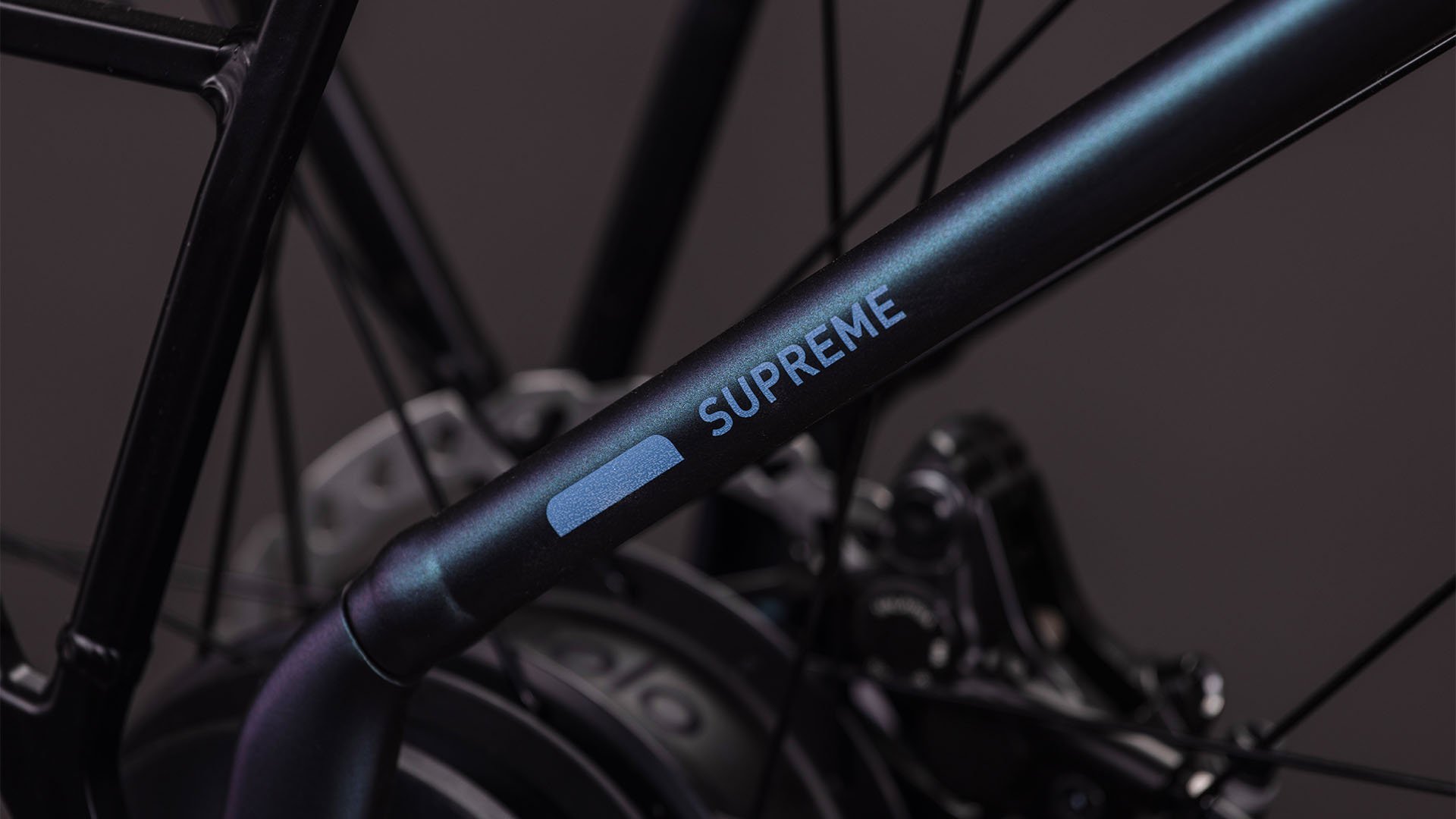

The devil is always in the detail. With the Supreme Hybrid frame, Bosch's Performance CX motor provides quiet and smooth pedal assistance up to 100Nm. The 600Wh Bosch PowerTube battery is stowed neatly inside the down tube, while Smooth Welding complements the frame's clean, almost organic lines. Integrated Cable Routing and X-Connect keep wires and cables out of sight and out of harm's way. There's a wide range of sizes from 46cm to 58cm, so everyone should be able to find their ideal fit. The Semi-Integrated Carrier 2.0 is equal parts neat and sturdy, giving you a solid platform on which to carry... well, whatever you need. And we added mudguards, a full lighting system and a kickstand, so you really are all set.

Frame Material

Aluminium Superlite

Battery

600Wh

Configuration

ABS

Your car has anti-lock brakes, so shouldn't your bike have them, too? With its sophisticated hydraulic disc ABS system, comfortable frame design and powerful Bosch pedal assistance, the Supreme Hybrid Deluxe SLT takes safe, comfortable and practical urban riding for everyone into a new era.

More Information

Bike category of use: 1

You can find more information about Bike Classification at the following link.

More Information

110
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	46 cm	50 cm	54 cm	58 cm
Seat tube	420	460	510	560
Top Tube Horizontal	593	605	617	629
Seat angle	72.3°	72.3°	72.3°	72.3°
Head tube angle	69°	69°	69°	69°
Chainstays	499	499	499	499
Head tube	164	179	194	214
Wheelbase	1148	1161	1174	1188
BB-Height to Hub	75	75	75	75
Reach	383	391	399	405
Stack	655	669	683	702

Ergonomics

	46 cm	50 cm	54 cm	58 cm
Stem length	65	80	80	80
Handlebar width	660	660	660	660
Crank length	165	165	165	165
Length seat post	350	350	350	350
Diameter seatpost	31.6	31.6	31.6	31.6
max. zasunutí sedlovky	180	210	235	285
Diameter tire maximum	736	736	736	736
Width tire maximum	50	50	50	50

All values are given in millimetres or degrees.

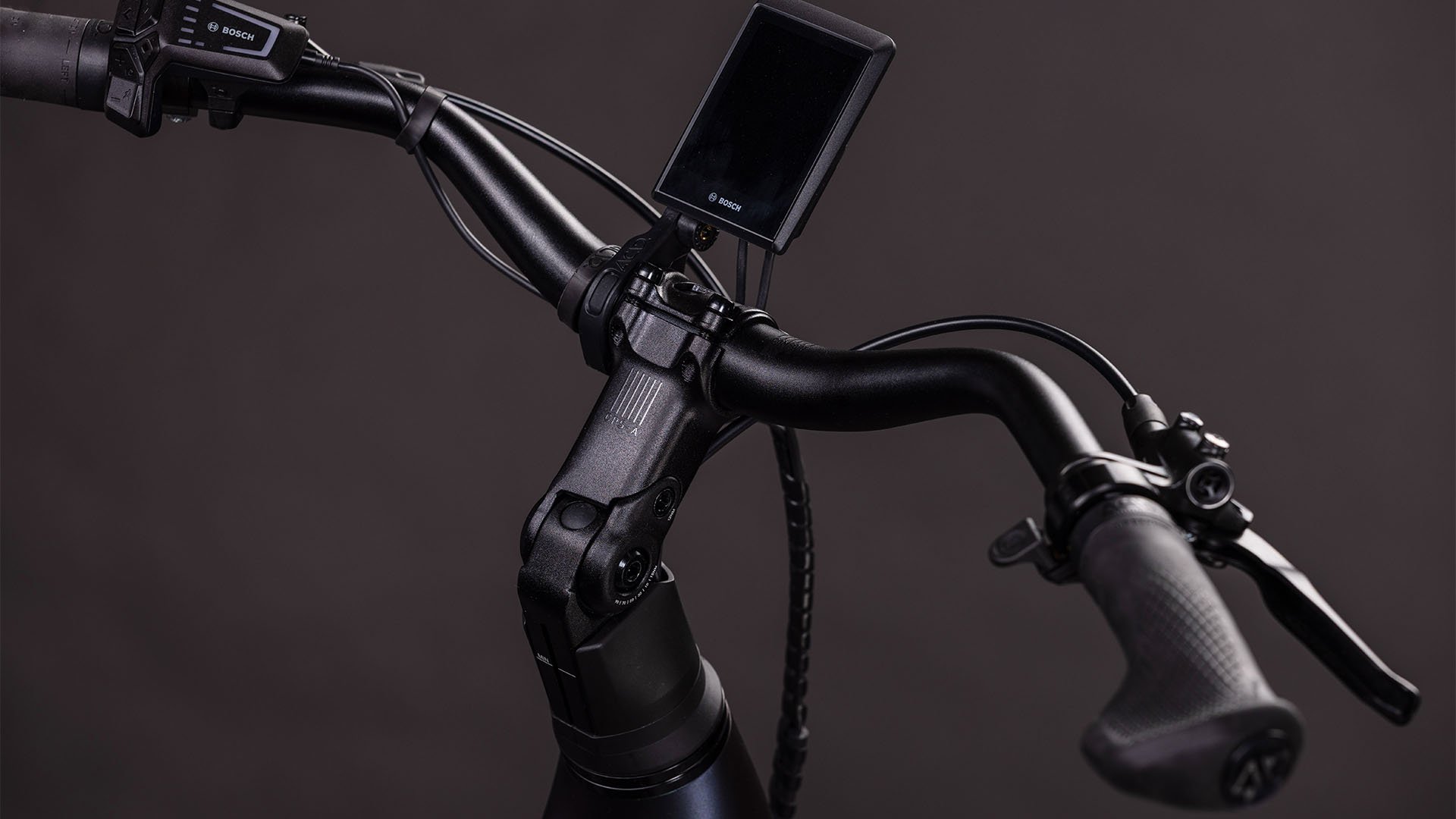

Staying safe on your bike in the city can be a job in itself, but we've made it a little bit easier. The Supreme Hybrid Deluxe SLT makes use of Shimano's powerful 4-piston hydraulic disc brakes, with Bosch's clever anti-lock system at the front ensuring it's almost impossible to lose control, even under heavy braking. With the powerful Bosch CX drive unit, a 600Wh battery and a clean, quiet and low-maintenance Gates belt driving the stepless Enviolo Heavy Duty hub gears, it's easy to arrive at your destination fresh and relaxed. There's a comfortable air-sprung Suntour suspension fork, a parallelogram suspension seatpost and an adjustable stem. Throw in the included Semi Integrated Carrier 2.0, mudguards, kickstand and lighting system, and it's all you need for carefree urban cycling.
