AMS HYBRID ONE44 C:68X
SUPER TM 400X

SRP* 9099 EUR

ArtNo. 104400

foggrey´n´fibre

Comparison

ENGINEERED FOR
GOOD TIMES

The AMS Hybrid ONE44 C:68X frame makes use of our most advanced C:68X® carbon material, for maximum possible strength and stiffness with the lowest possible weight. The 400Wh battery is incorporated into the down tube, as close to the lightweight Bosch SX motor as possible to improve handling, and the frame is PowerMore-ready for a 250Wh range boost with the optional battery pack. Internal Cable Routing complements the frame's sleek silhouette and there's a lightweight Direct Mount chain guide. With a UDH gear hanger and angle adjustable headset so you can tweak the handling to suit your riding style, it's got everything you need for fast-paced trail riding.

Frame Material

C:68X®

Frame weight

2100g

Battery

400Wh

With its ultra-light C:68X® carbon chassis, Fox Factory suspension and Bosch's lightweight SX drive unit and 400Wh battery, the AMS Hybrid ONE44 C:68X Super TM is one trail-hungry machine. Light, agile and with up to 60Nm of torque on tap, mountain trails never looked so tempting.

More Information

Bike category of use: 4

You can find more information about Bike Classification at the following link.

More Information

110
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	S	M	L	XL
Seat tube	370	405	420	470
Top Tube Horizontal	576	599	627	659
Seat angle	76°	76°	76°	76°
Head tube angle	65.6°	65.6°	65.6°	65.6°
Chainstays	450	450	450	450
Head tube	102	112	122	142
Wheelbase	1190	1214	1243	1279
BB-Height to Hub	-32	-32	-32	-32
Protrusion height - 80mm	763	764	764	765
Reach	428	448	473	500
Stack	617	626	635	653

Ergonomics

	S	M	L	XL
Stem length	40	50	50	50
Handlebar width	760	780	780	780
Crank length	165	165	165	165
Length seat post	346	411	476	541
Diameter seatpost	31.6	31.6	31.6	31.6
Max. insertion depth seat post	230	240	270	320
Stroke seatpost	120	150	180	210
Diameter tire maximum	760	150	760	760
Width tire maximum	66	66	66	66
Rear suspension travel	140	140	140	140

All values are given in millimetres or degrees.

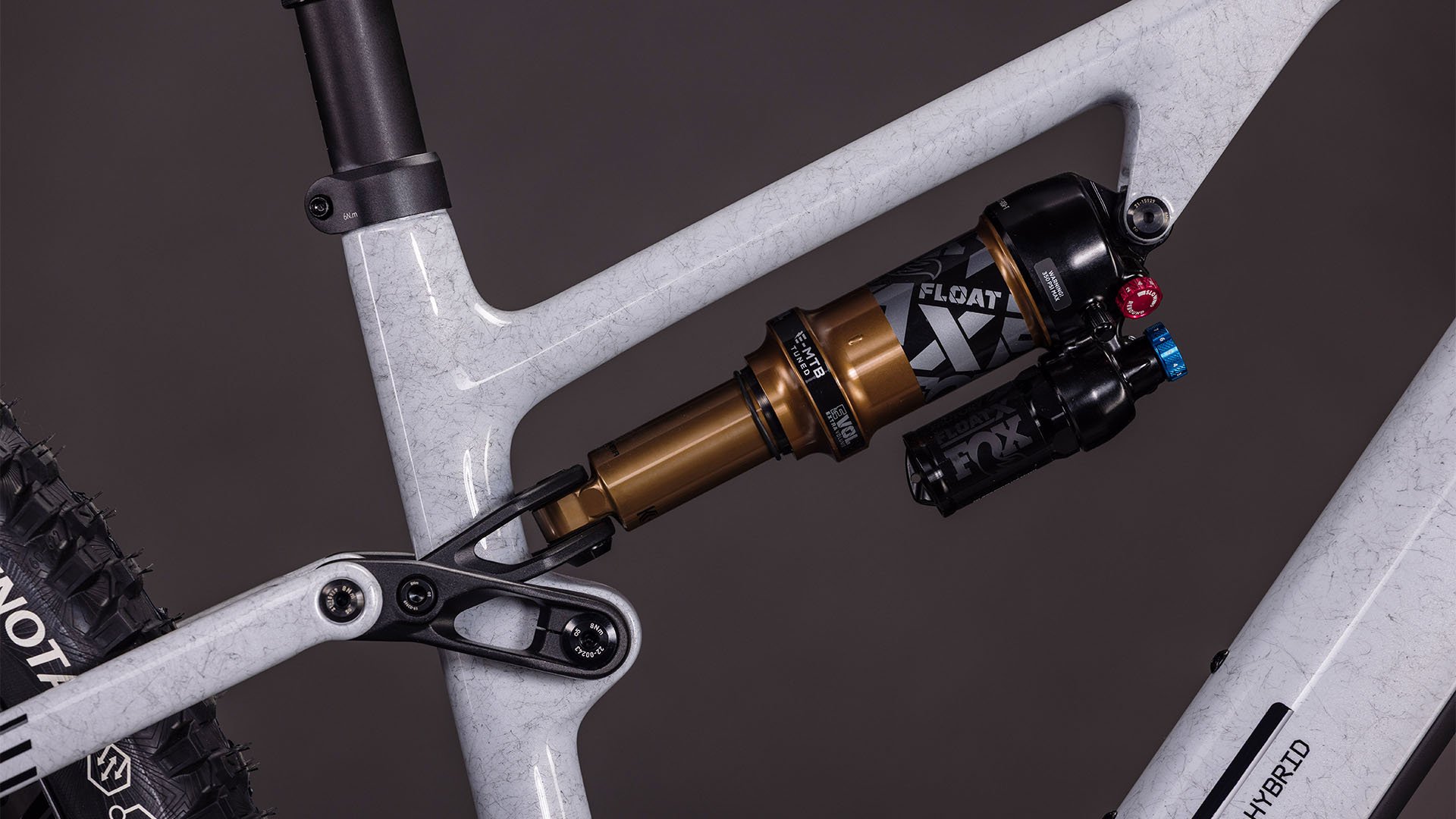

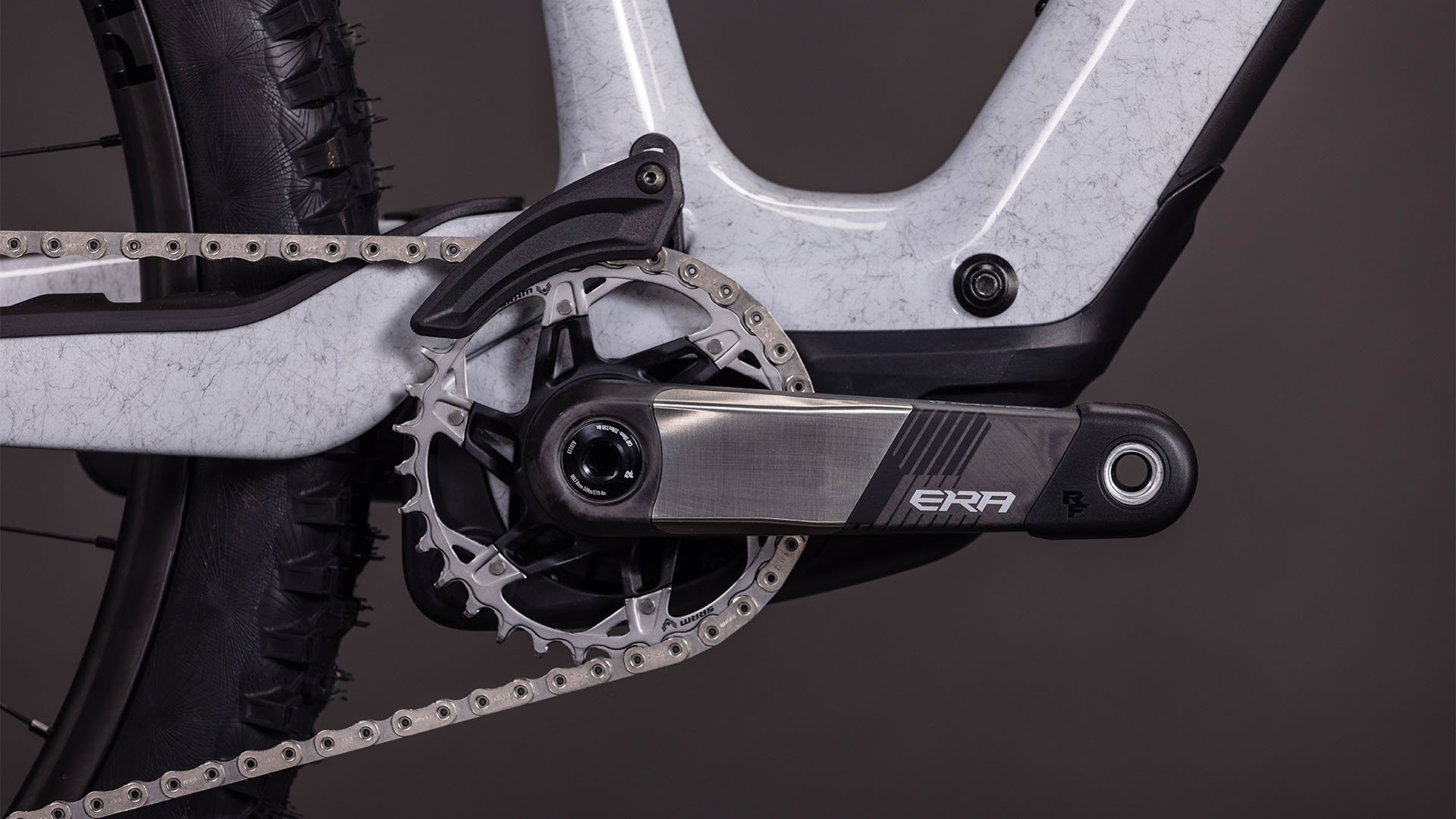

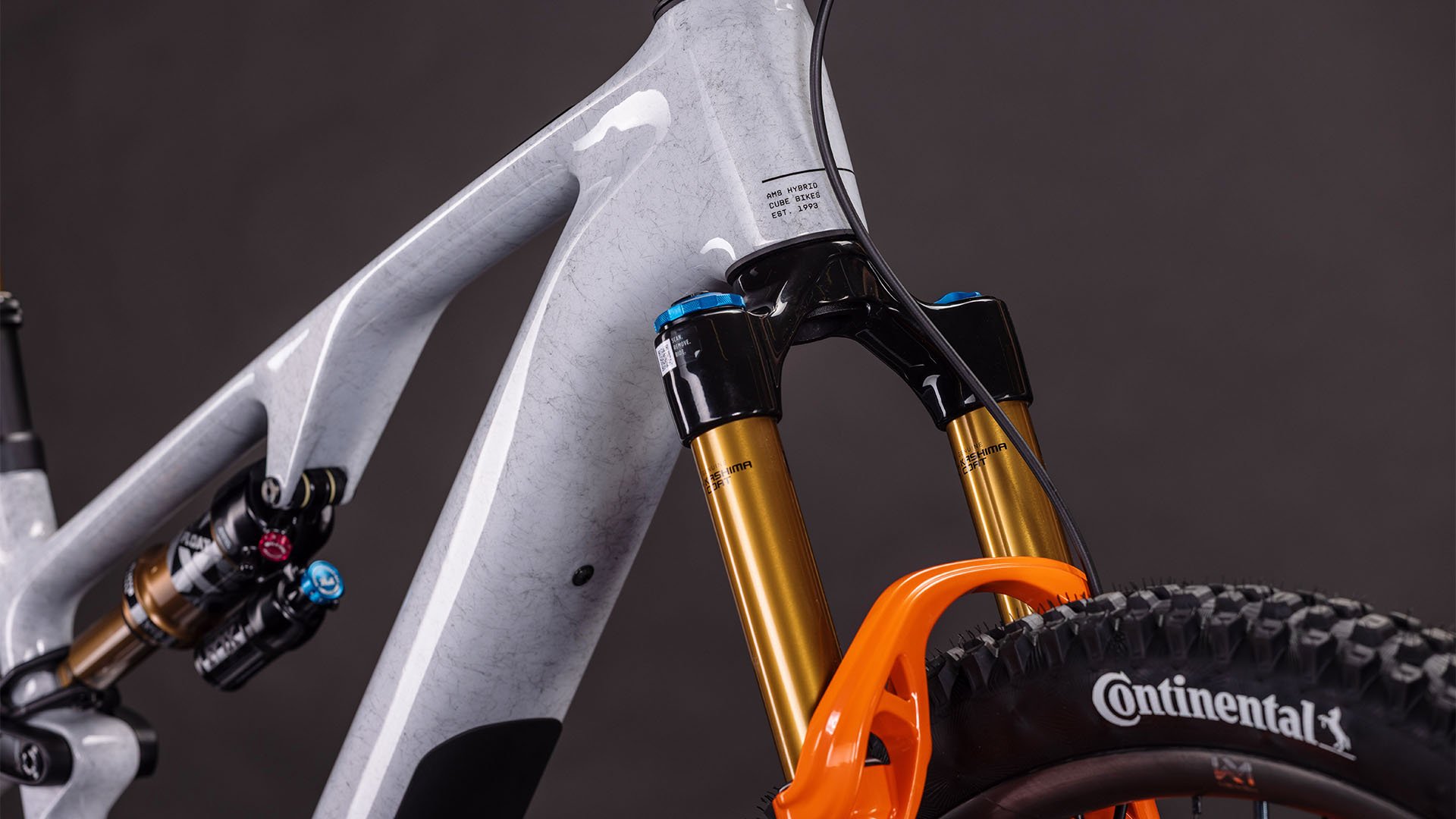

There are three key attributes that a great all-mountain bike needs. First, it must be light. With its advanced C:68X® carbon frame, lightweight Bosch SX drive unit with 400Wh battery and Race Face carbon crankset, the AMS Hybrid ONE44 C:68X Super TM ticks that box. Second, it must be fast. Bosch assistance gets you part of the way there, of course, but Sram's XX Eagle Transmission 1x12 gears combined with Sram Maven Ultimate hydraulic discs, a pair of Newmen Phase 30 wheels and Continental Kryptotal and Xynotal 2.4in tyres ensure you get your power to the trail, as well as keeping it in check when necessary. There's also, of course, a remote dropper post. And finally, it must be smooth. We took care of that with a Fox 36 Float Factory fork and Float X Factory shock, so you can keep the rubber side down. And that's why we call it Super Trail Motion...
