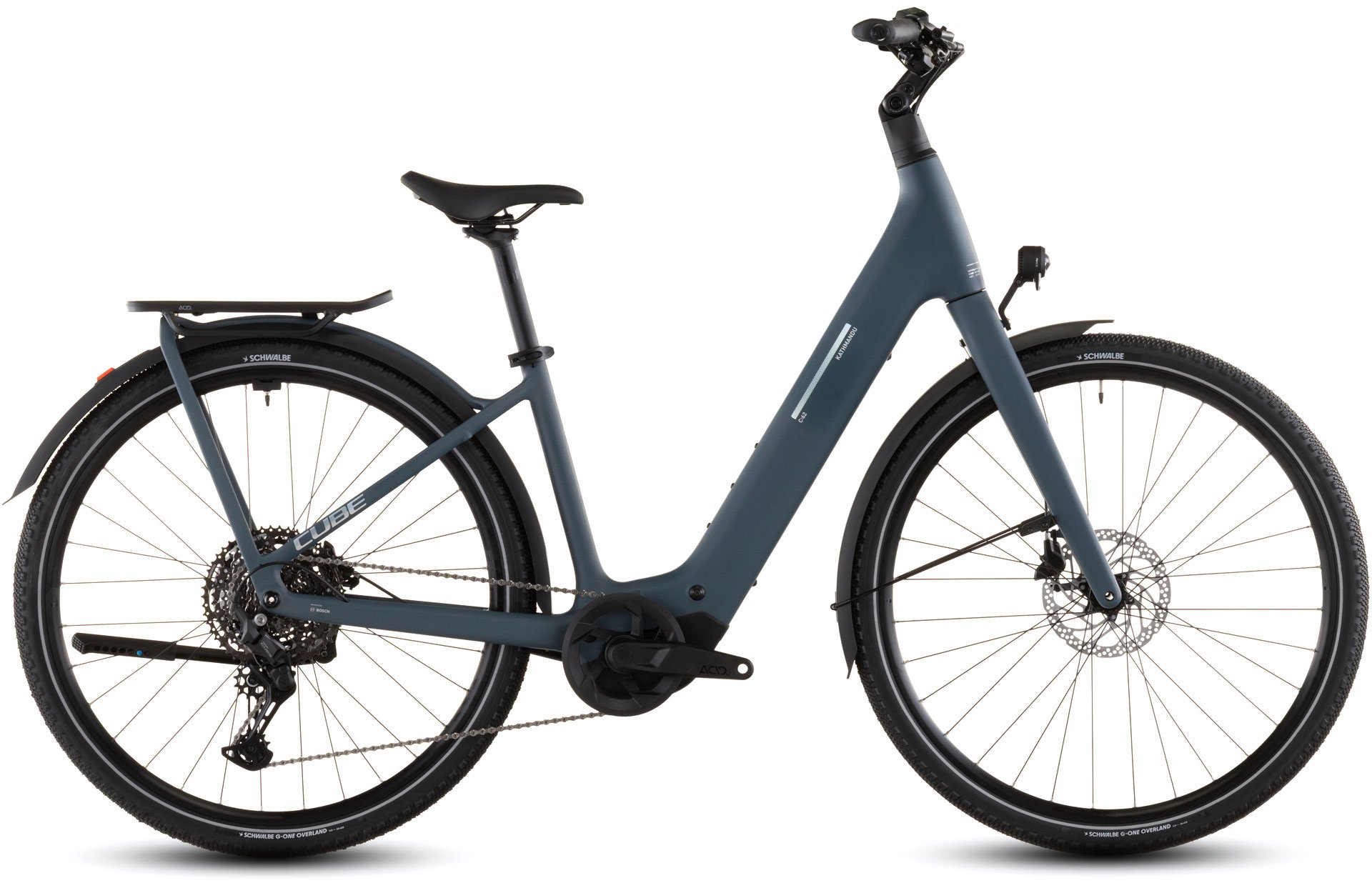

KATHMANDU HYBRID C:62
PRO 400X

SRP* 3599 EUR

ArtNo. 112901

spectralblue´n´prism

Comparison

BRING
THE WORLD
CLOSER

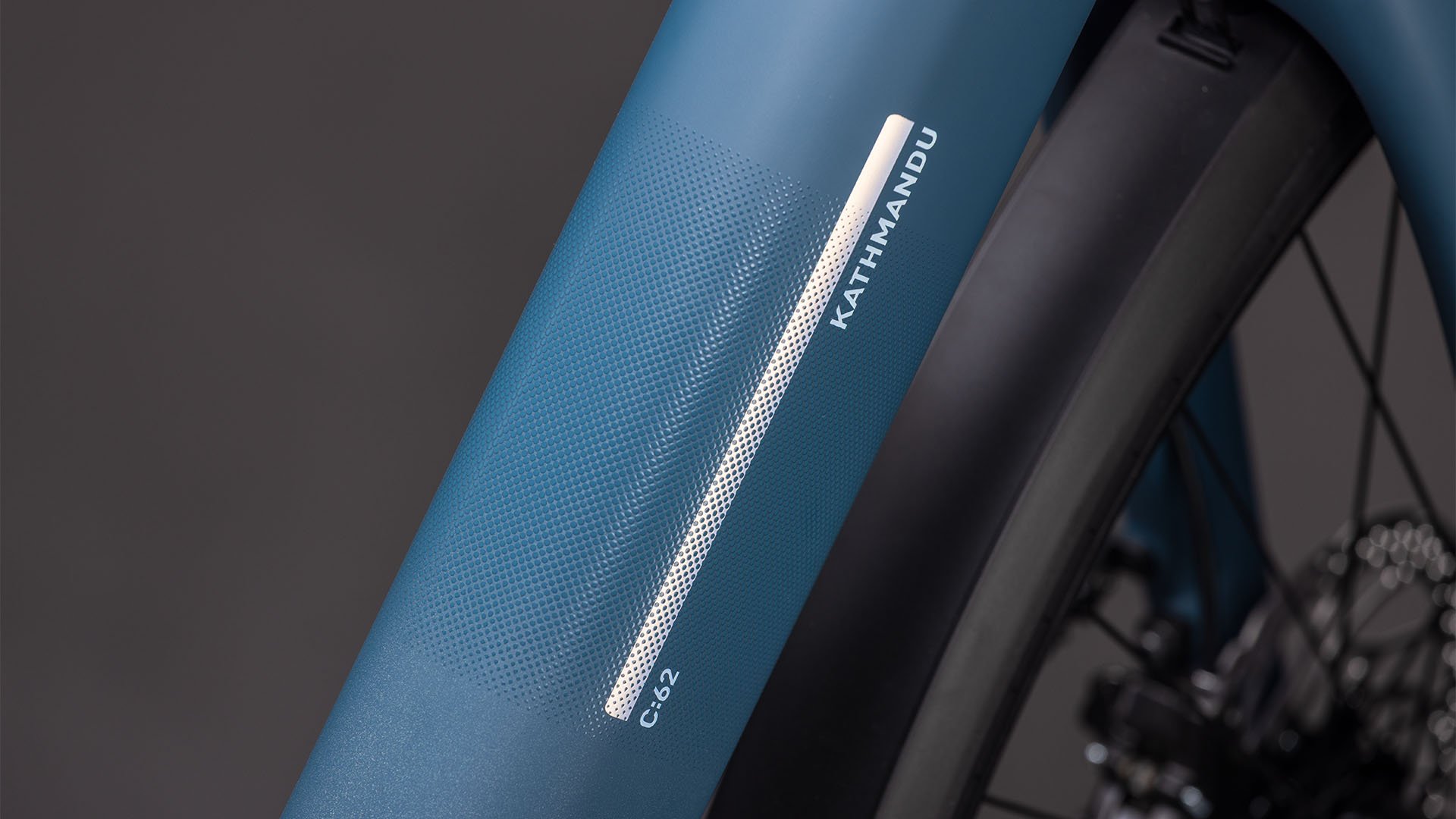

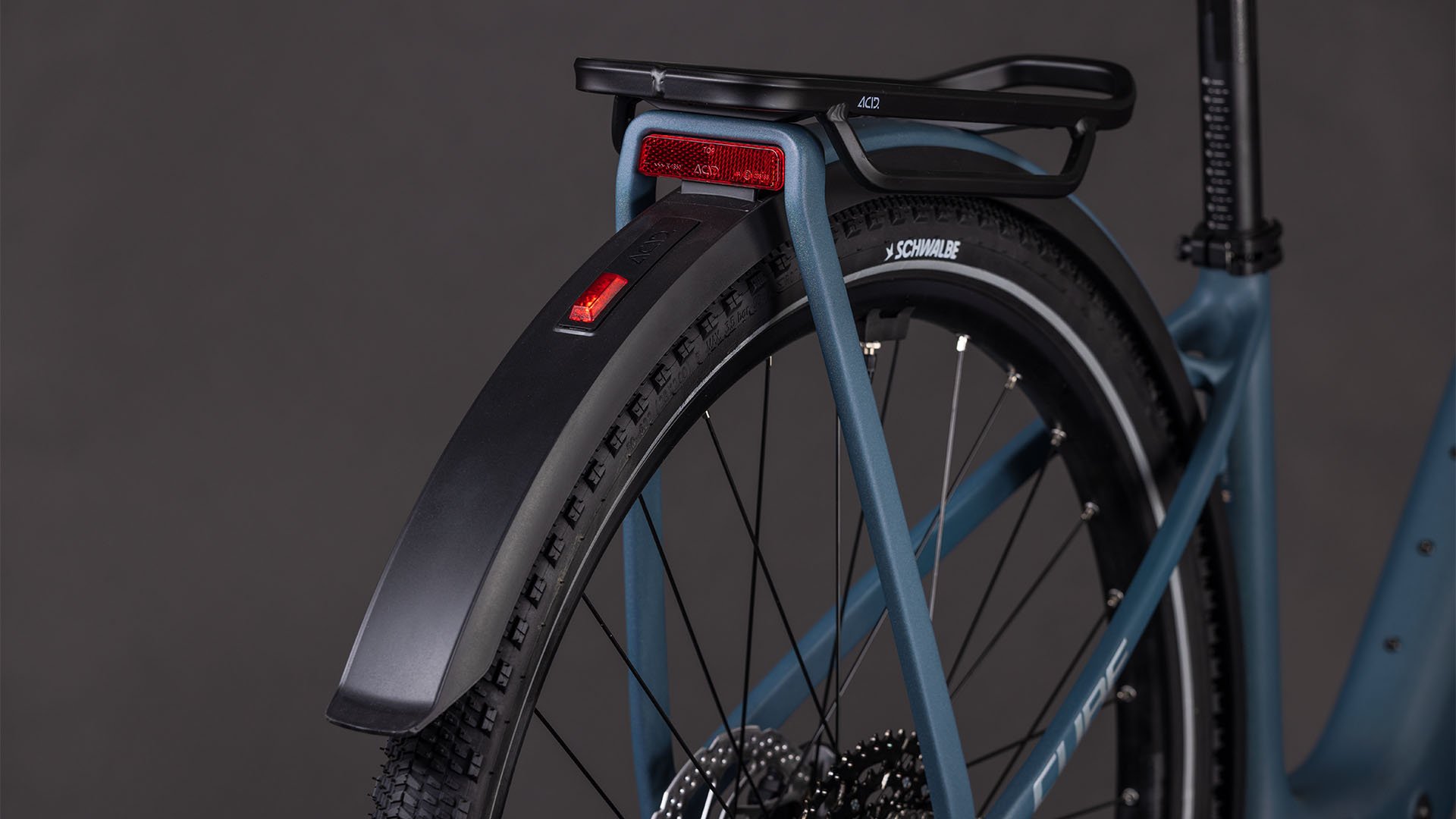

The CUBE Kathmandu Hybrid C:62's Easy Entry frame isn't just straightforward to ride and elegant in its simplicity – it's also extremely sophisticated and adaptable. Built from our proven C:62® carbon for the best blend of strength and low weight, we incorporated the Bosch 400Wh battery inside the frame structure for clean looks and the best dust and splash protection. Advanced Internal Cable Routing complements the frame's organic appearance and the neat, versatile IC 3.0 rear carrier provides a sturdy, adaptable platform for all your carrying needs. Precise, nimble steering is handled by the full carbon fork, and we used Boost axles front and rear to ensure stable handling even when fully loaded. We like to think we've thought of everything...

Frame Material

C:62®

Battery

400Wh

The world is your oyster, so you'll want a great bike with which to explore it. The Kathmandu Hybrid C:62 Pro from CUBE combines a C:62® carbon frame and fork with lightweight Bosch SX power and practical accessories. Town or country, work or play, it'll expand your horizons.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

110
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	46 cm	50 cm	54 cm	58 cm
Seat tube	400	440	490	540
Top Tube Horizontal	593	605	617	629
Seat angle	75°	75°	75°	75°
Head tube angle	70°	70°	70°	70°
Chainstays	490	490	490	490
Head tube	180	195	210	230
Wheelbase	1143	1156	1170	1183
BB-Height to Hub	75	75	75	75
Reach	395	403	411	418
Stack	665	679	693	712

Ergonomics

	46 cm	50 cm	54 cm	58 cm
Stem length	65	90	90	90
Handlebar width	700	700	700	700
Crank length	165	165	165	165
Length seat post	300	300	350	350
Diameter seatpost	31.6	31.6	31.6	31.6
max. zasunutí sedlovky	220	260	280	300
Diameter tire maximum	746	746	746	746
Width tire maximum	50	50	50	50

All values are given in millimetres or degrees.

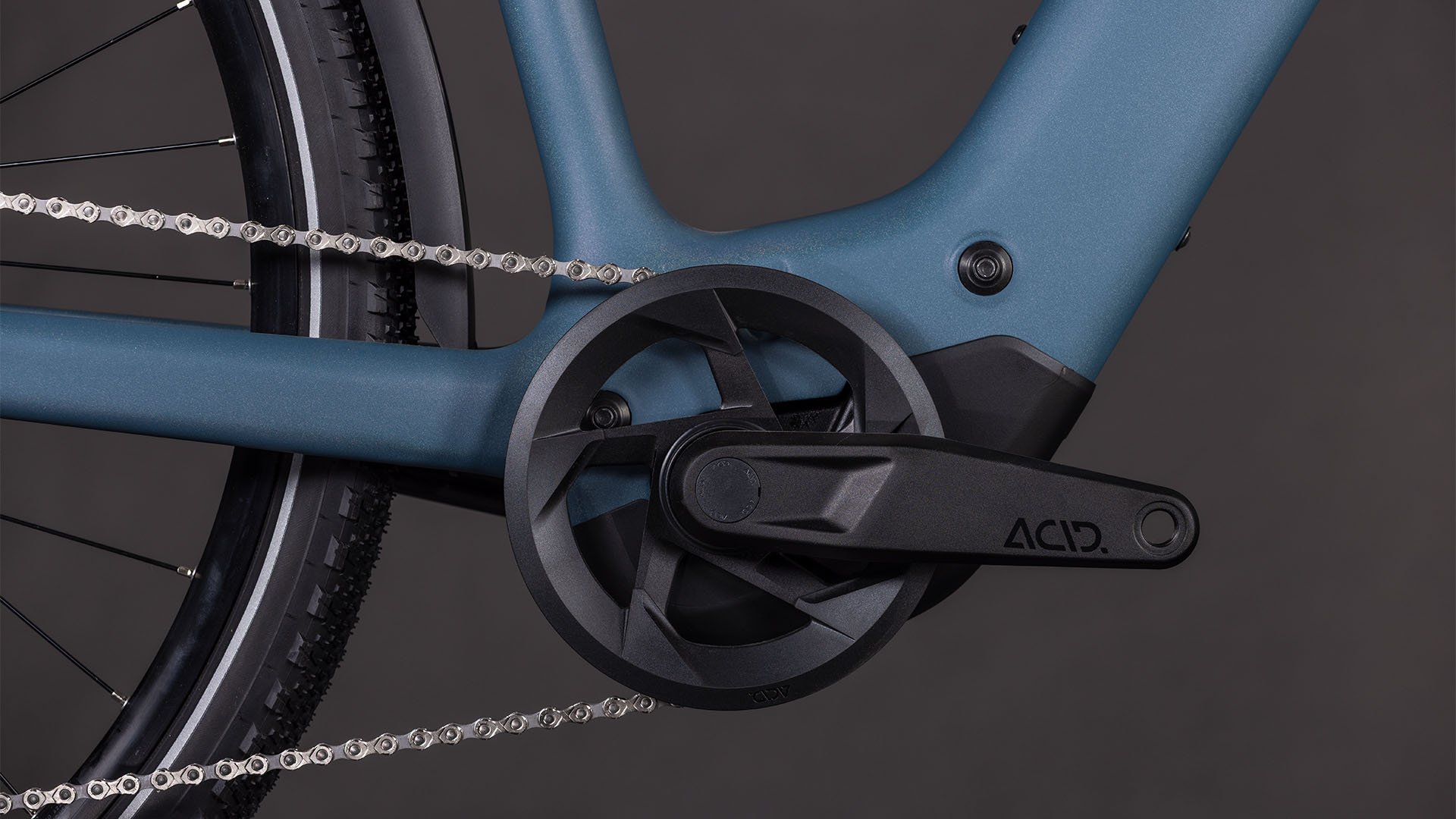

The CUBE Kathmandu Hybrid C:62 Pro has two gramme-shaving tricks up its sleeve. For starters, there's the C:62® carbon frame and fork, complete with rugged IC 3.0 rear carrier. It's as tough and versatile as it is light and lively to ride. Second, Bosch's lightweight SX motor and 400Wh battery provides up to 60Nm of pedal assistance without needlessly weighing you down. Shimano's reliable 1x11 Cues gears deliver power via 50mm Schwalbe G-One Overland tyres, and there's a powerful set of Shimano hydraulic disc brakes to ensure you can slow and stop safely, whatever the weather. It's all you need for adventures, near or far.
