EDITOR
PRO

SRP* 8299 DKK

ArtNo. 155300

oatgrey´n´grey

Comparison

BEAT
THE TRAFFIC

Life can be hectic in the city, so the Editor strips things down to the essentials... without sacrificing style. Designed around the low maintenance of a clean, quiet belt drive, the lightweight double-butted aluminium frame – inspired by our 29er mountain bike hardtails – features carefully crafted tube joints for an almost seamless, organic appearance. Fully integrated cable routing complements the pared-back aesthetic, and the light and svelte C:62® carbon fork is the perfect accompaniment. Mudguard and kickstand mounting points are included, and the frame is compatible with our neat and strong Semi Integrated Carrier 2.0. It's everything you need to thrive in the city.

Frame Material

Aluminium Superlite

Tire clearance

58mm

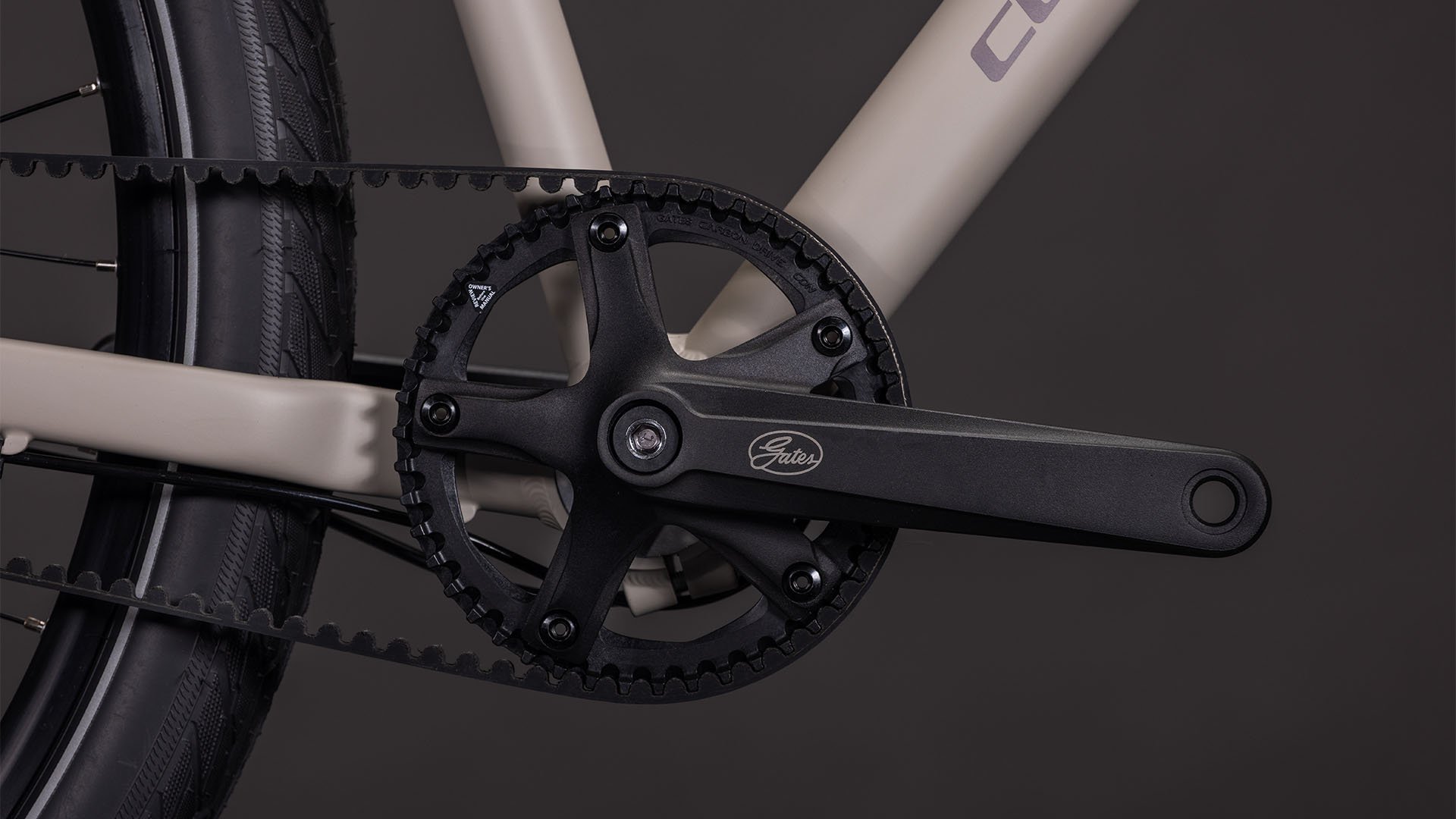

We've borrowed from the car industry to beat city traffic: the Editor Pro's low-maintenance hub gears are driven by a clean, quiet belt instead of a chain. If you like the sound of that, you'll love the clean lines of its frame and the low weight and precise steering of its C:62® carbon fork...

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

100
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	46 cm	50 cm	54 cm	58 cm	62 cm
Seat tube	440	480	520	560	600
Top Tube Horizontal	550	565	580	595	600
Seat angle	74.5°	74°	73.5°	73°	73°
Head tube angle	69°	69°	70°	70°	70°
Chainstays	470	470	470	470	470
Head tube	115	135	155	180	213
Wheelbase	1097	1109	1109	1119	1136
BB-Height to Hub	-70	-70	-70	-70	-70
Protrusion height - 80mm	760	792	825	858	892
Reach	391	395	398	400	405
Stack	573	591	614	638	669

Ergonomics

	46 cm	50 cm	54 cm	58 cm	62 cm
Stem length	90	90	90	90	90
Angle stem	6°	6°	6°	6°	6°
Handlebar width	660	660	660	660	660
Crank length	175	175	175	175	175
Length seat post	350	350	350	350	350
Diameter seatpost	27.2	27.2	27.2	27.2	27.2
max. zasunutí sedlovky	210	230	240	280	320
Diameter tire maximum	798	798	798	798	798
Width tire maximum	58	58	58	58	58

All values are given in millimetres or degrees.

When life's coming at you fast, a bike that helps you cut through the traffic can make all the difference. With its elegant aesthetic and carefully selected components, the Editor Pro helps make sense of the city. Shimano's rugged, dependable Nexus 8-speed hub gears and a super-durable Gates belt offer clean and practical low-maintenance cycling. Powerful Shimano hydraulic disc brakes ensure you can stop safely, whatever the weather. And fast-rolling Schwalbe 55mm Road Cruiser Plus tyres are grippy and comfortable. Reclaim the streets...
