TRIKE FLATBED HYBRID
750

ArtNo. 121210

swampgrey´n´reflex

Comparison

FEELS LIKE
RIDING.
BUT MORE.

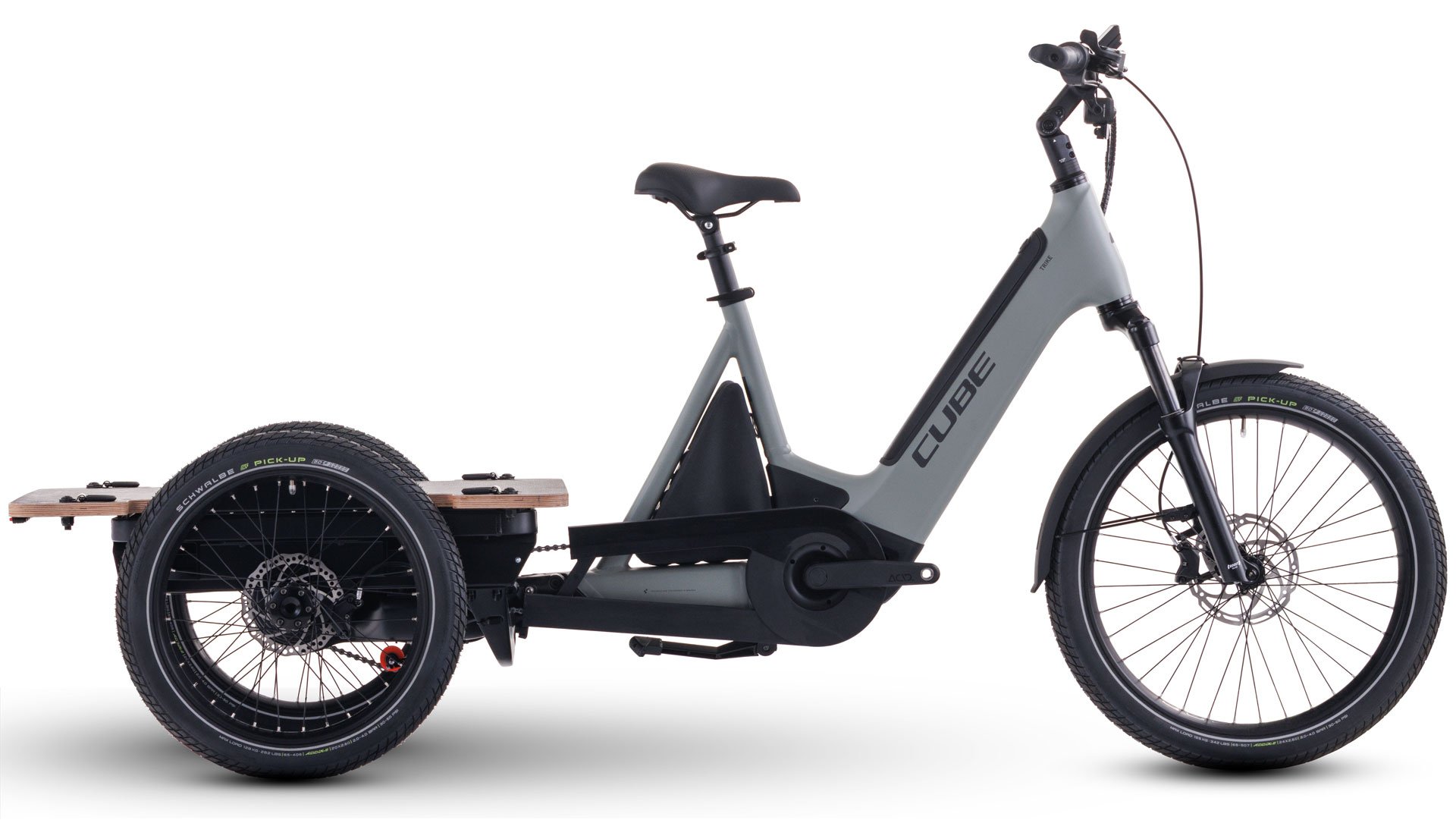

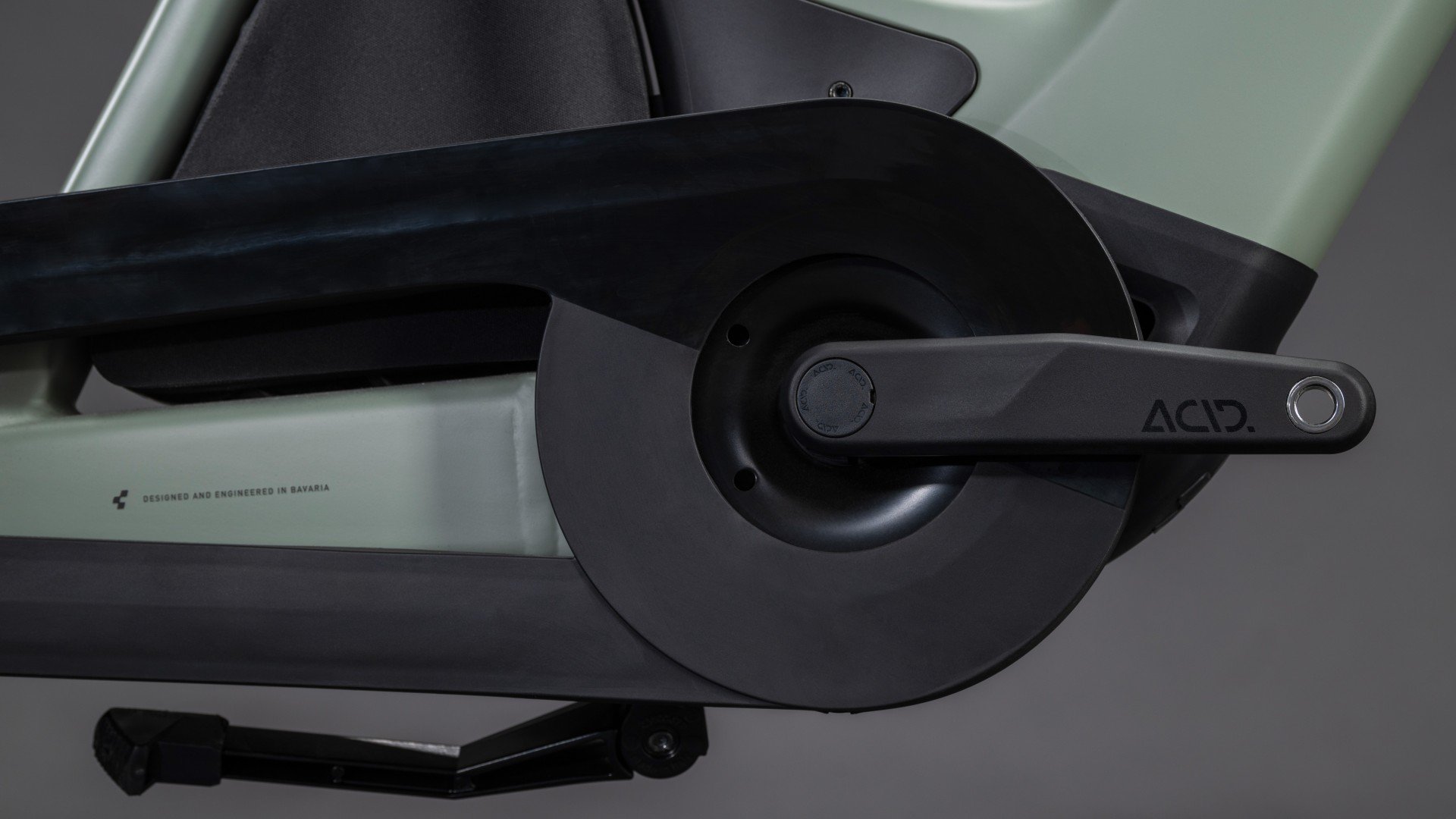

The Trike Flatbed Hybrid is part of our vision for the future of cleaner urban transport. A CUBE design concept with lots of innovative features, it combines the easy handling of a 'normal' hybrid bike with the load capacity of a cargo bike, the flexibility of a flatbed blank canvas for you to build your own load-carrying solution... and the safety and stability of three wheels. Bosch provides both the CX Line motor and the 750Wh battery, for seamless on-demand pedal assistance. The unique tilting mechanism de-couples the load at the rear from the bike at the front, giving a natural feel to cornering. At the rear, the flatbed is ready to accept whatever you need to add to it, with a carrying capacity of up to 60kg. There's even a storage compartment in the main frame, and the option to fit a front rack. With a short wheelbase, easy handling and tight turning circle all designed to beat the urban traffic and make parking easy, the future's looking brighter already.

Frame Material

Aluminium Superlite

Battery

750Wh

Wheels

24" / 20"

For moving loads around town, the Trike Hybrid is hard to beat. But what if the standard cargo box doesn't meet your needs? Perhaps you have something else that needs to get from A to B: a food or drink stall, or a need to transport goods that don't easily fit in our standard box. Well... the Trike Flatbed Hybrid is the solution.

More Information

Bike category of use: 1T

You can find more information about Bike Classification at the following link.

More Information

220
kg

Maximum system weight

The system weight describes the maximum permissible total mass. This must not be exceeded under any circumstances.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

The flexible ONE SIZE CONCEPT makes one bike so versatile that it can be used by any number of people – irrespective of their height. Everyone can enjoy a comfortable ride courtesy of the upright riding position and step-through frame. The saddle and stem easily adjust up or down to suit any rider from around 5ft 2in to 6ft 2in (1.60m to 1.90m). The ONE SIZE CONCEPT is a universal platform that's ideal to share between the whole family, partners, friends, neighbours and colleagues alike. Or keep it for yourself as the perfect companion for wherever life takes you. One bike, flexible for all!

Geometry

	24" / 20": ONE SIZE
Seat tube	460
Top Tube Horizontal	590
Seat angle	72°
Head tube angle	68°
Chainstays	814
Head tube	190
Wheelbase	1487
BB-Height to Hub	20
Reach	391
Stack	613

Ergonomics

	24" / 20": ONE SIZE
Crank length	165
Diameter tire maximum	640
Width tire maximum	66

All values are given in millimetres or degrees.

CARGO BOX DIMENSIONS

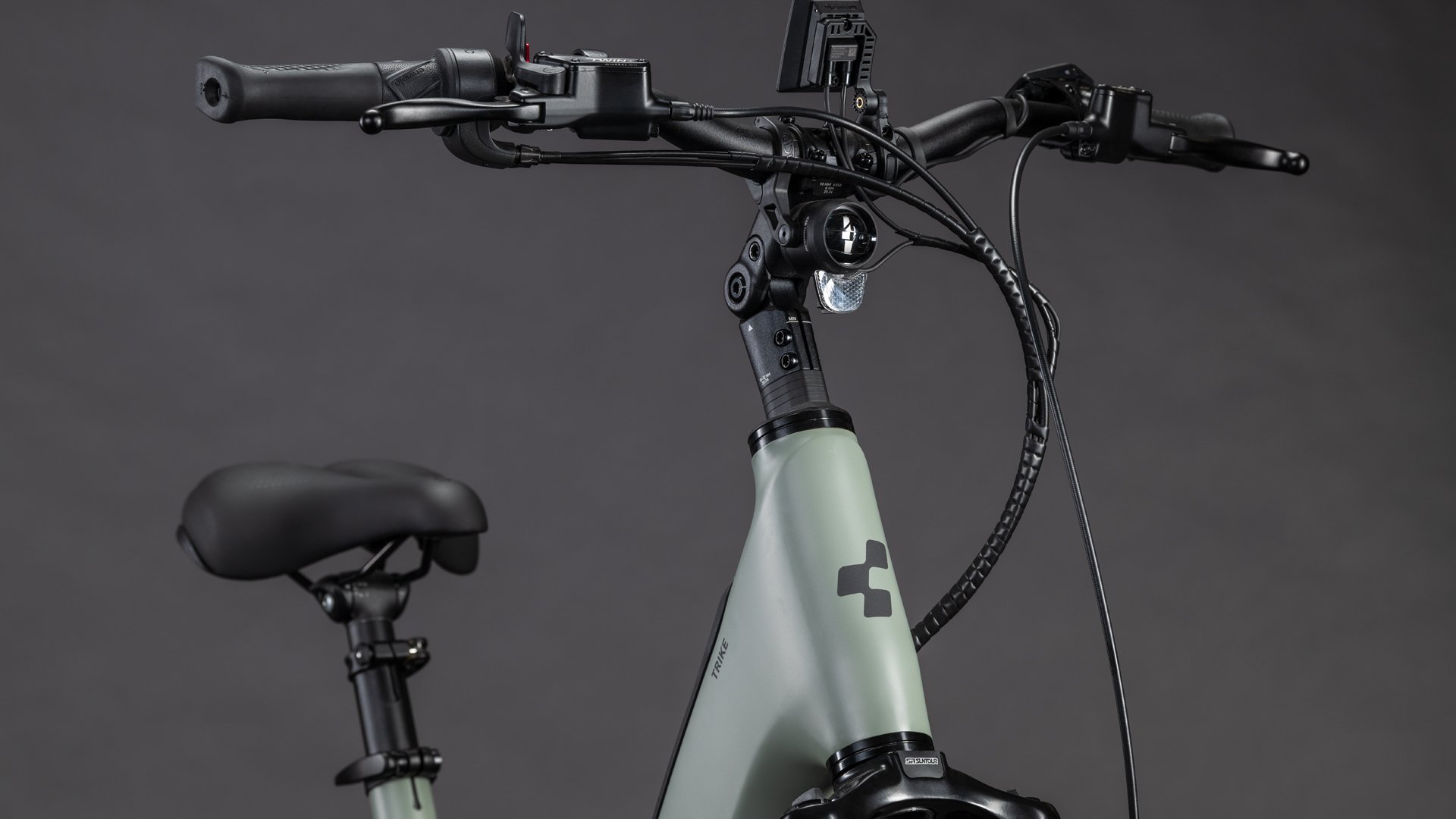

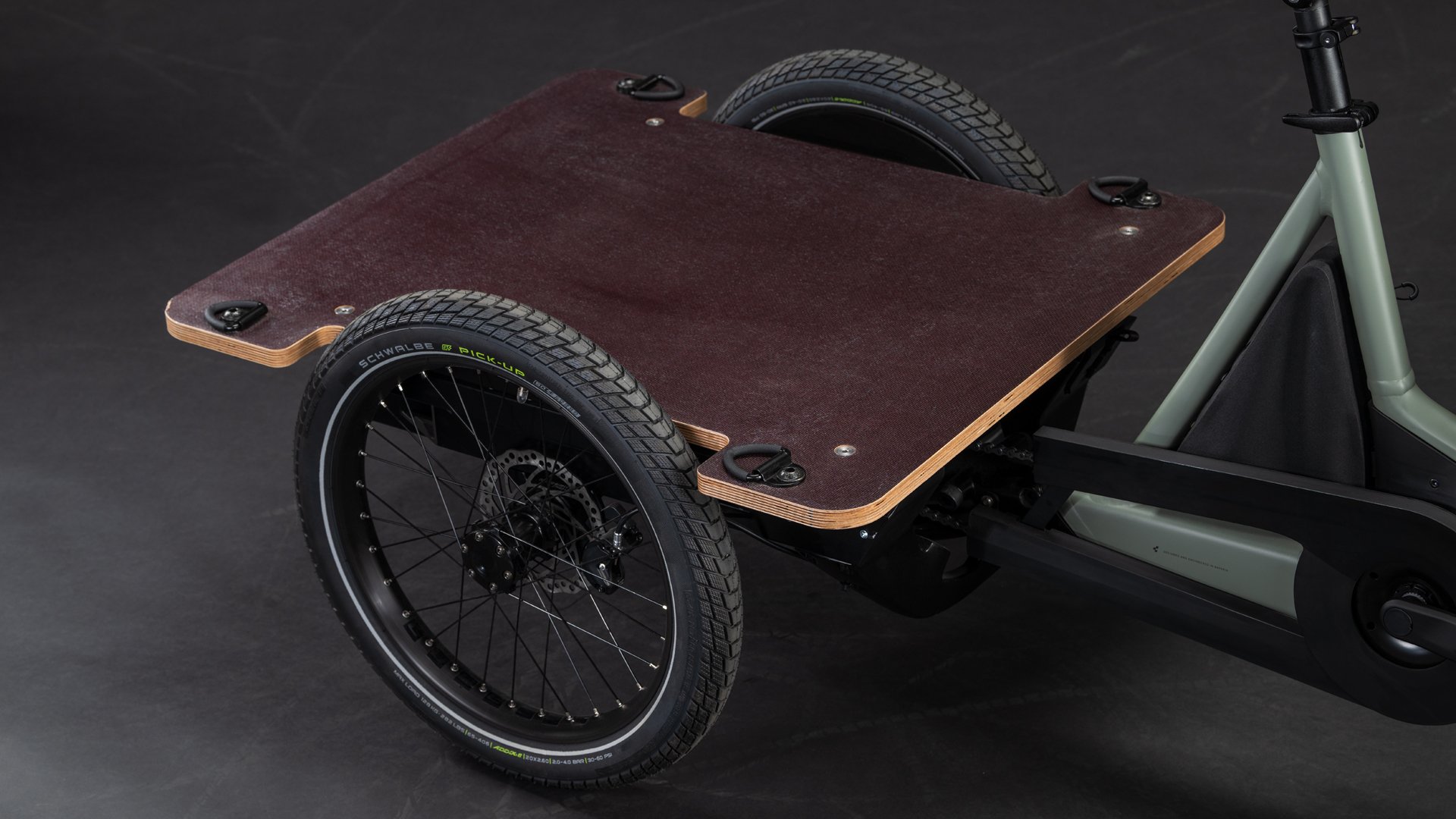

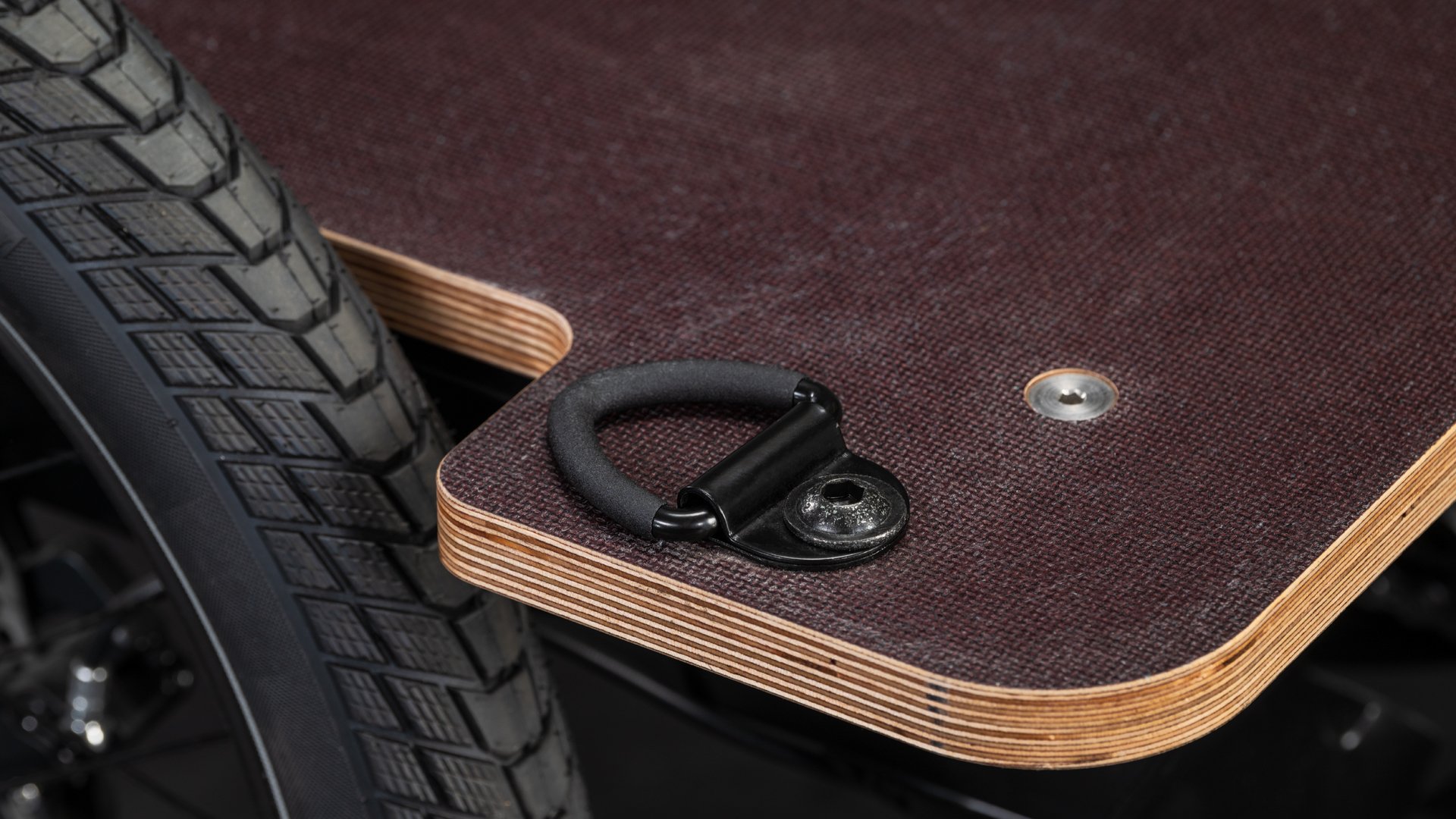

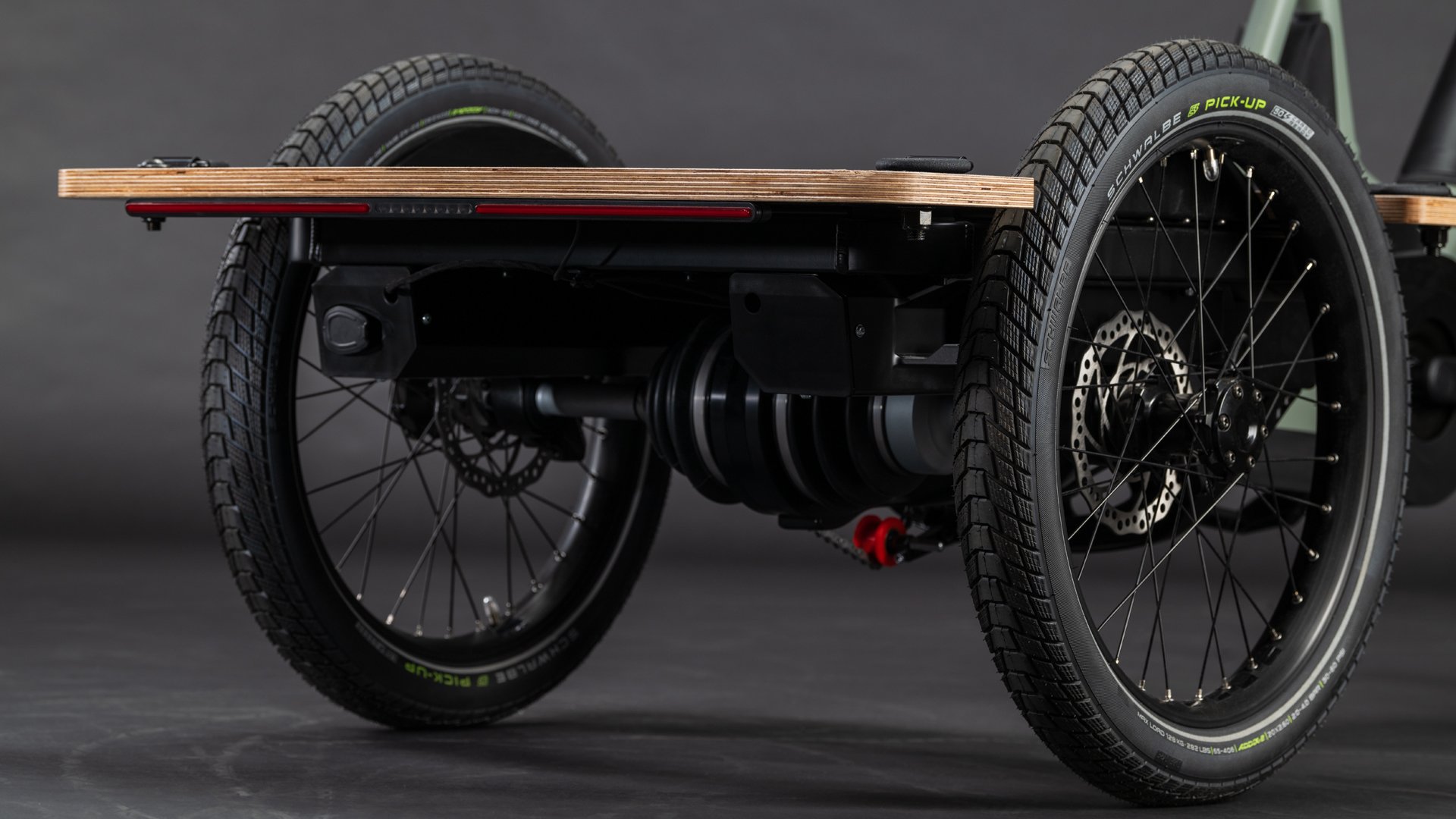

If there's something you'd like to move that needs a custom-designed solution, the Trike Flatbed Hybrid could be the answer. With its basic flatbed capable of carrying loads up to 60kg, the design of whatever you attach to it is up to you! Build your own cargo system. Or maybe you have a coffee bar, or an ice cream dispenser... The remainder is pure Trike Hybrid, blending rock-steady stability with bike-like handling, courtesy of our unique tilting mechanism. There's a Bosch CX drive and a 750Wh battery to back up your pedalling, and the stepless hub gear makes any route easy. Powerful disc brakes, with an additional parking brake, work well in all weathers. There's a telescopic seatpost and an adjustable stem, making it simple to adjust the fit for just about any rider. And, with a Suntour Mobie34 Cargo suspension fork up front, the ride to your destination will be a comfortable one even on potholed city streets.
