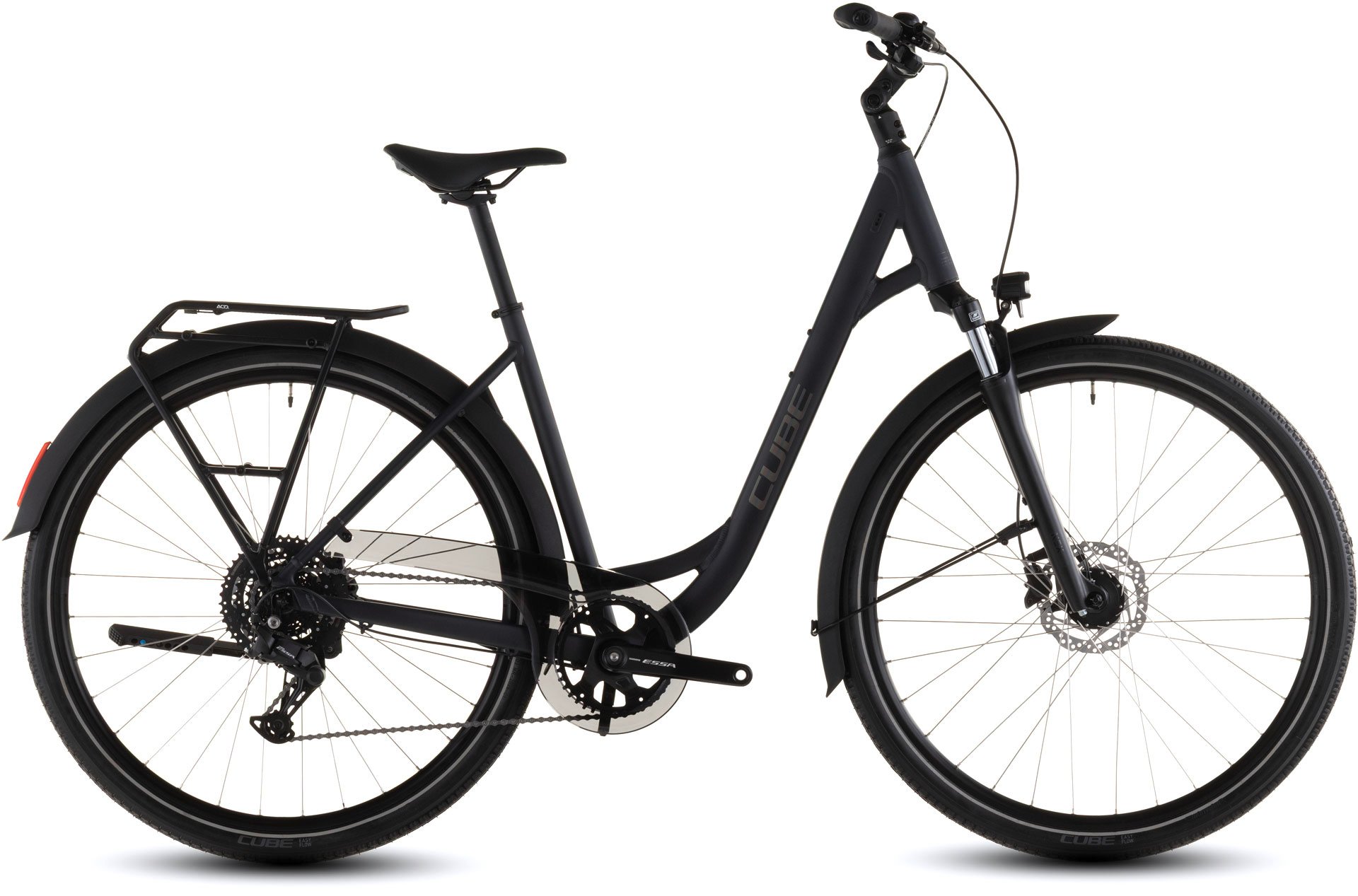

TOURING
ONE

ArtNo. 162102

night´n´chrome

Comparison

WHATEVER.
WHEREVER.

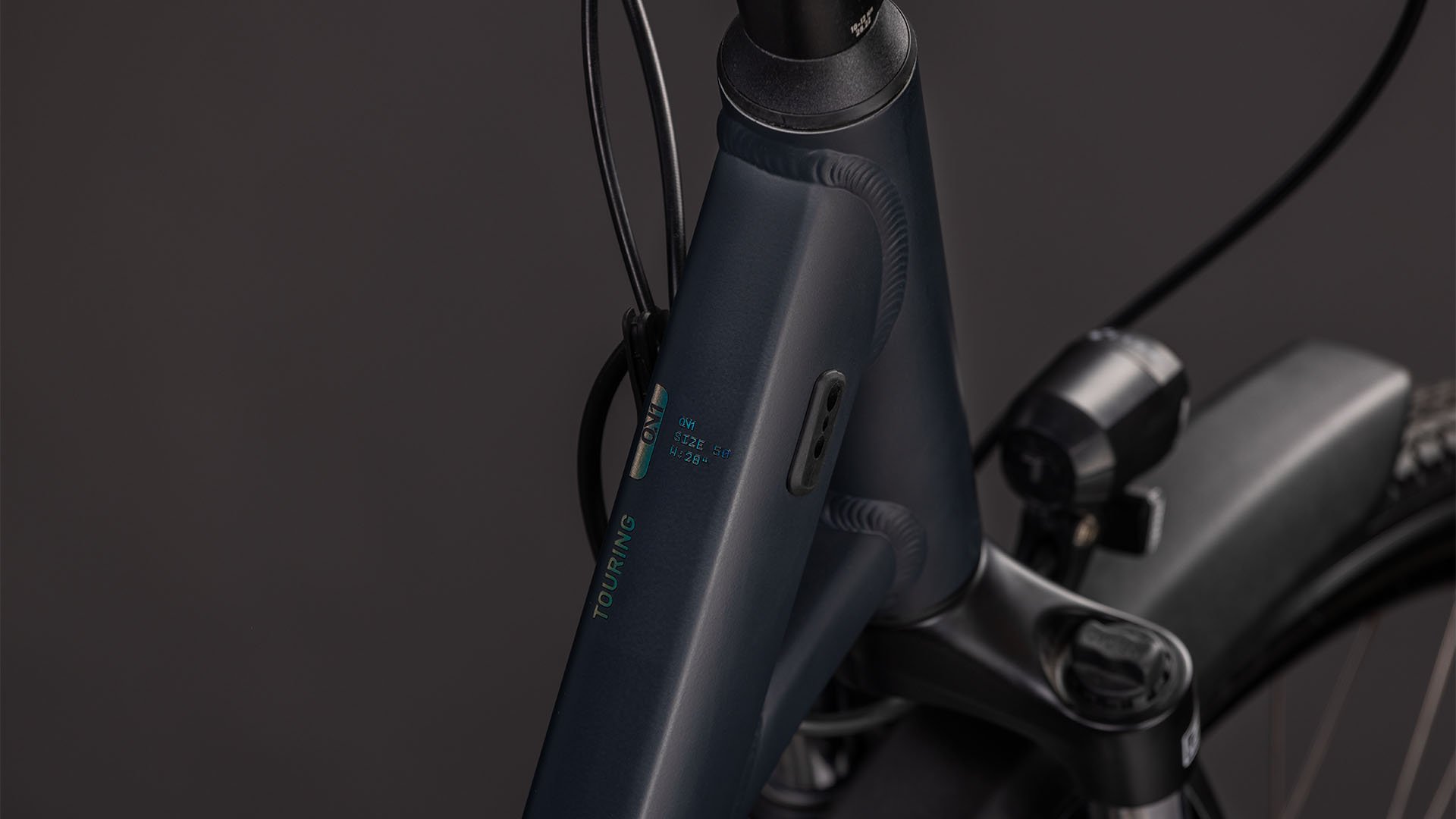

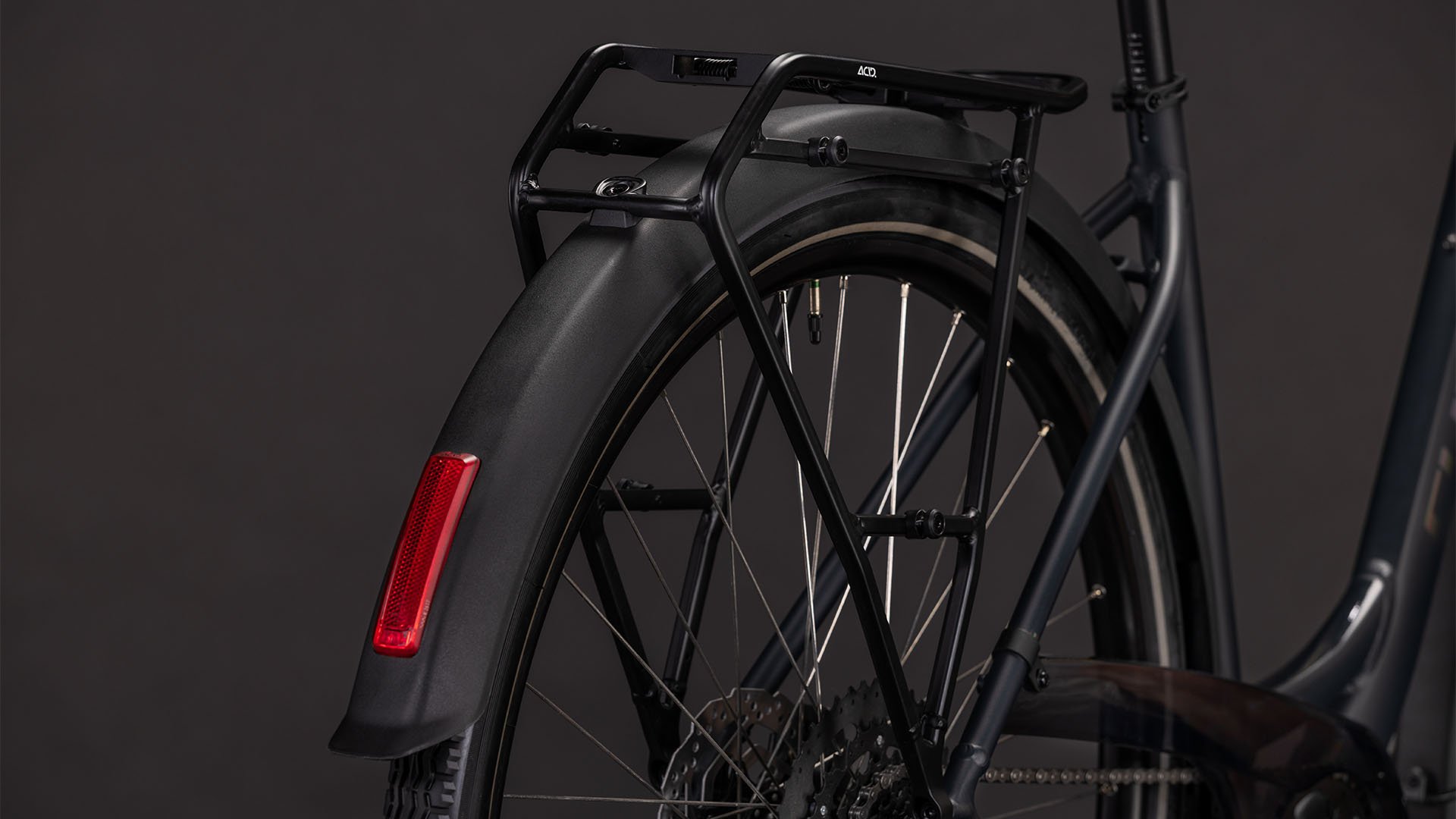

The heart of any bicycle is its frame, which is why we went to great lengths to make the Touring's frame as comfortable and practical as possible. We designed the Easy Entry frame to do exactly what it says, making mounting and dismounting a breeze. Gear cables routed inside the down tube complement the uncluttered aesthetics of the light, strong, double-butted aluminium frame, while Efficient Comfort Geometry is a fancy way of saying that it's confidence-inspiring and intuitive enough to make light work of even long days in the saddle. And our neat, sturdy Semi Integrated Carrier 2.0 means you take whatever you need with you for the journey, while the flat mount kickstand makes parking your bike a cinch.

Frame Material

Aluminium Superlite

Configuration

FE

The wind on your face, the world at your feet, and the Touring ONE to take you wherever you want to go – what could be better? We built it with comfort and practicality in mind, so you can concentrate on enjoying the ride. With a full complement of practical accessories, including luggage carrier, mudguards, kickstand and lights, it's all you need for new adventures.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

100
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	46 cm	50 cm	54 cm
Seat tube	460	500	540
Top Tube Horizontal	578	593	608
Seat angle	74°	73°	73°
Head tube angle	70°	70°	70°
Chainstays	455	455	455
Head tube	170	185	200
Wheelbase	1094	1098	1114
BB-Height to Hub	-75	-75	-75
Reach	391	390	401
Stack	650	665	679

Ergonomics

	46 cm	50 cm	54 cm
Stem length	90	90	90
Angle stem	17°	17°	17°
Handlebar width	680	680	680
Crank length	170	170	175
Length seat post	350	350	350
Diameter seatpost	27.2	27.2	27.2
Max. insertion depth seat post	300	300	300
Diameter tire maximum	728	728	728
Width tire maximum	48	48	48

All values are given in millimetres or degrees.

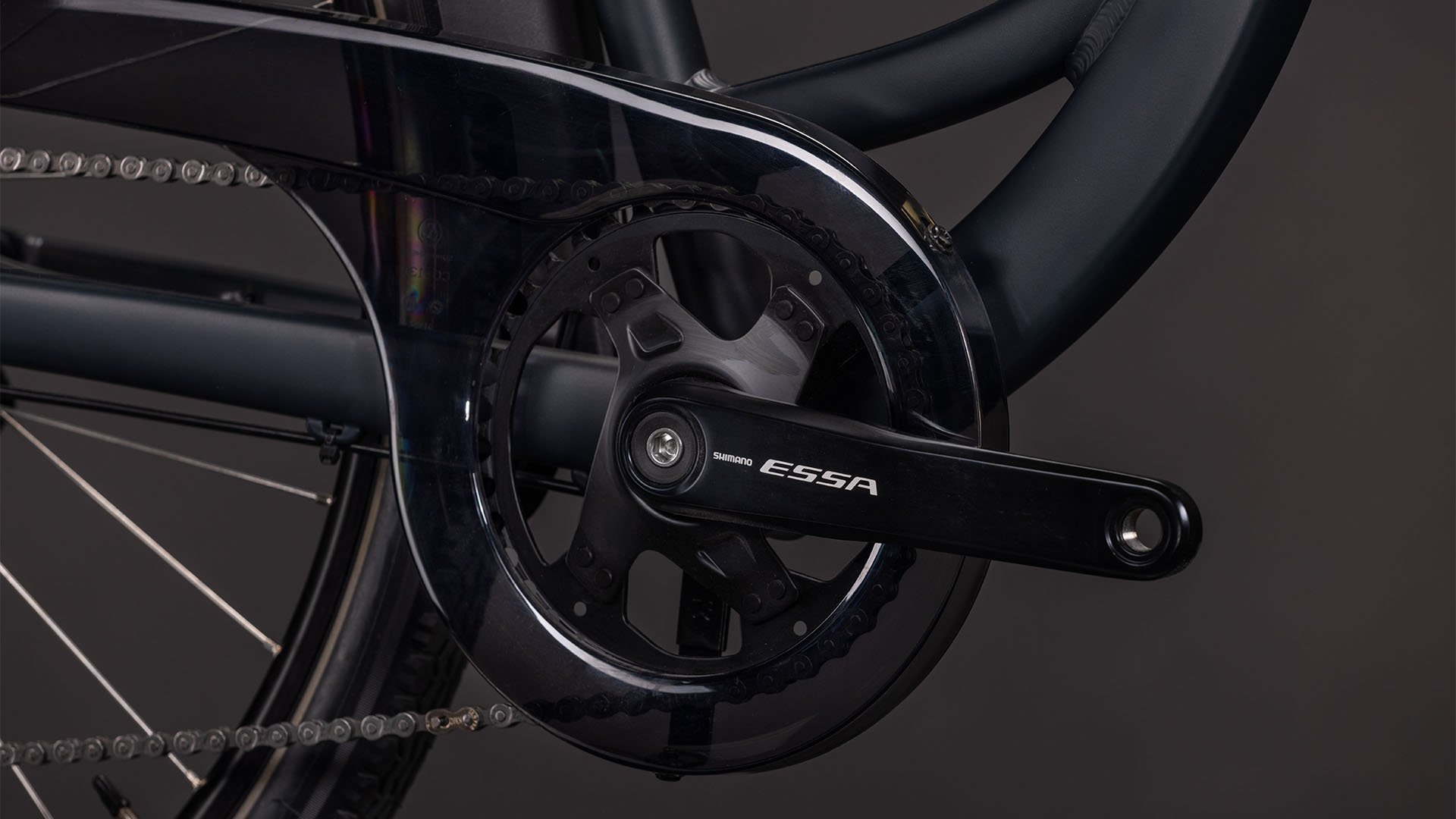

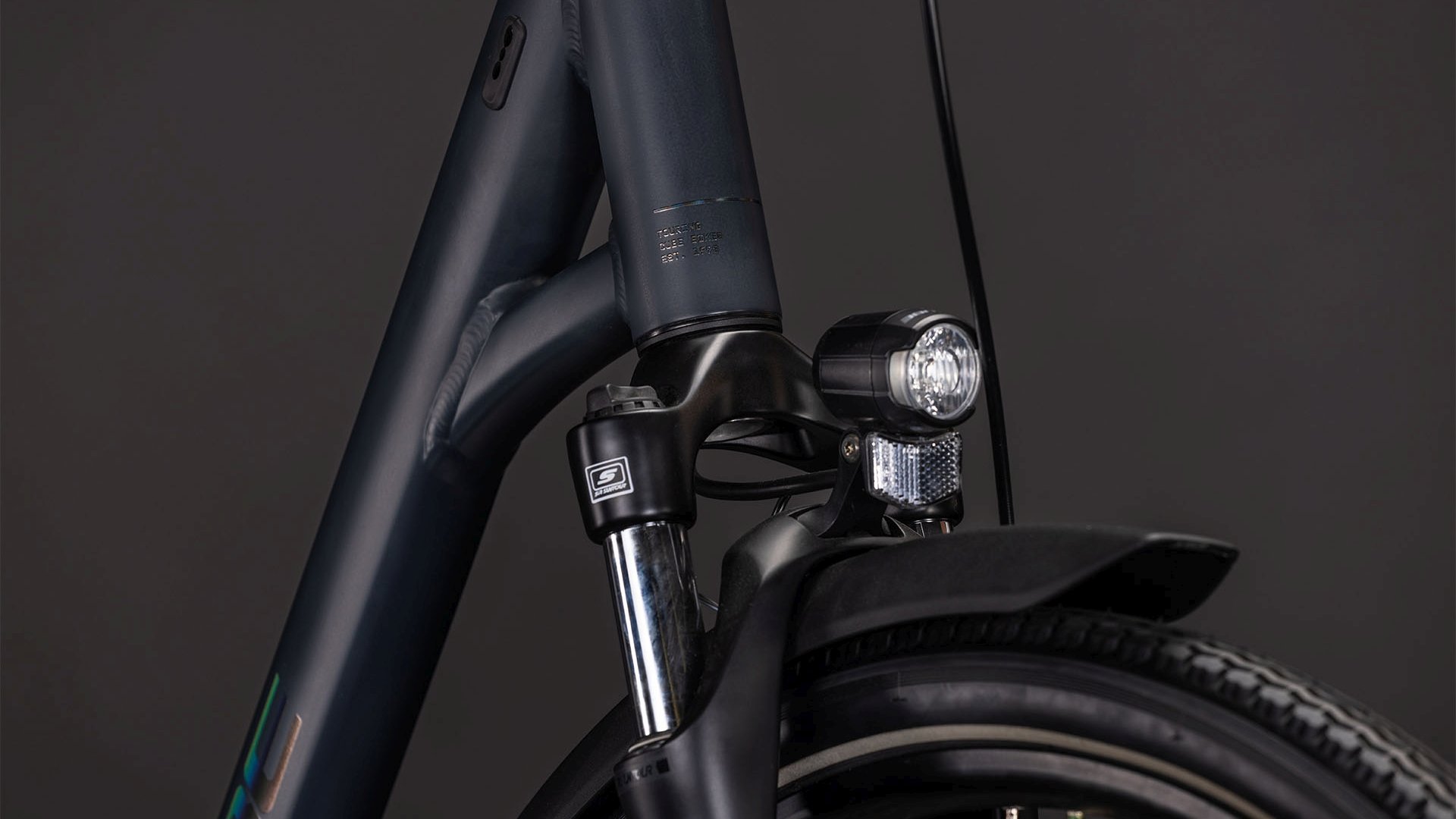

The Touring ONE's full equipment package and comfortable design is just what you need to broaden your cycling horizons. Easy-to-use 1x8 Shimano Essa gears put a wide range of ratios – enough to make light work of any route – literally at your fingertips. Powerful Shimano hydraulic disc brakes provide assured slowing and stopping regardless of weather conditions. A suspension fork and 47mm-wide tyres help smooth out rough roads. And full-length mudguards, our sturdy and exceptionally neat Semi Integrated Carrier 2.0, built-in dynamo lights and a handy flat mount kickstand mean you've everything you need for Kurztext trips across town and longer forays into the countryside.
