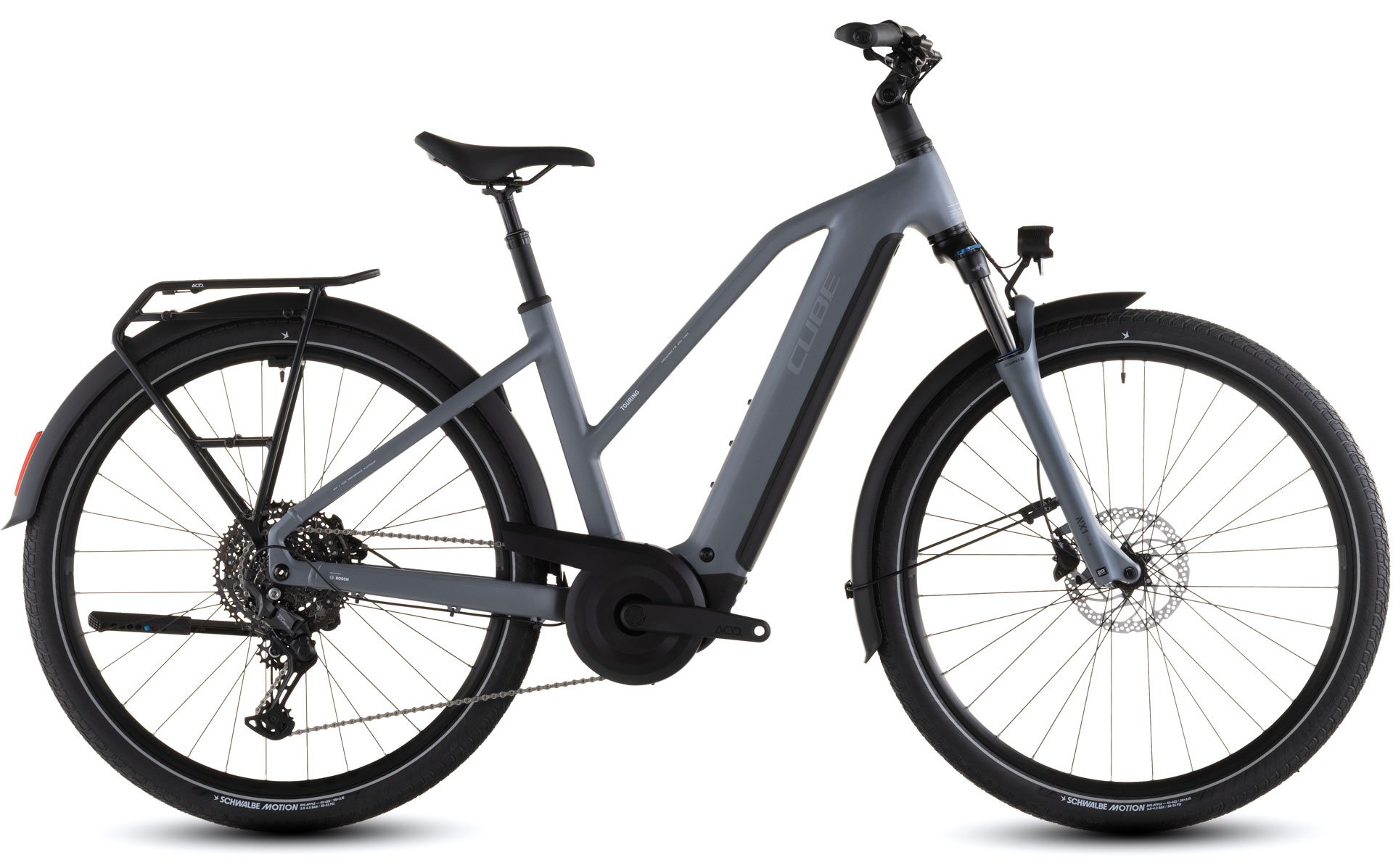

TOURING HYBRID
PRO 800

ArtNo. 111201

pearlgrey´n´grey

Comparison

FOR MILES
OF SMILES

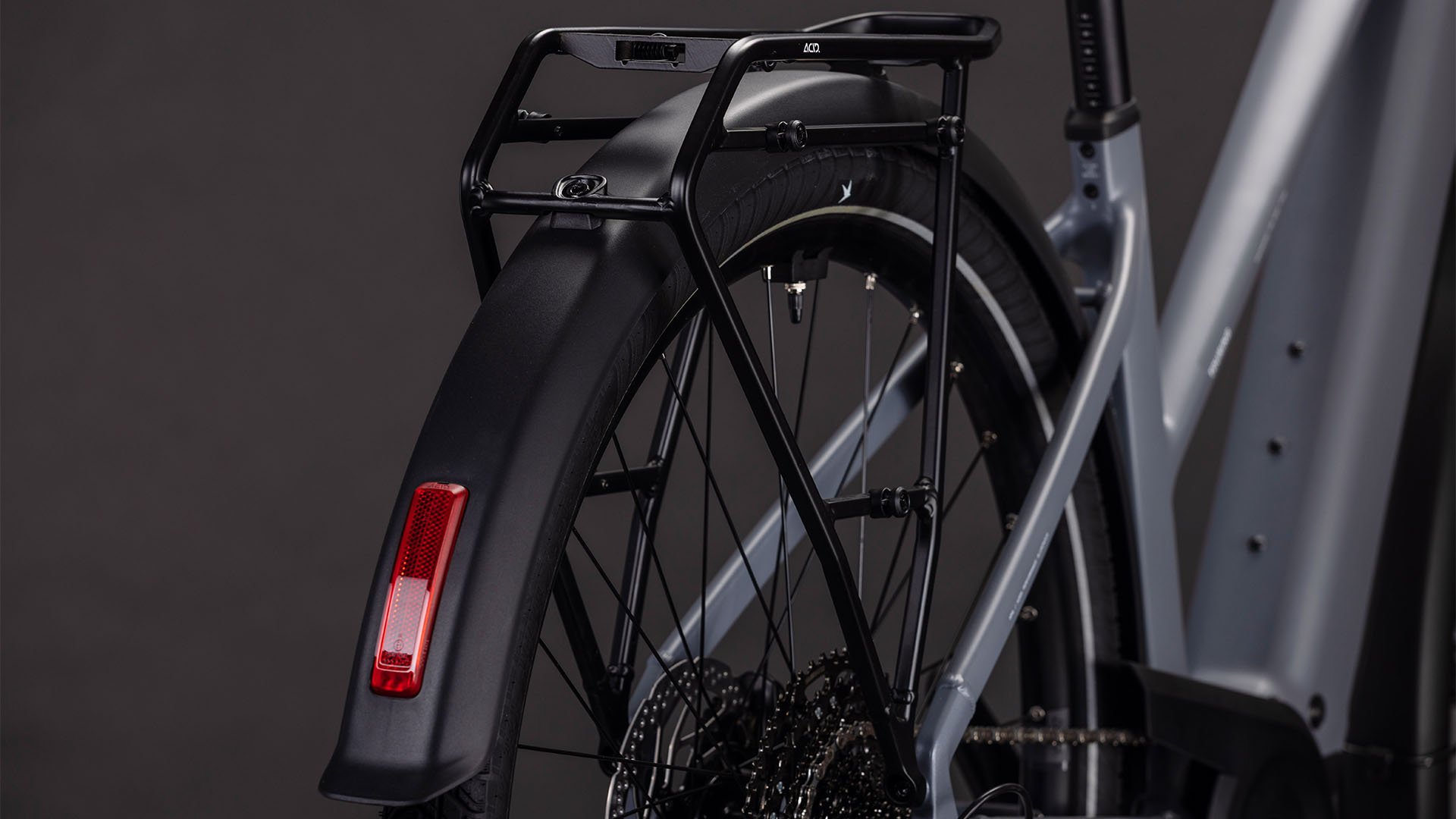

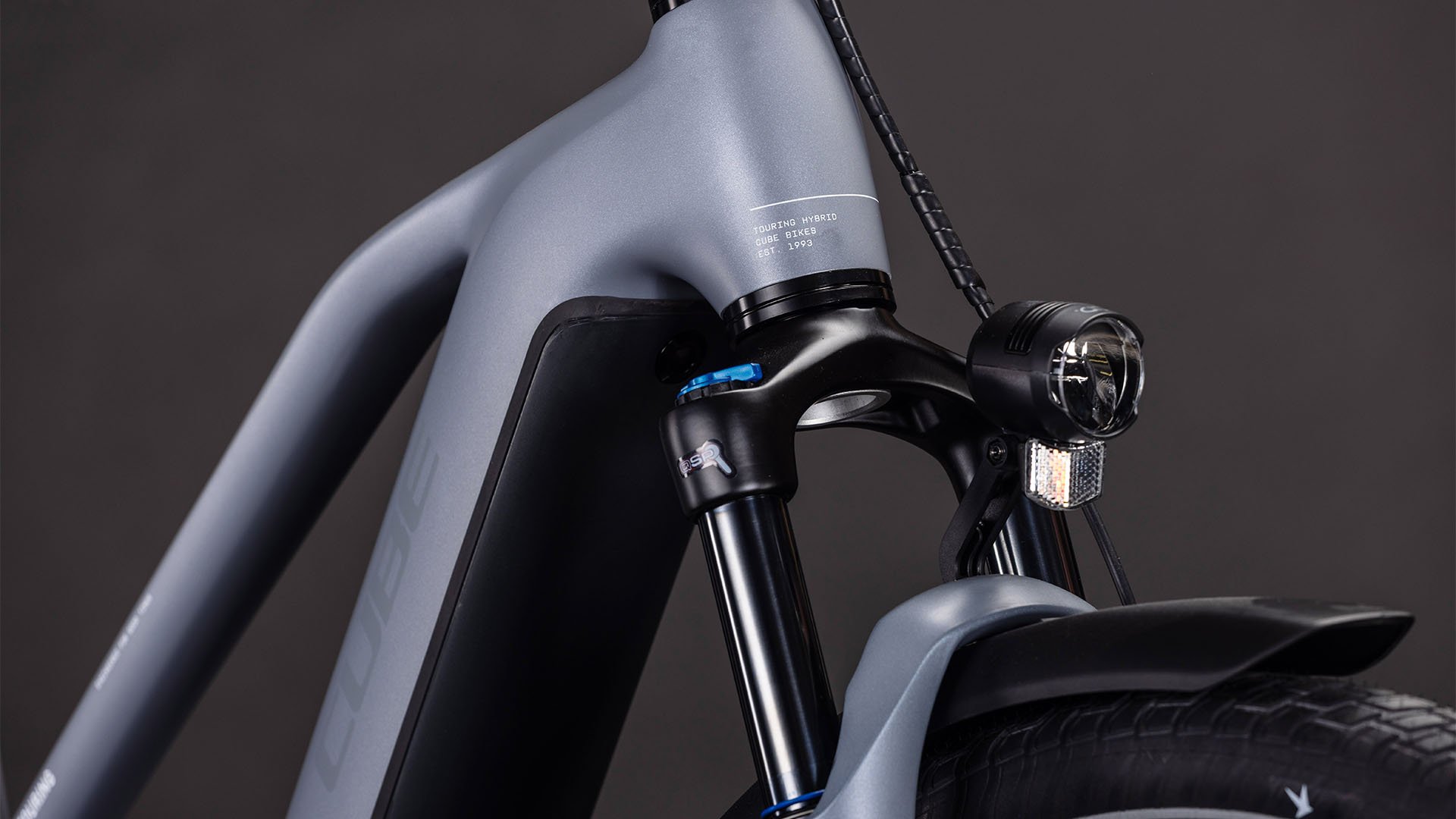

It looks familiar, but the Touring Hybrid is full of neat design touches to make your life easier. For starters, there's our neat, sturdy Semi Integrated Carrier 2.0 – because it makes it simple to carry what you need with you. There's an ACID chain guard, kickstand, full-length mudguards and lighting set, too. The powerful Bosch Performance PX motor and 800Wh PowerTube battery are so neatly integrated into the design, you'll barely notice they're there – apart from the extra help at the pedals, of course. And Efficient Comfort Geometry is designed around a 100mm-travel suspension fork for smooth and confidence-inspiring steering, even on rough roads.

Frame Material

Aluminium Superlite

Battery

800Wh

How would you like your bike? The Bosch PX-powered Touring Hybrid Pro is available in a wide range of frame styles and sizes, so you can pick the one that's perfect for you. Each one is fitted with a range of practical accessories like carrier, mudguards, lights and kickstand, so you're ready for anything.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

110
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	46 cm	50 cm	54 cm	58 cm
Seat tube	420	460	510	560
Top Tube Horizontal	590	590	610	630
Seat angle	73.5°	73.5°	73°	73°
Head tube angle	68°	68°	68°	68°
Chainstays	499	499	499	499
Head tube	110	110	125	140
Wheelbase	1173	1173	1182	1204
BB-Height to Hub	68	68	68	68
Protrusion height - 80mm	769	778	817	850
Reach	401	401	410	426
Stack	638	638	654	668

Ergonomics

	46 cm	50 cm	54 cm	58 cm
Stem length	65	65	80	80
Handlebar width	700	700	700	700
Crank length	175	175	175	175
Length seat post	300	300	350	350
Diameter seatpost	31.6	31.6	31.6	31.6
Max. insertion depth seat post	270	300	300	300
Diameter tire maximum	750	750	750	750
Width tire maximum	56	56	56	56

All values are given in millimetres or degrees.

The Touring Hybrid Pro is proof of just how versatile a great bicycle can be. Its powerful Bosch PX motor, 800Wh battery and 11-speed Shimano Cues gears are capable of whisking you from A to B with the minimum of fuss. There's a set of smooth, strong Shimano hydraulic disc brakes to ensure you can stop safely in any weather. Practical accessories like the sturdy Semi Integrated Carrier 2.0, mudguards, lights and kickstand mean you've everything you need for work or play. Efficient Comfort Geometry and an air-sprung suspension fork help make every journey a pleasure. And, because we designed a wide range of sizes and a choice of frame styles, there's bound to be one that'll suit you perfectly.
