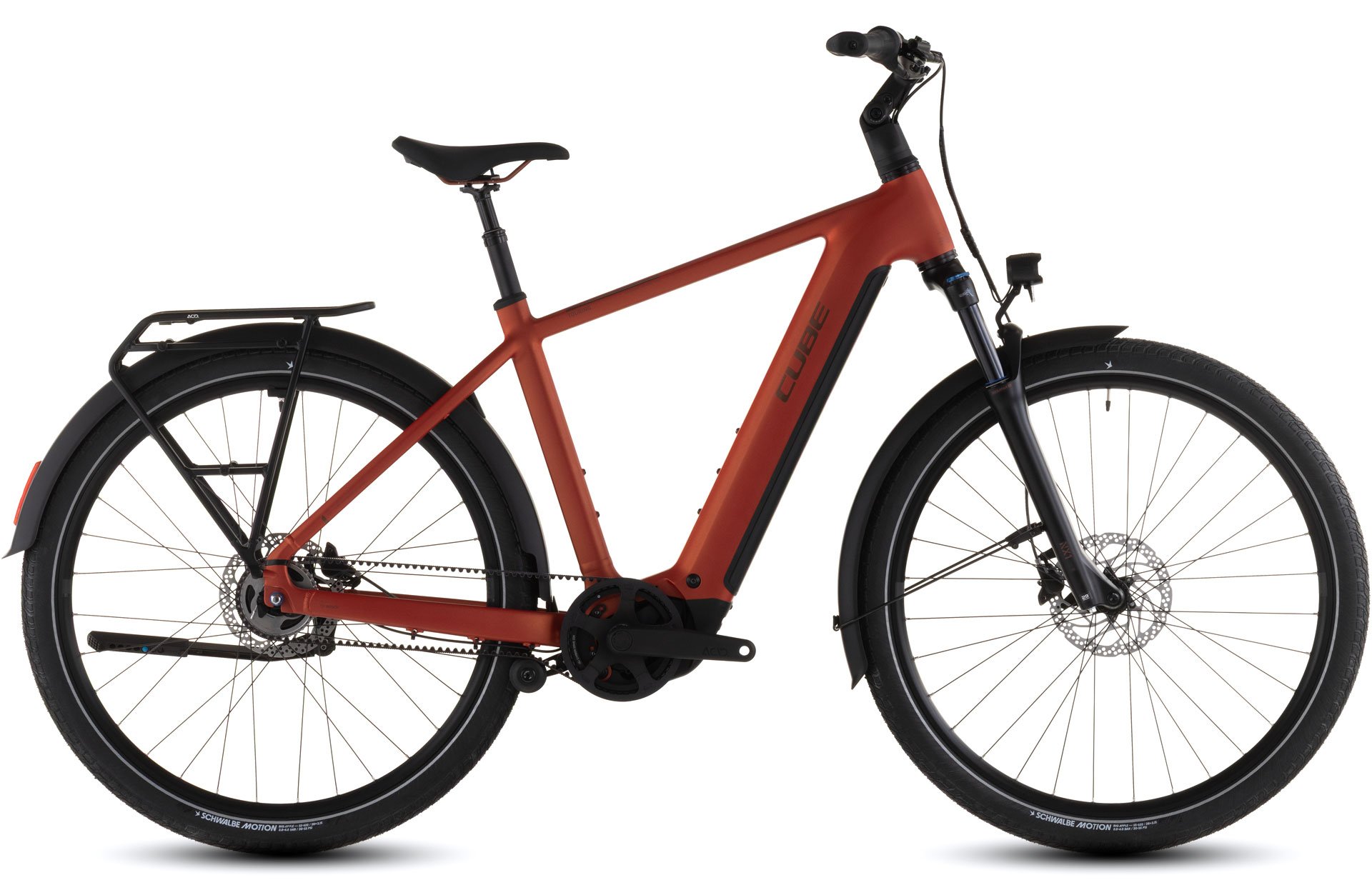

TOURING HYBRID COMFORT
SLX 800

ArtNo. 111410

chilli´n´chrome

Comparison

FOR MILES
OF SMILES

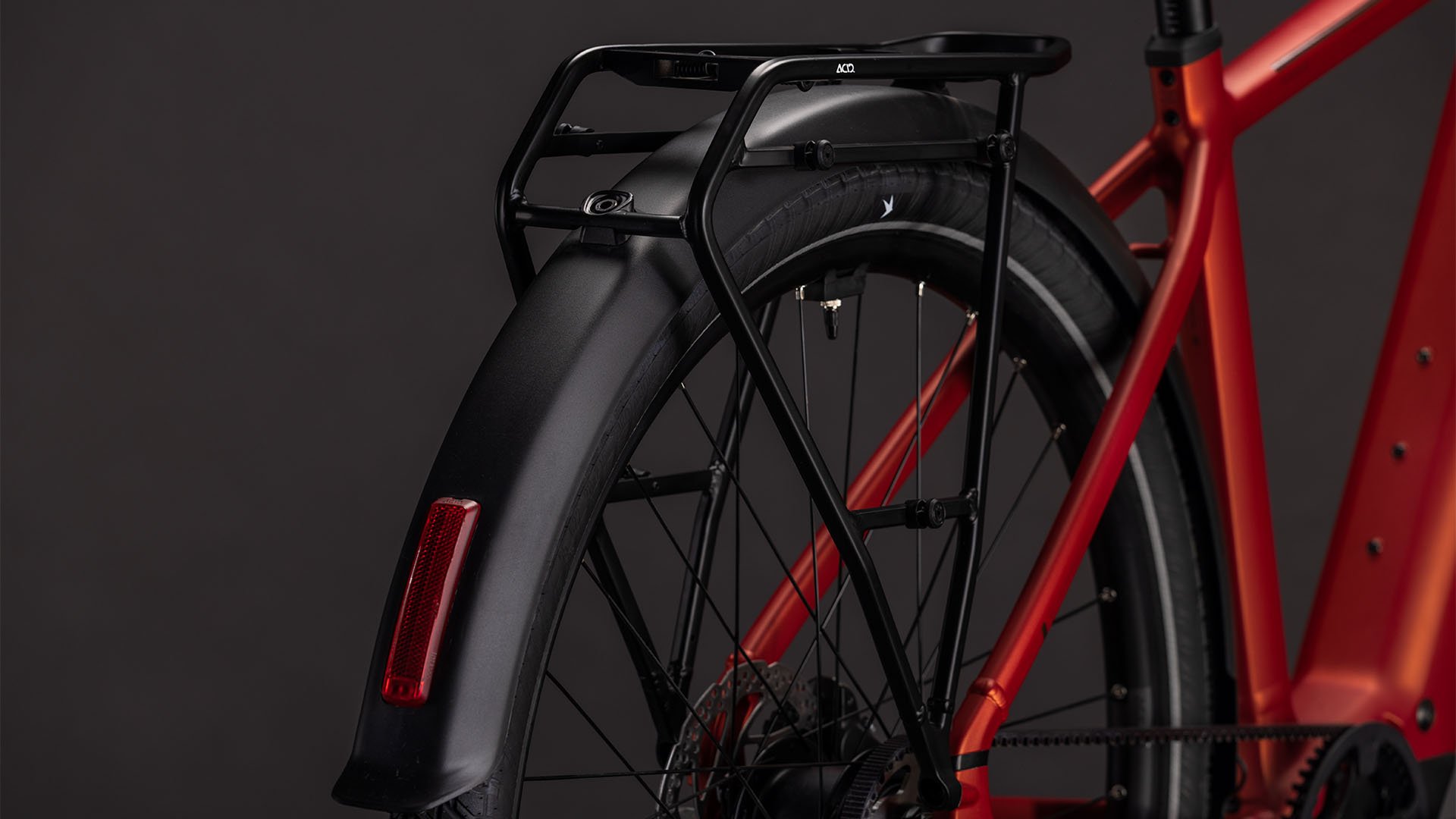

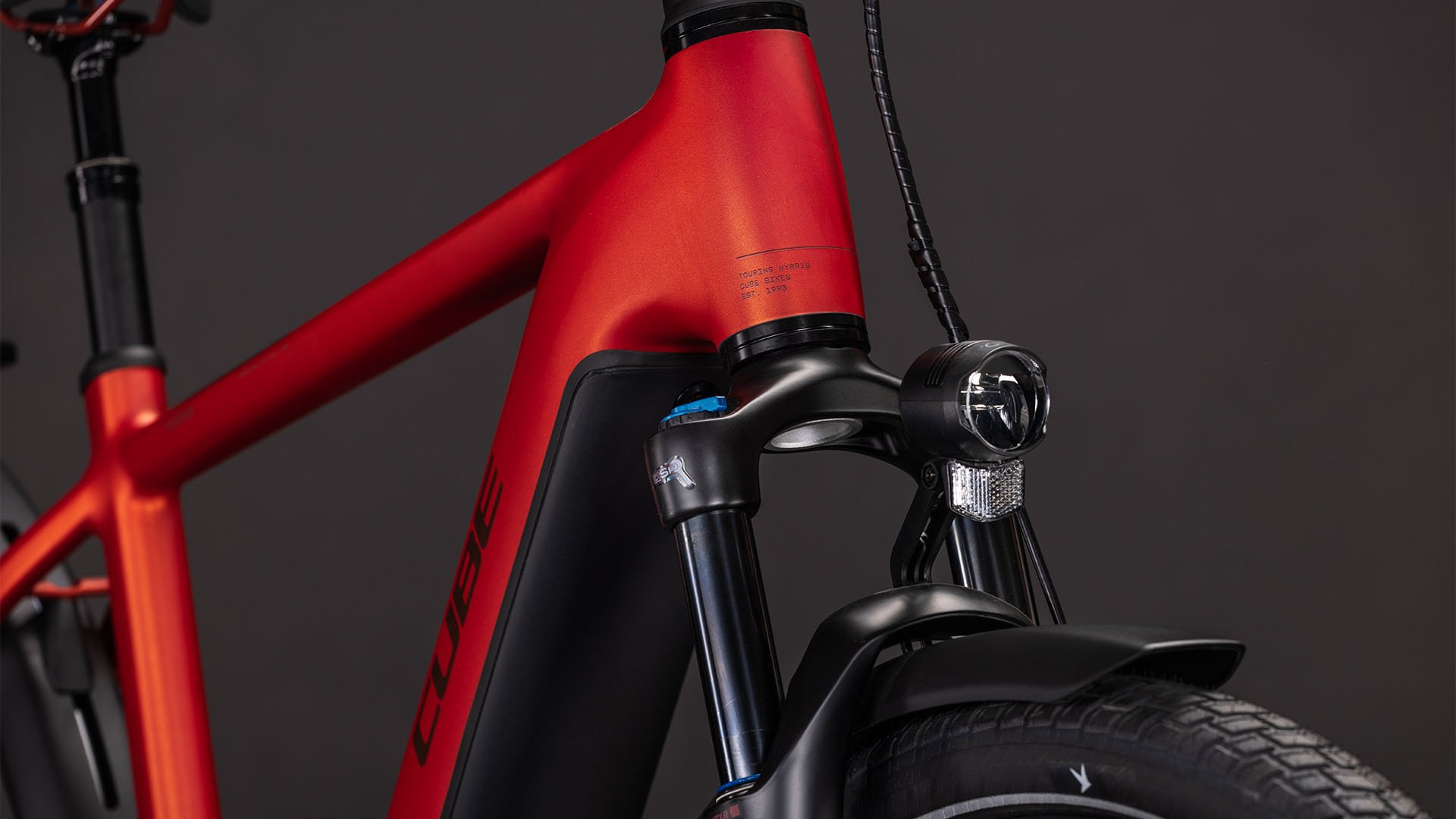

The Touring Hybrid is designed to be versatile, easy to live with and comfortable. That's why we started with our neat, sturdy Semi Integrated Carrier 2.0 – because it makes it simple to carry what you need with you. There's a kickstand, full-length mudguards and lighting set, too. The powerful Bosch Performance PX motor and 800Wh PowerTube battery are so neatly integrated into the design, you'll barely notice they're there – apart from the extra help at the pedals, of course. And Efficient Comfort Geometry is designed around a 100mm-travel suspension fork for smooth and confidence-inspiring steering, even on rough roads.

Frame Material

Aluminium Superlite

Battery

800Wh

What if your bike could have all the accessories you need, simple hub gears and Bosch pedal assistance, too? Well, it can. The Touring Hybrid Comfort SLX blends all these ingredients to make a practical and versatile two-wheeled companion that's ideal for getting around in comfort and style.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

110
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	50 cm	54 cm	58 cm	62 cm
Seat tube	460	510	560	600
Top Tube Horizontal	590	610	630	650
Seat angle	73.5°	73°	73°	73°
Head tube angle	68°	68.5°	68.5°	68.5°
Chainstays	499	499	499	499
Head tube	110	125	140	165
Wheelbase	1173	1182	1203	1226
BB-Height to Hub	68	68	68	68
Protrusion height - 80mm	777	817	850	883
Reach	401	410	426	439
Stack	638	654	668	692

Ergonomics

	50 cm	54 cm	58 cm	62 cm
Stem length	65	80	80	80
Handlebar width	700	700	700	700
Crank length	175	175	175	175
Length seat post	300	350	350	350
Diameter seatpost	31.6	31.6	31.6	31.6
Max. insertion depth seat post	180	230	280	300
Diameter tire maximum	750	750	750	750
Width tire maximum	56	56	56	56

All values are given in millimetres or degrees.

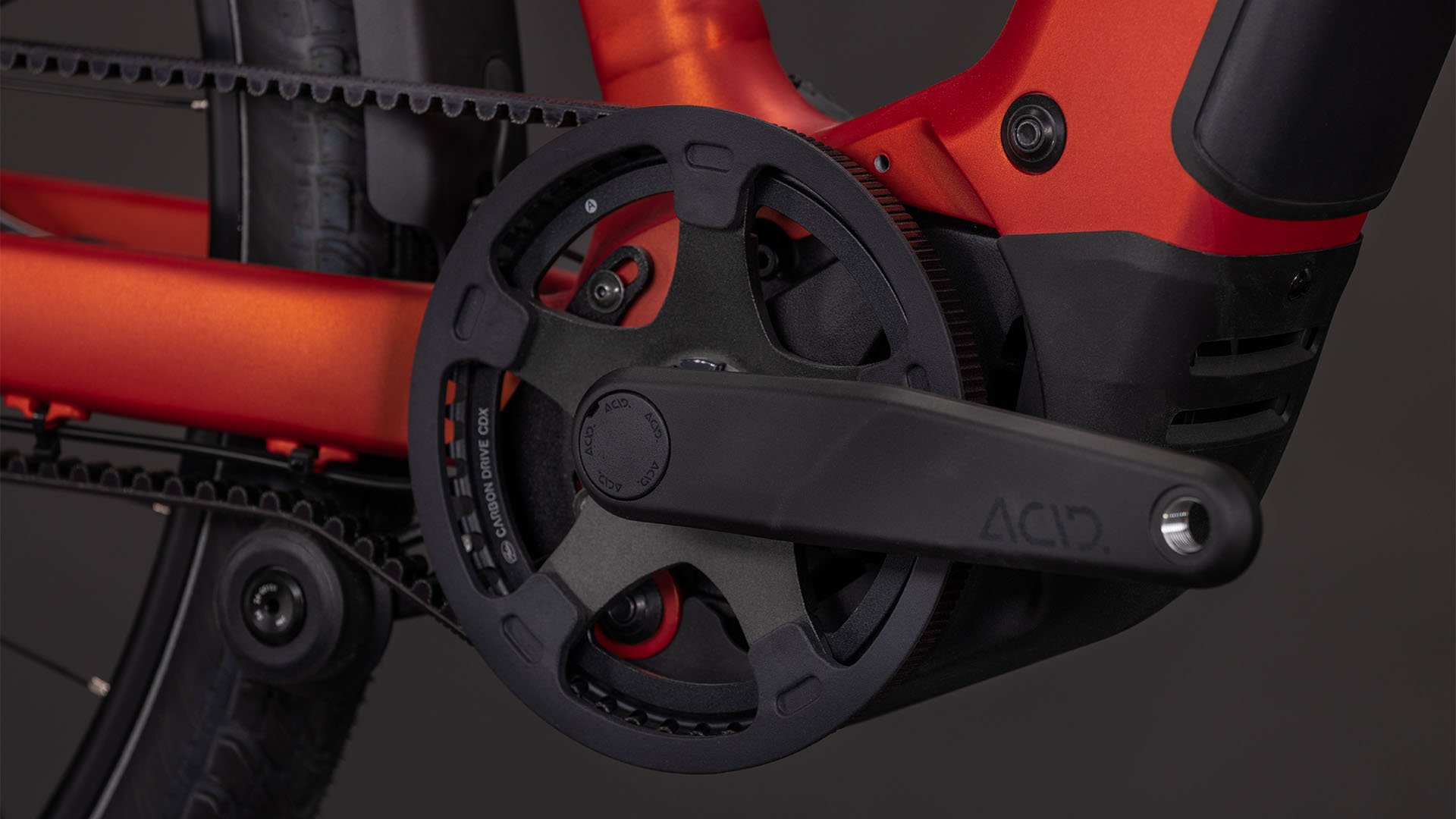

A bike that you can just get on and ride with the minimum of fuss is one that's great to have around. That was our goal with the Touring Hybrid Comfort SLX, and we reckon we nailed it. Shimano's 5-speed hub gears are simple to use, durable and low maintenance... which makes them the perfect companion for Bosch's powerful PX motor and 800Wh battery. An air-sprung suspension fork makes light work of any road surface, and strong Shimano hydraulic disc brakes deliver reliable performance in all weathers. With the Semi Integrated Carrier 2.0, lighting set, mudguards and kickstand, it's the ideal all-round two-wheeled companion.
