NUROAD C:62
RACE

ArtNo. 130400

nebula´n´blue

Comparison

LIGHTWEIGHT
TOUGHNESS

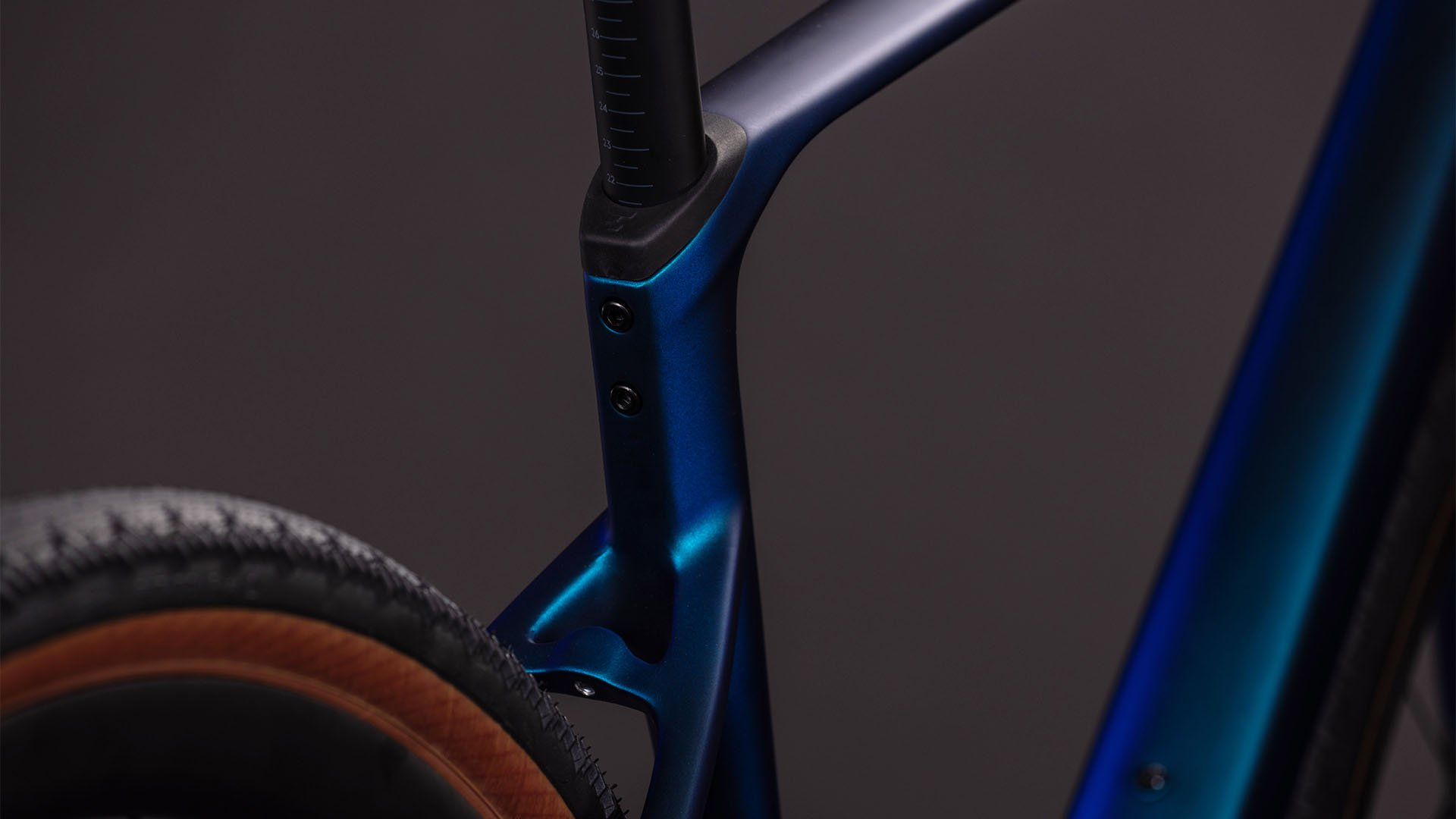

The Nuroad C:62 frame takes everything we know about carbon frames and repackages it in a format that's perfect for gravel racing. There's ample frame clearance for tyres up to 50mm (45mm with mudguards), so you can easily change tyres to suit your needs. An integrated seat clamp, fully-integrated cable routing and one-piece carbon cockpit complement the frame's elegant, organic appearance. The C:62® carbon fork has two carrier mounting positions, and the frame will also accept a rear carrier and mudguard. And the overall weight for all this? Just 1,150g for a mid-sized frame. So it's tough, but also extremely light. The ideal basis for a new approach to gravel racing.

Frame Material

C:62®

Tire clearance

50mm

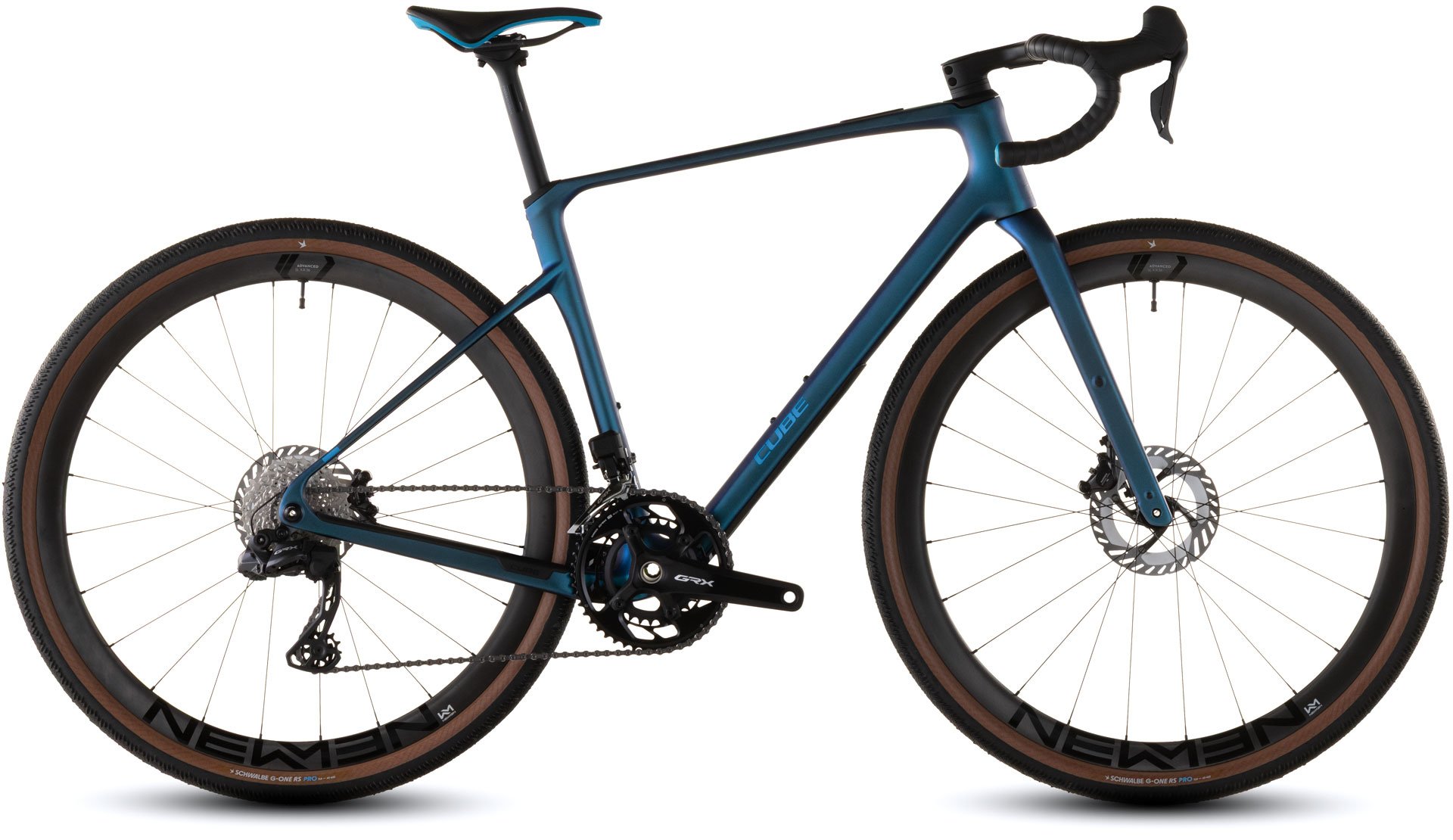

It's got "race" in its name and racing in its DNA. The Nuroad C:62 Race's elegantly crafted C:62® carbon frame and matching C:62® carbon fork is just the start, because every component is selected to propel you towards the finish line with reliability, precision and durability in mind.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

100
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	XS	S	M	L	XL
Seat tube	430	460	490	510	540
Top Tube Horizontal	522	537	560	575	592
Seat angle	75.5°	74.7°	73.9°	73°	73°
Head tube angle	69°	70°	71.5°	72°	72.5°
Chainstays	440	440	440	442	442
Head tube	102	124	155	174	197
Wheelbase	1043	1044	1046	1048	1060
BB-Height to Hub	70	70	70	70	70
Protrusion height - 80mm	743	771	805	824	851
Reach	388	388	393	392	402
Stack	520	544	579	599	623

Ergonomics

	XS	S	M	L	XL
Stem length	90	90	100	100	110
Handlebar width	400	400	400	420	420
Crank length	170	170	170	170	172.5
Length seat post	350	350	400	400	400
Diameter seatpost	27.2	27.2	27.2	27.2	27.2
Diameter tire maximum	728	728	728	728	728
Width tire maximum	50	50	50	50	50

All values are given in millimetres or degrees.

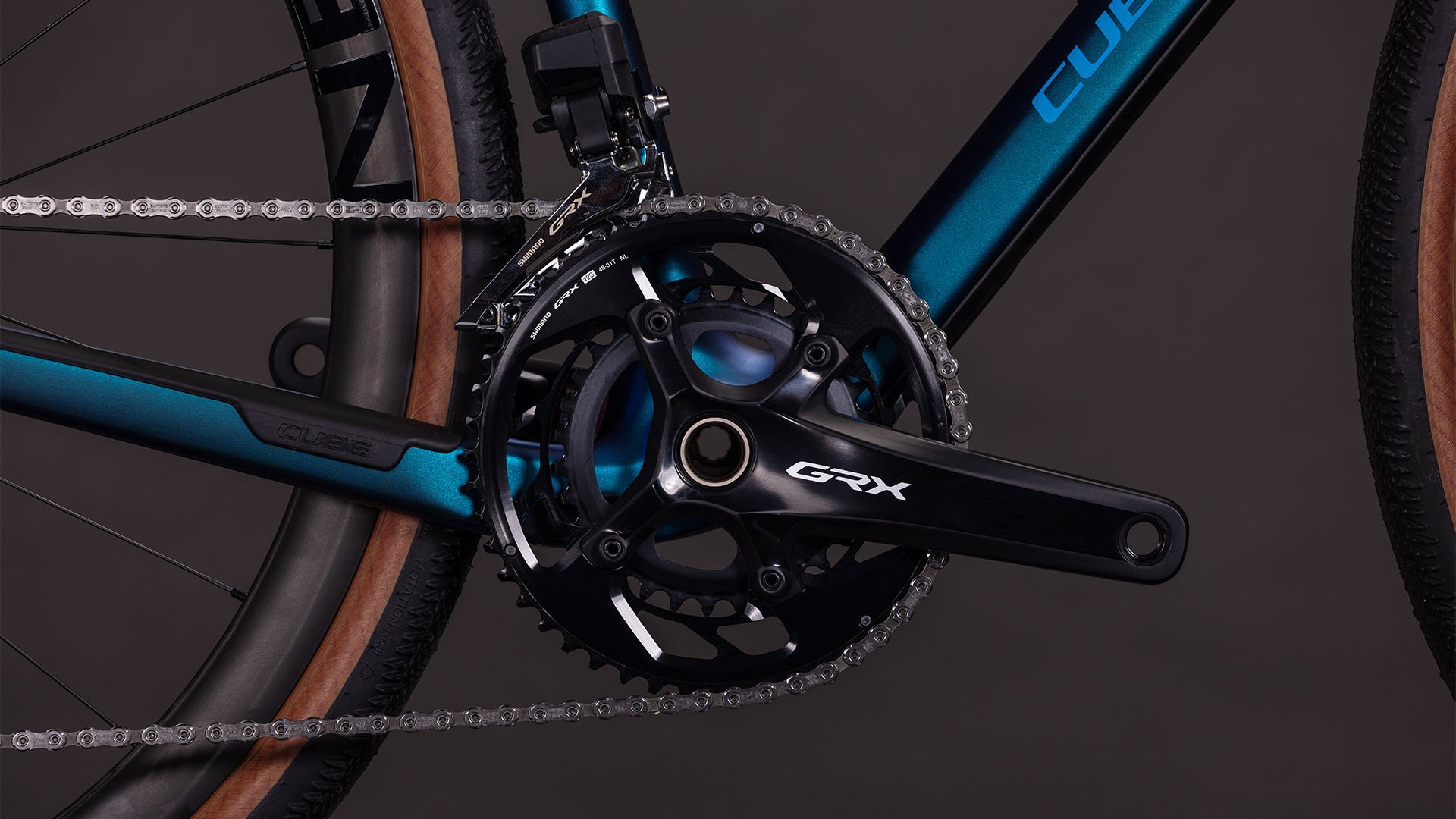

A race bike demands attention to detail, and the Nuroad C:62 Race delivers that in spades. The C:62® carbon frame and fork are sleek and comfortable even over longer distances, as you'd expect, but they also feature mounting points for mudguards and carriers – so no matter how long the race, or how tough the conditions, you can set it up your way. The Shimano GRX Di2 2x12 gears deliver epic range and precise shifts on demand, every time, while the GRX crankset with built-in power meter makes it possible to access essential performance data. Newmen Advanced SL X.R. 36 wheels roll on Schwalbe 45mm G-One RS Pro tyres and are held in check by Shimano GRX hydraulic disc brakes. And, to ensure you're always in control, we fitted a one-piece carbon cockpit. It's definitely ready. Are you?
