NULANE C:62
SLX

ArtNo. 156400

electric´n´blue

Comparison

LIGHTWEIGHT
ALL-ROUNDER

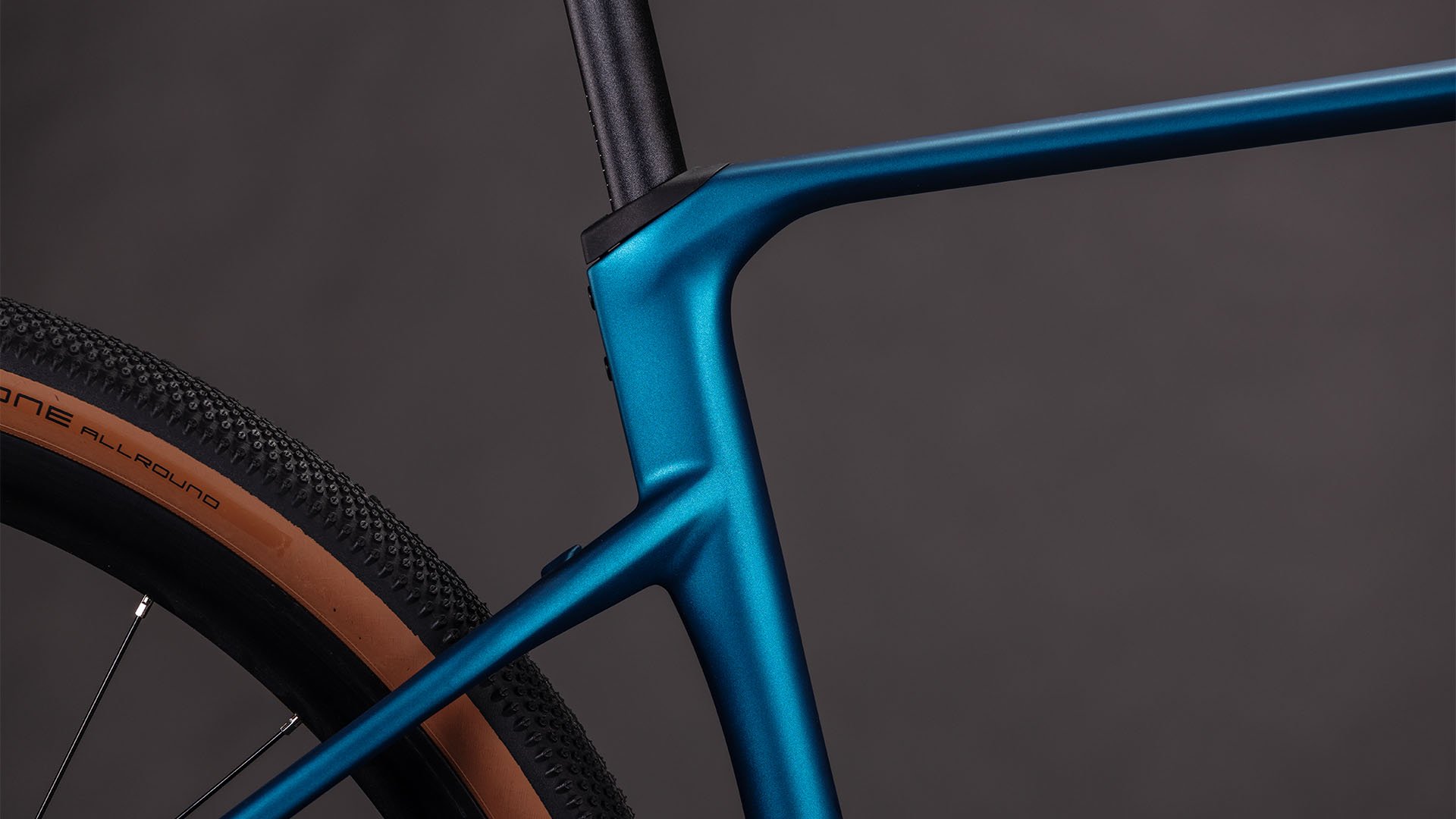

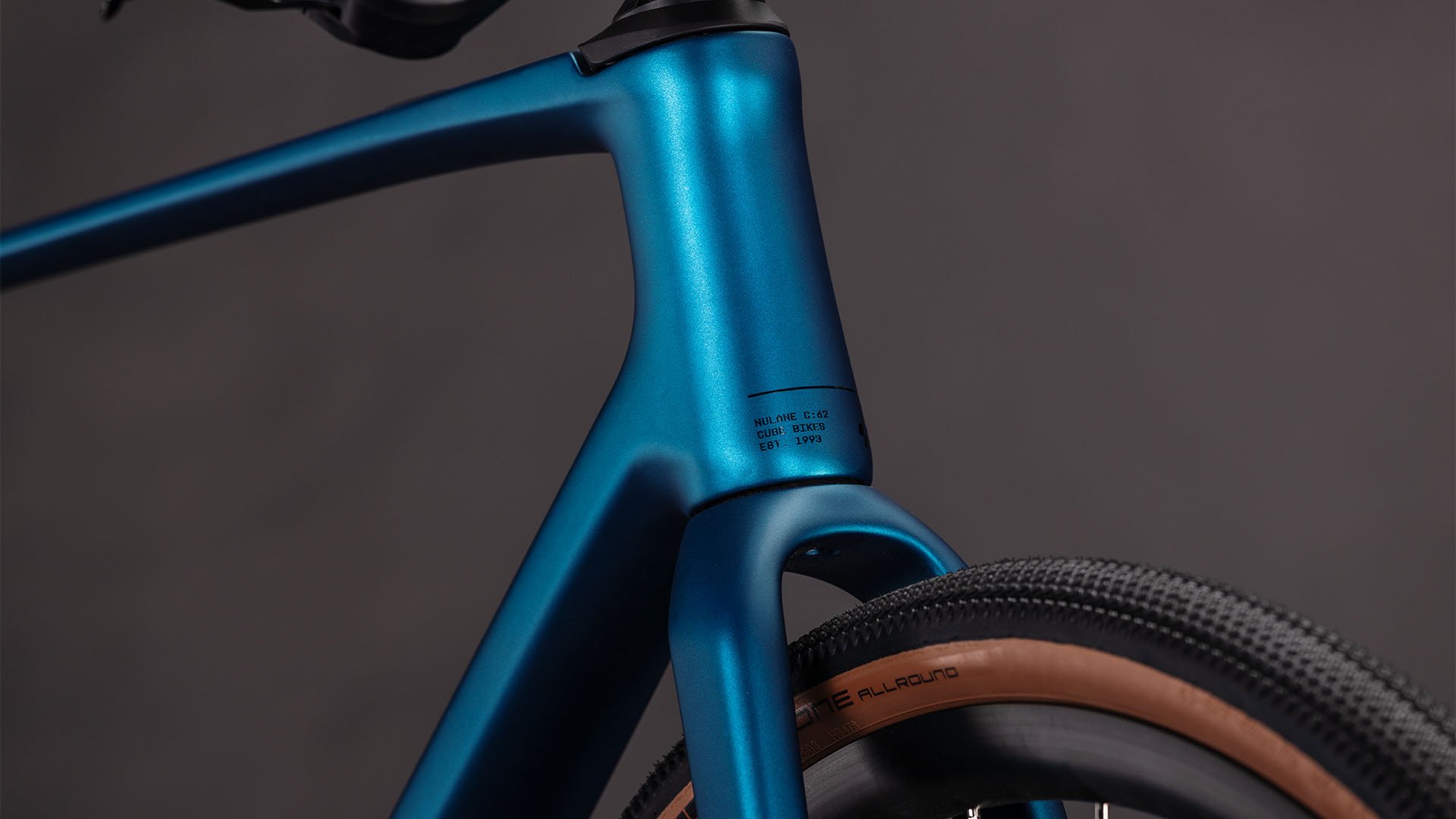

Based on our experience building fast, comfortable road and gravel bikes, the Nulane C:62's frame takes our high-quality C:62® carbon and transforms it into a light, lively and versatile chassis. But this is no featherweight carbon prima donna. We included ample clearance for 45mm tyres – or 40mm with mudguards – and a full set of luggage carrier and mudguard mounts. The matching C:62® carbon fork continues the light, comfortable and versatile theme with lowrider rack mounts. Set it up your way.

Frame Material

C:62®

Tire clearance

50mm

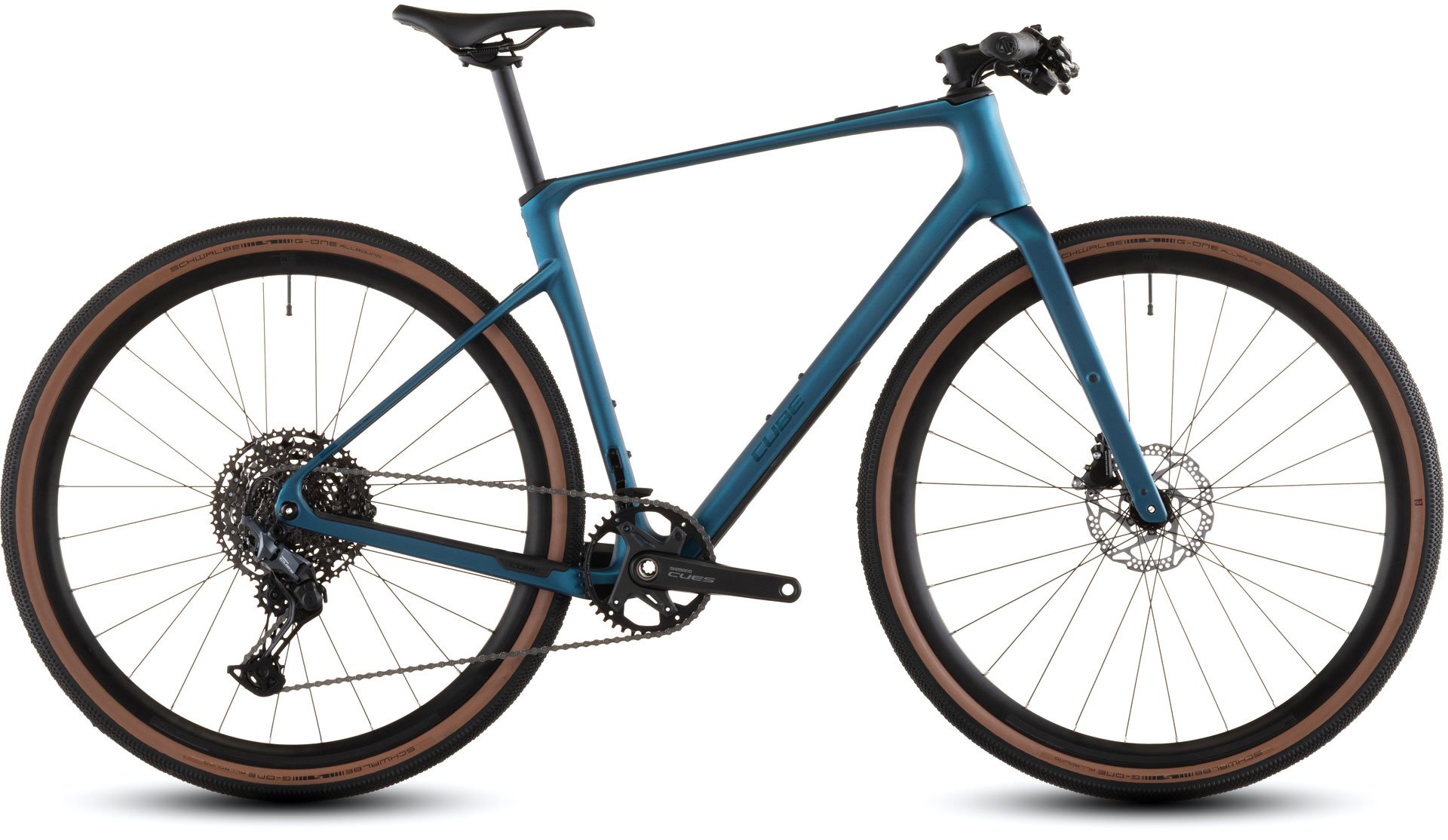

What if you could have a fast, light and agile bike for darting across the city, but one that was also rugged and adaptable enough to tackle longer weekend tours... even on less well-surfaced tracks? Well, now you can. Meet the Nulane C:62 SLX – one bike that can literally do it all.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

100
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	50 cm	53 cm	56 cm	58 cm	61 cm
Seat tube	430	460	490	510	540
Top Tube Horizontal	522	537	560	575	592
Seat angle	75.5°	74.7°	73.9°	73°	73°
Head tube angle	69°	70°	71.5°	72°	72.5°
Chainstays	440	440	440	442	442
Head tube	102	124	155	174	197
Wheelbase	1043	1044	1046	1048	1060
BB-Height to Hub	70	70	70	70	70
Protrusion height - 80mm	743	771	805	824	851
Reach	388	388	393	392	402
Stack	520	544	579	599	623

Ergonomics

	50 cm	53 cm	56 cm	58 cm	61 cm
Stem length	70	70	90	90	90
Angle stem	6°	6°	6°	6°	6°
Handlebar width	660	660	660	660	660
Length seat post	350	350	400	400	400
Diameter seatpost	27.2	27.2	27.2	27.2	27.2
Diameter tire maximum	728	728	728	728	728
Width tire maximum	50	50	50	50	50

All values are given in millimetres or degrees.

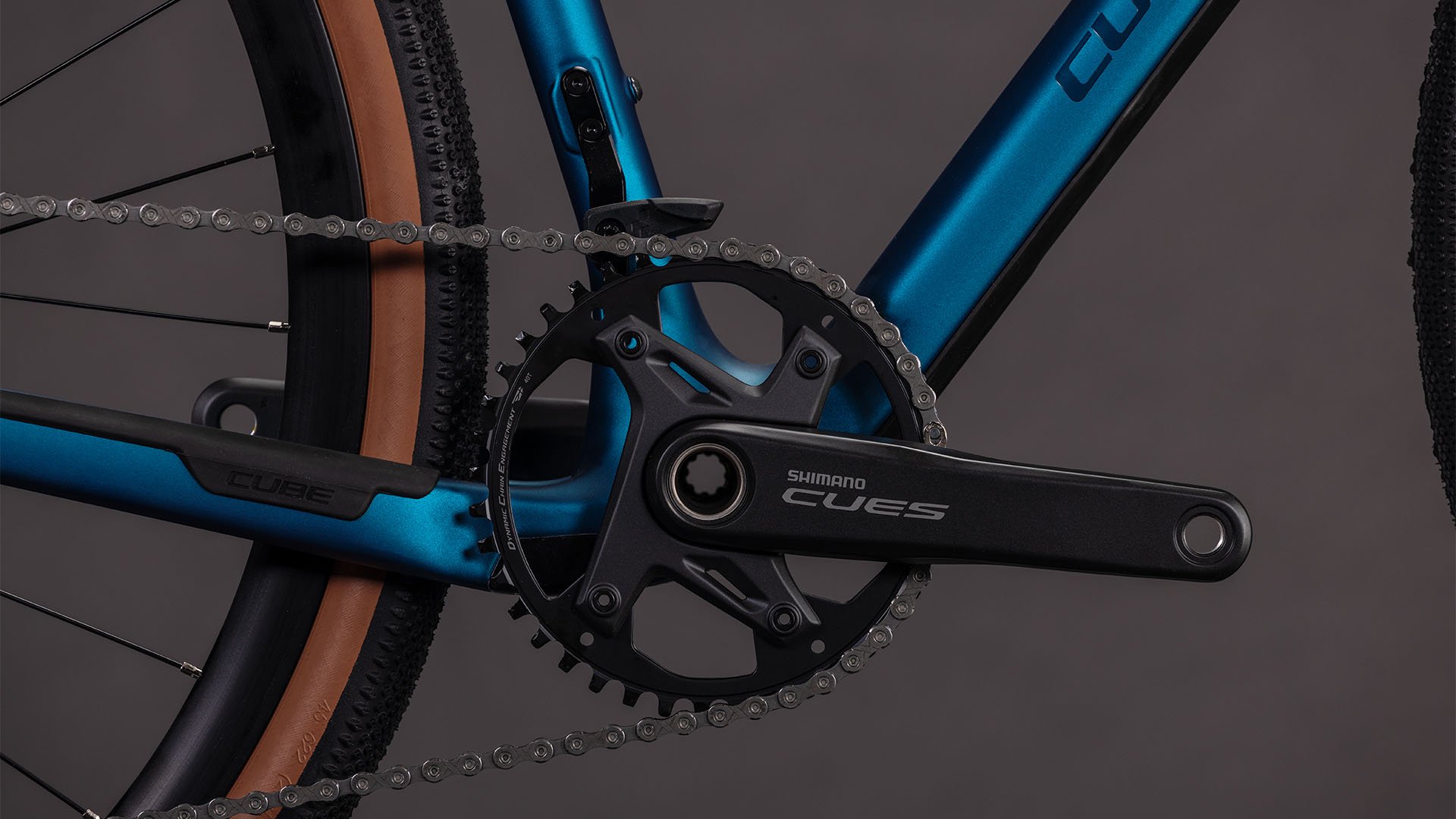

The Nulane C:62 SLX is proof that fast, light, rugged and versatile are all words that can be applied to a single bike. Built around our elegant, lightweight and tough C:62® carbon frame, it combines road bike pace with tourer versatility and a dose of gravel toughness. The C:62® carbon fork perfectly complements the frame's low weight and comfortable ride characteristics, while Shimano's 1x11 Cues gears serve up perfect shifts on demand. There's a set of powerful Shimano hydraulic disc brakes for safe stopping in any weather, and grippy 45mm Schwalbe tyres keep you rolling on tarmac or gravel alike. It's the complete package.
