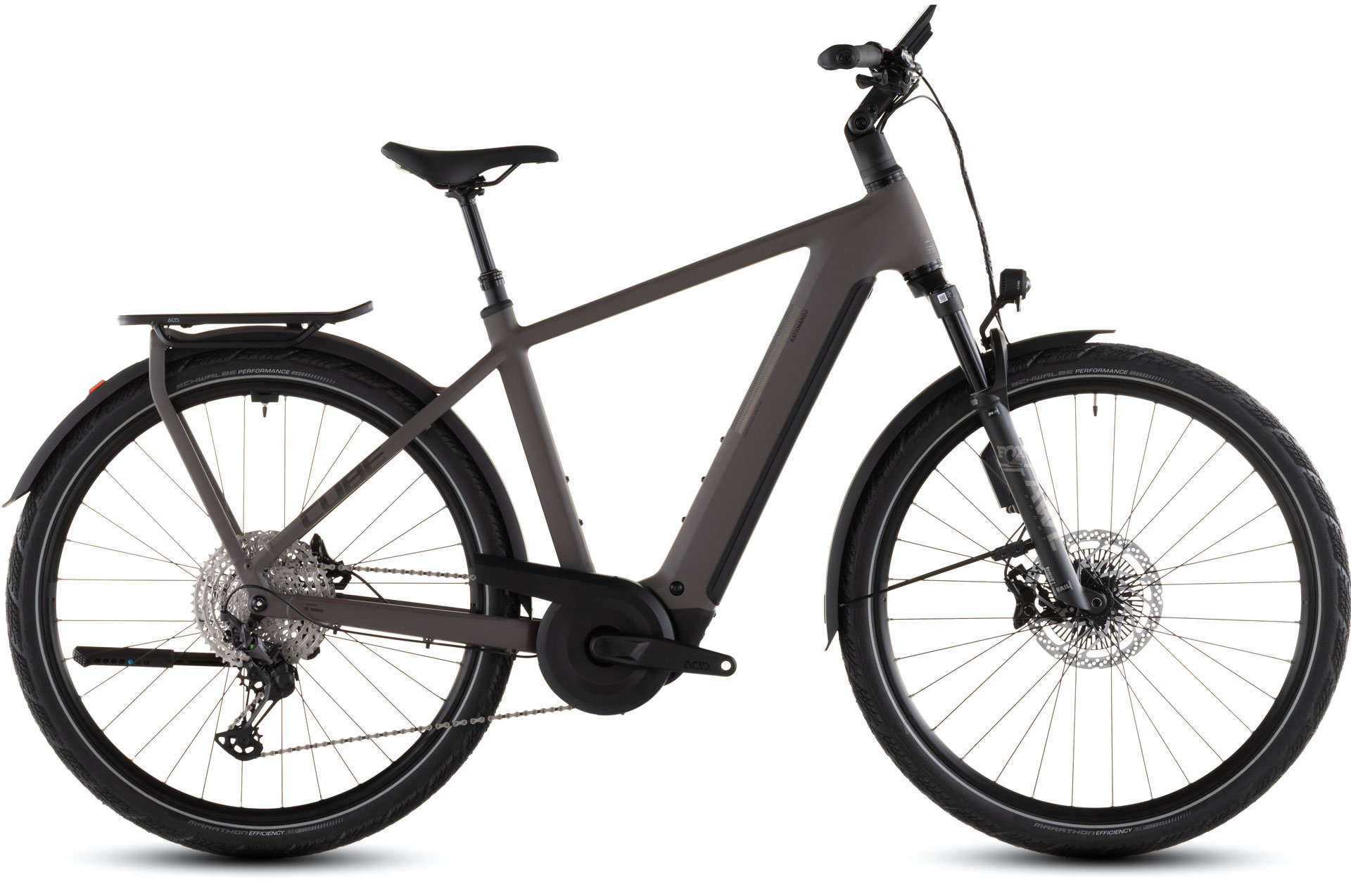

KATHMANDU HYBRID
EXC 800

ArtNo. 112500

cedar´n´chrome

Comparison

CREATING
MEMORIES

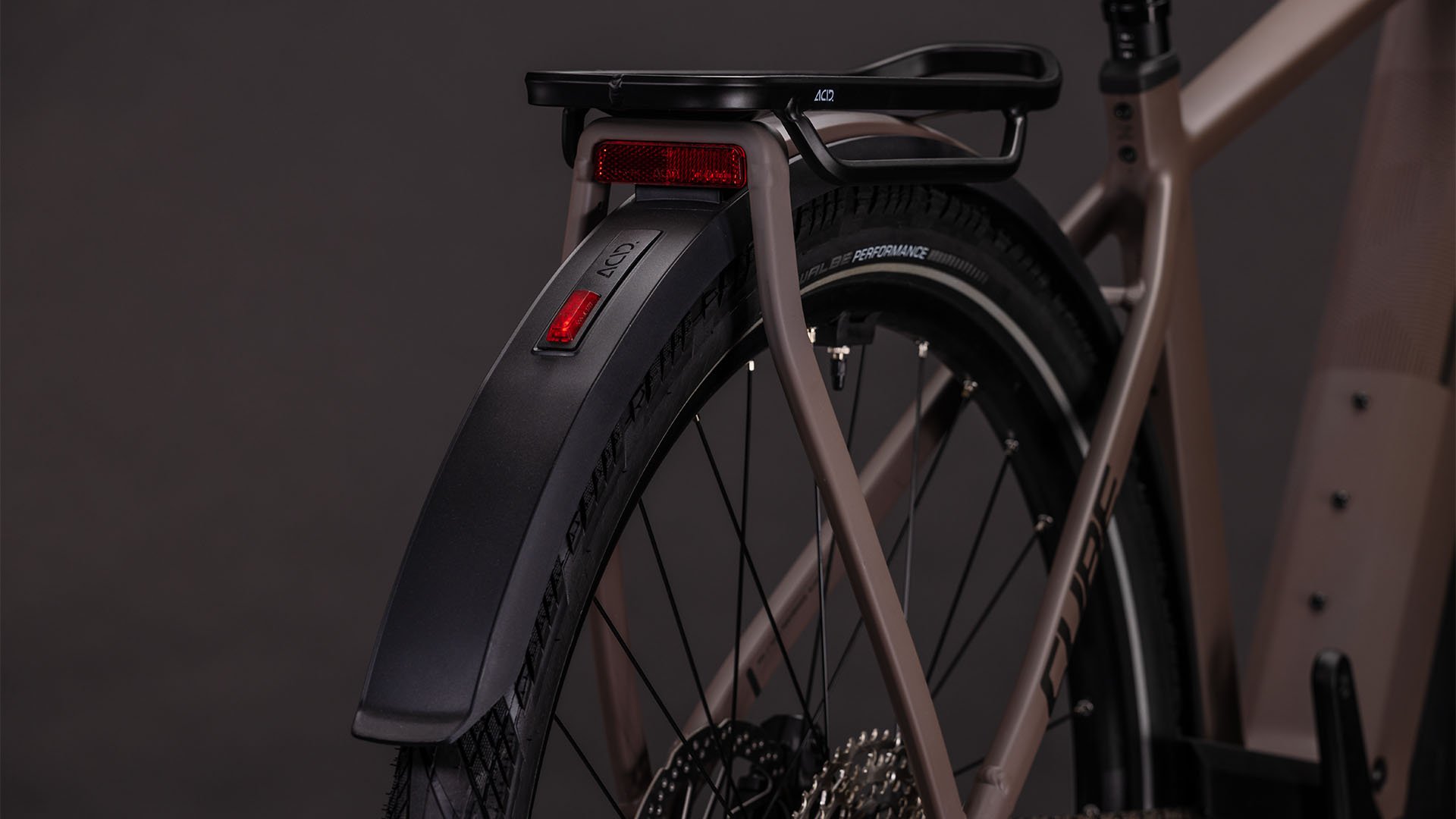

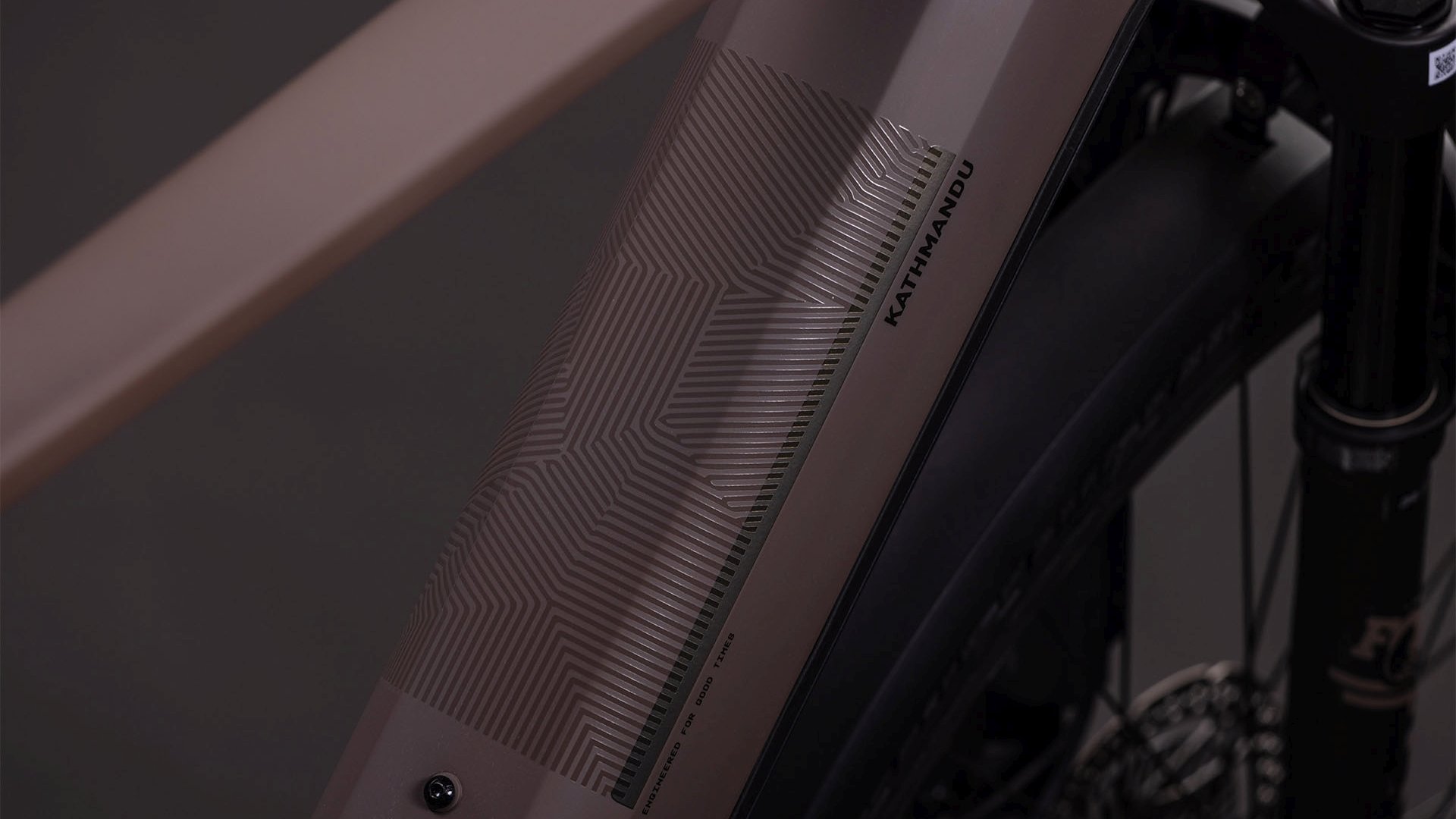

The CUBE Kathmandu Hybrid's design is classically elegant – familiar, even – but it's stuffed full of innovation and clever touches. The neatly housed Bosch CX drive and 800Wh PowerTube battery are just the start. Efficient Comfort Geometry is designed around a 100mm travel suspension fork, for better control even when the going gets rough. Integrated cables complement the frame's clean lines, while a UDH dropout is tough, versatile and future-proof. And, of course, there's an integrated chain guard mount and our tough, sturdy and exceptionally neat Integrated Carrier 3.0, so you can carry everything you need for your adventures.

Frame Material

Aluminium Superlite

Battery

800Wh

Configuration

ABS

Whether you're riding across town or across countries, you'll need a bike that won't let you down. With its Bosch CX drive, high-capacity 800Wh battery, dependable Shimano XT 1x12 gears and sophisticated ABS brakes, CUBE's Kathmandu Hybrid EXC has everything you need.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

125
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	50 cm	54 cm	58 cm	62 cm	64 cm
Seat tube	460	510	560	600	640
Top Tube Horizontal	590	610	630	650	670
Seat angle	73.5°	73°	73°	73°	73°
Head tube angle	68°	68.5°	68.5°	68.5°	68.5°
Chainstays	499	499	499	499	499
Head tube	110	125	140	165	190
Wheelbase	1173	1182	1203	1226	1248
BB-Height to Hub	-68	-68	-68	-68	-68
Protrusion height - 80mm	777	817	850	882	923
Reach	401	410	426	439	452
Stack	638	654	668	692	715

Ergonomics

	50 cm	54 cm	58 cm	62 cm	64 cm
Stem length	65	80	80	80	90
Handlebar width	700	700	700	700	700
Crank length	175	175	175	175	175
Length seat post	361	361	403	425	425
Diameter seatpost	31.6	31.6	31.6	31.6	31.6
Max. insertion depth seat post	180	230	280	280
Stroke seatpost	100	100	100	100	100
Diameter tire maximum	750	750	750	750	750
Width tire maximum	56	56	56	56	56

All values are given in millimetres or degrees.

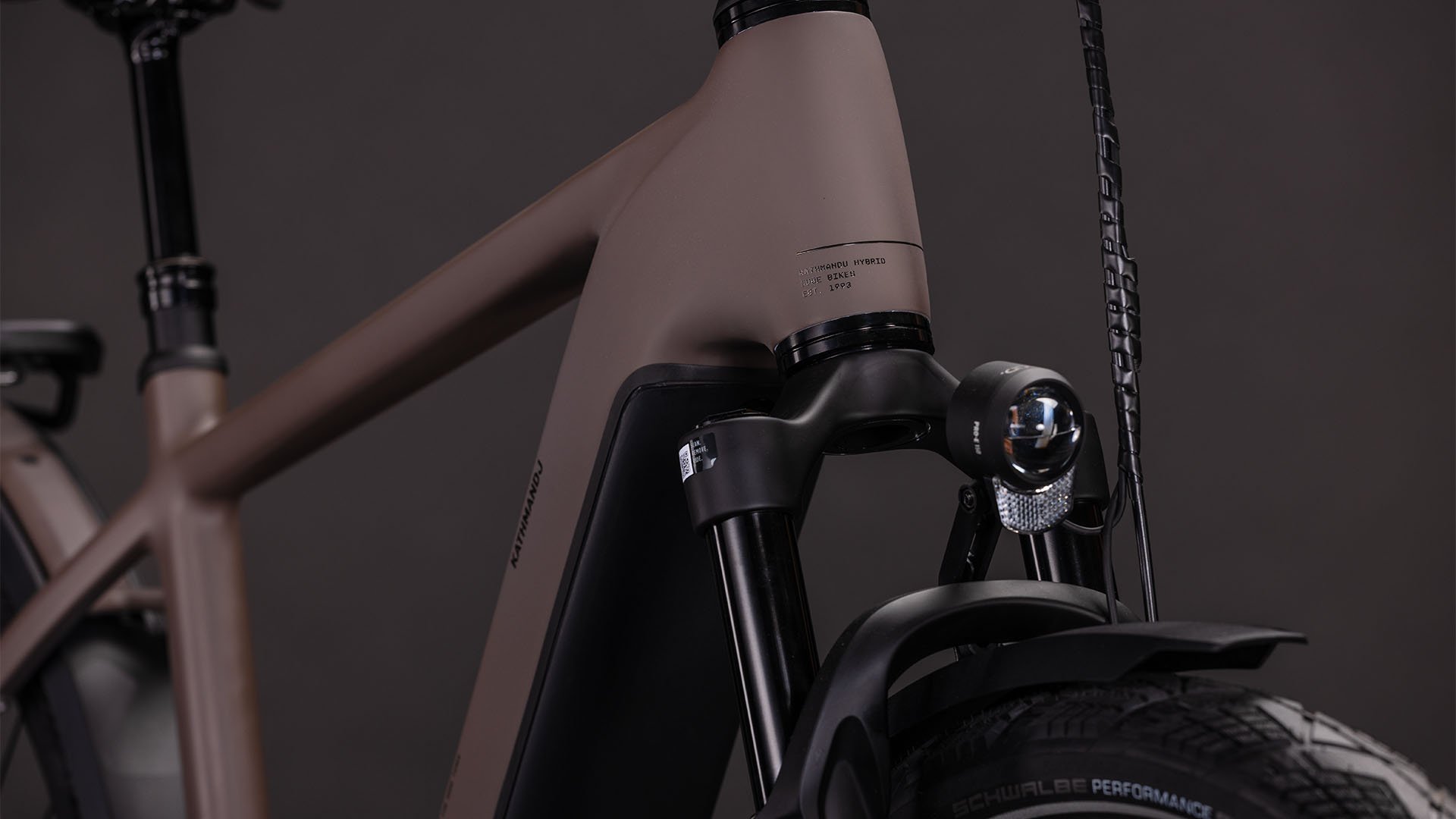

The CUBE Kathmandu Hybrid EXC is built to go places. We started with Bosch's CX motor and an 800Wh PowerTube battery, to give you up to 100Nm of pedal assistance on your way to work or to adventure. Then we chose Shimano's legendary XT 1x12 gears, for their huge range and dependable performance. Added 4-piston Shimano hydraulic disc brakes with ABS, so you know you can always slow and stop safely. And finished with a smooth, comfortable Fox 34 AWL Float Sport suspension fork. But that's not quite all, because of course there's also an adjustable stem, dropper seatpost and our strong, elegant and versatile Integrated Carrier 3.0, plus a full complement of accessories.
