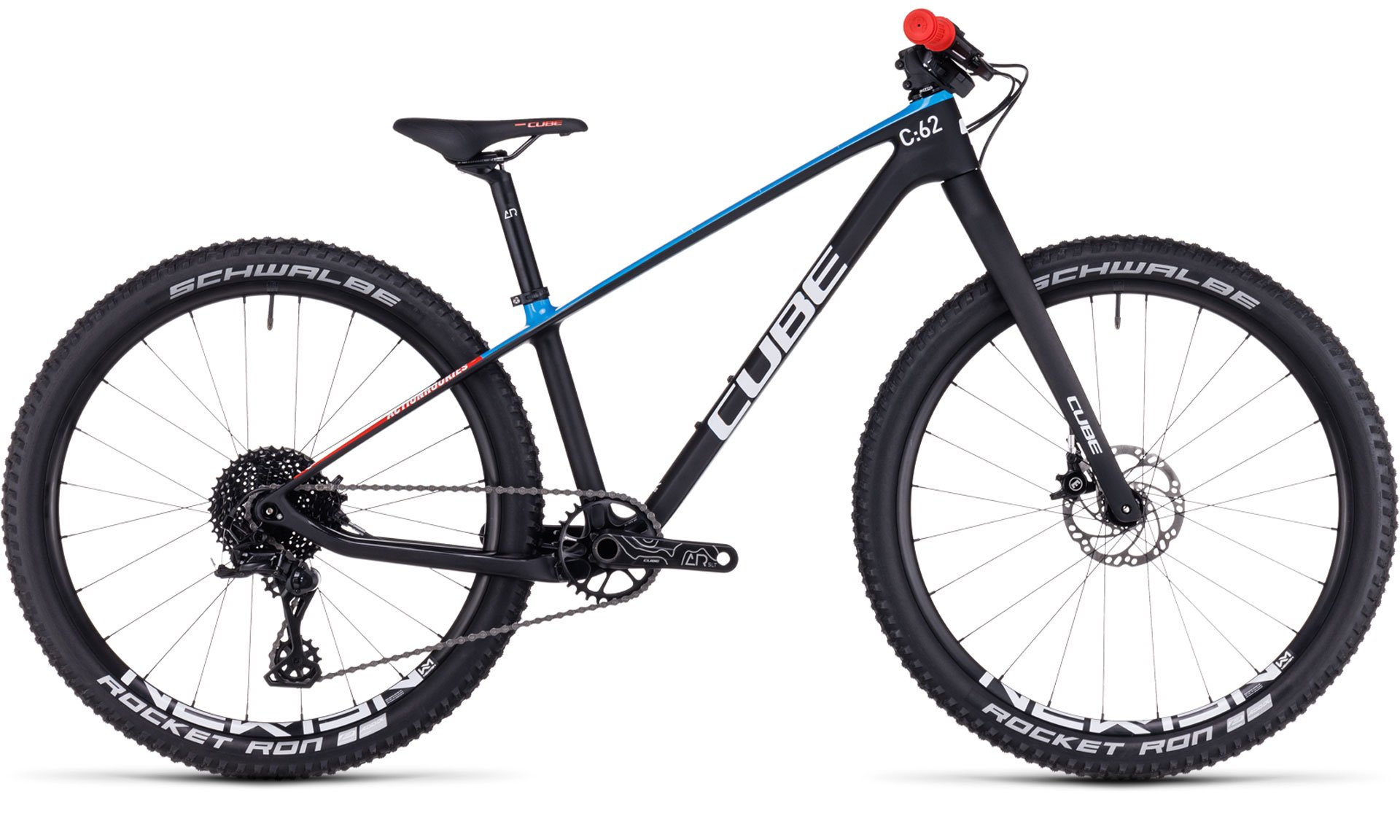

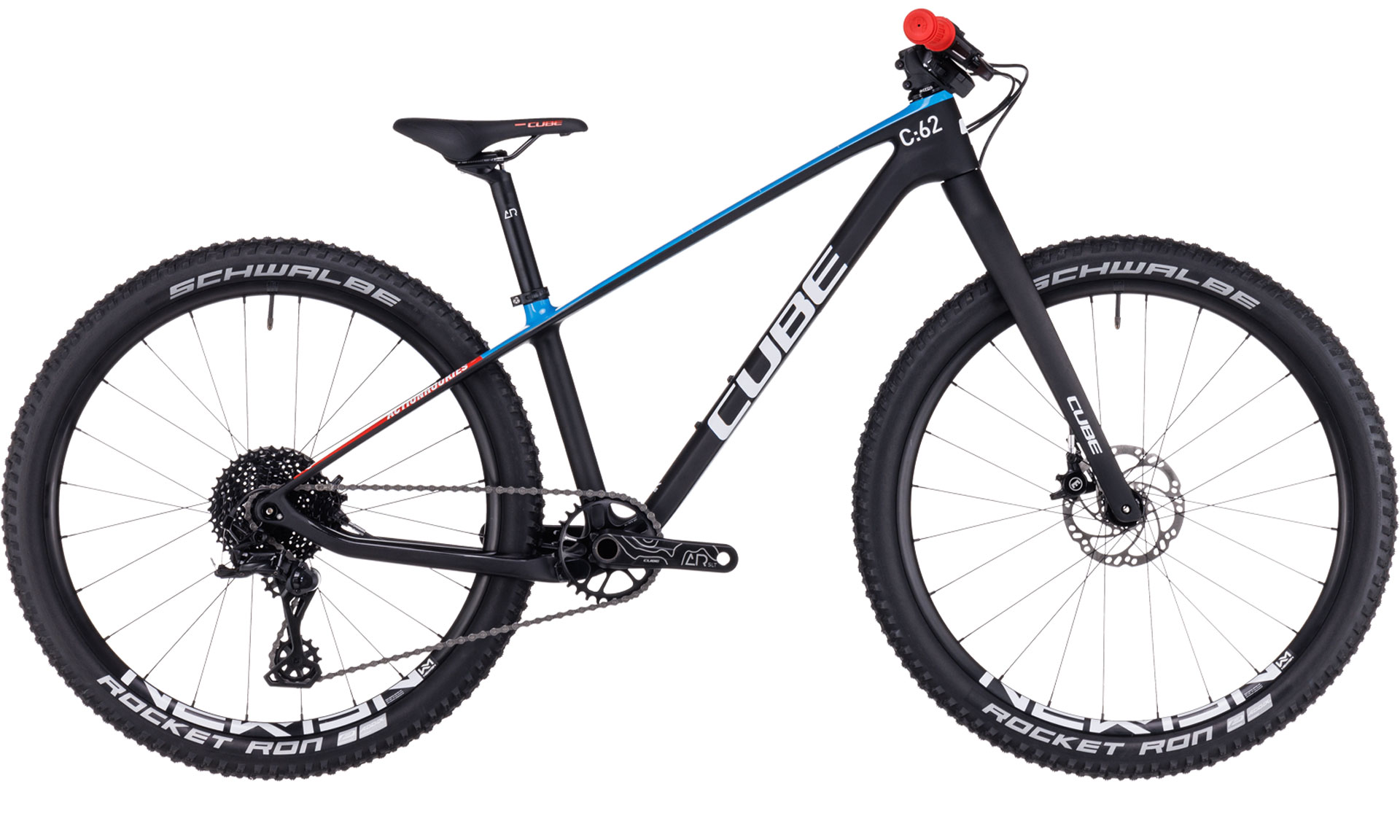

ELITE 240 C:62
PRO

ArtNo. 722840

carbon´n´blue´n´red

Comparison

READY.
SET.
GO!

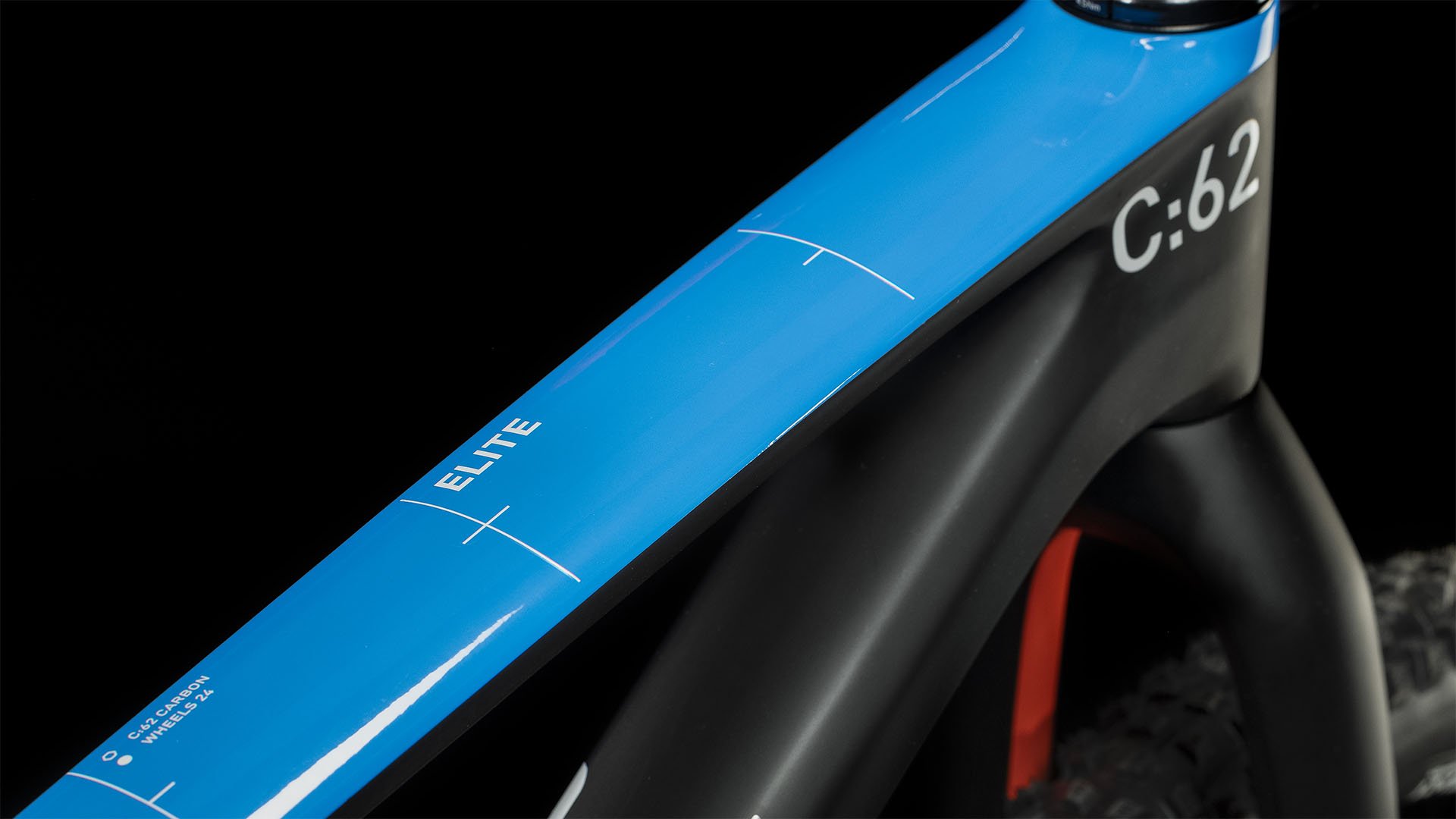

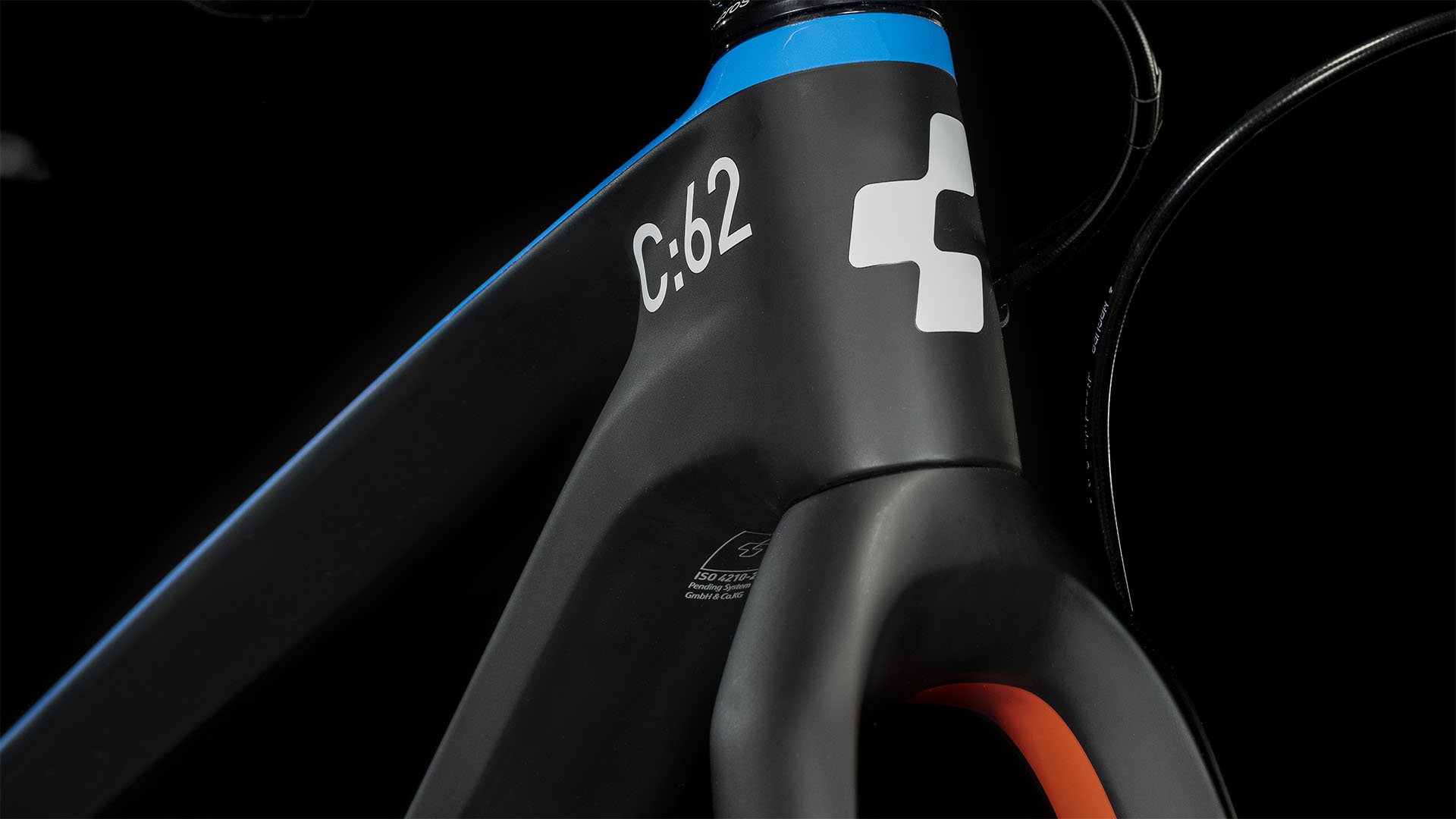

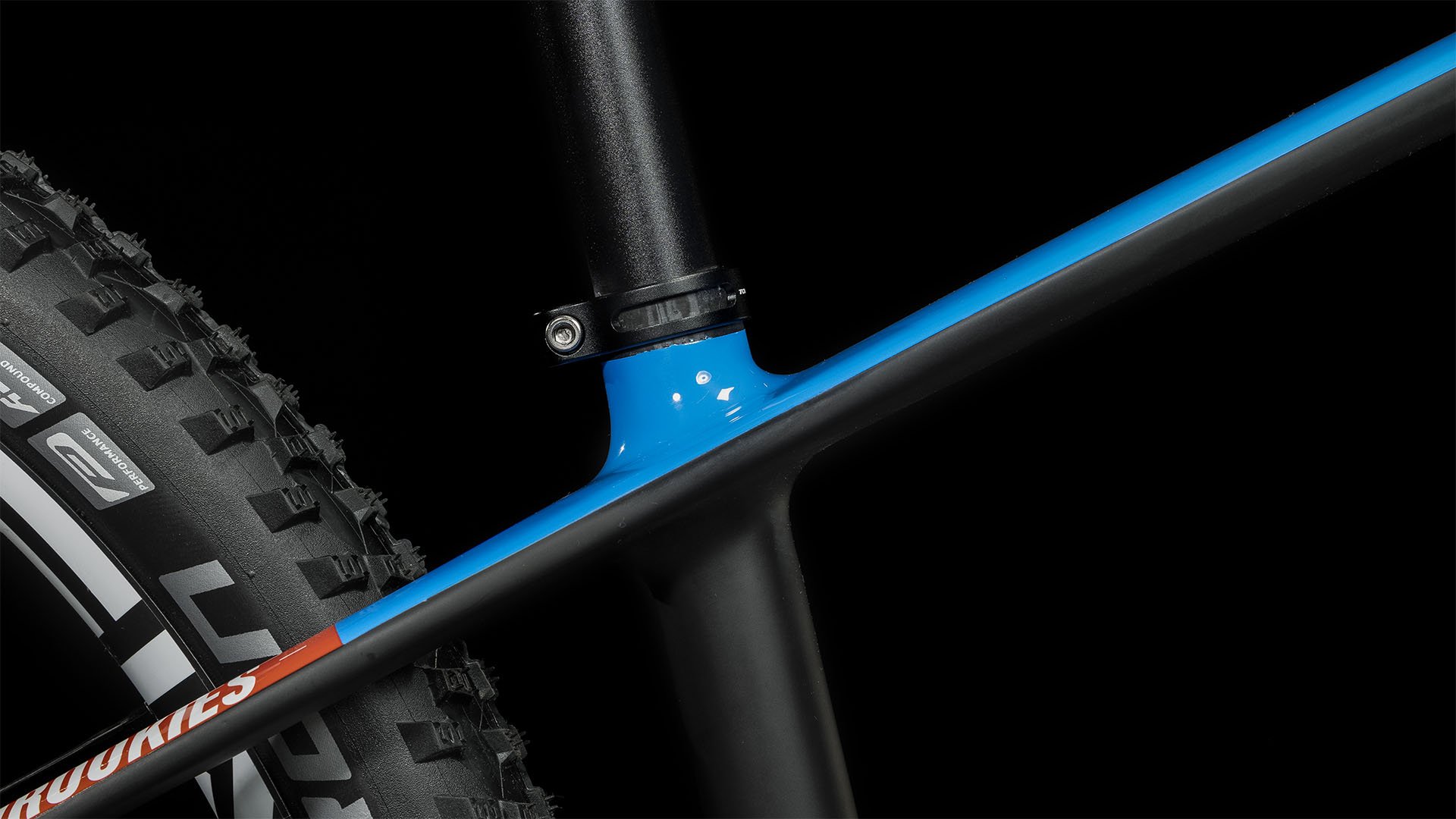

We know from working with Elite racers that they want a frame that's stiff, responsive and, above all, light. So these are exactly the qualities we built into our Elite 240 C:62's lightweight carbon frame, but scaled down perfectly to fit younger riders. Every single detail of the frame design is aimed at reducing weight without sacrificing strength or stiffness. A tapered head tube, full carbon fork and 12mm thru-axles front and rear ensure precise steering and efficient power transfer. We kept the seatstays narrow for a comfortable ride. And cables are routed internally for long-lasting precise shifting, so mum and dad can spend less time tweaking and more time cheering.

Frame Material

C:62®

Frame weight

< 900 g

Wheels

24"

Young riders benefit even more than adults from a light bike. The Elite 240 C:62 Pro's carbon frame and fork save weight without sacrificing strength, and they're also really tough. With a wide range of gears, child-sized controls and hydraulic disc brakes, the only thing that's missing is a bundle of enthusiasm.

More Information

Bike category of use: 2Y

You can find more information about Bike Classification at the following link.

More Information

This children's bike is a OneSize model suitable for kids up to the following maximum measurements:
HEIGHT: 118-136
INSEAM: 52-63
Please note this information is only a general recommendation. It cannot replace a personal consultation and test ride with a CUBE dealer.

Geometry

	24"
Seat tube	300
Top Tube Horizontal	512
Seat angle	73.5°
Head tube angle	69°
Chainstays	380
Head tube	95
Wheelbase	960
BB-Height to Hub	45
Protrusion height - 80mm	605
Reach	362
Stack	508

Ergonomics

	24"
Stem length	40
Angle stem	6°
Handlebar width	590
Crank length	130
Length seat post	350
Diameter seatpost	27.2
Diameter tire maximum	628
Width tire maximum	56

All values are given in millimetres or degrees.

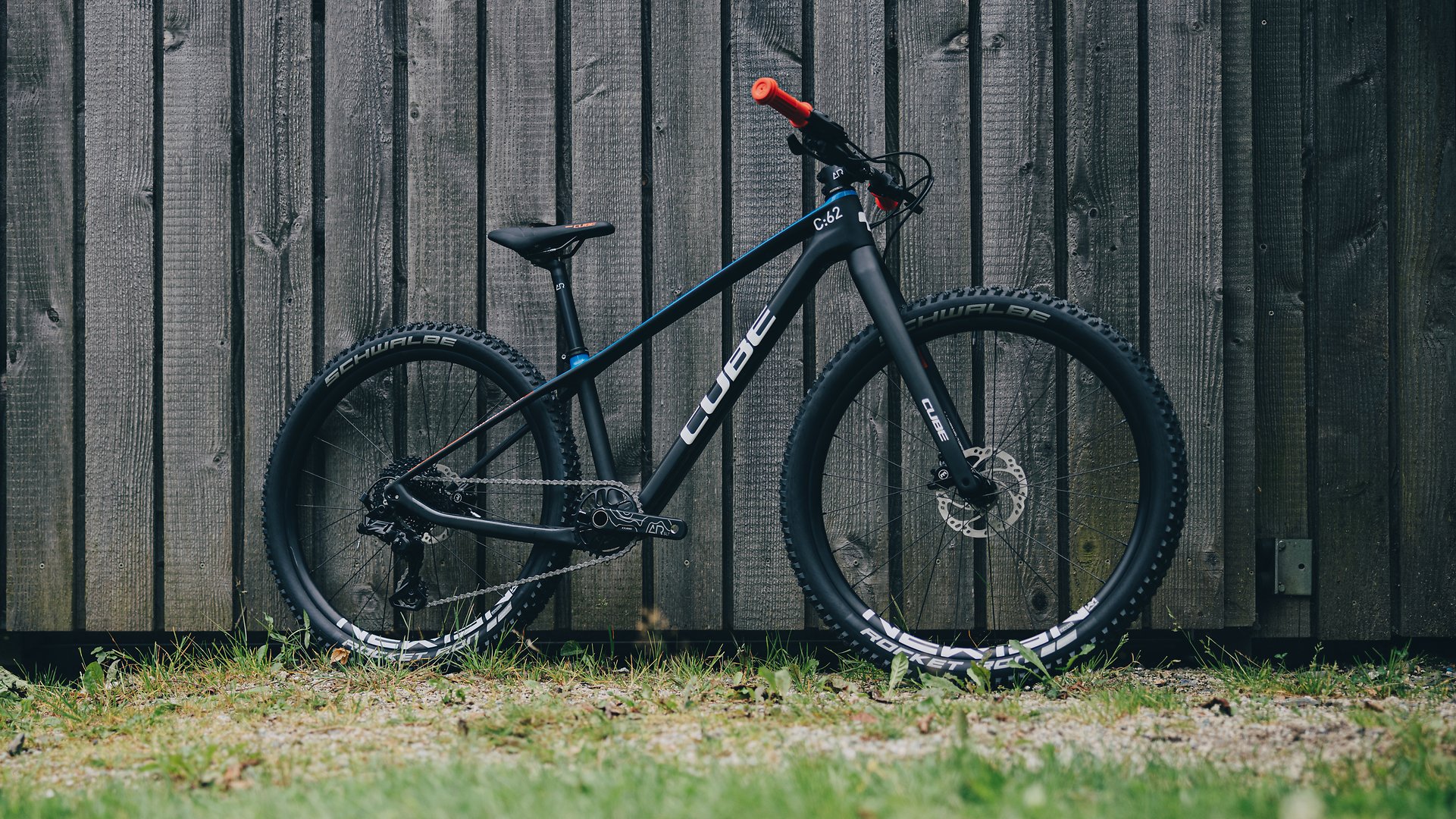

Even young riders know that speed wins races. It's the reason we developed the Elite 240 C:62 Pro, which takes everything we've learnt about building podium-capable racing mountain bikes and condenses it into pint-sized perfection. The full carbon frame and fork are just the lightweight start. We fitted 1x10 gears for their easy shifting, wide range and simple reliability. There's a headset limiter to prevent top tube damage in the event of a crash. A 12x100 thru axle up front and child-sized handlebars, grips and brake levers – with Magura hydraulic discs – ensure accurate control at all times. And little touches like the ultra-lightweight Schwalbe Aerothan inner tubes and Newmen wheels are just the kind of details you'd expect from a thoroughbred.
