EDITOR HYBRID
SLT 400X

ArtNo. 123301

smaragdgrey´n´prism

Comparison

simpli
CITY

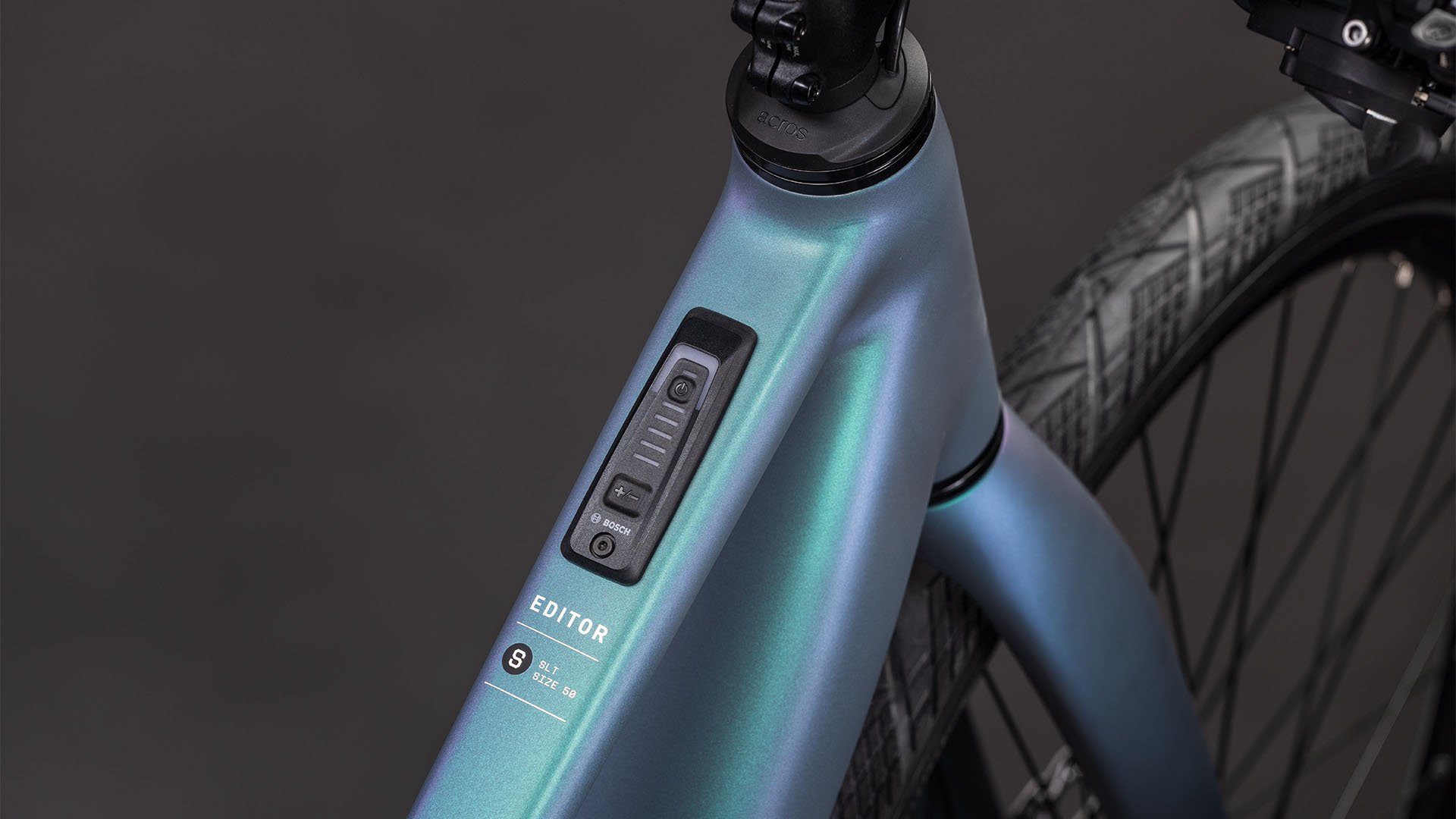

Its looks are familiar, but the Editor Hybrid's Trapeze frame is full of unfamiliar clever touches. The lightweight, durable aluminium frame makes use of Smooth Welding at the main tube joints – so it has a clean, almost organic appearance. Cables are fully integrated to complement the uncluttered aesthetic, and we placed the 400Wh battery unobtrusively in the down tube and incorporated the mini controller in the top tube. Meanwhile the full carbon fork is light, strong and suits the frame's pared-back aesthetic. It's ready for the urban jungle.

Frame Material

Aluminium Superlite

Battery

400Wh

Two wheels are where it's at for getting around town. Designed to fit seamlessly into the urban landscape and your busy life, the Editor Hybrid SLT 400X's belt drive gears and lightweight Bosch SX motor make it the ultimate way to beat the traffic and arrive in style.

More Information

Bike category of use: 1

You can find more information about Bike Classification at the following link.

More Information

100
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	50 cm	54 cm	58 cm
Seat tube	460	510	560
Top Tube Horizontal	570	586	596
Seat angle	74.2°	74°	73.8°
Head tube angle	69°	70°	70°
Chainstays	477	477	477
Head tube	152	157	177
Wheelbase	1125	1131	1143
BB-Height to Hub	-70	-70	-70
Protrusion height - 80mm	640	656	671
Reach	400	413	418
Stack	604	613	632

Ergonomics

	50 cm	54 cm	58 cm
Stem length	60	80	80
Angle stem	6°	6°	6°
Handlebar width	680	680	680
Crank length	170	170	170
Length seat post	350	400	400
Diameter seatpost	30.9	30.9	30.9
Max. insertion depth seat post	290	300	300
Diameter tire maximum	733	733	733
Width tire maximum	52	52	52

All values are given in millimetres or degrees.

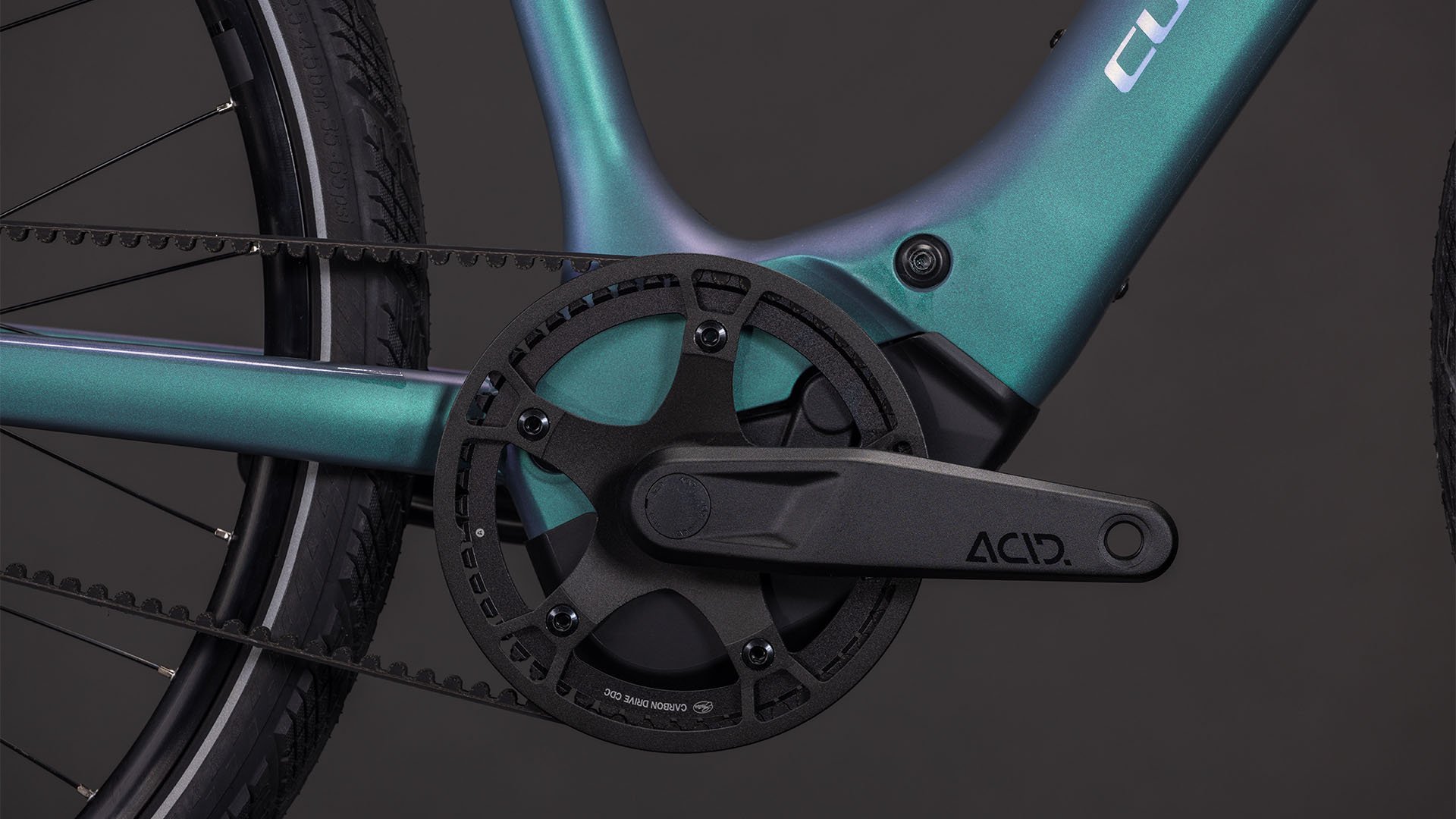

Appearances can be deceptive. Beneath the Editor Hybrid SLT 400X's understated, clean lines lurks a sophisticated modern transport solution with your name written all over it. Featuring a built-in 400Wh battery and mini controller for the lightweight Bosch SX drive unit, we chose a low-maintenance, clean Gates belt drive and Shimano's 11-speed Alfine hub gears for the ultimate in get-on-and-go ease of use. Powerful Shimano Deore hydraulic disc brakes give you all the stopping power you need in any weather, delivered to the road via Schwalbe's wide, grippy and fast-rolling Marathon Efficiency Evo 50mm tyres. With the lightweight full carbon fork, it's practically an e-bike superhero in disguise.
