AMS HYBRID 177 C:62
SUPER TM 600X

ArtNo. 105400

reedbeigegrit´n´orange

Comparison

POWER UP
HAMMER DOWN

We set out to make a lighter, more capable all-mountain e-mtb – and the AMS Hybrid 177 C:62 frame is the heart of it. Built from our C:62® carbon and featuring Bosch's BDU38YY motor mount for compatibility with both SX and CX motors, it features a built-in 600Wh PowerTube battery. We've tweaked the geometry and kinematics to suit a bike built to take on rowdy, technical trails at high speed. Mullet wheels and 170mm travel front and rear deliver epic handling, and an angle-adjustable headset means you can tweak the geometry to suit your own preference. Internal Cable Routing complements the frame's clean aesthetic and, of course, there's a UDH gear hanger and Direct Mount chain guard. Bring it on!

Frame Material

C:62®

Battery

600Wh

Wheels

29" / 27.5"

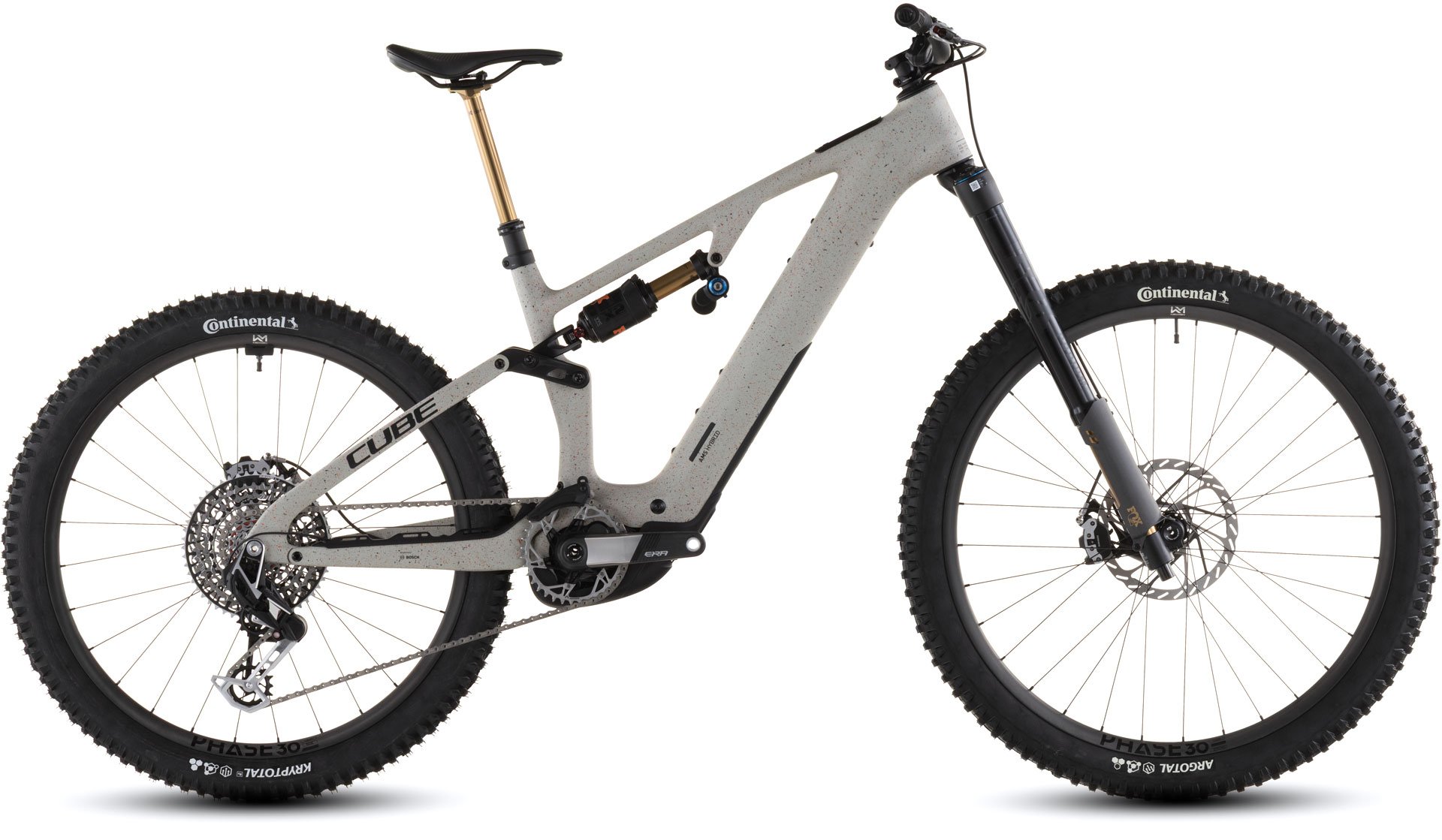

Zero compromise, maximum performance. We built the AMS Hybrid 177 C:62 Super TM 600X to be the ultimate all-mountain machine, with Bosch's powerful CX-R drive and a wishlist of range-topping components. There's no better way to beat the lift queues and rack up miles of mountain descents.

More Information

Bike category of use: 4

You can find more information about Bike Classification at the following link.

More Information

110
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

Slack/Moderate	M	L	XL
Seat tube	405	420	480
Top Tube Horizontal	596 / 597	622 / 624	658 / 659
Seat angle	77.1° / 76.9°	77.1° / 76.9°	77° / 76.8°
Head tube angle	63.6° / 64.2°	63.6° / 64.2°	63.6° / 64.2°
Chainstays	443	443	443
Head tube	105	111	131
Wheelbase	1243 / 1235	1271 / 1263	1310 / 1302
BB-Height to Hub	7 / 6	7 / 6	7 / 6
Protrusion height - 80mm	782	781	781
Reach	452 / 450	477 / 475	507 / 505
Stack	631 / 632	636 / 638	654 / 656

Ergonomics

	M	L	XL
Stem length	50	50	50
Handlebar width	780	780	780
Crank length	165	165	165
Length seat post	476	541	541
Diameter seatpost	31.6	31.6	31.6
Max. insertion depth seat post	240	260	320
Stroke seatpost	180	210	210
Diameter tire maximum	723	723	723
Width tire maximum	65	65	65
Rear suspension travel	170	170	170

All values are given in millimetres or degrees.

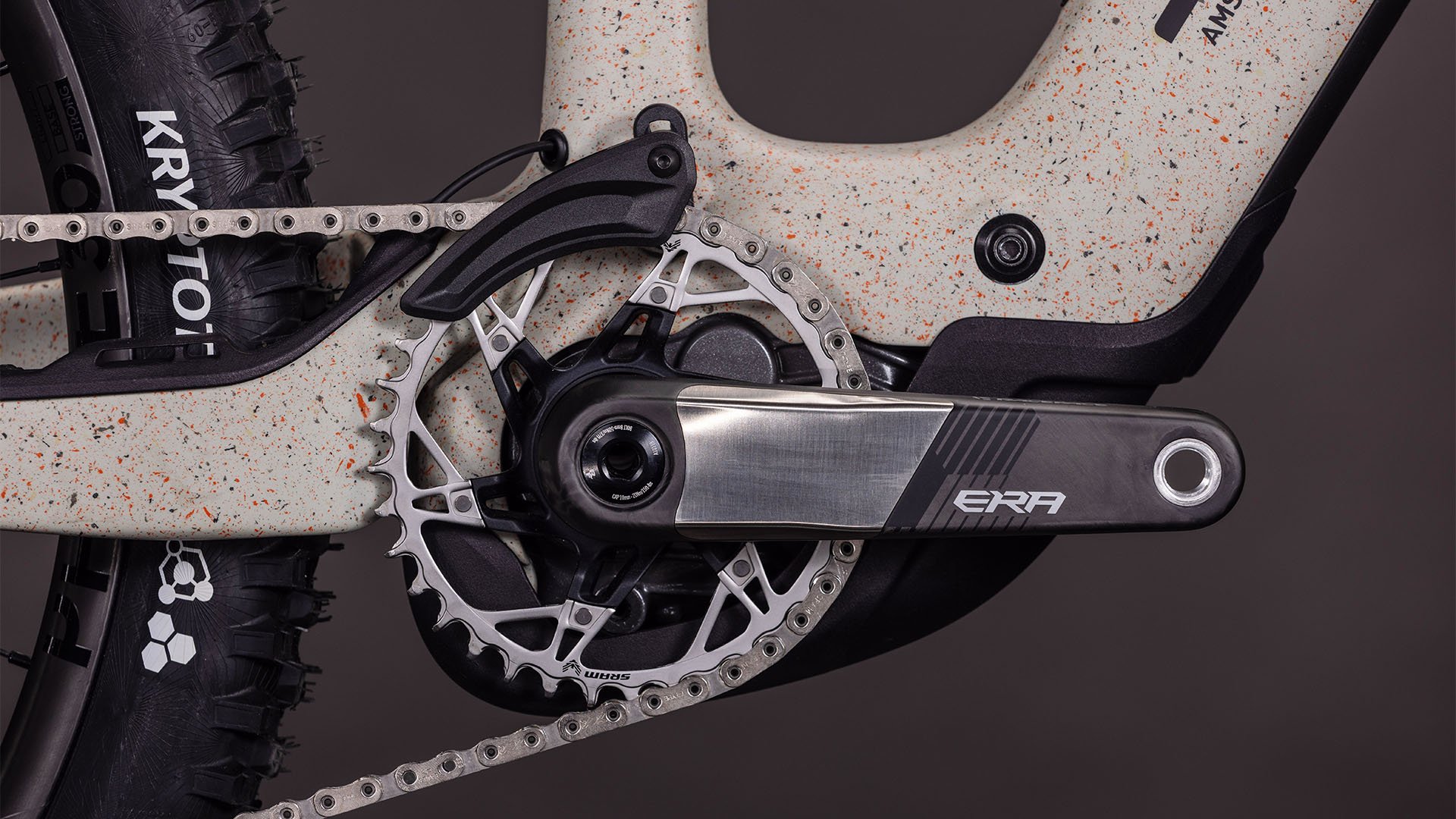

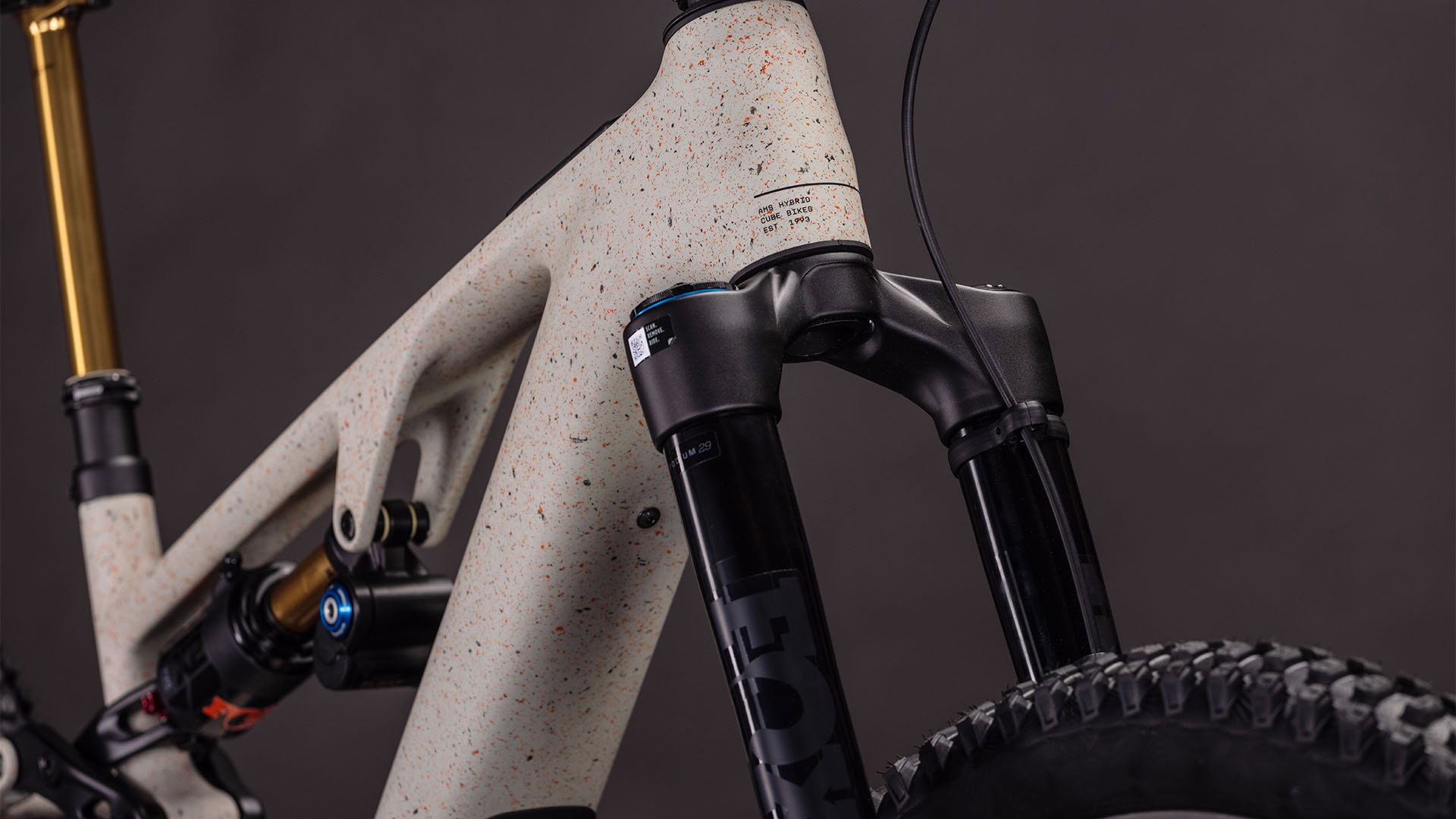

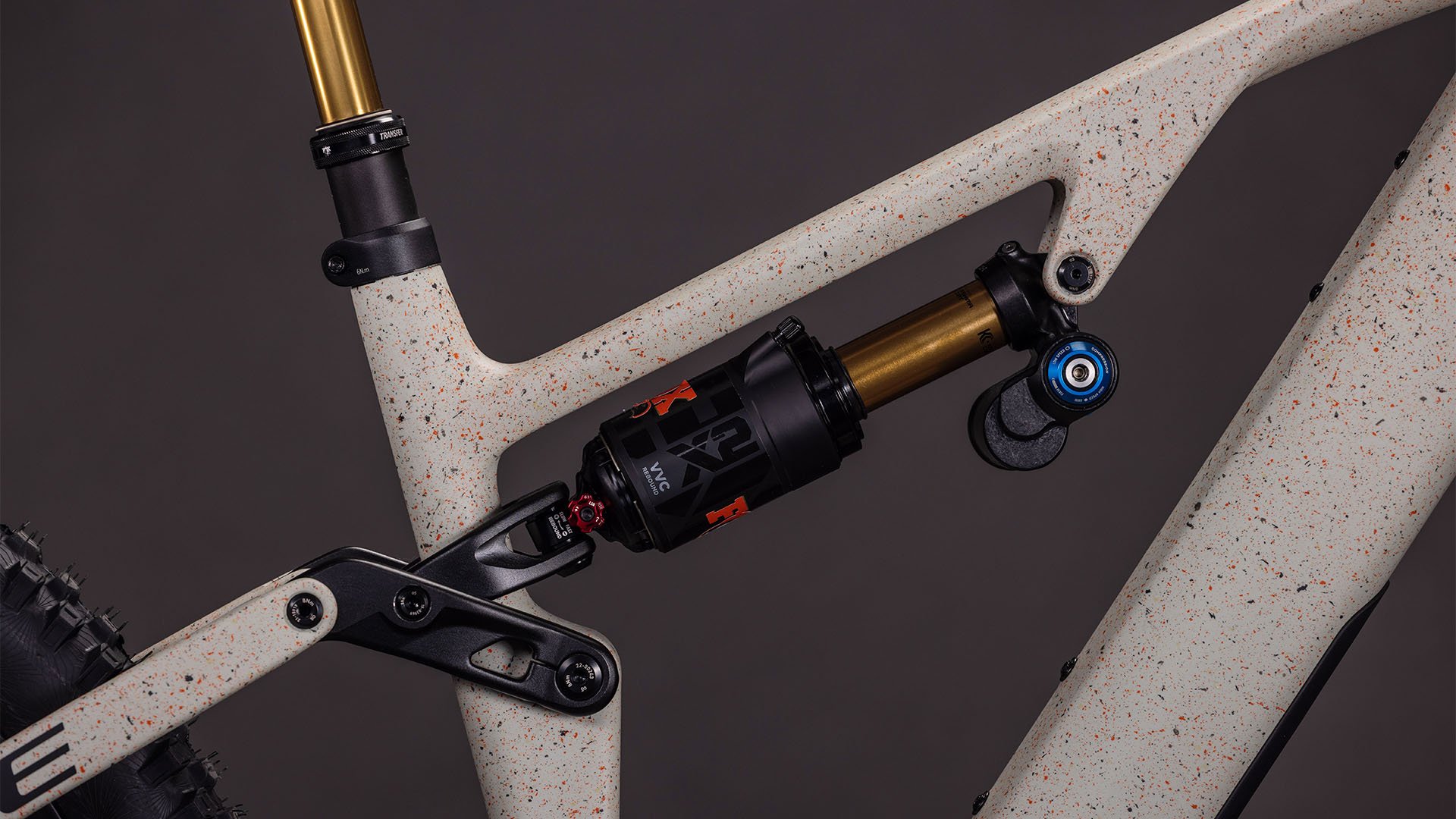

A special bike needs special treatment, which is why we fitted Bosch's powerful and versatile CX-R drive to the AMS Hybrid 177 C:62 Super TM 600X. With up to 100Nm of torque and 750W peak power – and a 600Wh battery – it has more than enough grunt to get you back to the top for one more run, again and again. Fox's Podium fork and Float X2 Factory shock help deliver 170mm of rock-devouring travel to the Newmen Phase 30 wheelset, shod with Continental Argotal and Kryptotal 2.4in tyres. Sram's Maven Ultimate hydraulic disc brakes and a dropper post help keep you in full control at all times. And Sram's precise XX Eagle Transmission gears with RaceFace Era carbon crank are all you need for long days of Alpine-descending mayhem. Bring it on!
