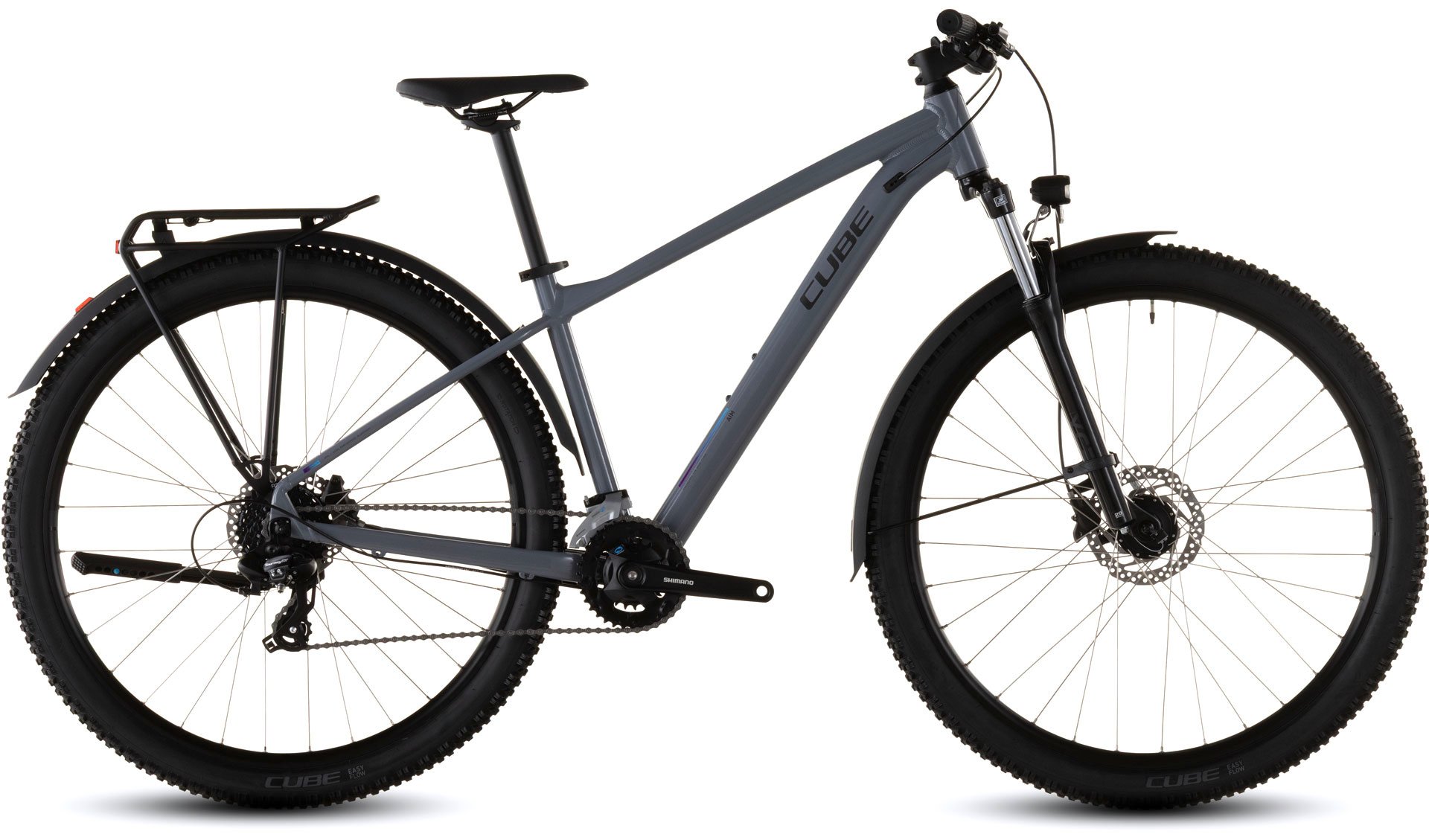

AIM
ONE FE

ArtNo. 140150

smoke´n´black

Comparison

ENJOY
THE RIDE

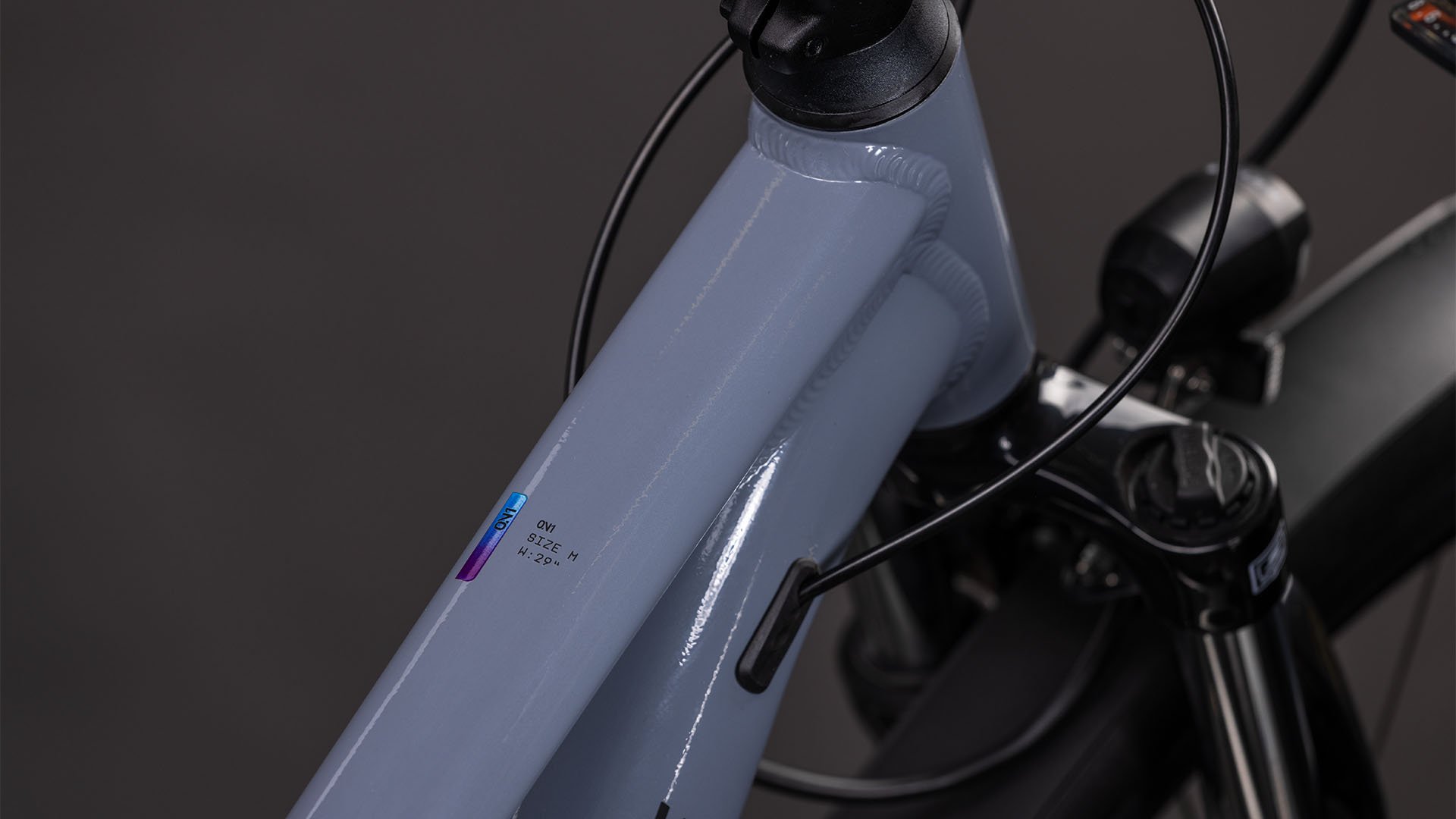

With the Aim FE we're redefining versatility. The included full-length mudguards, luggage carrier and lighting system mean it has everything you need right out of the box. There's a threaded bottom bracket and Internal Cable Routing, and the flat disc mount integrates seamlessly with the included kickstand. Carefully thought-out geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our Size Split system has an expanded range, too, so however tall you are there'll be an Aim FE that fits perfectly.

Frame Material

Aluminium Lite

Sizes

Size Split

Configuration

The Aim ONE FE's go-anywhere build and suspension fork make it the ideal weekend getaway vehicle for wherever your curiosity leads you. But its full equipment package makes it even more versatile, because you're also all set for a longer tour or even the weekday commute.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

100
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	XS	S	M	L	XL
Seat tube	340	370	420	470	515
Top Tube Horizontal	555	575	595	615	635
Seat angle	74°	73.5°	73.5°	73.5°	73.5°
Head tube angle	68.5°	68.5°	68.5°	68.5°	68.5°
Chainstays	427	427	450	450	450
Head tube	108	111	111	122	142
Wheelbase	1068	1082	1125	1146	1168
BB-Height to Hub	52	52	65	65	65
Protrusion height - 80mm	707	720	759	792	824
Reach	384	398	409	426	441
Stack	595	598	627	637	656

Ergonomics

	XS	S	M	L	XL
Stem length	50	50	60	60	70
Angle stem	6°	6°	6°	6°	6°
Handlebar width	680	680	680	680	680
Crank length	170	170	170	170	170
Length seat post	350	350	400	400	400
Diameter seatpost	27.2	27.2	27.2	27.2	27.2
Diameter tire maximum	708	708	747	747	747
Width tire maximum	60	60	60	60	60

All values are given in millimetres or degrees.

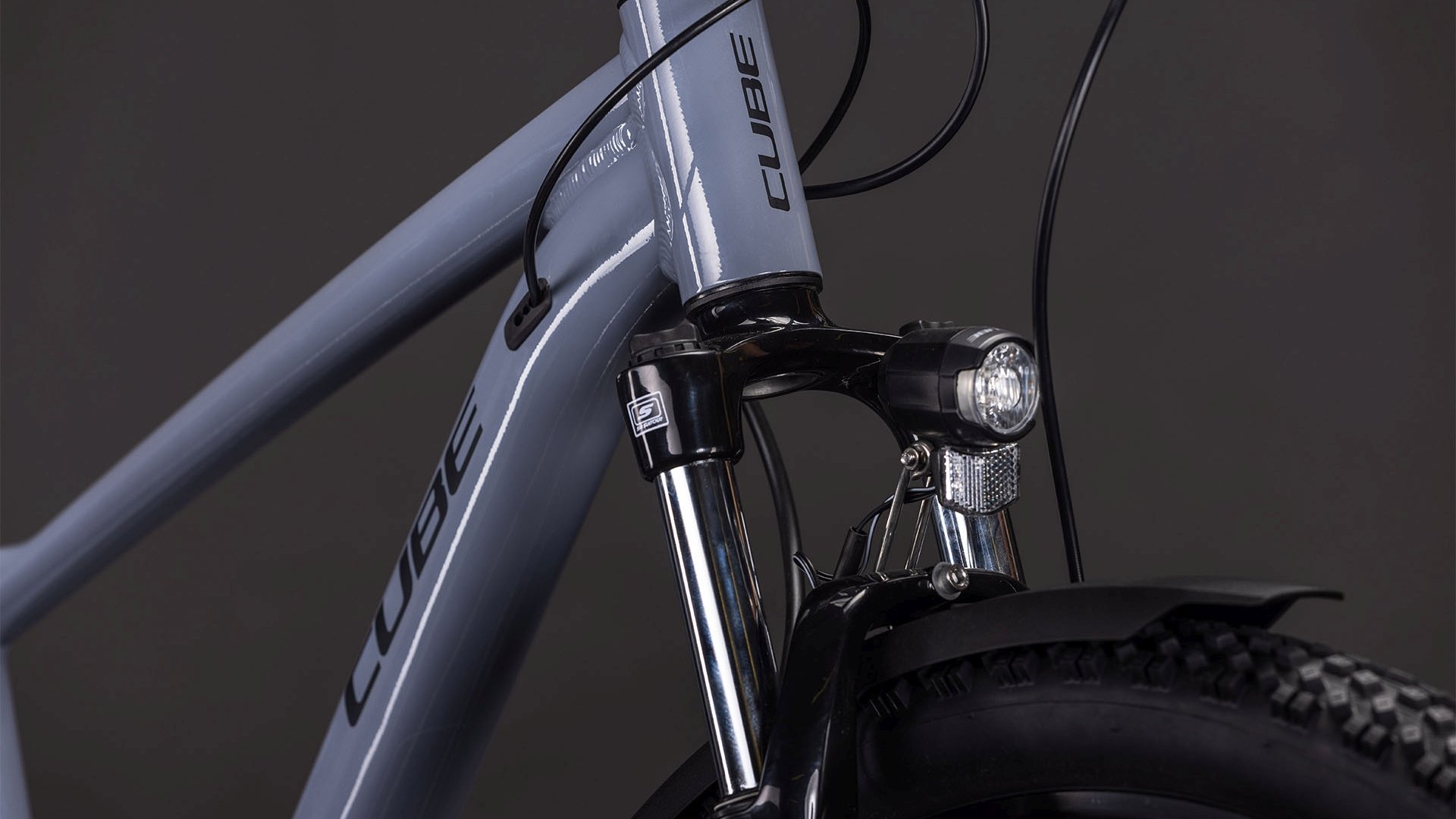

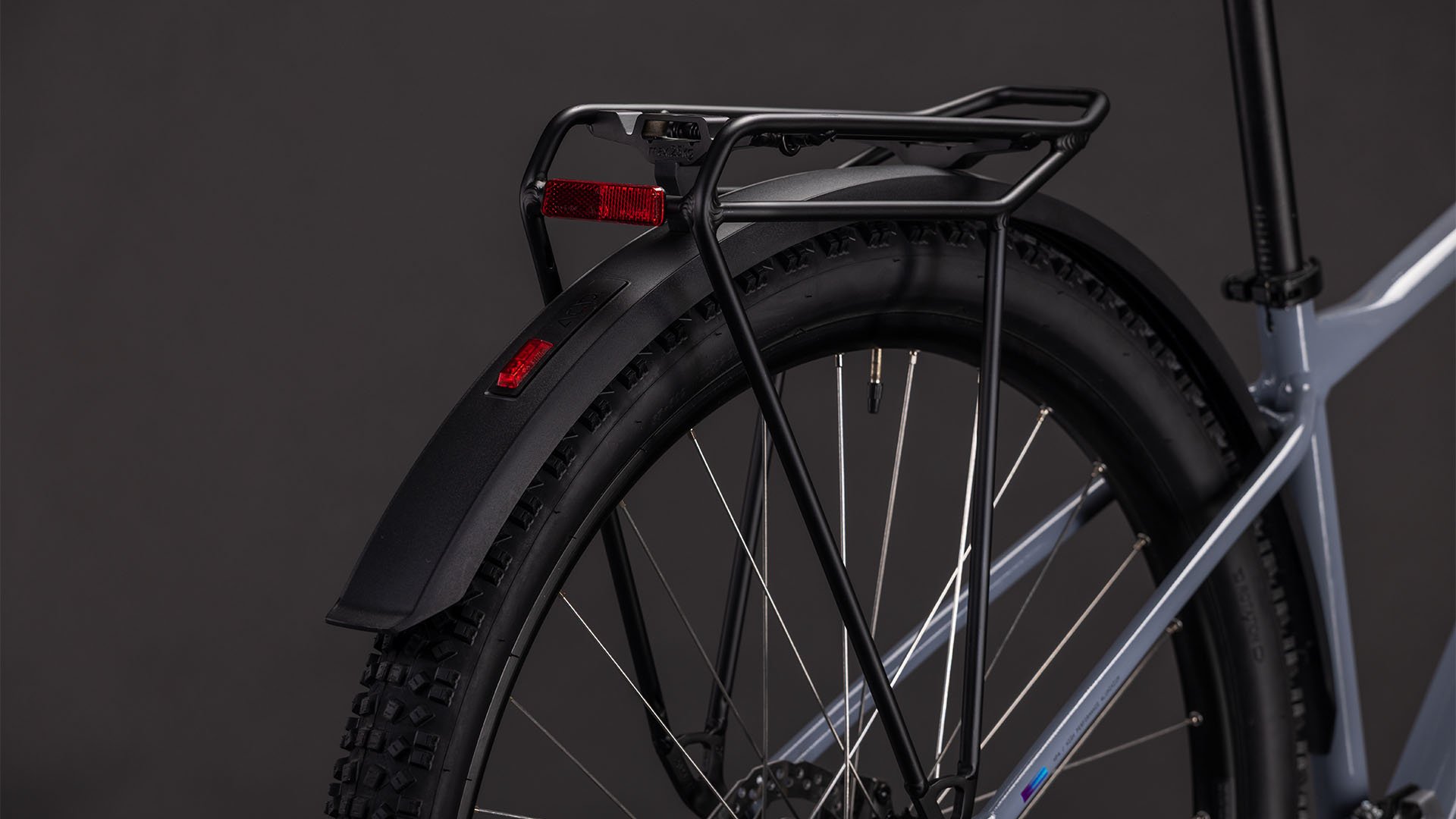

Whether it's the daily commute or a weekend off-road adventure, the Aim ONE FE has it covered. With a full complement of mudguards, luggage rack, lighting system and kickstand, you're all set for tackling the mean city streets in style and comfort. Come the weekend, grippy off-road 2.25in tyres with a 100mm suspension fork and wide-ranging Shimano 2x8 gears give you the tools you need to explore wherever your curiosity leads you. And, whether you ride on road or off, powerful Shimano hydraulic disc brakes ensure you're always in full control, no matter the weather.
