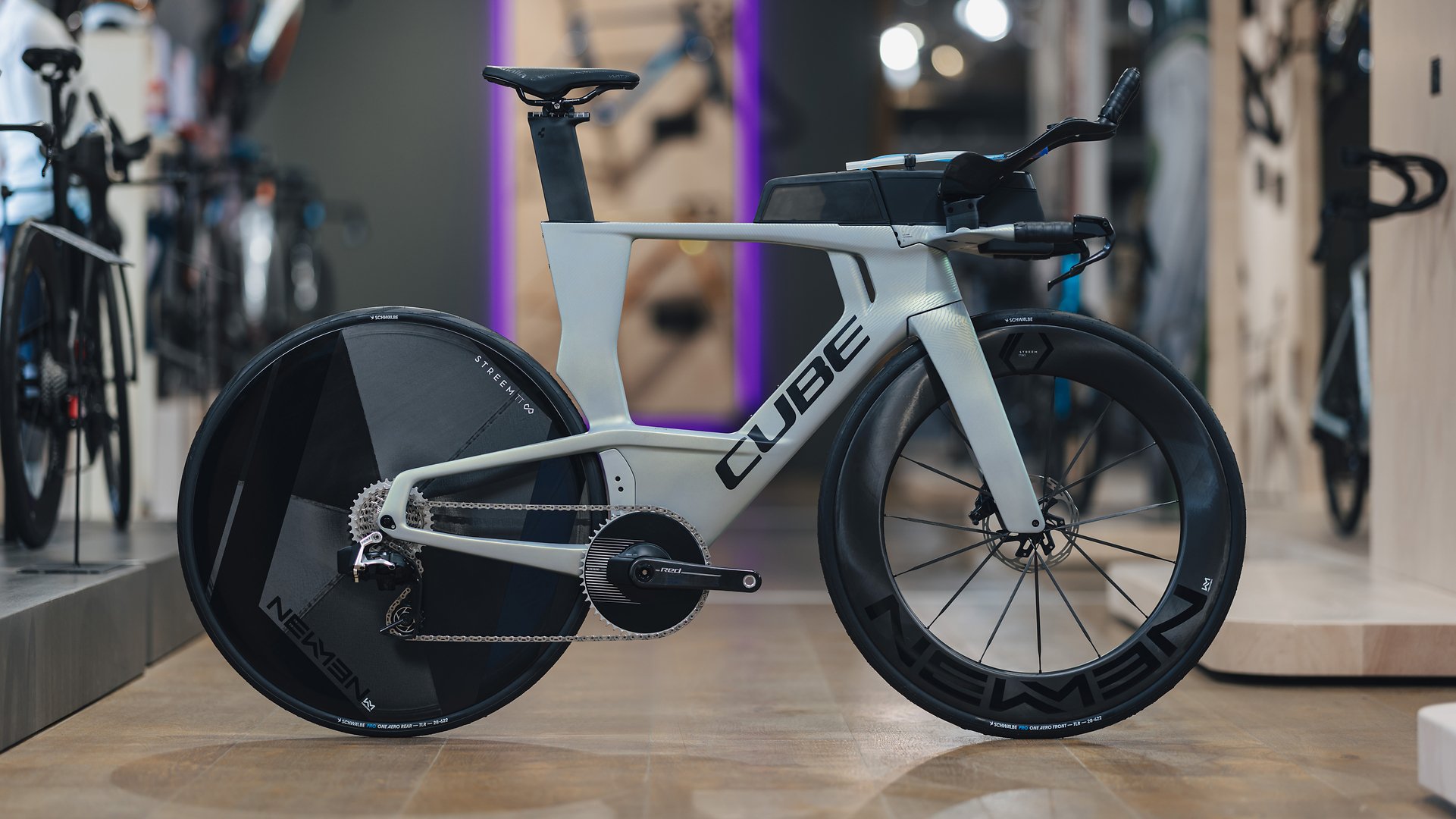

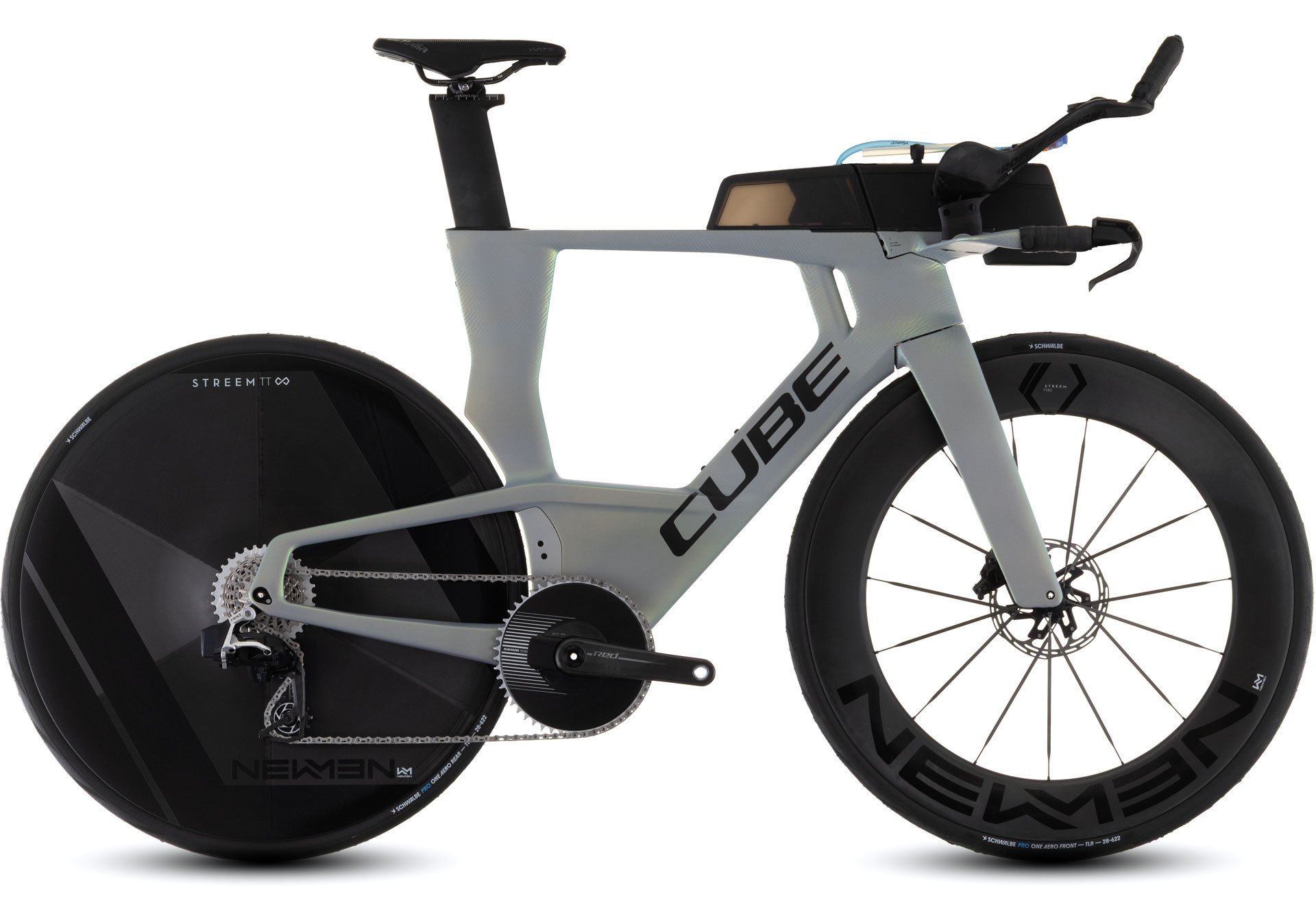

AERIUM C:68X
SLT AERO

ArtNo. 131410

genesisgrid´n´black

Comparison

NO COMPROMISE.
NO LIMITS.

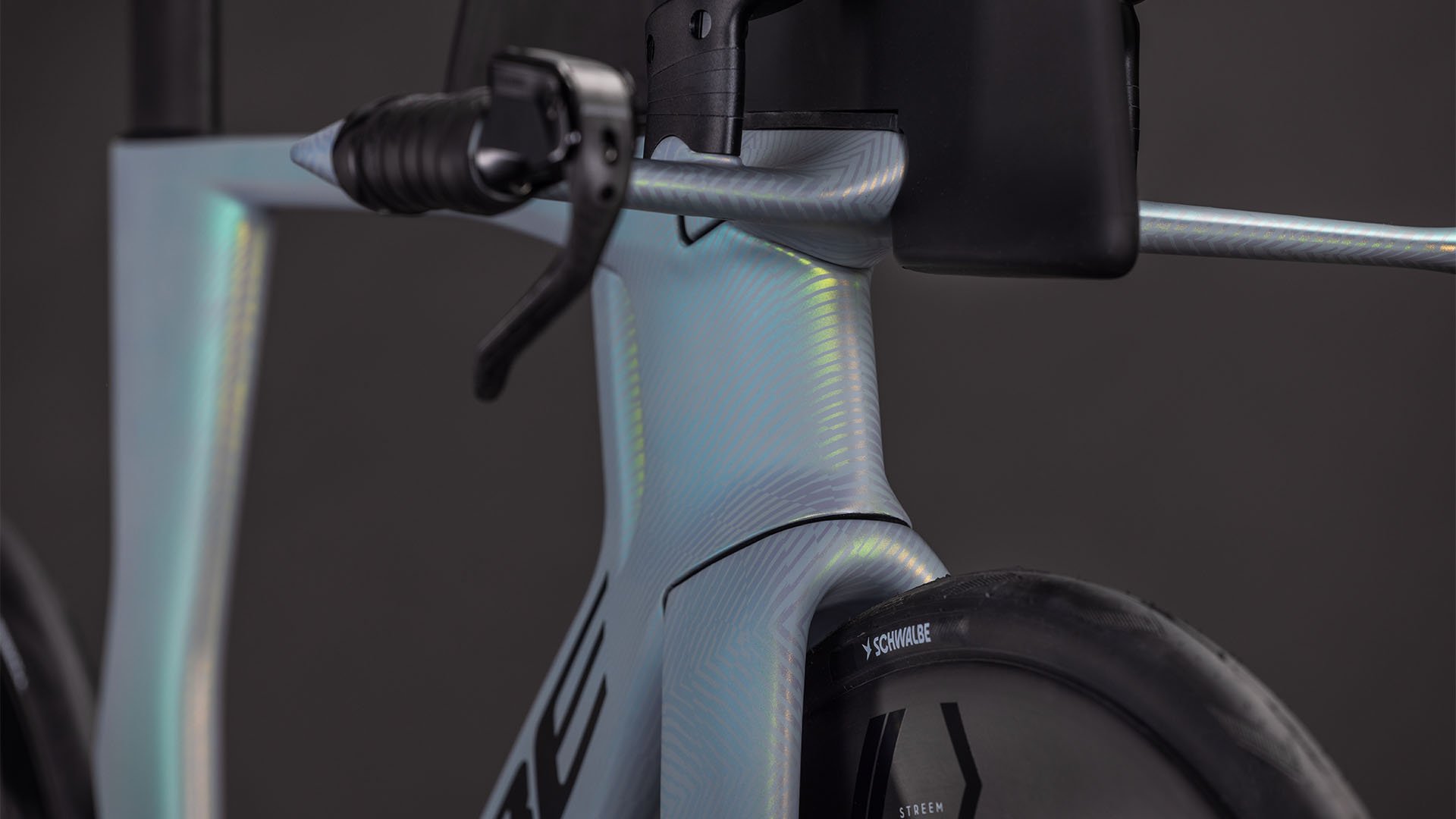

Developed in close collaboration with CUBE athlete and World champion Lucy Charles-Barclay, the Aerium C:68X can rightly claim its title as the fastest frame we've ever made. Every detail, from the aero fork design, disc brake integration and in-frame hydration and storage systems has been designed with zero compromise, tested in the wind tunnel and then tested again under pressure, in race conditions. Lucy has full confidence in the frame and its configurable storage and hydration and now you can, too.

Frame Material

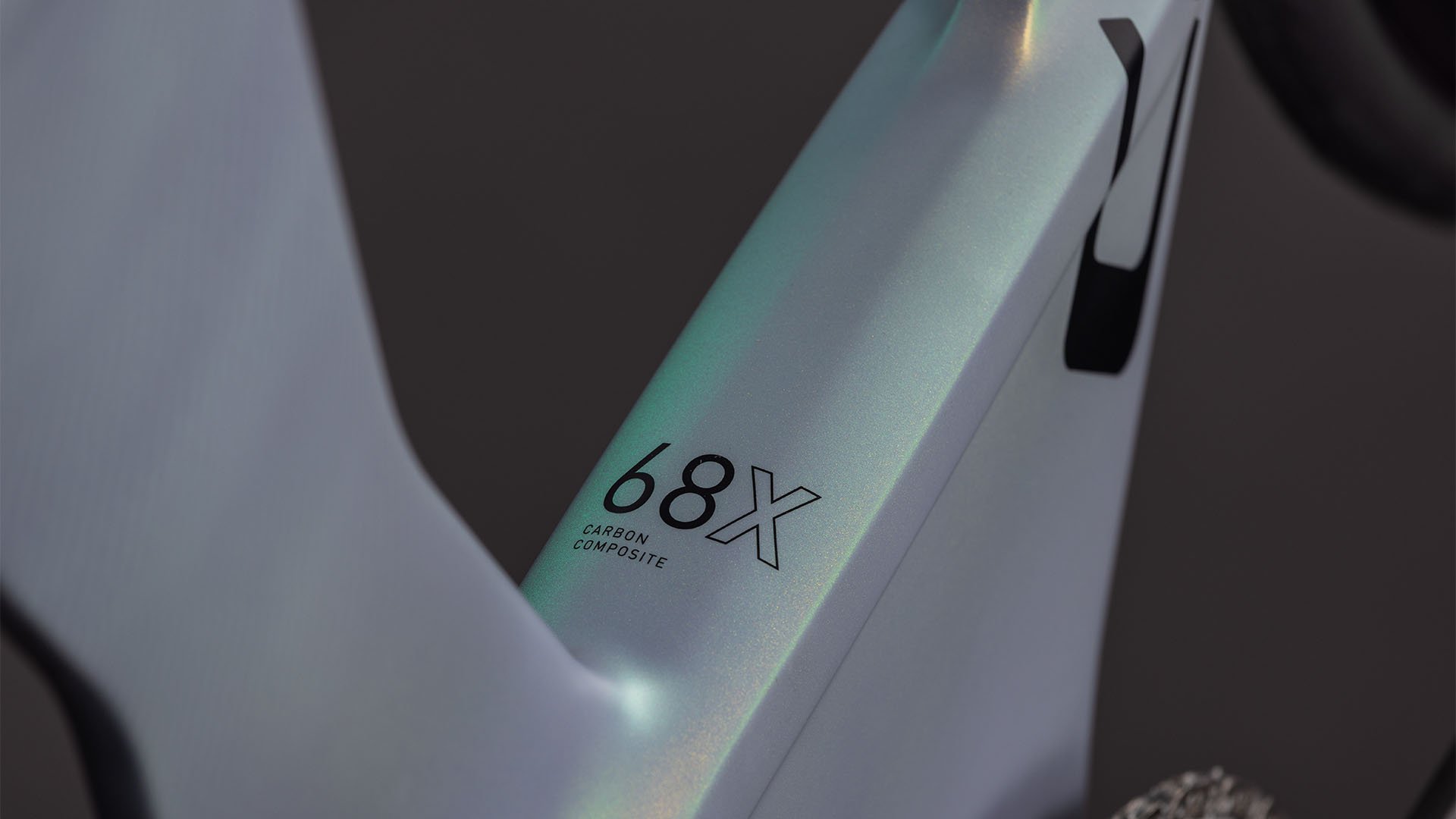

C:68X®

Tire clearance

28mm/ 30mm

We know the Aerium C:68X is fast, because we have the race results to prove it. But what if we could make it faster still? The result is the Aerium C:68X SLT Aero, with components specifically chosen to reduce drag and get you to the finish line faster. Because we know this: Every. Single. Watt. Counts.

More Information

Bike category of use: 6

You can find more information about Bike Classification at the following link.

More Information

100
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	XS	S	M	L
Seat tube	535	545	566	588
Top Tube Horizontal	499	511	531	557
Seat angle	78°	78°	78°	78°
Head tube angle	72°	72°	72°	72°
Chainstays	410	410	410	410
Head tube	74	85	106	129
Wheelbase	979	992	1015	1043
BB-Height to Hub	-78	-78	-78	-78
Protrusion height - 80mm	790	801	821	824
Reach	395	405	421	442
Stack	487	497	517	539

Ergonomics

	XS	S	M	L
Stem length	81	81	81	81
Angle stem	-18°	-18°	-18°	-18°
Handlebar width	400	400	400	400
Crank length	165	165	165	170
Length seat post	350	350	350	350
Diameter tire maximum	693	693	693	693
Width tire maximum	30	30	30	30

All values are given in millimetres or degrees.

MORE INFORMATION

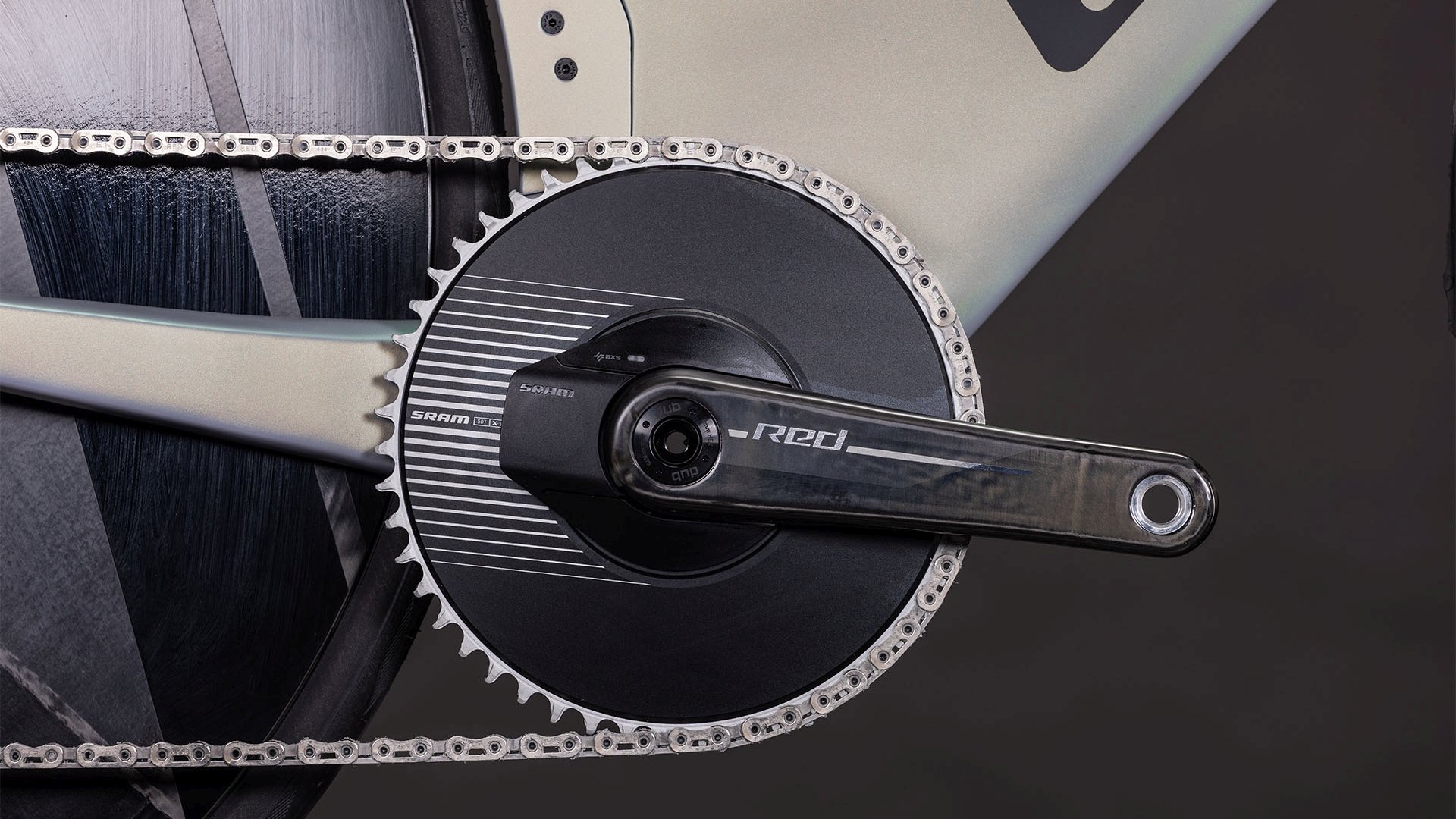

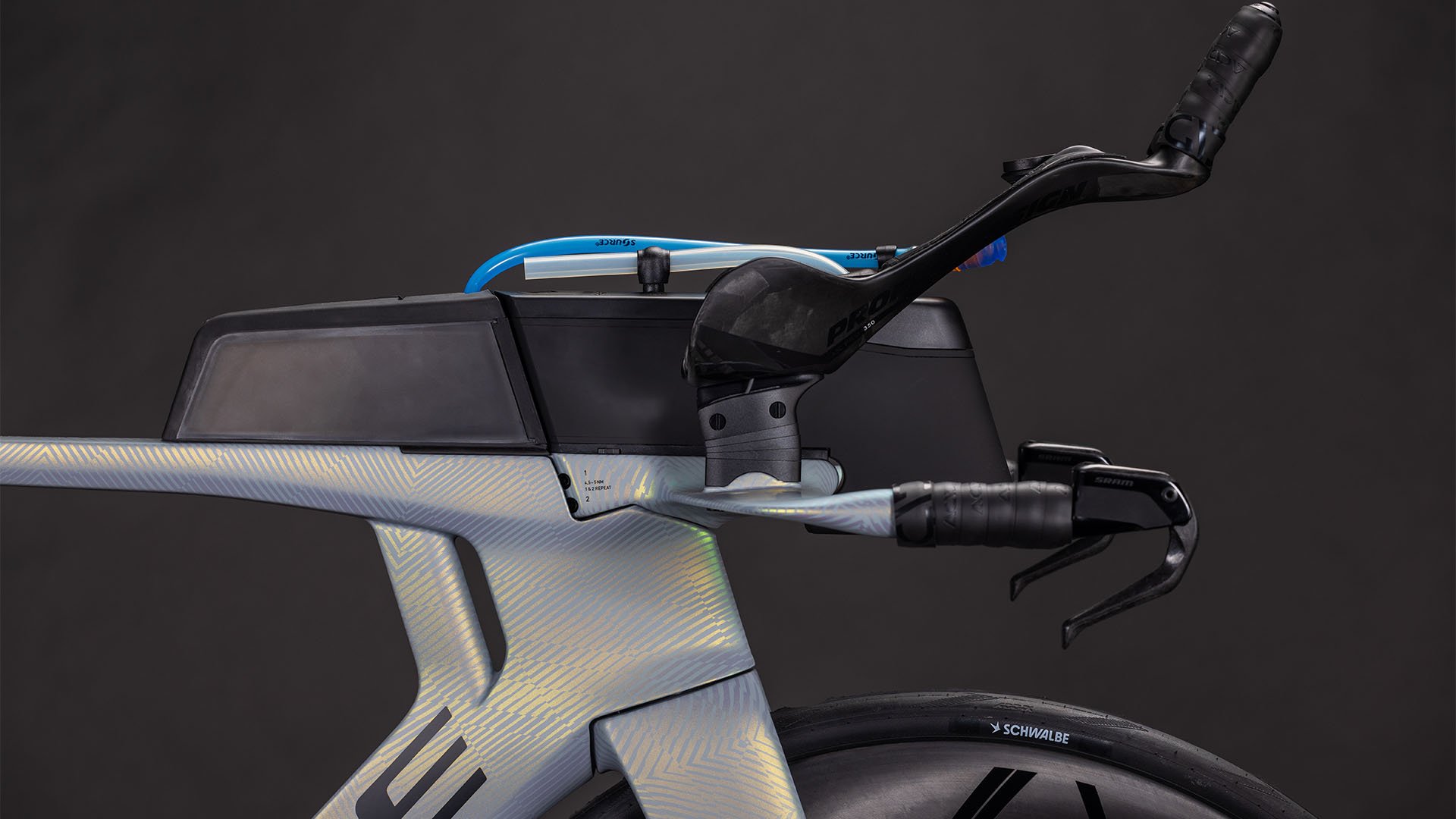

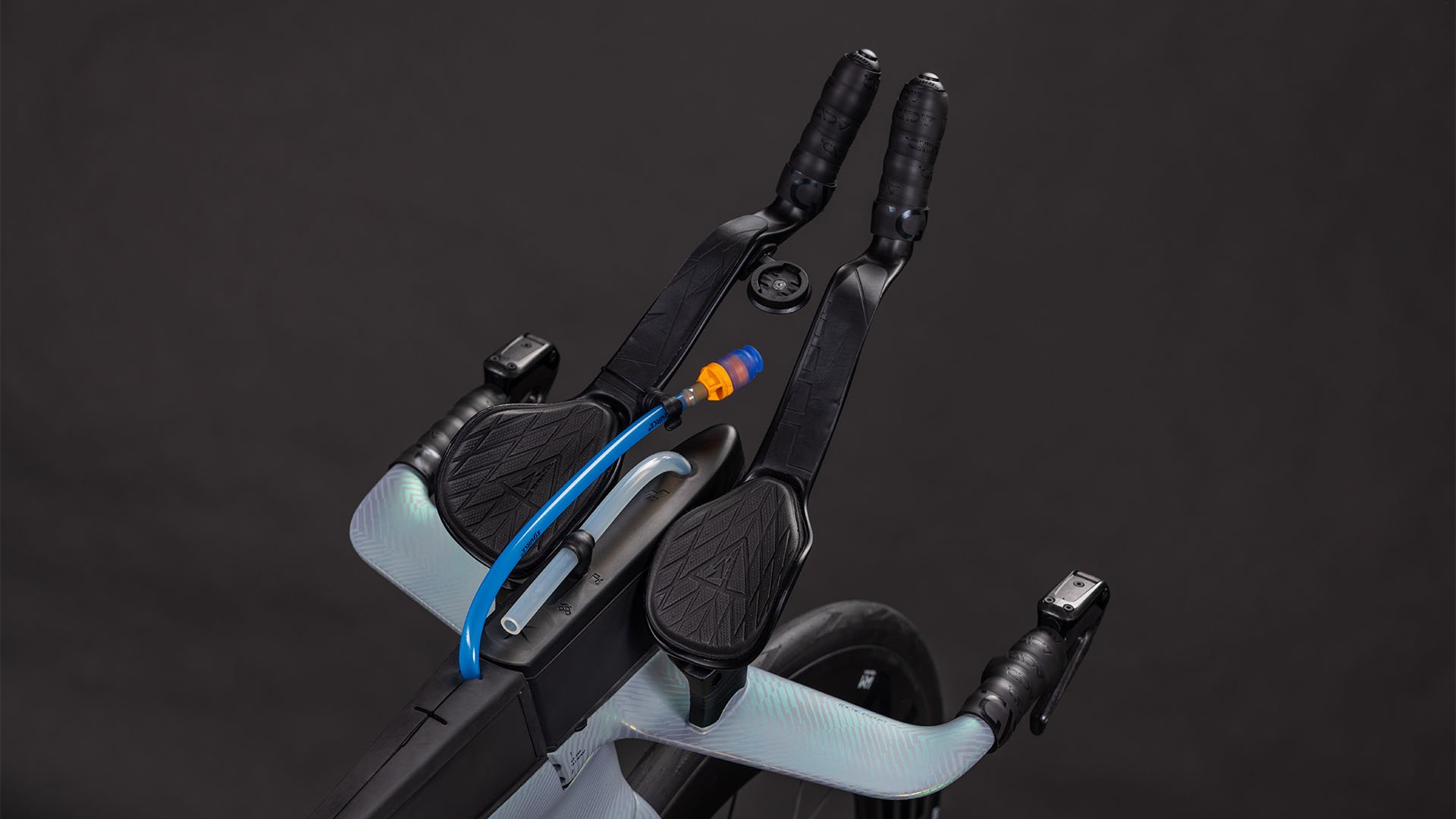

The biggest obstacle to going faster isn't you, it's air. Which is why, for the Aerium C:68X SLT Aero, we took a close look at our medal-winning race bike and fitted it with components that are to air what a hot knife is to butter. Profile Design ASC Pro extensions combined with our CUBE cockpit help put you in the most efficient aero tuck possible. And the Newmen Streem Aero/Disc TT80/Disc Vonoa wheelset – clad with Schwalbe Pro One Aero tyres – features a carbon disc rear to complement the deep-section front wheel. Sram S-900 Aero brakes are the finishing wind-cheating touch. Put it all together, and it means that more of your output will go into forward propulsion, transferred to the road via Sram's Red AXS 1x12 gears with a Ceramicspeed waxed Red chain and a Sram Red crank with built-in power meter. It's quick. You will be, too.
