STEREO HYBRID ONE44 HPC
SLX 800

ArtNo. 102520

shiftblush´n´art

Comparison

TRAILS,
YOUR WAY

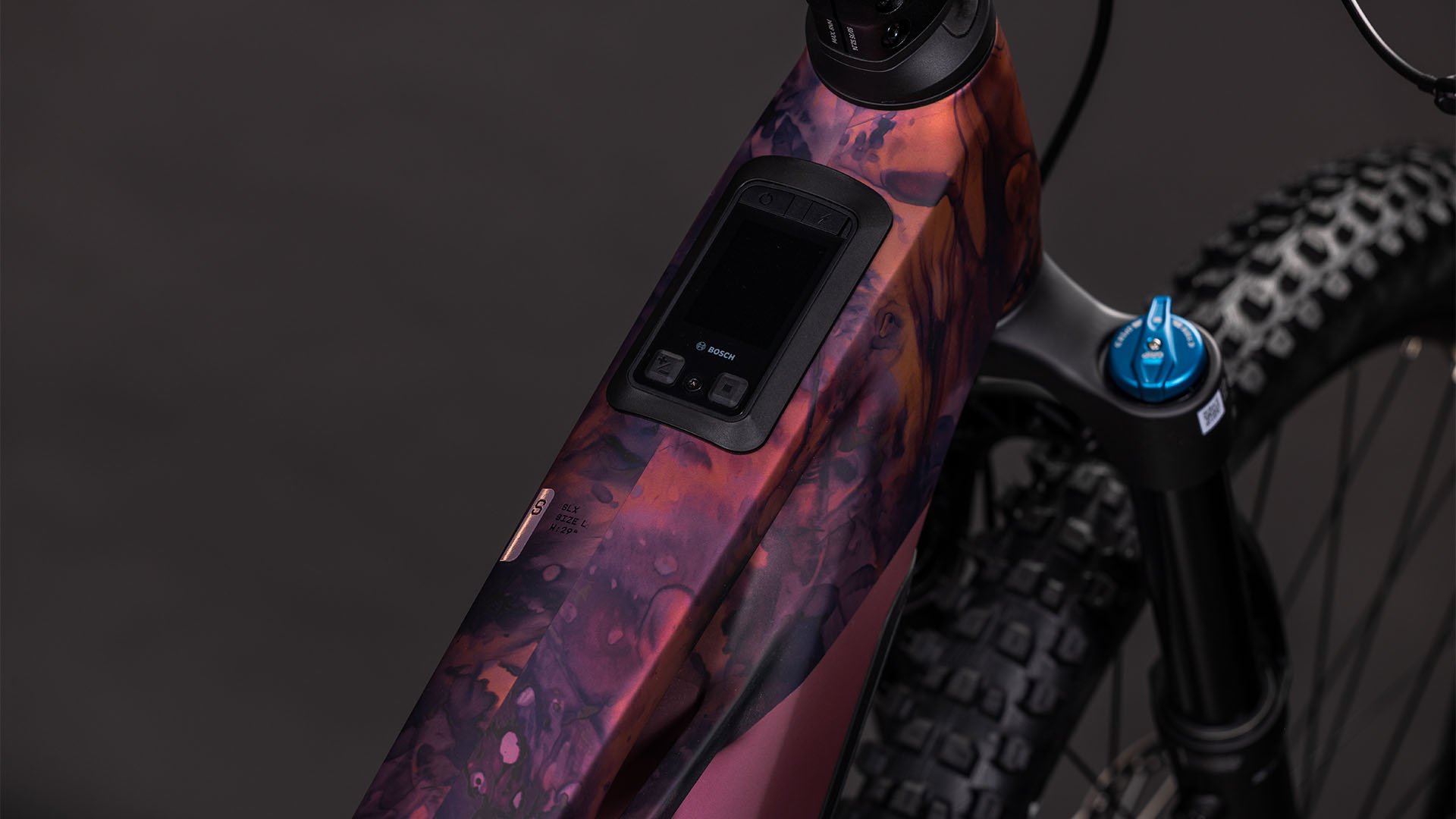

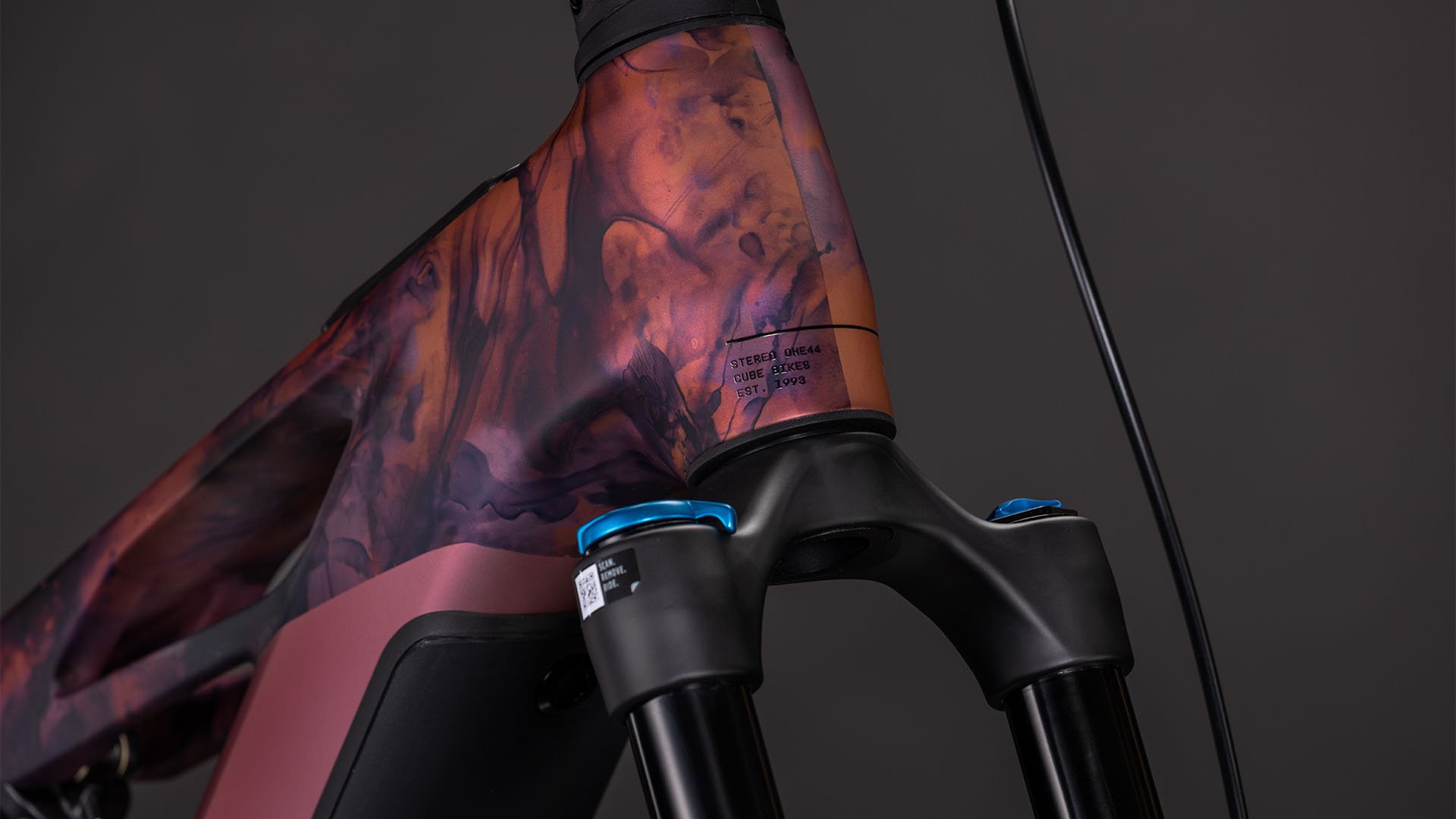

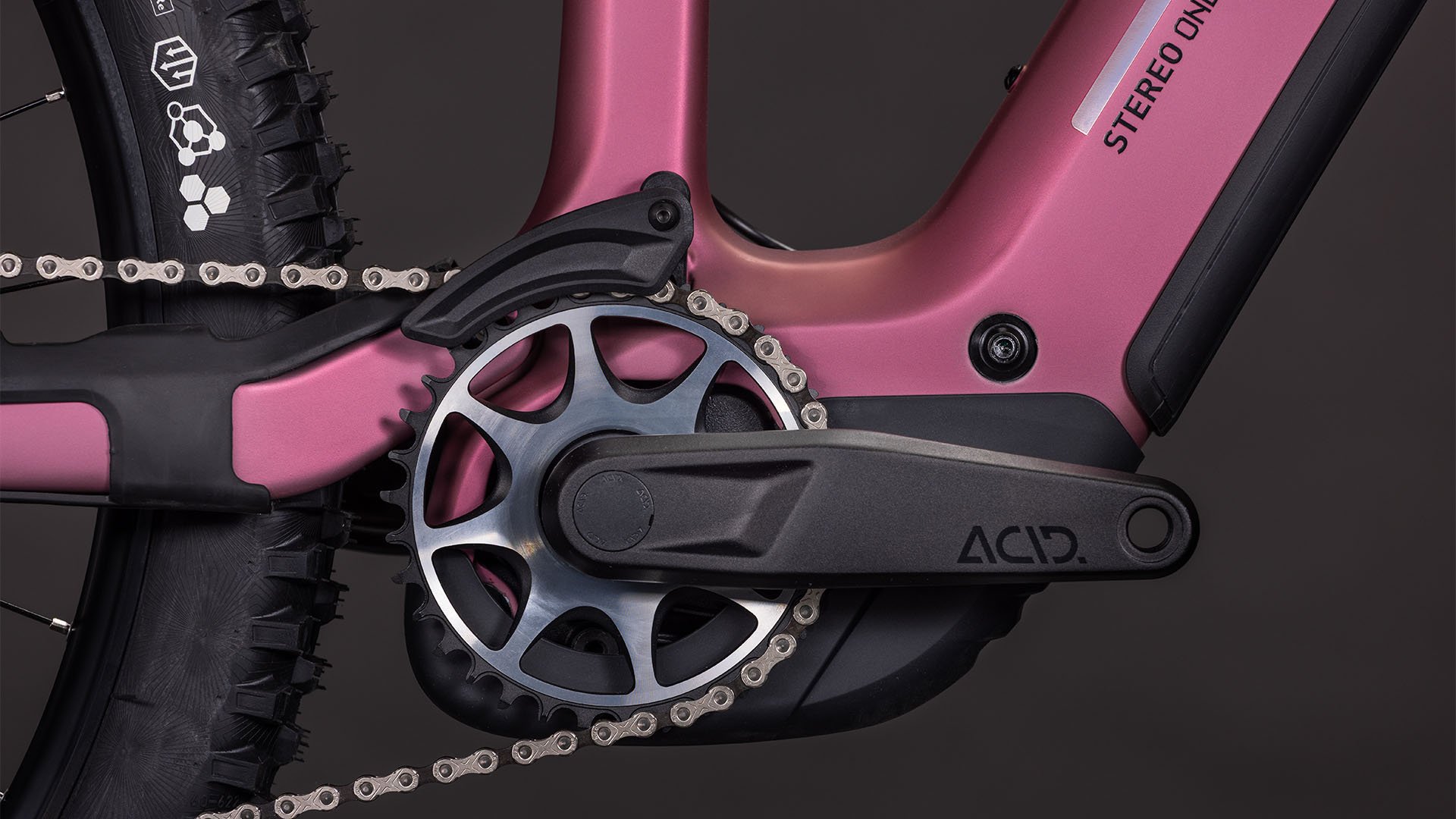

A great bike is all about the detail, and the Stereo Hybrid ONE44 HPC's frame is chock-full of clever details. You'll notice the Internal Cable Routing because it so neatly complements the High Performance Carbon main triangle's clean lines, while the angle-adjustable headset means you can tailor the handling to your specific requirements. A Direct Mount chain guard keeps the gears on the straight and narrow, and the neatly integrated Bosch top tube controller plus Purion 400 display show you what's going on with the powerful Bosch CX drive and 800Wh PowerTube battery at a glance. With a 150mm fork and 140mm of rear-wheel travel, it's ready to take on the toughest of trails. The UDH dropout means it's future-proof, too. And, with Size Split, there's a wide range of sizes to suit most riders.

Frame Material

High Performance Carbon

Battery

800Wh

Sizes

Size Split

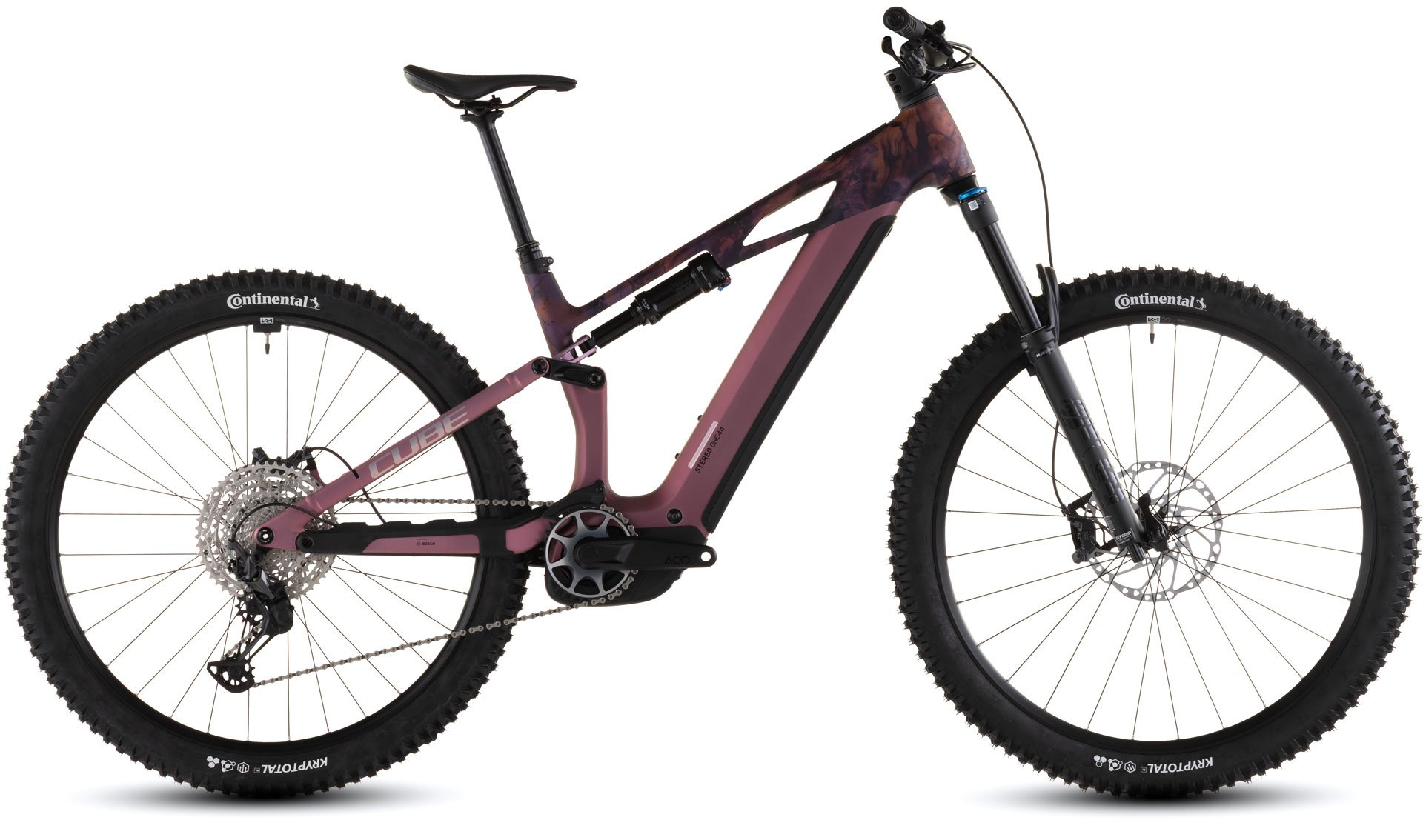

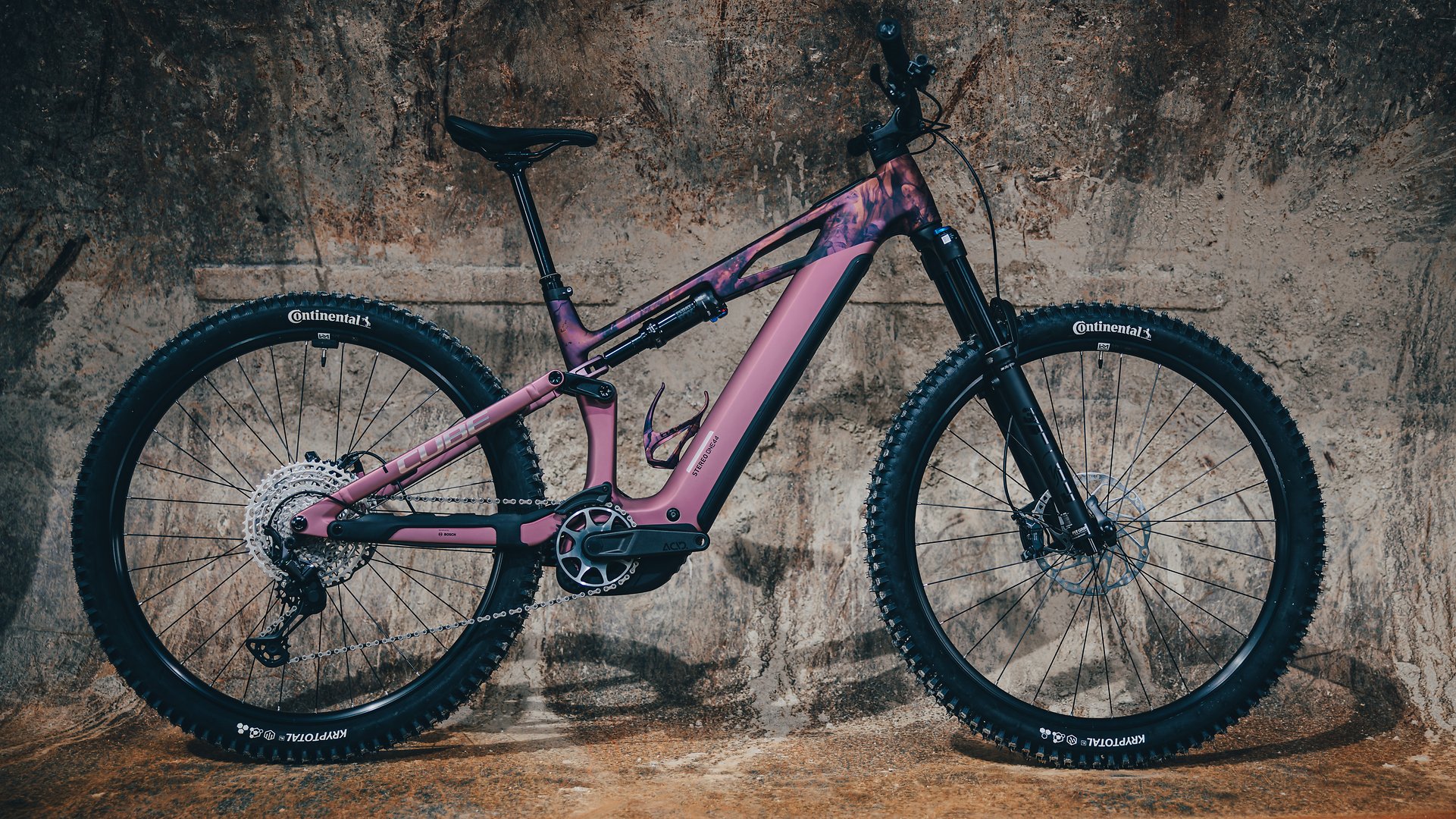

We can't deny it, it's the unique – and stunning – shiftblush'n'art paint that you'll probably notice first on the Stereo Hybrid ONE44 HPC SLX 800. But can we also point out the top-notch components, powerful Bosch motor and clever CUBE carbon frame tech? This isn't just a great looker...

More Information

Bike category of use: 4

You can find more information about Bike Classification at the following link.

More Information

125
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

Slack/Moderate	S	M	L	XL
Seat tube	370	405	420	480
Top Tube Horizontal	566 / 568	596 / 598	626 / 627	669 / 671
Seat angle	76.2° / 76°	76.2° / 76°	76.2° / 76°	76.2° / 76°
Head tube angle	64.8° / 64.4°	64.8° / 65.4°	64.8° / 65.4°	64.8° / 65.4°
Chainstays	450	457	457	457
Head tube	128	106	120	148
Wheelbase	1204 / 1196	1233 / 1226	1264 / 1256	1311 / 1303
BB-Height to Hub	12 / 11	30	30	30
Protrusion height - 80mm	733	748	748	748
Reach	427 / 425	452 / 450	477 / 475	512 / 510
Stack	604 / 606	620 / 622	632 / 634	658 / 660

Ergonomics

	S	M	L	XL
Stem length	50	50	50	50
Angle stem	12°	12°	12°	12°
Handlebar width	780	780	780	780
Crank length	165	165	165	165
Length seat post	403	462	505	505
Diameter seatpost	31.6	31.6	31.6	31.6
max. zasunutí sedlovky	220	230	250	310
Stroke seatpost	120	150	170	170
Diameter tire maximum	721	759	759	759
Width tire maximum	67	67	67	67
Rear suspension travel	140	140	140	140

All values are given in millimetres or degrees.

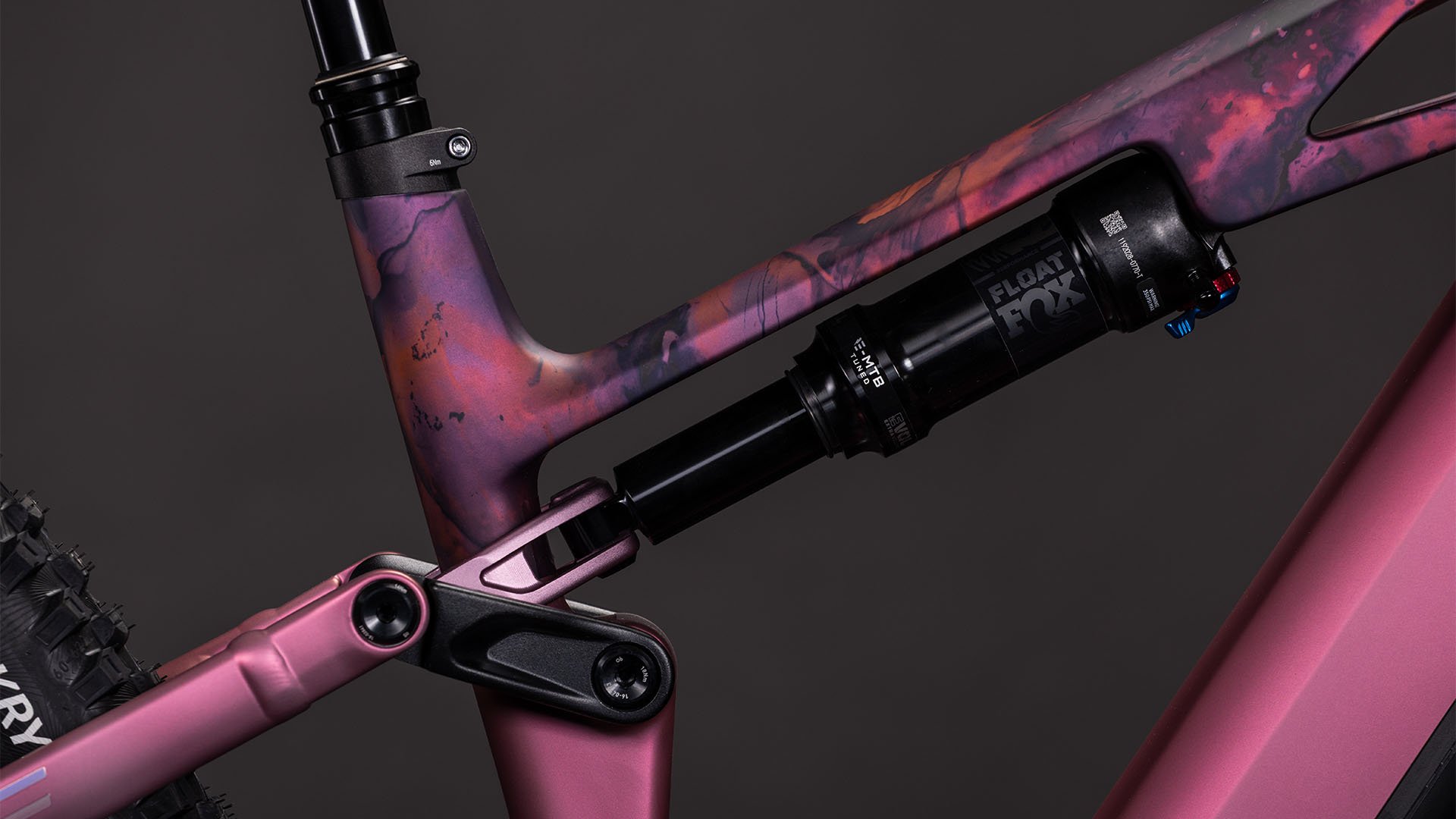

You know you're on a great trail bike when it just gets out of the way and lets you enjoy the ride. It's the reason that, for the Stereo Hybrid ONE44 HPC SLX 800, we began with a 150mm Fox 36 Float Rhythm fork and matching Float Performance shock. Combined with a Newmen Performance 30 wheelset and Continental Kryptotal 2.4in tyres, it's the closest we can get to a magic carpet ride. Bosch's CX motor and an 800Wh battery deliver up to 100Nm of torque to the trail via Shimano's slick-shifting, legendarily reliable XT 1x12 gears, while the Kiox 400C display shows you what's going on. And strong, progressive Shimano XT 4-piston hydraulic disc brakes with 203mm rotors bring you safely to a stop, on demand. With a remote dropper post included in the mix, you simply need to add your spirit of adventure... and ride.
