NULANE COMFORT
EXC FE
SUBURBAN
WARRIOR

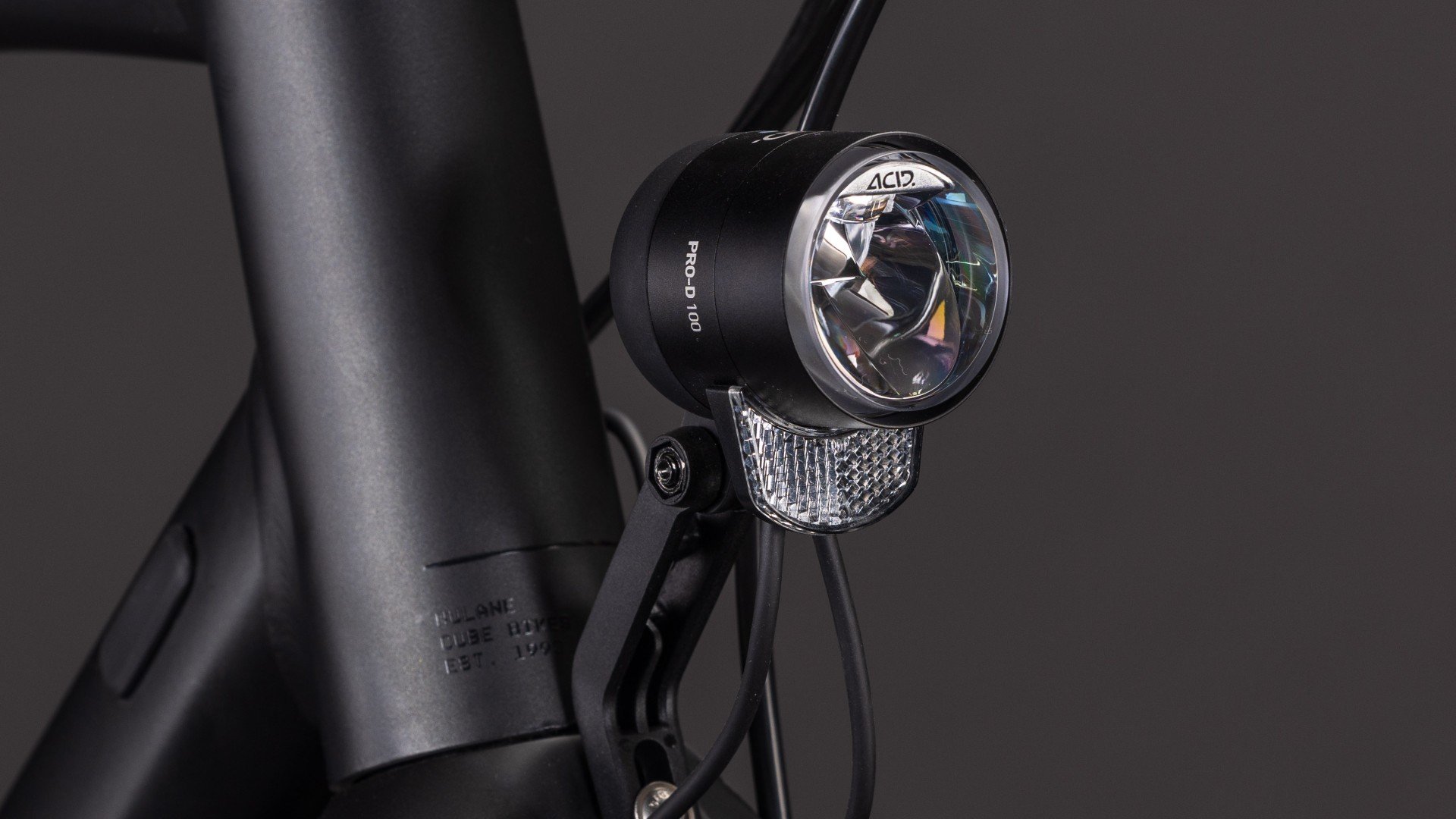

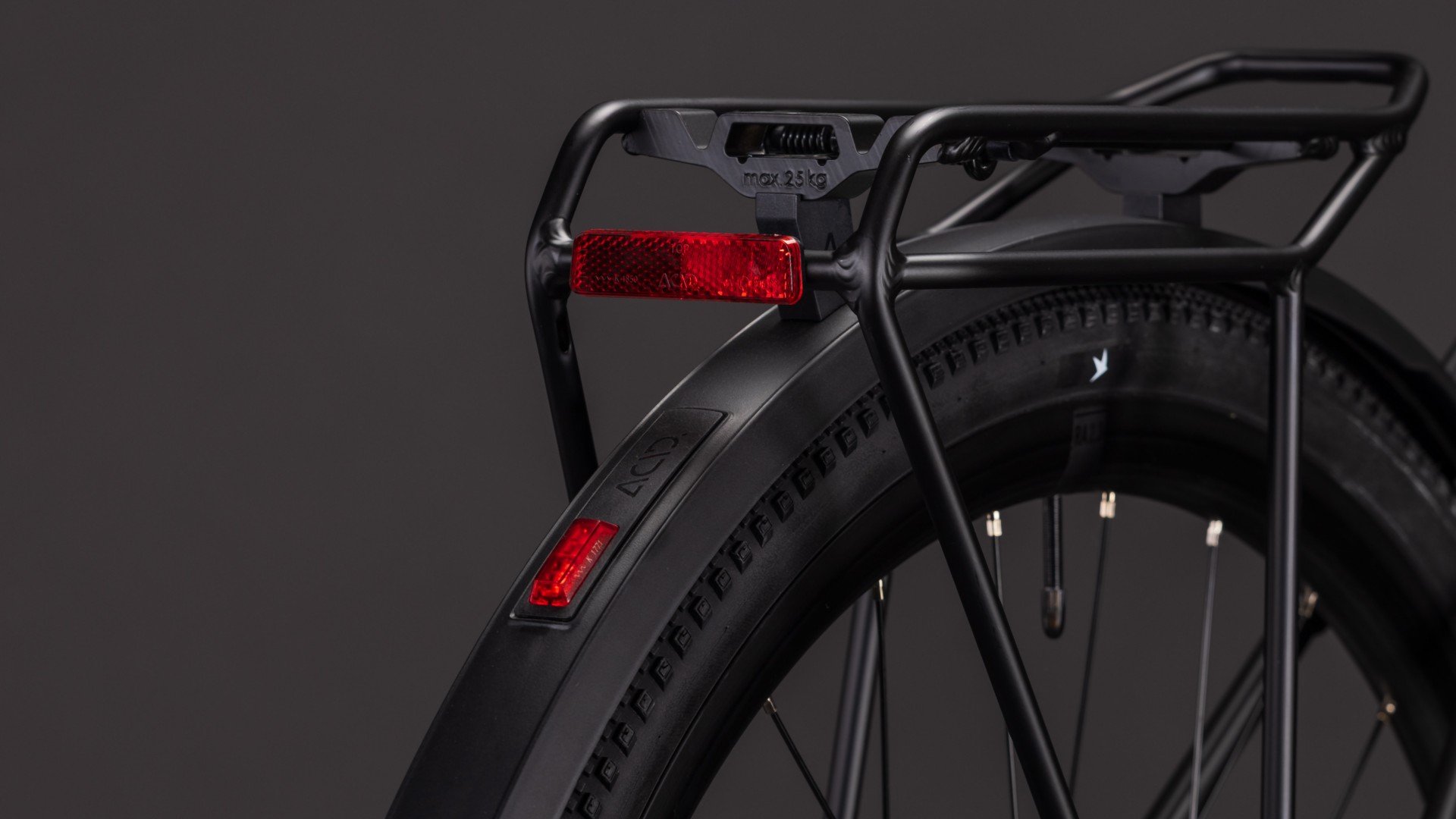

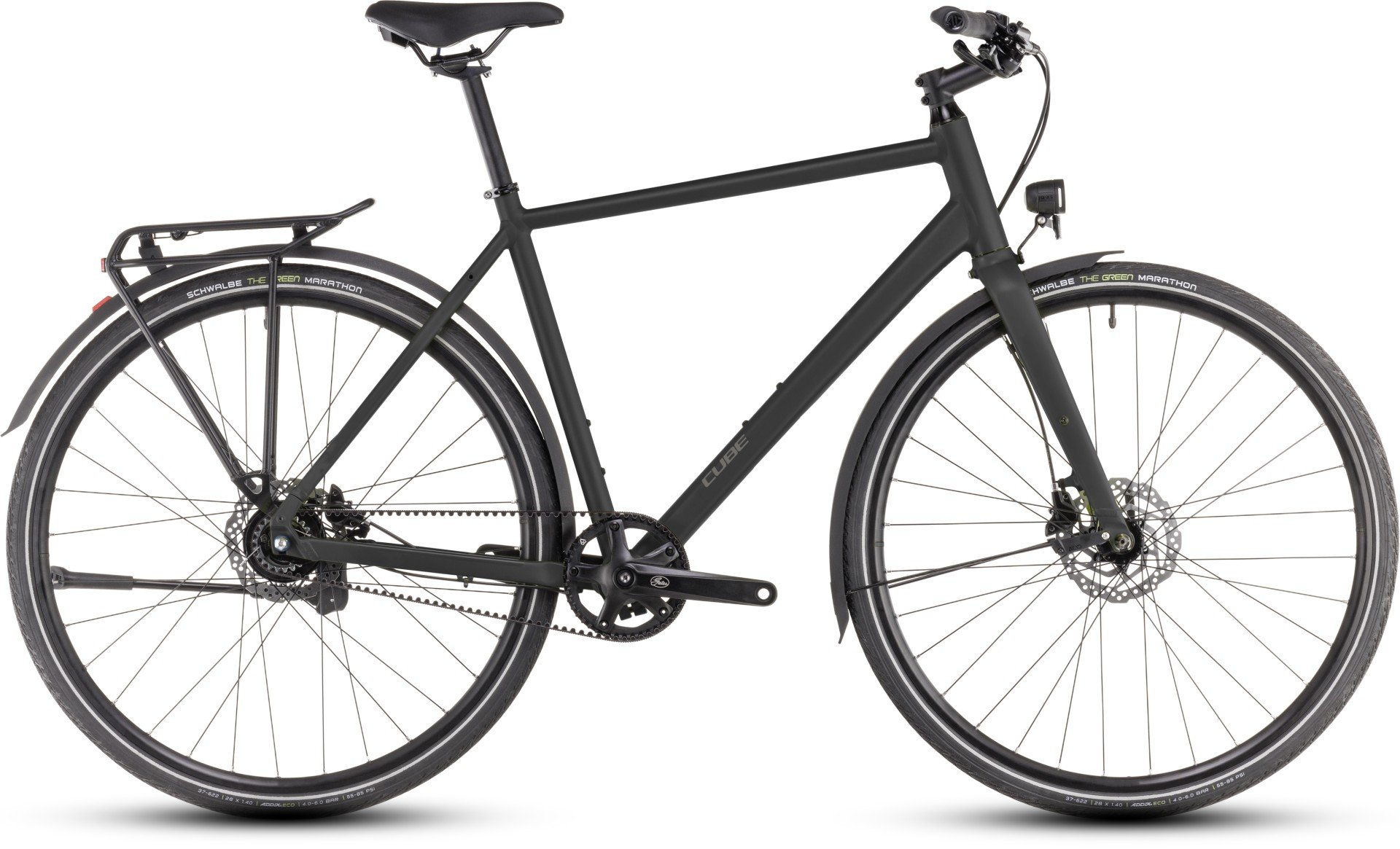

Drawing inspiration from our mountain bike hardtails, the Nulane Comfort FE's frame uses double-butted aluminium tubes to create a structure that's strong, durable, light and lively. But we also made sure it's ready for anything, so you'll find mudguards, carrier, lights and kickstand included. The eccentric bottom bracket and split dropout accommodate the low-maintenance belt drive, so you've no worries on that front. And the sleek rigid fork is the perfect accompaniment, offering crisp, precise steering to match its low weight and understated looks.
Frame Material
Tire clearance
Configuration
More Information
Bike category of use: 2
You can find more information about Bike Classification at the following link.
100
kg
Maximum rider weight
The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.
Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).
Geometry
| 50 cm | 54 cm | 58 cm | 62 cm | |
| Seat tube | 480 | 520 | 560 | 600 |
| Top Tube Horizontal | 570 | 586 | 596 | 607 |
| Seat angle | 73° | 73° | 73° | 73° |
| Head tube angle | 71° | 72° | 72° | 72° |
| Chainstays | 430 | 430 | 430 | 430 |
| Head tube | 150 | 170 | 190 | 210 |
| Wheelbase | 1049 | 1055 | 1066 | 1077 |
| BB-Height to Hub | 50 | 50 | 50 | 50 |
| Protrusion height - 80mm | 829 | 862 | 893 | 924 |
| Reach | 400 | 410 | 414 | 419 |
| Stack | 555 | 577 | 597 | 616 |
Ergonomics
| 50 cm | 54 cm | 58 cm | 62 cm | |
|---|---|---|---|---|
| Stem length | 70 | 90 | 90 | 90 |
| Angle stem | 6° | 6° | 6° | 6° |
| Handlebar width | 660 | 660 | 660 | 660 |
| Crank length | 175 | 175 | 175 | 175 |
| Length seat post | 350 | 350 | 350 | 350 |
| Diameter seatpost | 27.2 | 27.2 | 27.2 | 27.2 |
| Diameter tire maximum | 713 | 713 | 713 | 713 |
| Width tire maximum | 42 | 42 | 42 | 42 |
All values are given in millimetres or degrees.
