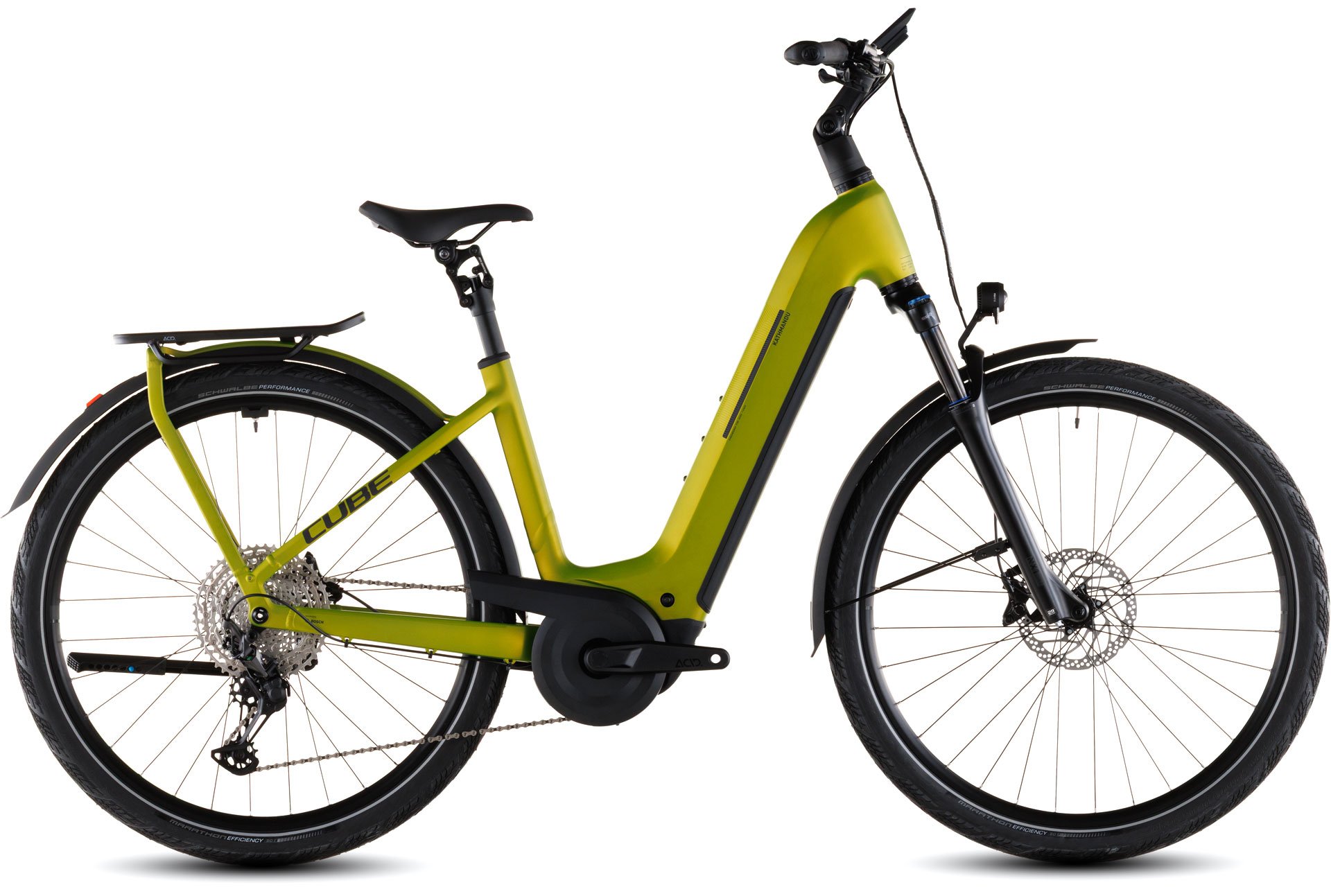

KATHMANDU HYBRID
PRO 800

ArtNo. 112222

lizard´n´black

Comparison

CREATING
MEMORIES

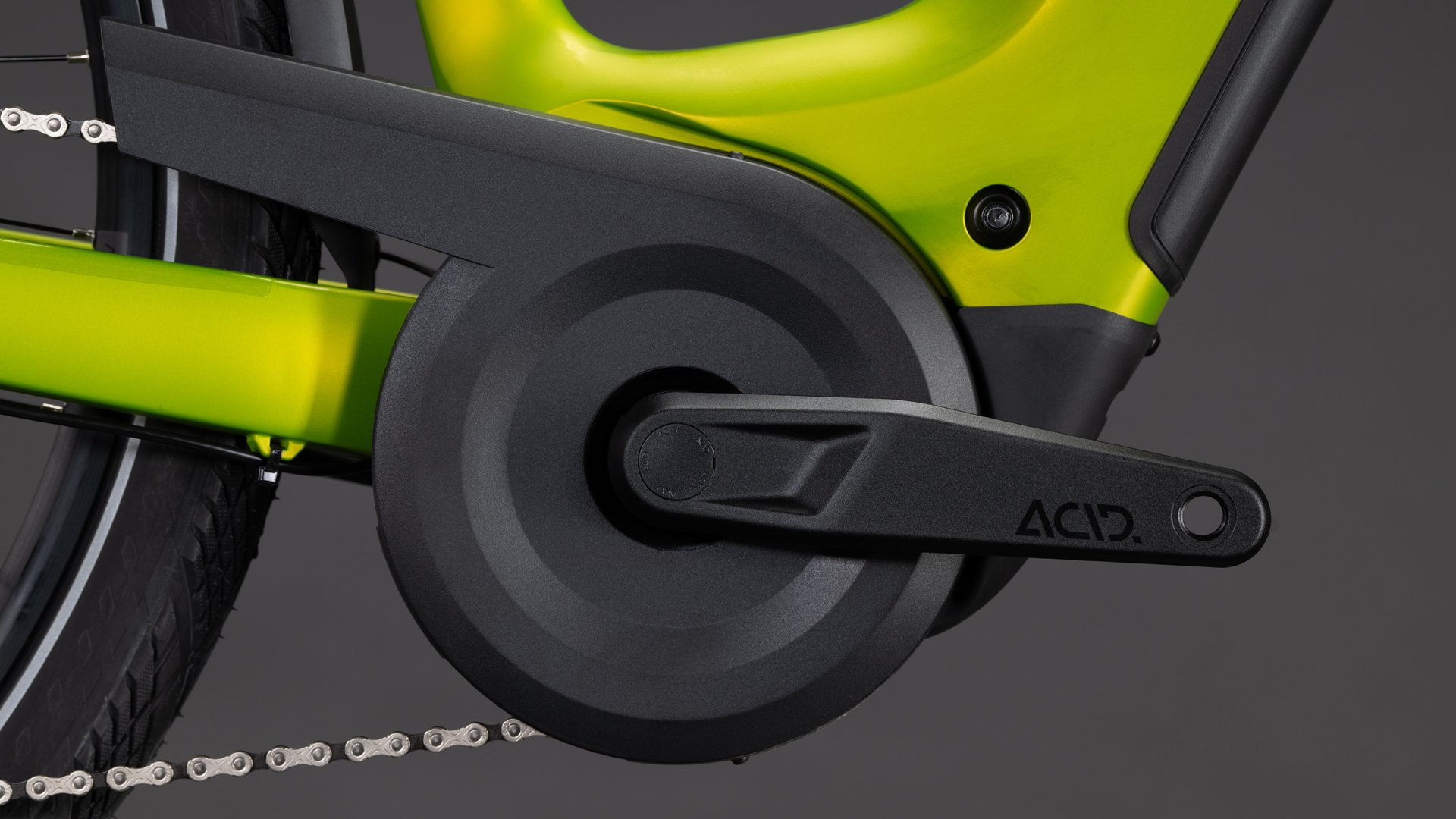

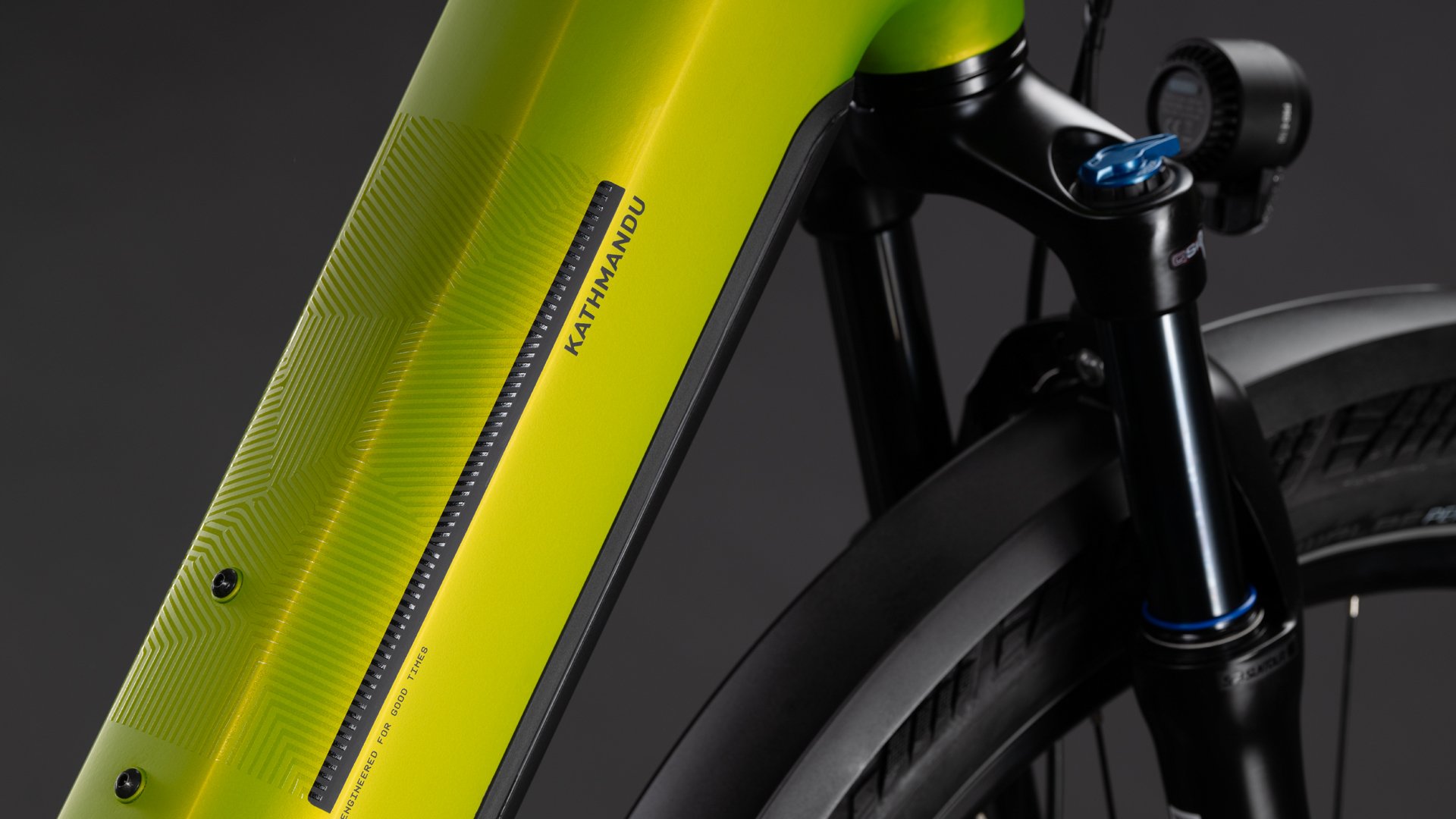

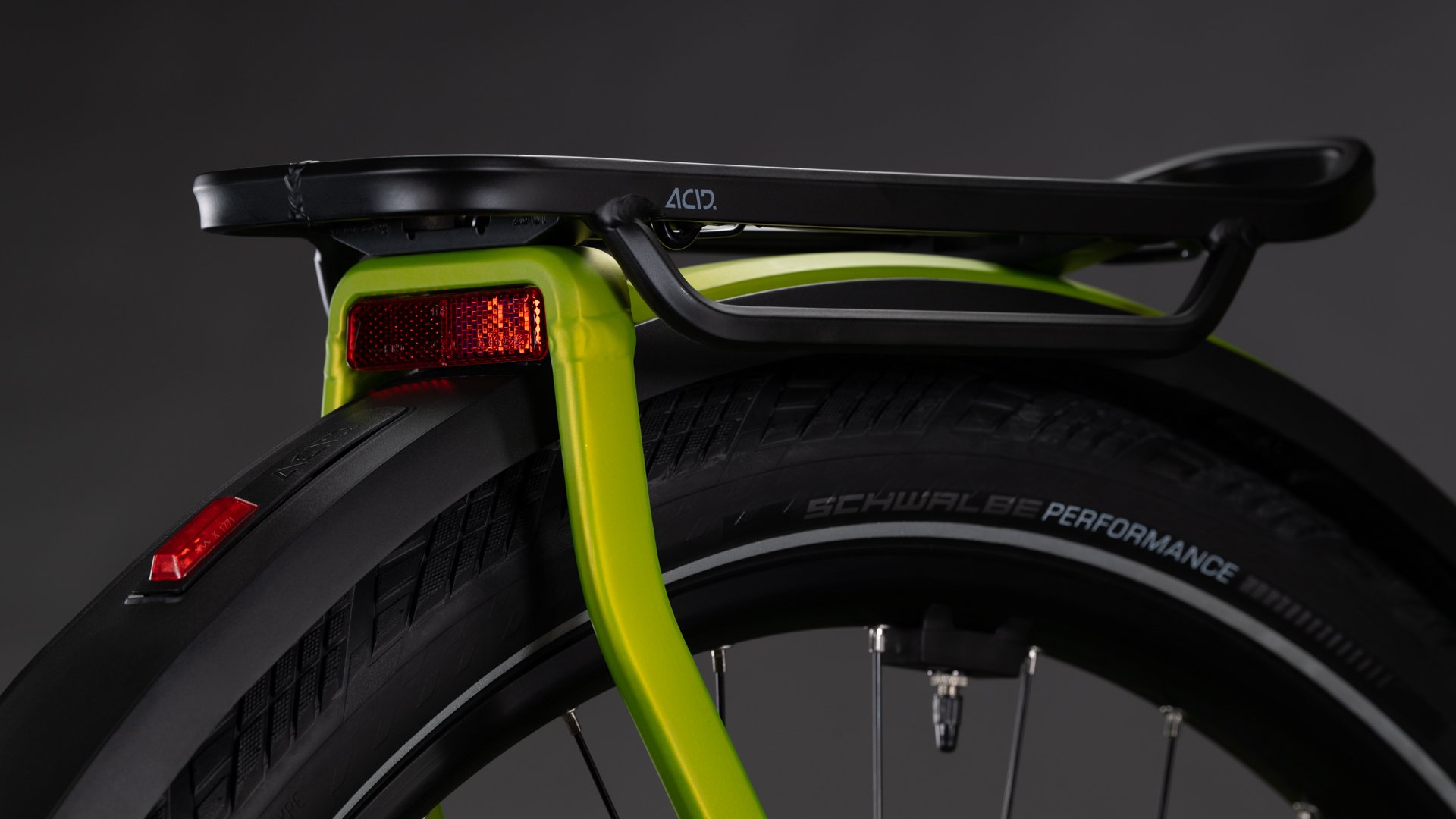

The Kathmandu Hybrid's Easy Entry frame is designed to do exactly what it says, making adventurous cycling as accessible and straightforward as possible. The neatly housed Bosch CX drive and 800Wh PowerTube battery are just the start. Efficient Comfort Geometry is designed around a 100mm travel suspension fork, for better control even when the going gets rough. Integrated cables complement the frame's clean lines, while a UDH dropout is tough, versatile and future-proof. And, of course, there's an integrated chain guard mount and our tough, sturdy and exceptionally neat Integrated Carrier 3.0, so you can carry everything you need for your adventures.

Frame Material

Aluminium Superlite

Battery

800Wh

A CUBE hybrid is your passport to freedom. With its powerful Bosch CX drive and stunning CUBE design, the Kathmandu Hybrid Pro has everything you need to explore further. Expand your horizons, in comfort and style.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

110
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	46 cm	50 cm	54 cm	58 cm	62 cm
Seat tube	420	460	510	560	600
Top Tube Horizontal	580	590	600	620	640
Seat angle	73.5°	73.5°	73°	73°	73°
Head tube angle	67.5°	67.5°	68.5°	68.5°	68.5°
Chainstays	499	499	499	499	499
Head tube	150	150	150	160	175
Wheelbase	1169	1179	1171	1192	1213
BB-Height to Hub	75	75	75	75	75
Reach	378	388	390	408	424
Stack	680	680	685	694	708

Ergonomics

	46 cm	50 cm	54 cm	58 cm	62 cm
Stem length	65	90	90	90	90
Handlebar width	700	700	700	700	700
Crank length	170	170	170	170	170
Length seat post	350	350	350	350	350
Diameter seatpost	31.6	31.6	31.6	31.6	31.6
max. zasunutí sedlovky	150	200	250	300	300
Diameter tire maximum	750	750	750	750	750
Width tire maximum	56	56	56	56	56

All values are given in millimetres or degrees.

The Kathmandu Hybrid Pro by CUBE is all about the freedom of two-wheeled exploration, with a handy Bosch power boost. You can't miss the elegant lines of the Integrated Carrier 3.0, which provides a sturdy base for carrying whatever you need. The Bosch CX drive and 800Wh PowerTube battery, meanwhile, are so neatly incorporated into the frame's design, you'll barely notice them until you start turning the pedals. At which point, the wide range and precise shifting of Shimano's XT 1x12 gears are bound to come in handy, as is the smooth strength of the 4-piston Shimano hydraulic disc brakes when you need to slow down. With a full complement of included accessories including a super-comfortable parallelogram seatpost, the only remaining question is where you'll be headed next...
