KATHMANDU HYBRID C:62
PRO 400X

ArtNo. 112900

spectralblue´n´prism

Comparison

BRING
THE WORLD
CLOSER

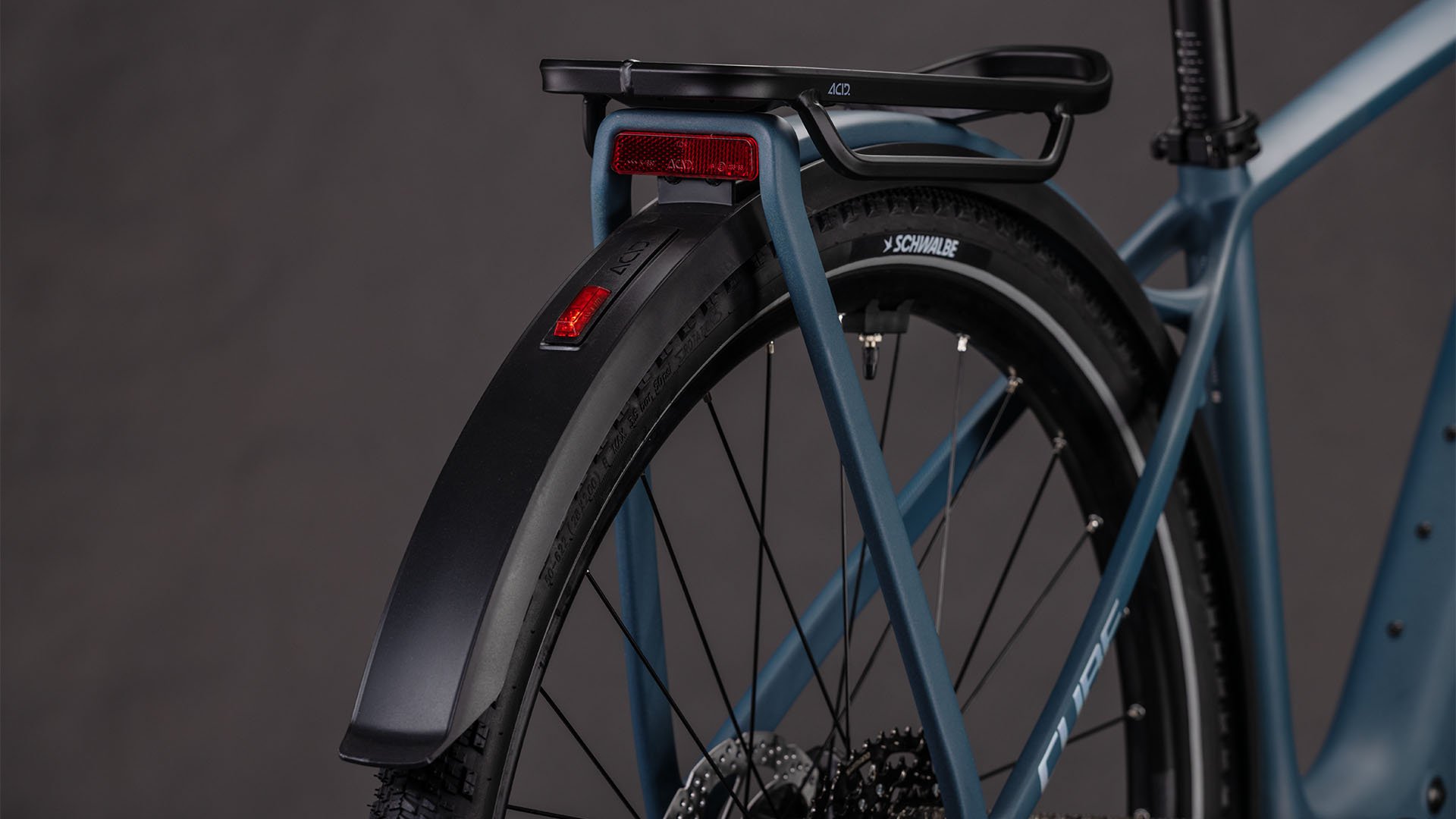

A lighter touring bike means you can take more with you, but low weight is no good without strength. That's why, for the CUBE Kathmandu Hybrid C:62, we used our tried-and-tested C:62® carbon to build a frame structure that combines the load-bearing capacity you need with the comfort and ride handling that you'd expect from CUBE. With a UDH derailleur hanger, Advanced Internal Cable Routing and Boost front and rear axles, it's both elegant and easy to live with. The rigid carbon fork is light and responsive, while the IC 3.0 rear carrier is adaptable and offers a sturdy platform for carrying whatever you need to take with you. Add the 400Wh battery, and it's the complete package for lightweight hybrid touring.

Frame Material

C:62®

Battery

400Wh

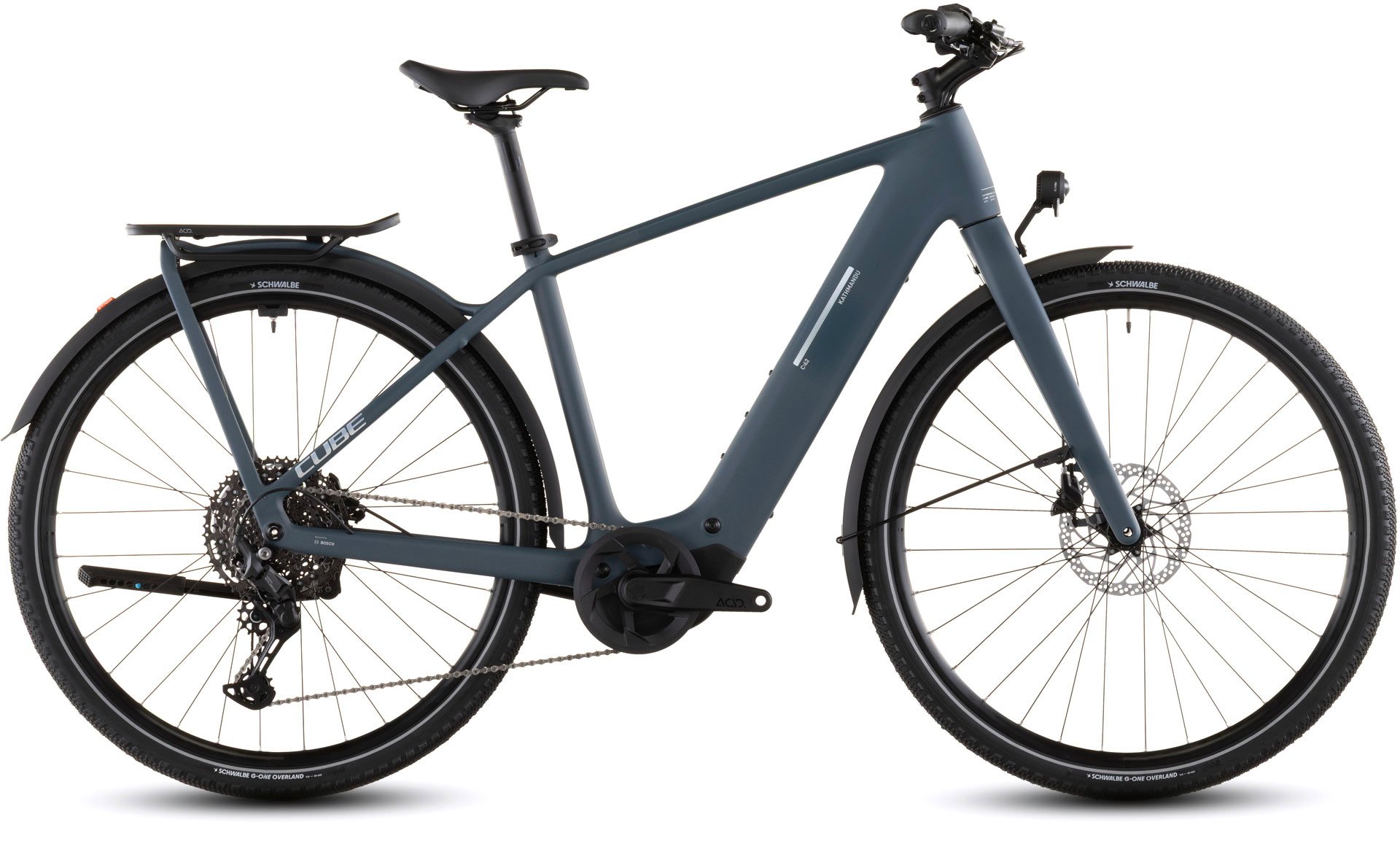

The world is your oyster, so you'll want a great bike with which to explore it. The Kathmandu Hybrid C:62 Pro from CUBE combines a C:62® carbon frame and fork with lightweight Bosch SX power and practical accessories. Town or country, work or play, it'll expand your horizons.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

More Information

110
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

	50 cm	54 cm	58 cm	62 cm
Seat tube	440	490	540	590
Top Tube Horizontal	582	593	604	615
Seat angle	75°	75°	75°	75°
Head tube angle	70°	70°	70°	70°
Chainstays	490	490	490	490
Head tube	130	150	170	190
Wheelbase	1127	1140	1153	1166
BB-Height to Hub	75	75	75	75
Protrusion height - 80mm	773	813	850	883
Reach	397	403	408	414
Stack	618	637	656	675

Ergonomics

	50 cm	54 cm	58 cm	62 cm
Stem length	75	75	75	75
Angle stem	17°	17°	17°	17°
Handlebar width	700	700	700	700
Crank length	165	165	165	165
Length seat post	300	350	350	350
Diameter seatpost	31.6	31.6	31.6	31.6
Max. insertion depth seat post	260	280	300	300
Diameter tire maximum	746	746	746	746
Width tire maximum	50	50	50	50

All values are given in millimetres or degrees.

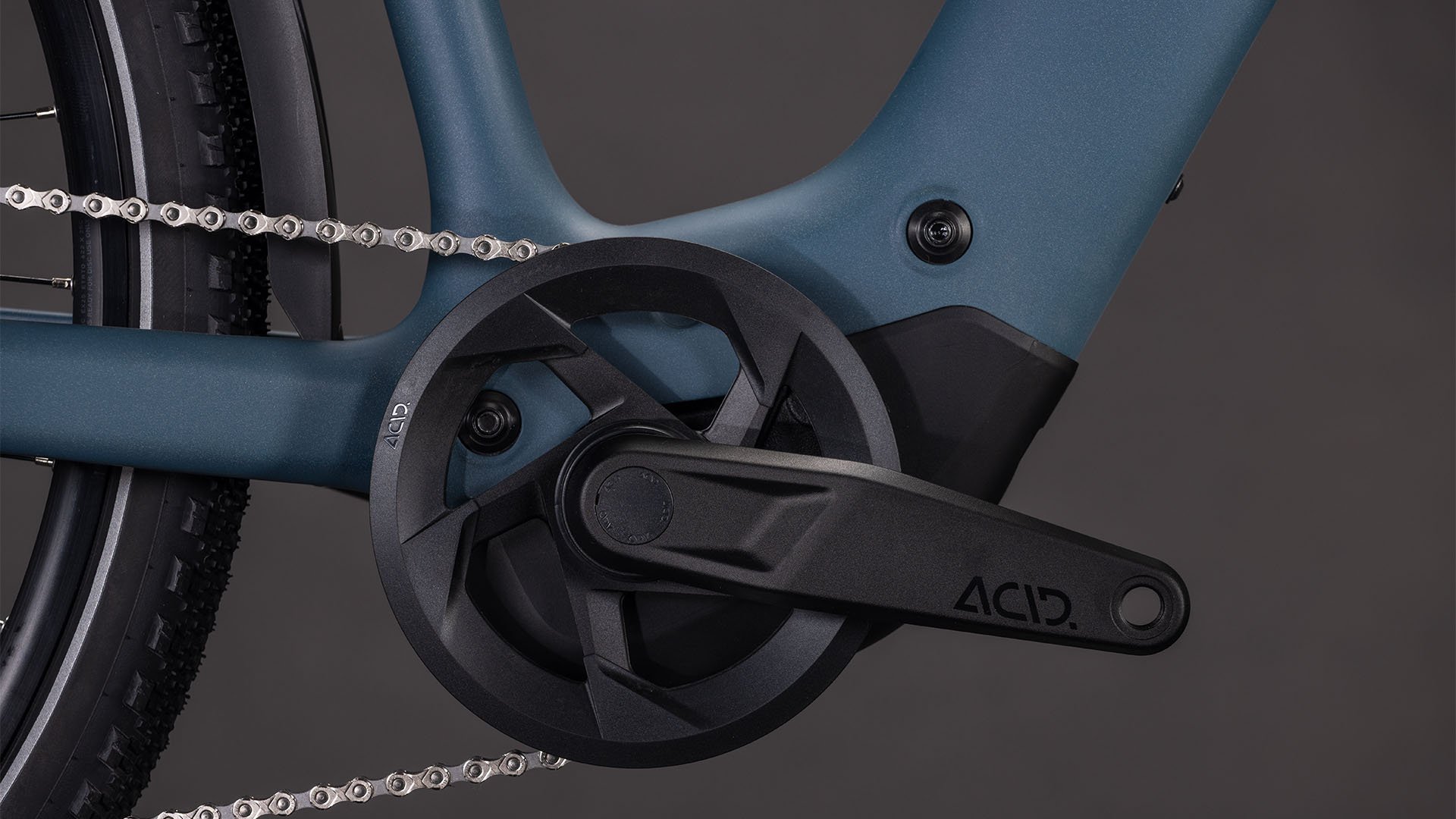

The CUBE Kathmandu Hybrid C:62 Pro has two gramme-shaving tricks up its sleeve. For starters, there's the C:62® carbon frame and fork, complete with rugged IC 3.0 rear carrier. It's as tough and versatile as it is light and lively to ride. Second, Bosch's lightweight SX motor and 400Wh battery provides up to 60Nm of pedal assistance without needlessly weighing you down. Shimano's reliable 1x11 Cues gears deliver power via 50mm Schwalbe G-One Overland tyres, and there's a powerful set of Shimano hydraulic disc brakes to ensure you can slow and stop safely, whatever the weather. It's all you need for adventures, near or far.
