STEREO HYBRID ONE77 HPC
TM 800

ArtNo. 103400

reedgreen´n´matrix

Comparison

GO
LARGE

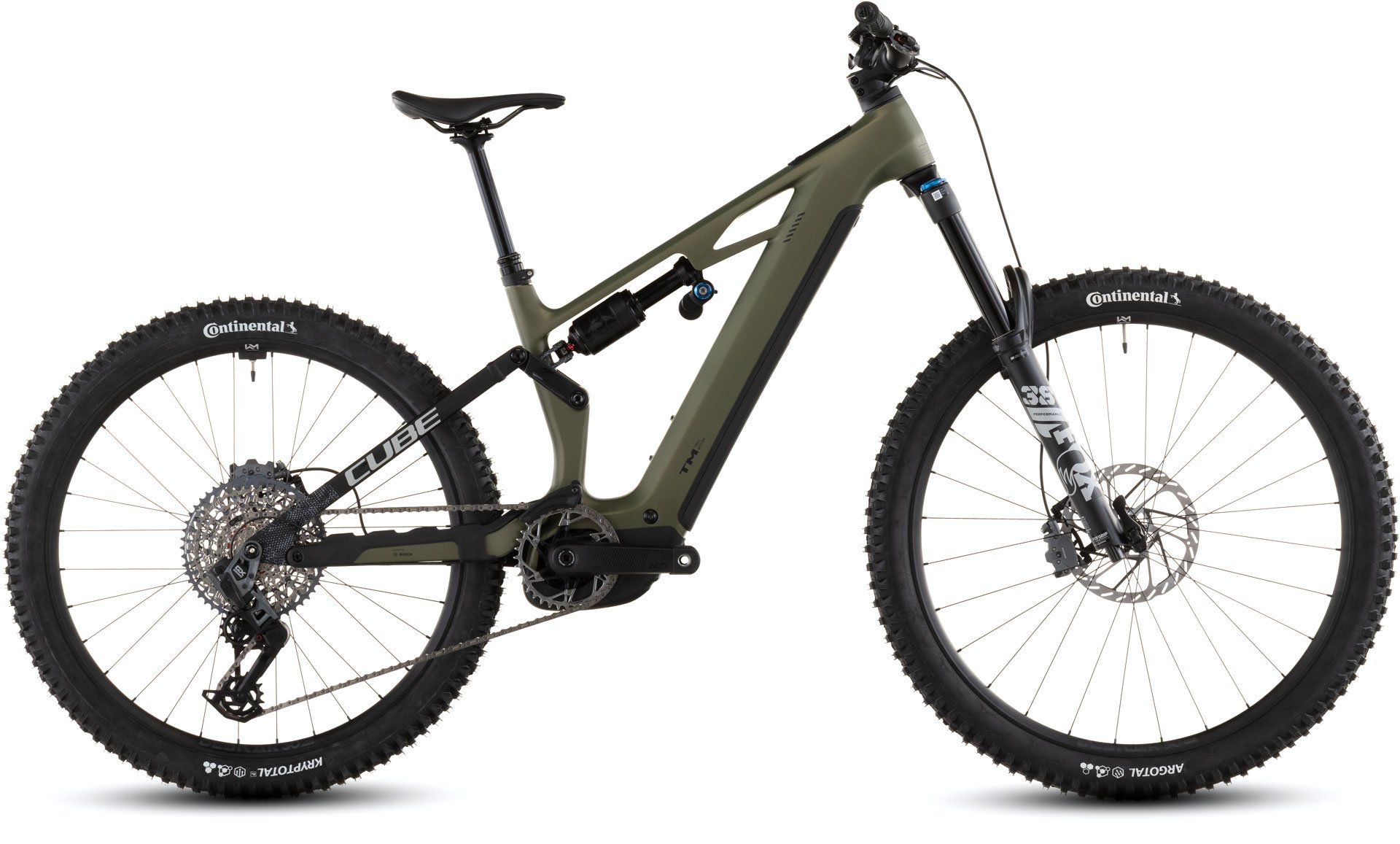

The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a Direct Mount chain guide to keep you driving forwards even when the going gets rough.

Frame Material

High Performance Carbon

Battery

800Wh

Wheels

29" / 27.5"

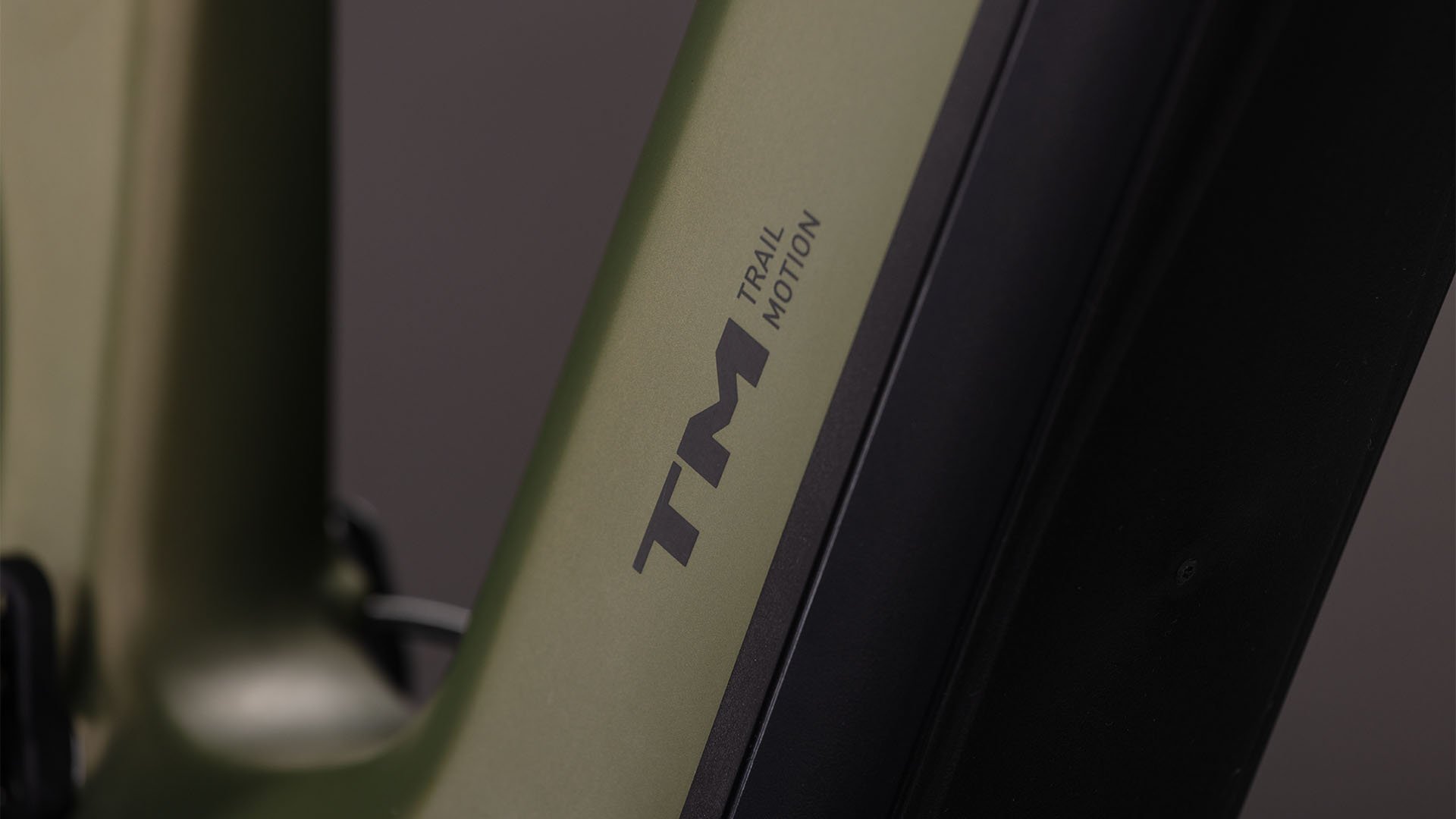

Only special bikes get to wear the Trail Motion name. The Stereo Hybrid ONE77 HPC TM earns its place with mountain-taming suspension and geometry, carefully selected components, Bosch power and an 800Wh battery. With big mountains in its sights and a build to match, it's got what you need to ratchet up the fun factor.

More Information

Bike category of use: 4

You can find more information about Bike Classification at the following link.

More Information

125
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Please see the table for information on the distribution of weight across the system in conjunction with compatible accessories (luggage carriers, bike trailers, etc.).

System weight table

Geometry

Slack/Moderate	S	M	L	XL
Seat tube	370	405	420	480
Top Tube Horizontal	572 / 573	597 / 598	625 / 626	659 / 661
Seat angle	76.7° / 76.5°	76.7° / 76.5°	76.7° / 76.5°	76.7° / 76.5°
Head tube angle	63.8° / 64.4°	63.8° / 64.4°	63.8° / 64.4°	63.8° / 64.4°
Chainstays	443	443	443	443
Head tube	103	103	115	130
Wheelbase	1213 / 1206	1238 / 1231	1269 / 1261	1305 / 1297
BB-Height to Hub	13	13	13	13
Protrusion height - 80mm	758	754	753	752
Reach	427 / 425	452 / 450	477 / 475	506 / 505
Stack	635 / 637	635 / 637	645 / 648	659 / 661

Ergonomics

	S	M	L	XL
Stem length	50	50	50	50
Angle stem	12°	12°	12°	12°
Handlebar width	780	780	780	780
Crank length	165	165	165	165
Length seat post	403	462	505	505
Diameter seatpost	31.6	31.6	31.6	31.6
max. zasunutí sedlovky	215	255	270	315
Stroke seatpost	120	150	170	170
Diameter tire maximum	721	721	721	721
Width tire maximum	66	66	66	66
Rear suspension travel	172	172	172	172

All values are given in millimetres or degrees.

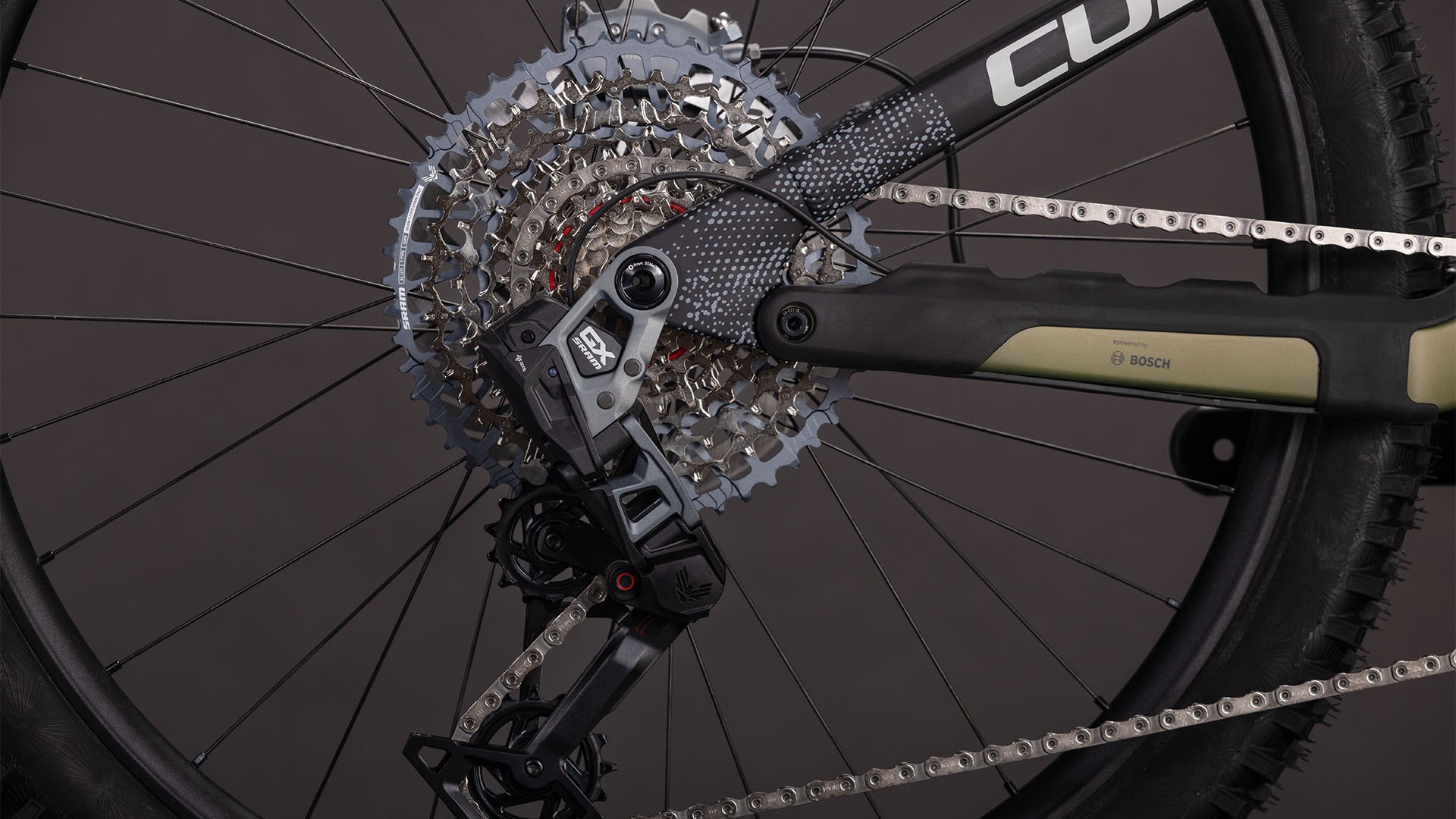

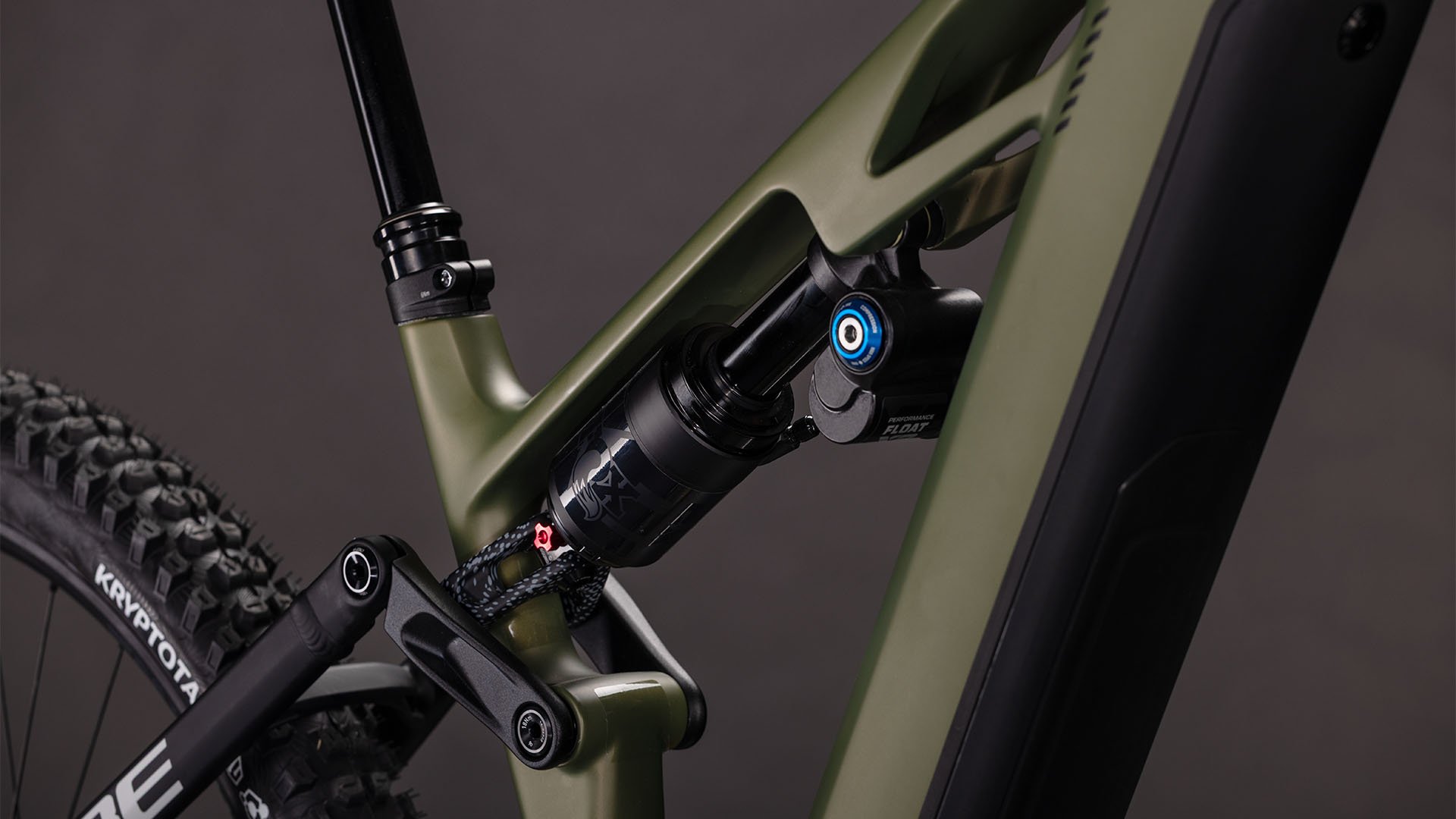

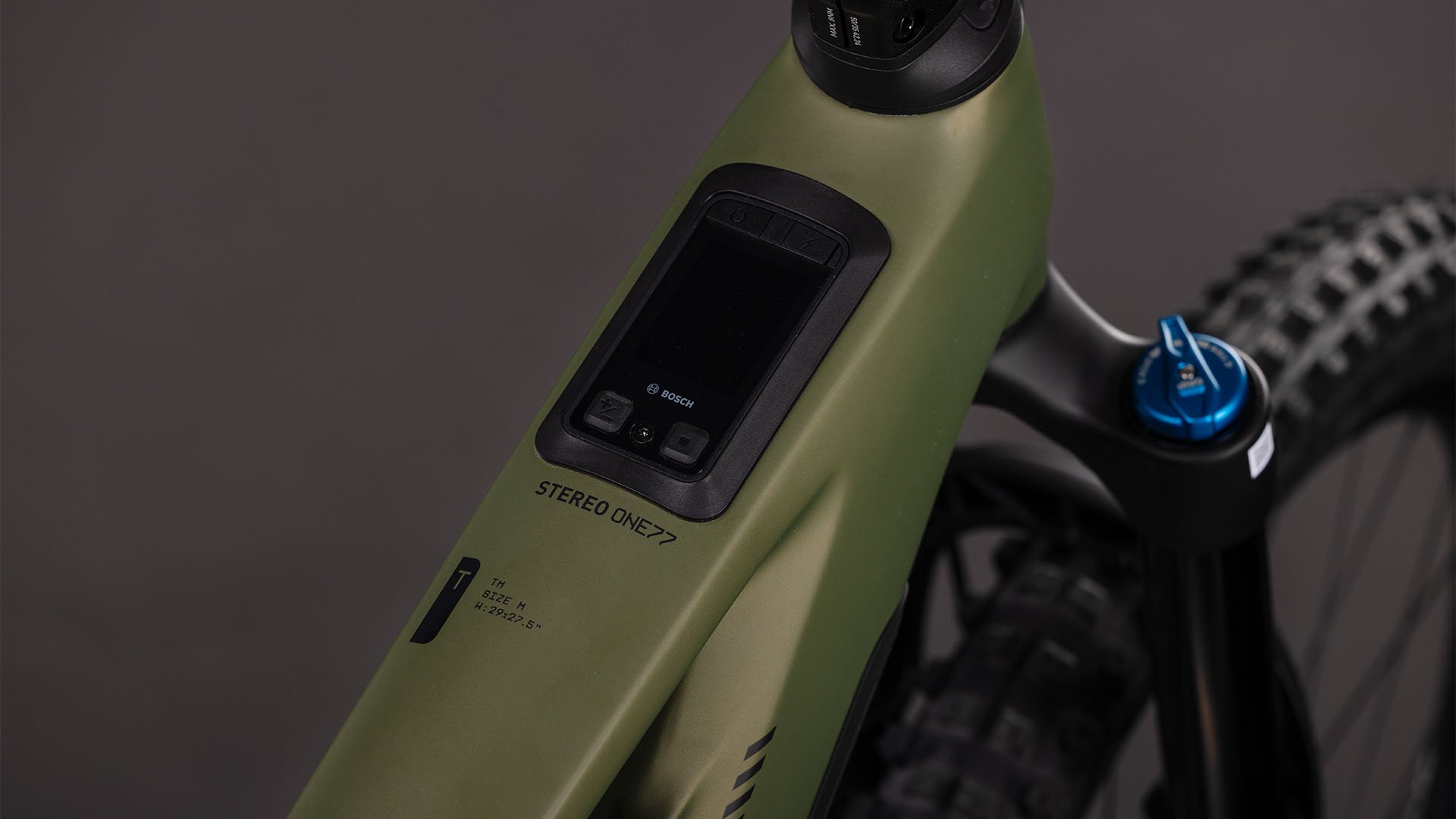

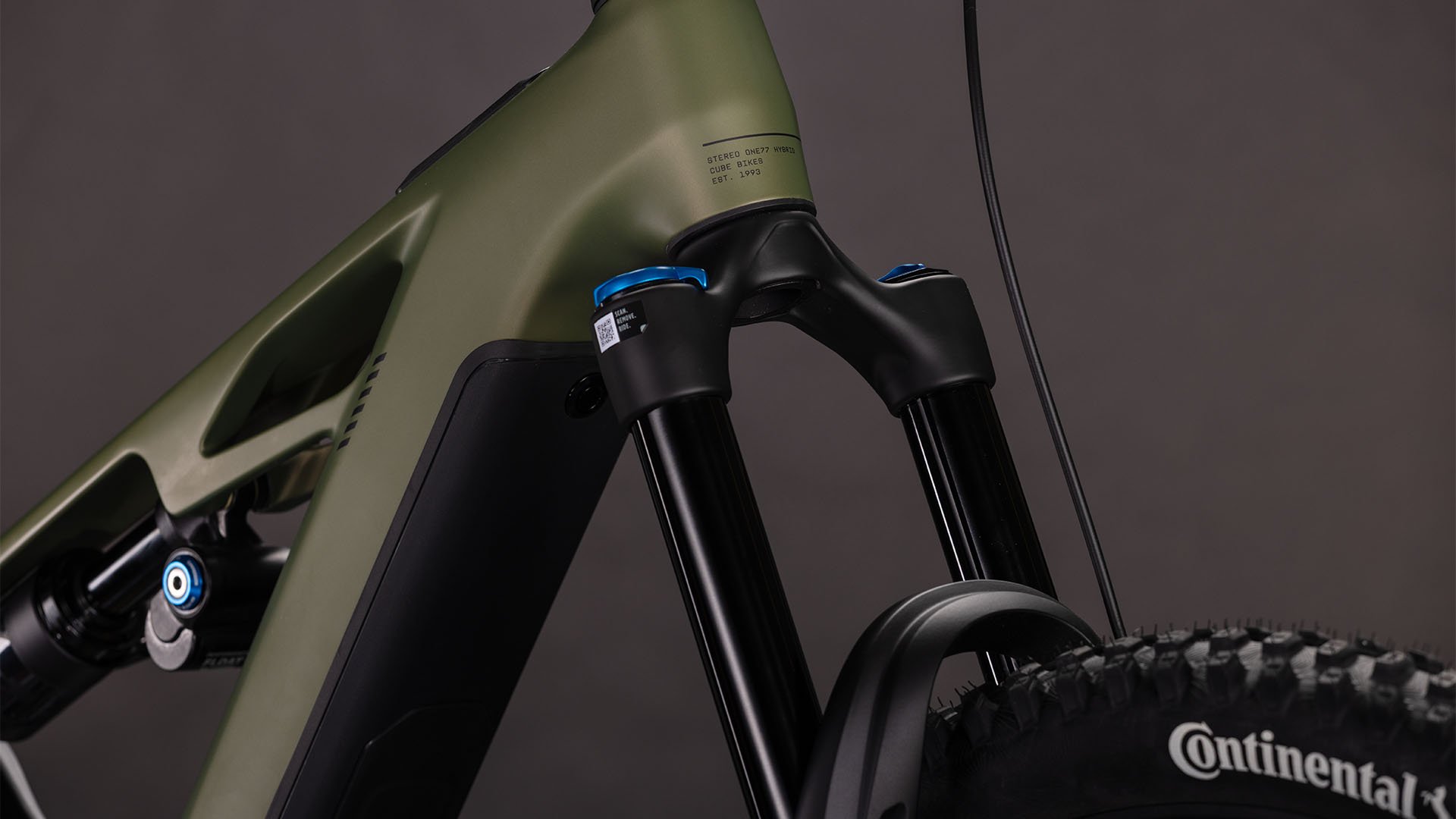

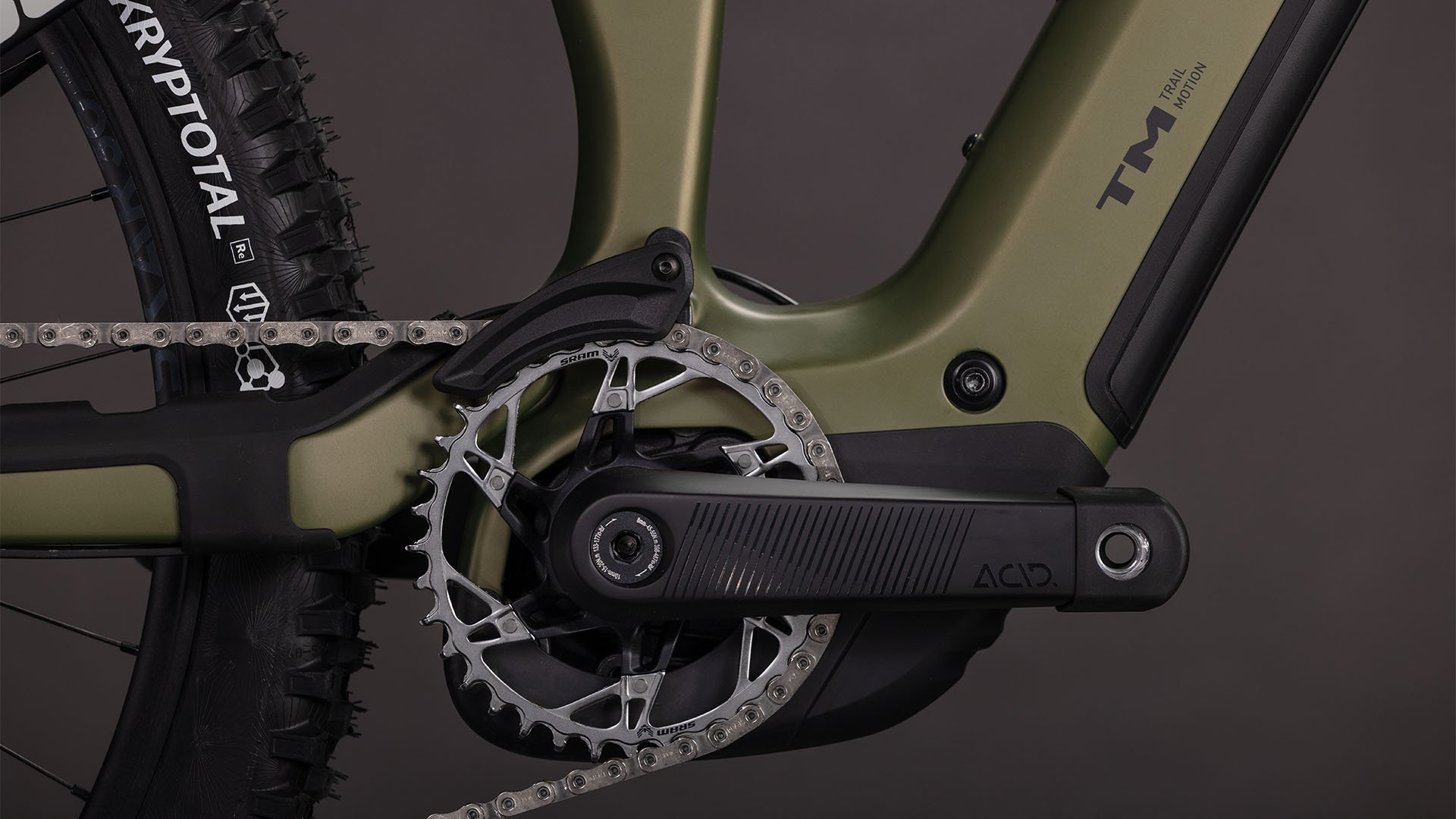

In keeping with CUBE Trail Motion tradition, the Stereo Hybrid ONE77 HPC TM is something rather special. For starters, we fed the power of the Bosch CX drive and 800Wh PowerTube battery through Sram's GX Eagle Transmission 1x12 gears with an ACID carbon crank, for effortless ratio selection and incredible electronic precision – and the Kiox 400C display shows you exactly what's going on. Next, we chose a Fox Float 38 Performance fork and paired it with a Float X2 Performance shock. Together, they provide 170mm of travel – with loads of adjustment – to help keep the rubber side down. Speaking of which, the mullet Newmen Beskar 30 wheelset is shod with Continental's grippy Argotal and Kryptotal 2.4in tyres. Which is a good thing, because all that traction helps the powerful Sram Maven Bronze hydraulic disc brakes do their job. Combined with a remote dropper seatpost, it's everything you need to pick a fight with gravity and come out on top.
